Power Sander

Model # 31522401 Official Craftsman dual-motion sander

Here are the diagrams and repair parts for Official Craftsman 31522401 dual-motion sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Screw 1-930993-01
#12

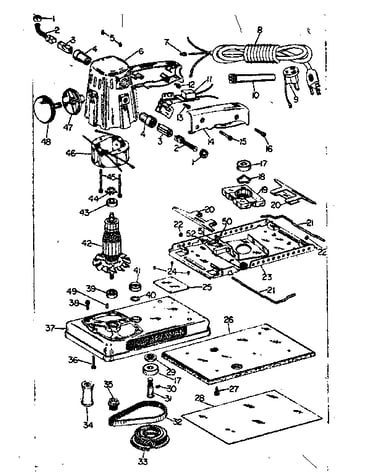

Unit parts diagram

Screw

Part #1-930993-01

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-621431-06
#36

Unit parts diagram

Screw

Part #1-621431-06

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 1-740943-01
#43

Unit parts diagram

Ball bearing

Part #1-740943-01

The manufacturer no longer makes this part, and there's no substitute part

Drive Screw 1-795247-06
#24

Unit parts diagram

Drive screw

Part #1-795247-06

The manufacturer no longer makes this part, and there's no substitute part

Spring Washer 1-620789-05
#18

Unit parts diagram

Spring washer

Part #1-620789-05

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-622180-17
#13

Unit parts diagram

Screw

Part #1-622180-17

The manufacturer no longer makes this part, and there's no substitute part

Switch 1-622184-00
#11

Unit parts diagram

Switch

Part #1-622184-00

The manufacturer no longer makes this part, and there's no substitute part

Platen Lever 3-622779-01
#23

Unit parts diagram

Platen lever

Part #3-622779-01

The manufacturer no longer makes this part, and there's no substitute part

Paper Clamp 2-621908-00
#20

Unit parts diagram

Paper clamp

Part #2-621908-00

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 1-621585-01
#17

Unit parts diagram

Ball bearing

Part #1-621585-01

The manufacturer no longer makes this part, and there's no substitute part
