Model # KLONDIKE Official Yukon wood & coal burning furnace

Here are the diagrams and repair parts for Official Yukon KLONDIKE wood & coal burning furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

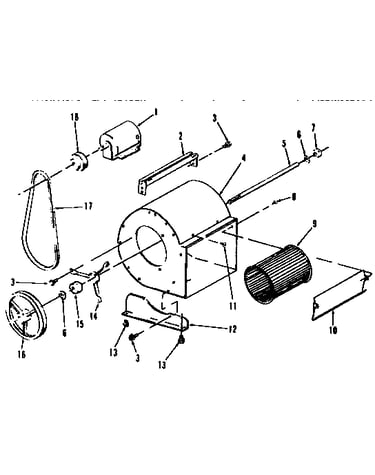

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 133 parts  |
Transformer 10106700
#11

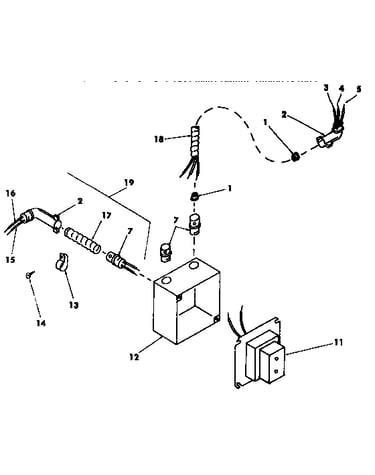

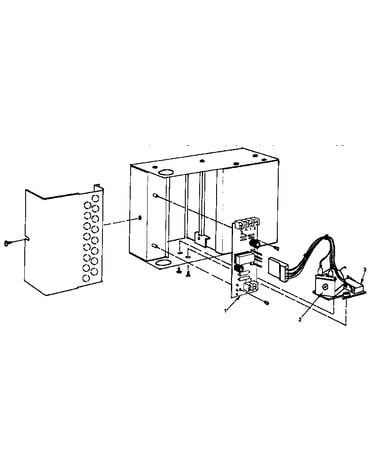

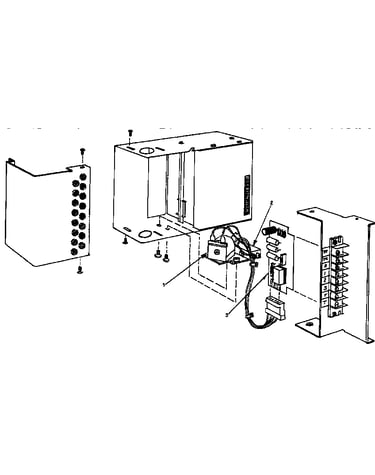

Wire junction box assembly with transformer diagram

Transformer

Part #10106700

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 10106900

#NI

All parts diagram

Thermostat

Part #10106900

The manufacturer no longer makes this part, and there's no substitute part

Air Filter 10102600

#NI

All parts diagram

Air filter

Part #10102600

The manufacturer no longer makes this part, and there's no substitute part

Washer 10106100
Washer

Part #10106100

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 10106800

#NI

All parts diagram

Thermostat

Part #10106800

The manufacturer no longer makes this part, and there's no substitute part

Handle 20106913
#4

Ash pan assembly diagram

Handle

Part #20106913

The manufacturer no longer makes this part, and there's no substitute part

Conduit 10111100
Conduit

Part #10111100

The manufacturer no longer makes this part, and there's no substitute part

Front Panel, Upper, Rh 31402502
#10B

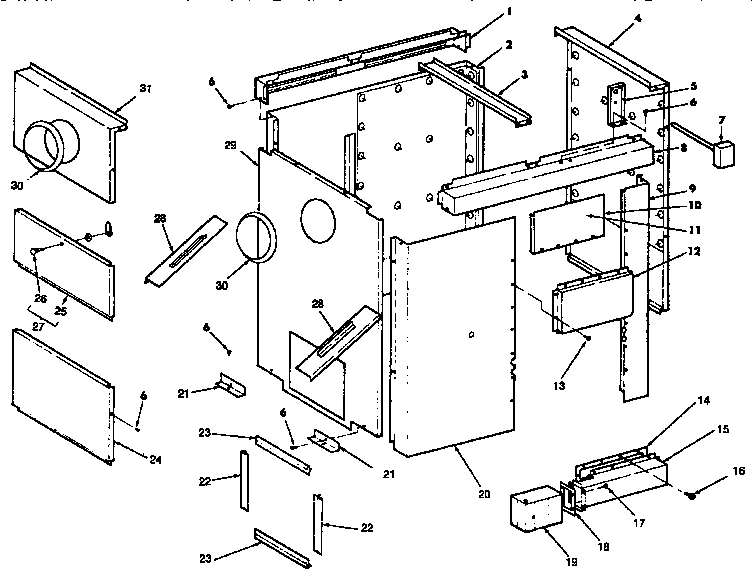

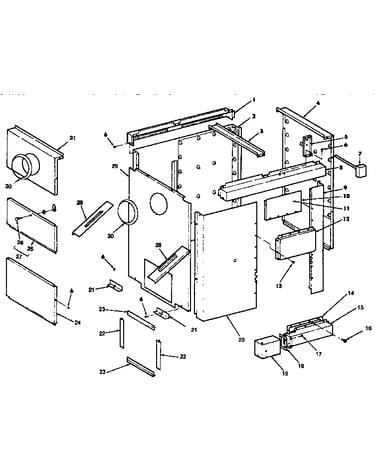

Exterior body assembly diagram

Front panel, upper, rh

Part #31402502

The manufacturer no longer makes this part, and there's no substitute part

Door Latch 10139700
#24

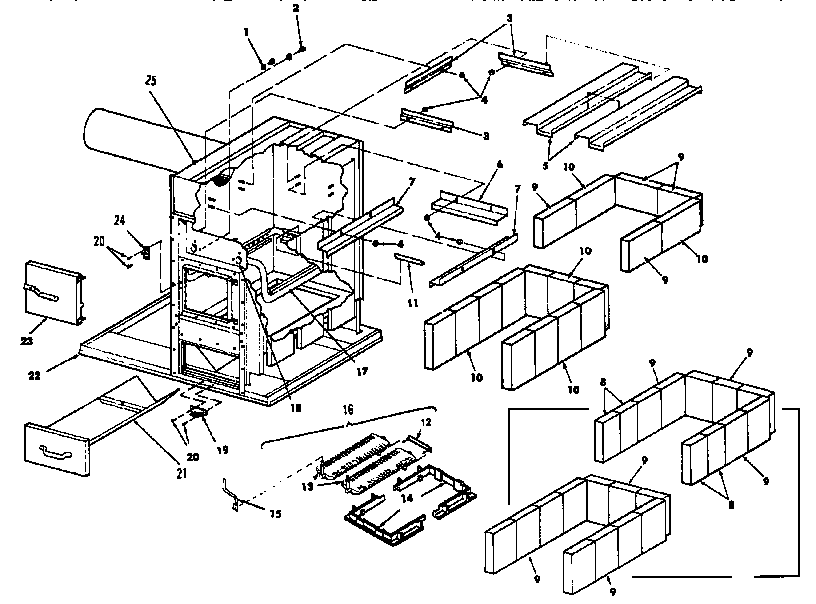

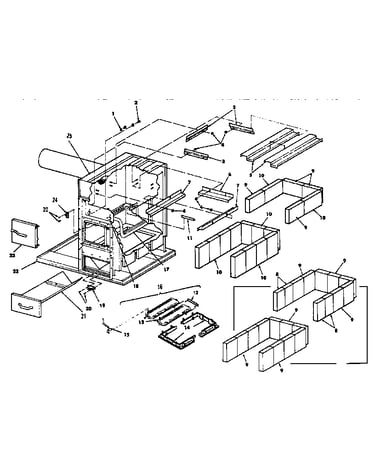

Fire box & heat exchanger assembly diagram

Door latch

Part #10139700

The manufacturer no longer makes this part, and there's no substitute part

Handle 10108800
#5

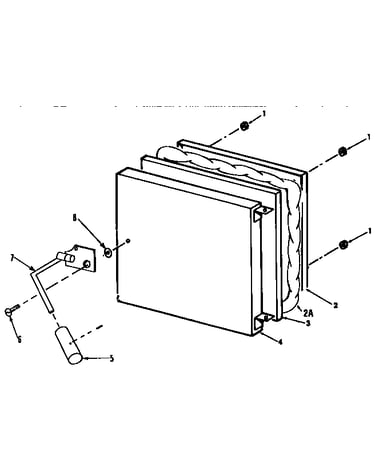

Fire door assembly diagram

Handle

Part #10108800

The manufacturer no longer makes this part, and there's no substitute part
