Model # 66362770 Official Kenmore shot of steam iron

Here are the diagrams and repair parts for Official Kenmore 66362770 shot of steam iron, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

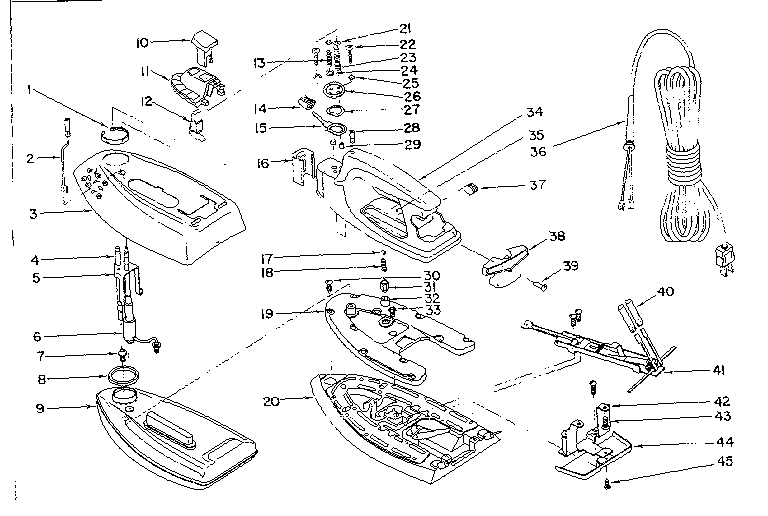

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Craftsman Screw 1290
#45

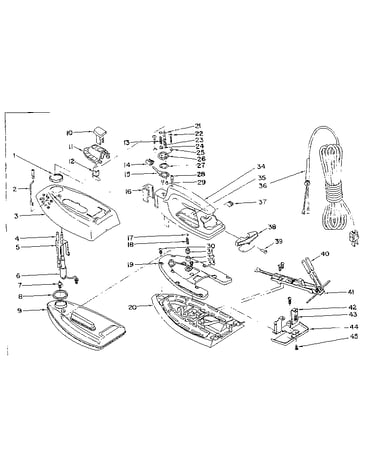

Replacement parts diagram

Craftsman screw

Part #1290

The manufacturer no longer makes this part, and there's no substitute part

Button 203084
#37

Replacement parts diagram

Button

Part #203084

The manufacturer no longer makes this part, and there's no substitute part

Screw 24000
#39

Replacement parts diagram

Screw

Part #24000

The manufacturer no longer makes this part, and there's no substitute part

Switch Assembly 21772
#41

Replacement parts diagram

Switch assembly

Part #21772

The manufacturer no longer makes this part, and there's no substitute part

Spray Bttn 203079
#10

Replacement parts diagram

Spray bttn

Part #203079

The manufacturer no longer makes this part, and there's no substitute part

Gasket 89733
#32

Replacement parts diagram

Gasket

Part #89733

The manufacturer no longer makes this part, and there's no substitute part

Cover Plate 204381
#44

Replacement parts diagram

Cover plate

Part #204381

The manufacturer no longer makes this part, and there's no substitute part

Spring 80952
#18

Replacement parts diagram

Spring

Part #80952

The manufacturer no longer makes this part, and there's no substitute part

Handle 203085
#34

Replacement parts diagram

Handle

Part #203085

The manufacturer no longer makes this part, and there's no substitute part

Pump Nozzle 89736
#6

Replacement parts diagram

Pump nozzle

Part #89736

The manufacturer no longer makes this part, and there's no substitute part
