Kenmore
Canister Vacuum

Model # 11629692 Official Kenmore vacuum cleaner & attachment parts - october 1970

Here are the diagrams and repair parts for Official Kenmore 11629692 vacuum cleaner & attachment parts - october 1970, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |

Caddy 762983
#23

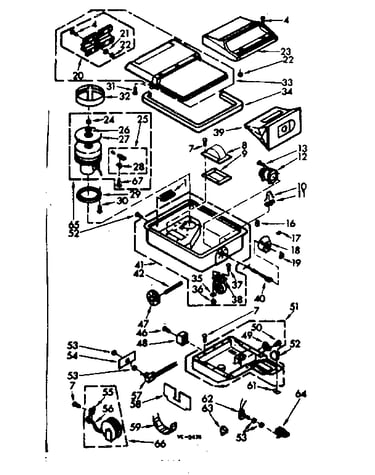

Base assembly diagram

Caddy

Part #762983

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 138473
#35

Base assembly diagram

Lock washer

Part #138473

The manufacturer no longer makes this part, and there's no substitute part

Instruction Insert 763105

#NI

All parts diagram

Instruction insert

Part #763105

The manufacturer no longer makes this part, and there's no substitute part

Hood 763479
#33

Base assembly diagram

Hood

Part #763479

The manufacturer no longer makes this part, and there's no substitute part

Clamp 569097
#28

Base assembly diagram

Clamp

Part #569097

The manufacturer no longer makes this part, and there's no substitute part

Hose Hook 722313
#24

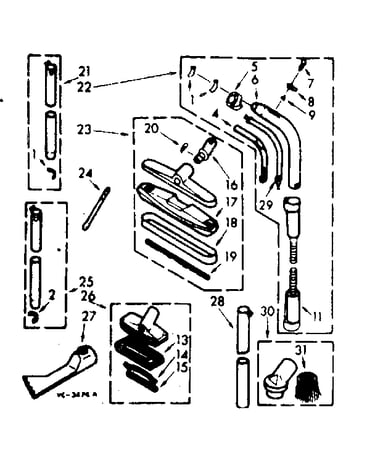

Powermate attachment diagram

Hose hook

Part #722313

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 134530
#36

Base assembly diagram

Hex nut

Part #134530

The manufacturer no longer makes this part, and there's no substitute part

Nut 681045
#61

Base assembly diagram

Nut

Part #681045

The manufacturer no longer makes this part, and there's no substitute part

Dstng Brush 721447
#31

Powermate attachment diagram

Dstng brush

Part #721447

The manufacturer no longer makes this part, and there's no substitute part

Brush 722135
#23

Powermate attachment diagram

Brush

Part #722135

The manufacturer no longer makes this part, and there's no substitute part
