Model # ID5HHEXTS00 Official Ikea side-by-side refrigerator
Here are the diagrams and repair parts for Official Ikea ID5HHEXTS00 side-by-side refrigerator, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part

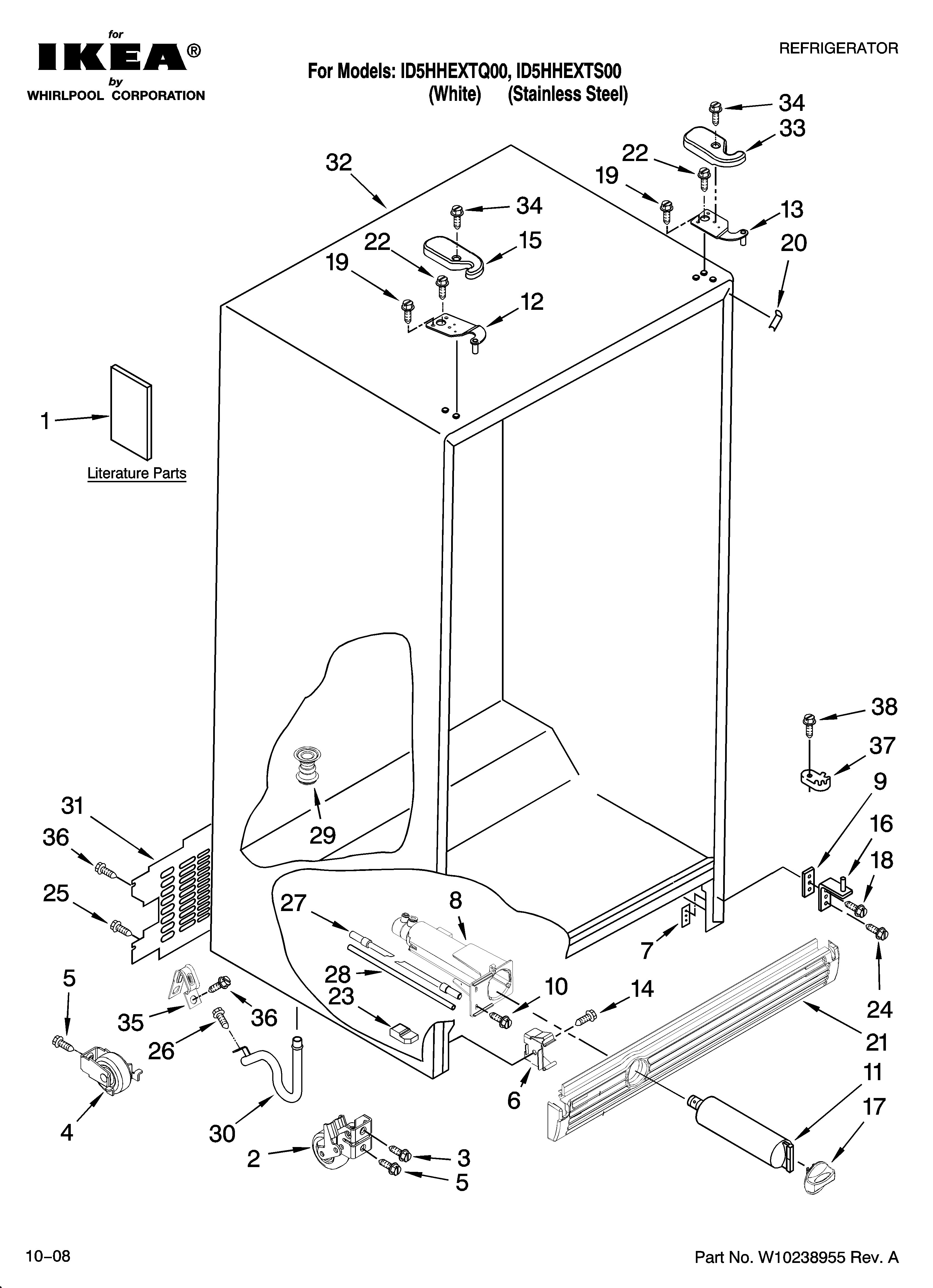

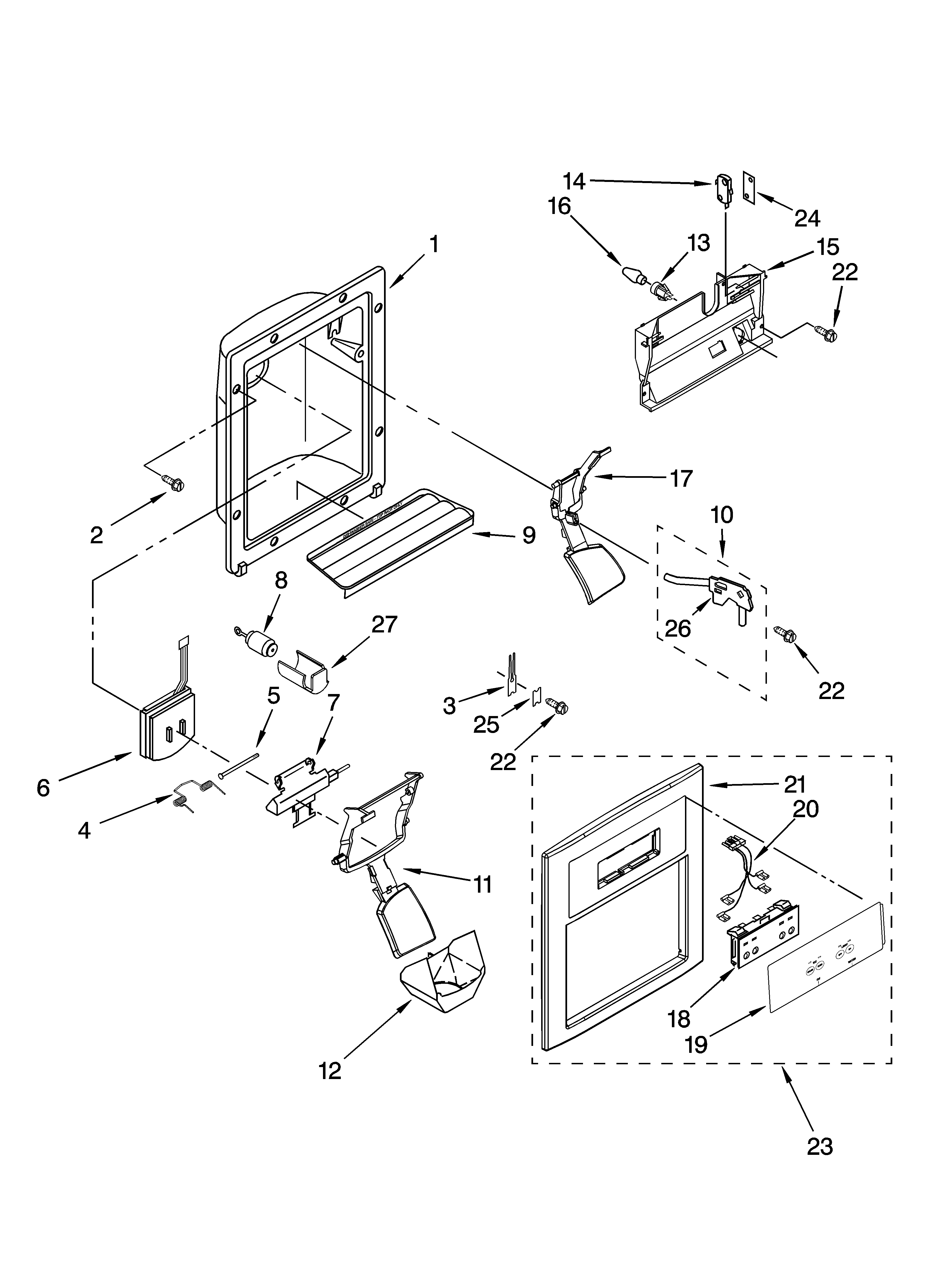

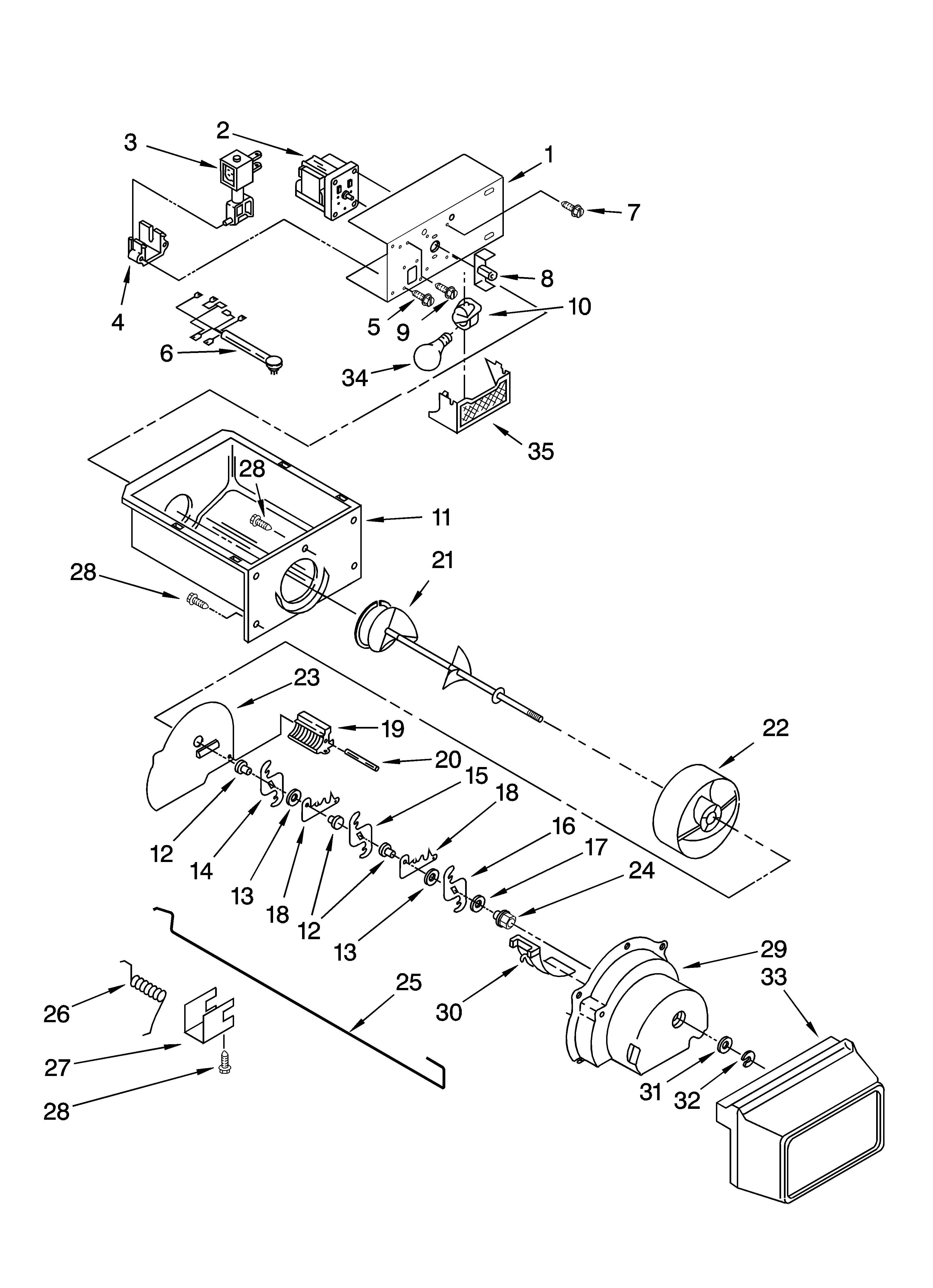

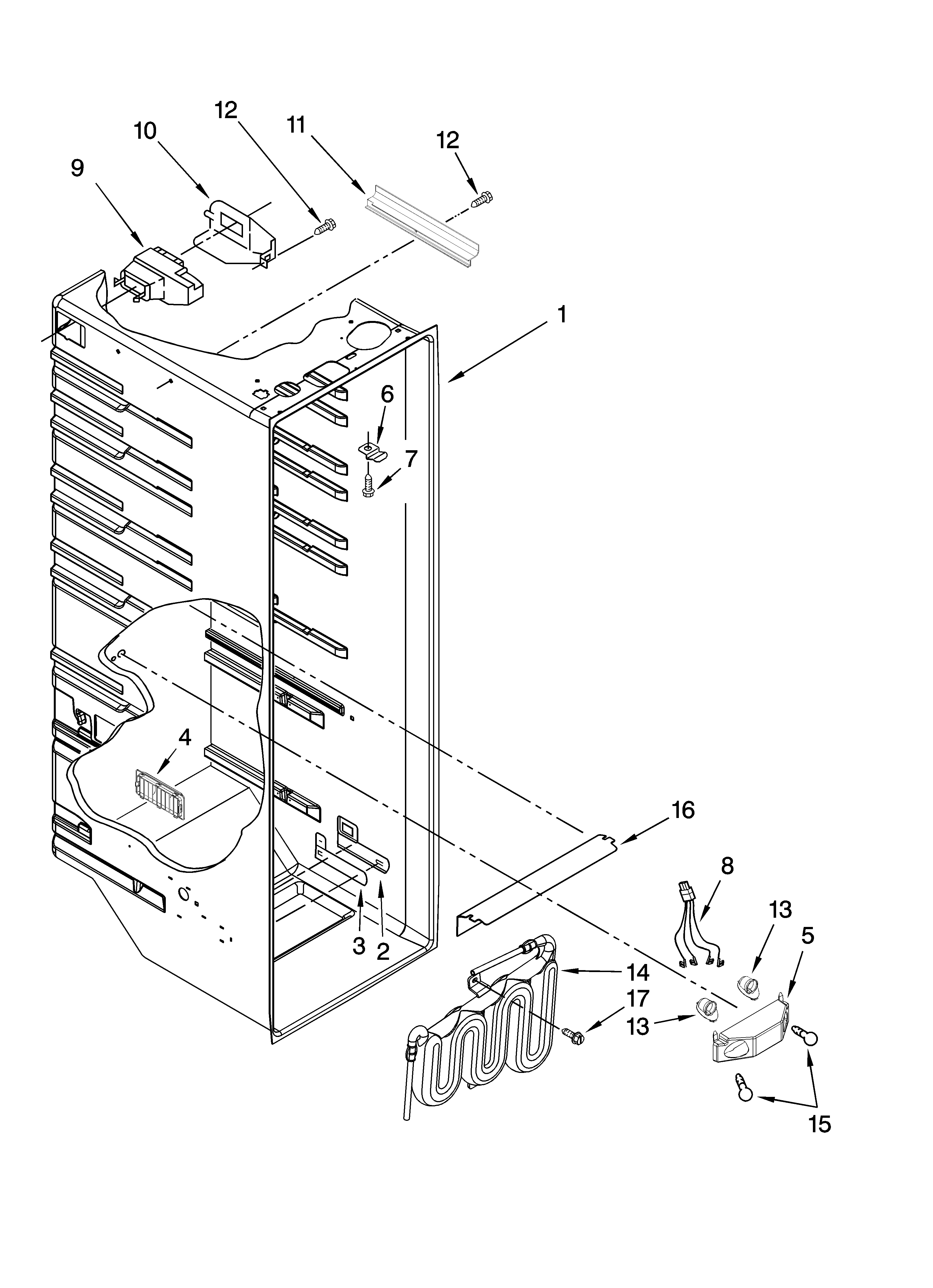

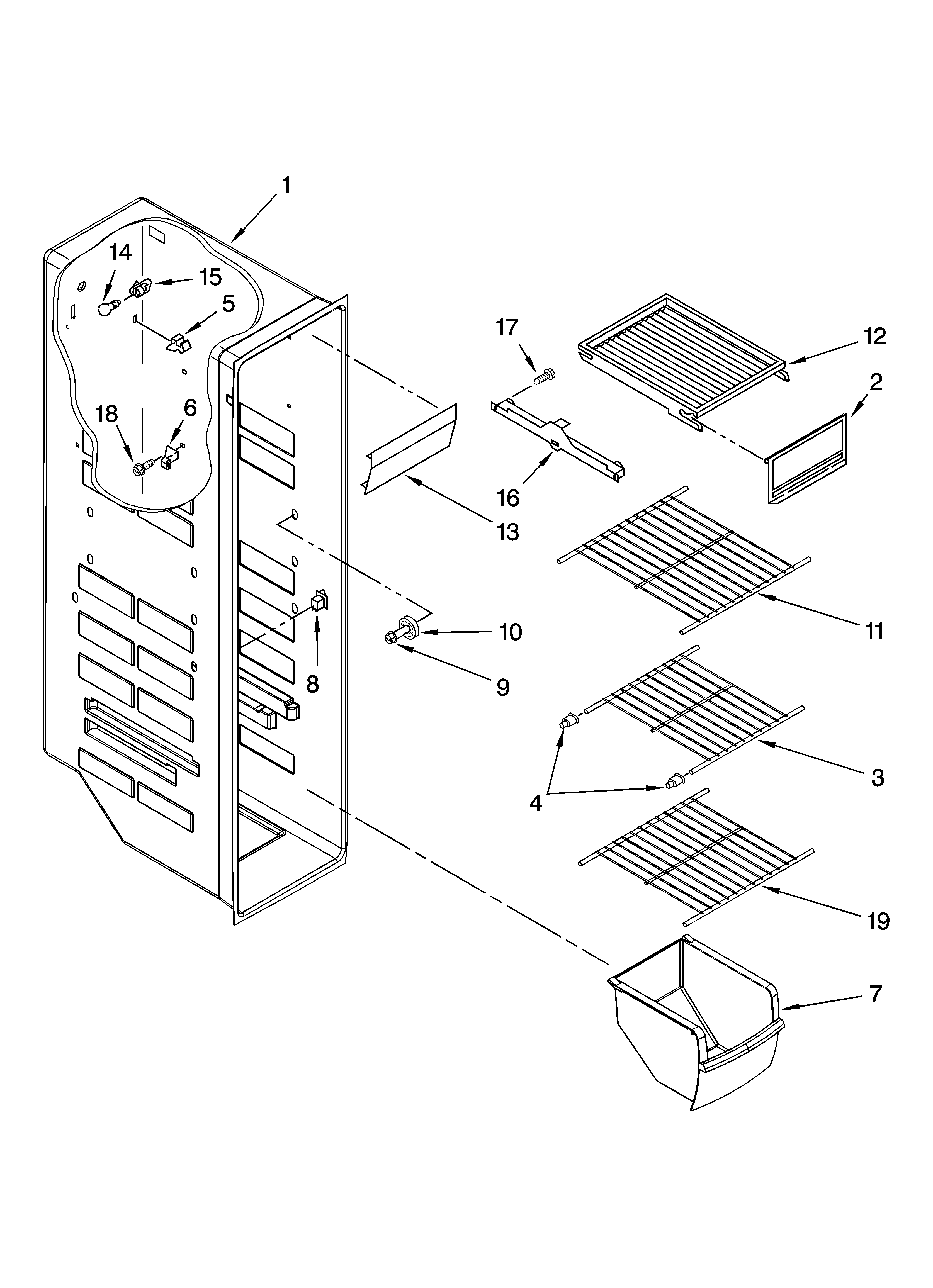

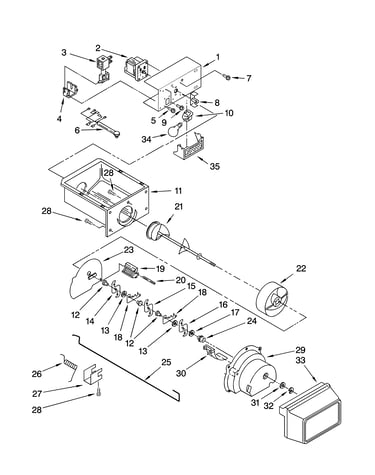

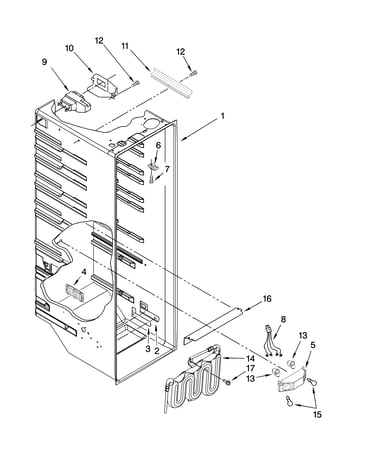

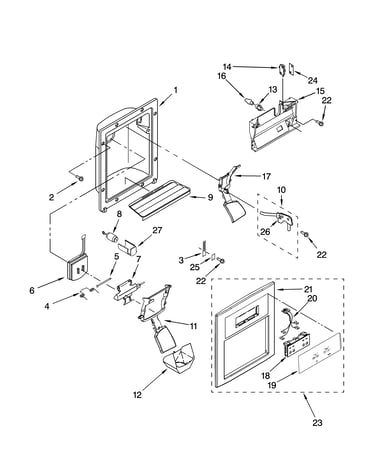

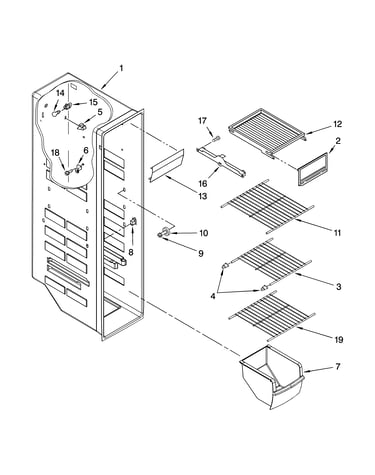

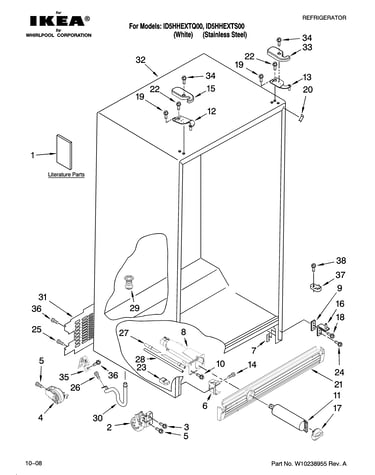

SELECT DIAGRAM
Browse Parts for
ID5HHEXTS00 Refrigerators
#27A

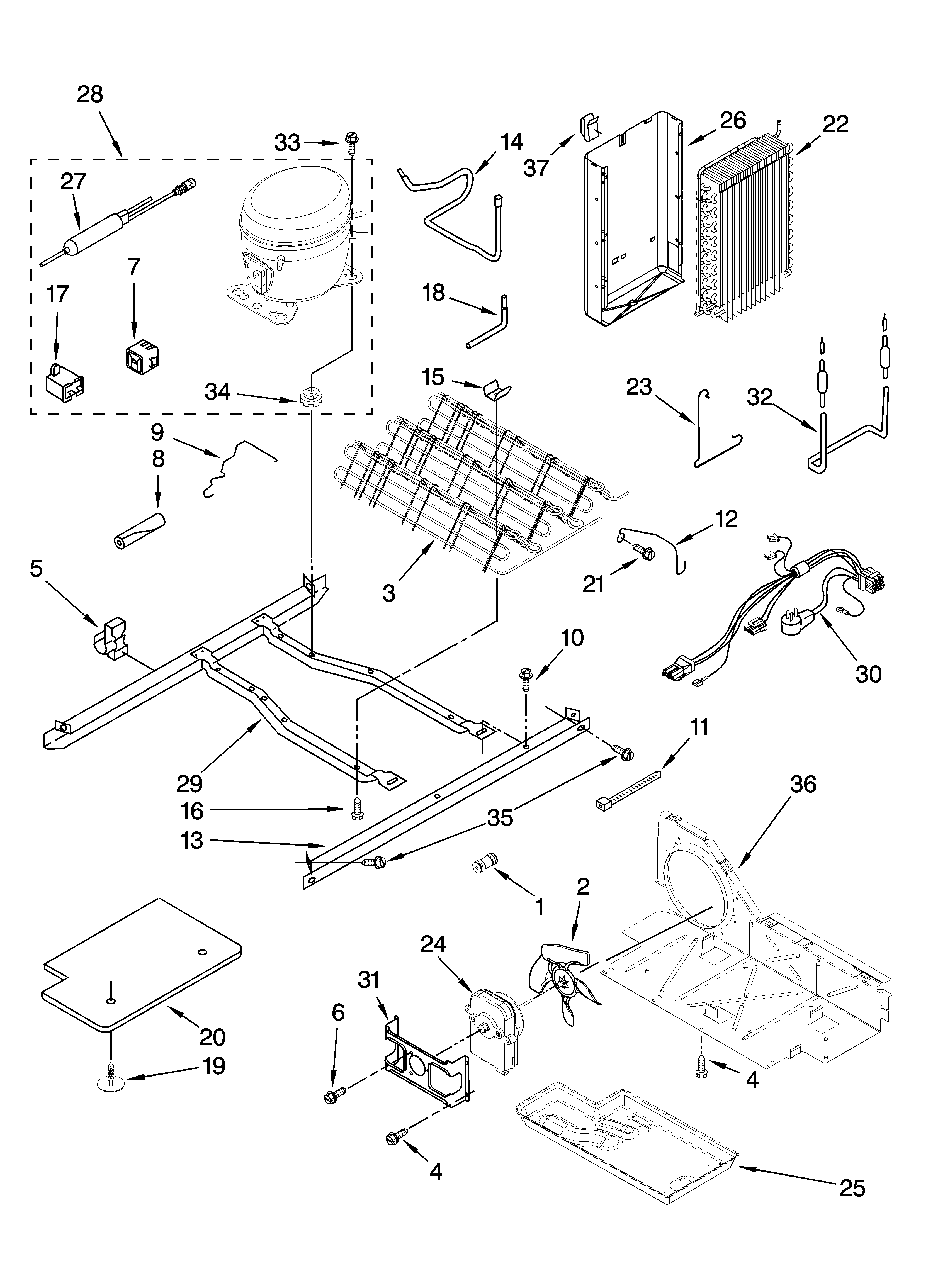

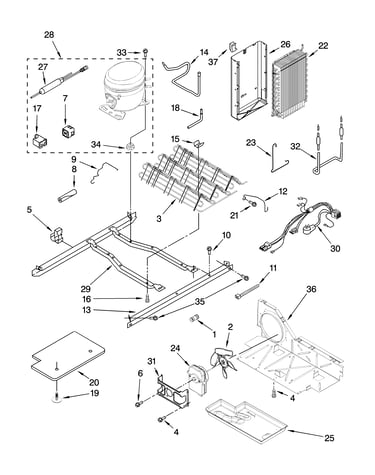

Unit parts diagram
Drier w/dye
Part #2317845
Replaced by #WPW10143759
?
Manufacturer substitution
This part replaces 2317845. Substitute parts can look different from the original.
$20.87 |
22% OFF Phone Price : $26.87
In Stock
#27
Unit parts diagram
Drier tube
Part #W10177049
Replaced by #WPW10143759
?
Manufacturer substitution
This part replaces W10177049. Substitute parts can look different from the original.
$20.87 |
22% OFF Phone Price : $26.87
In Stock
#6

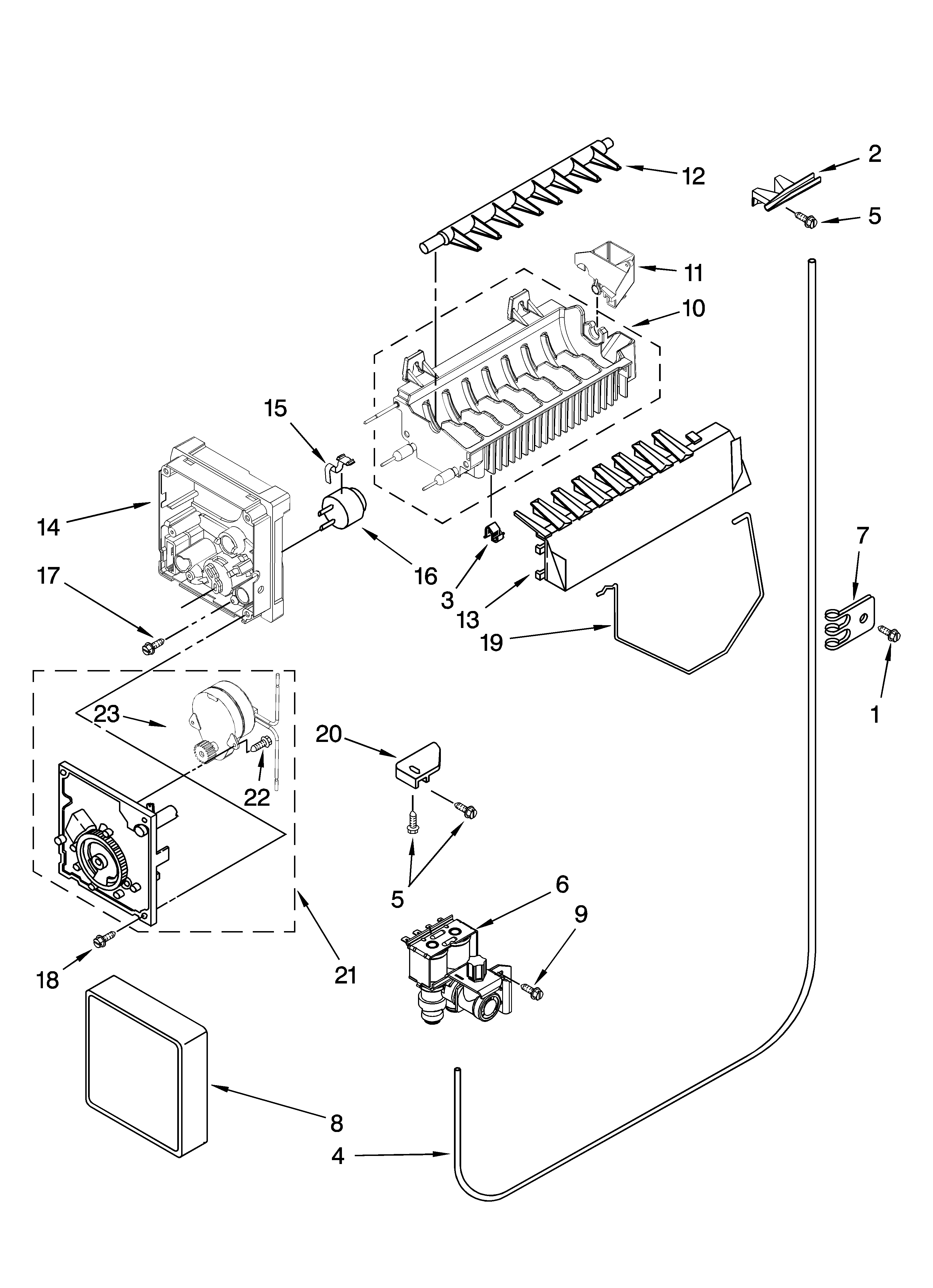

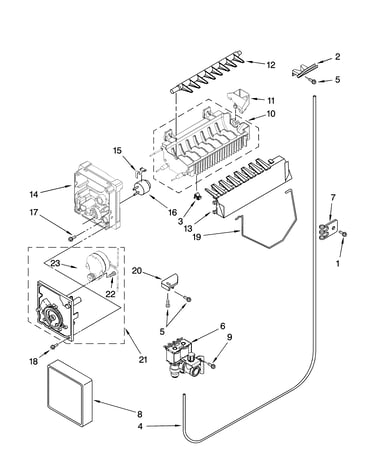

Icemaker parts, optional parts (not included) diagram
Refrigerator inlet valve
Part #2315534
Replaced by #W10408179
?
Manufacturer substitution
This part replaces 2315534. Substitute parts can look different from the original.
$63.66 |
9% OFF Phone Price : $69.66
In Stock
#10

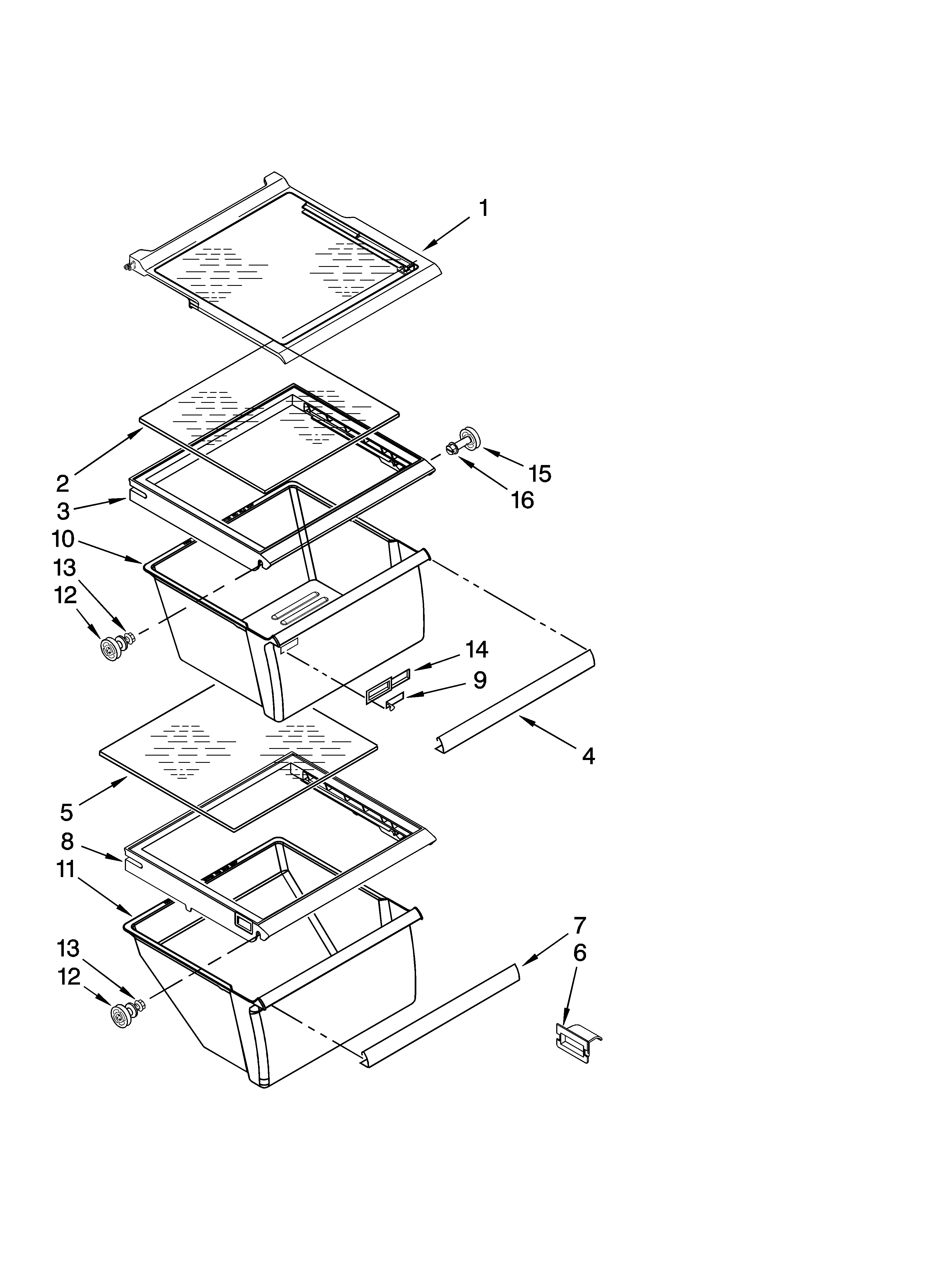

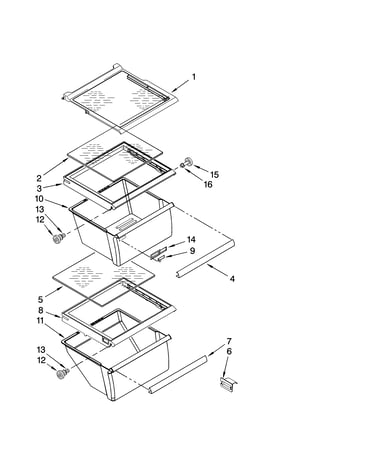

Refrigerator shelf parts diagram
Refrigerator crisper pan
Part #2188652
Replaced by #WP2188656
?
Manufacturer substitution
This part replaces 2188652. Substitute parts can look different from the original.
$63.16 |
9% OFF Phone Price : $69.16
In Stock
#9

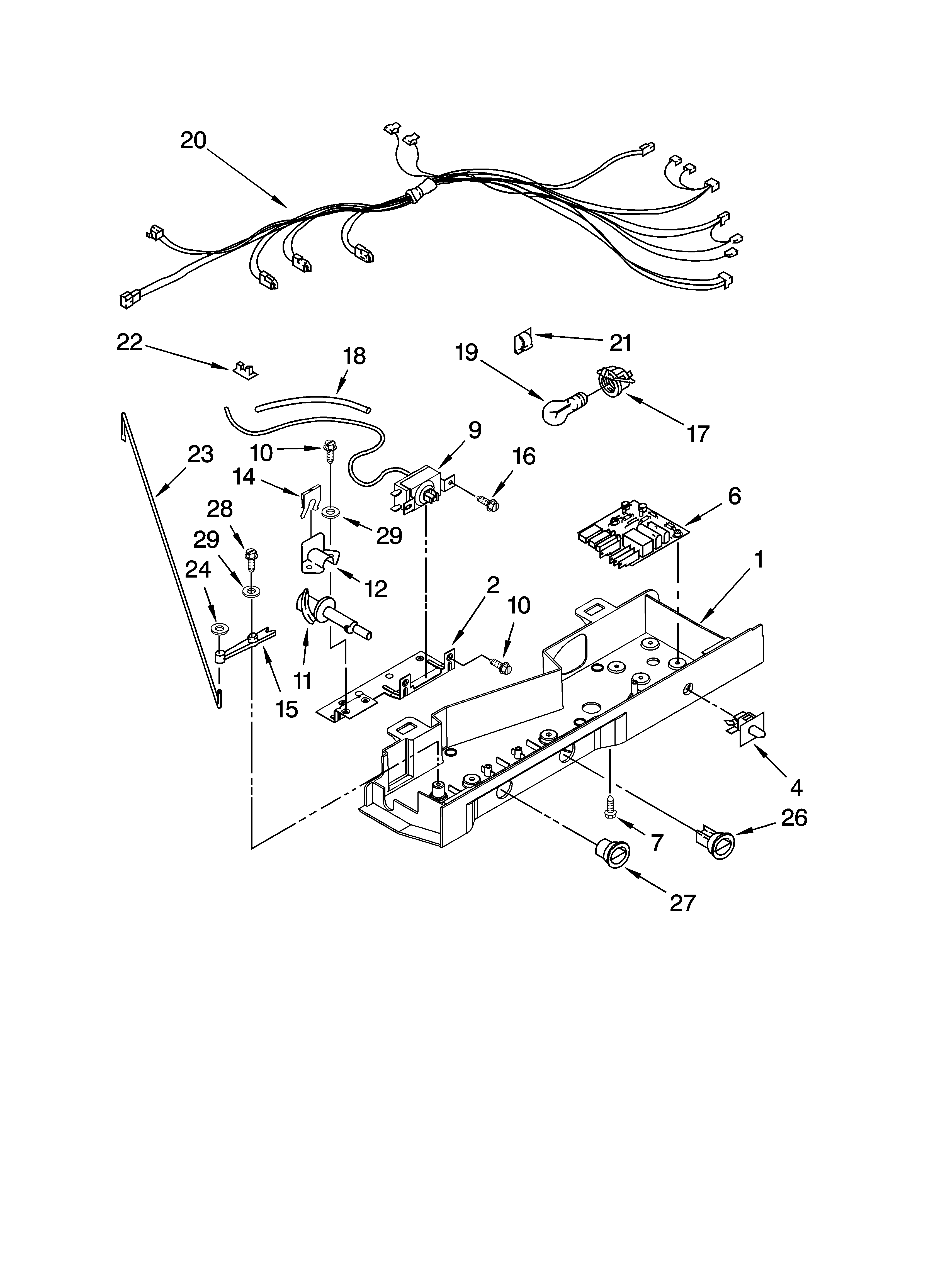

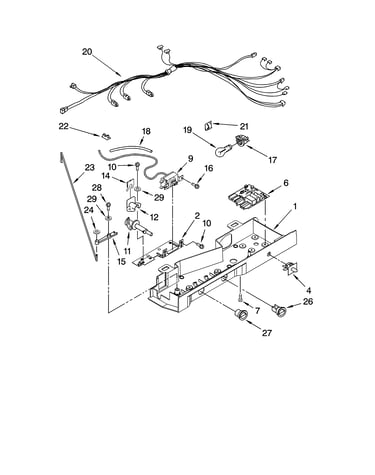

Control parts diagram
Refrigerator thermostat
Part #2198202
Replaced by #WP2198202
?
Manufacturer substitution
This part replaces 2198202. Substitute parts can look different from the original.
$71.98 |
8% OFF Phone Price : $77.98
In Stock
#4

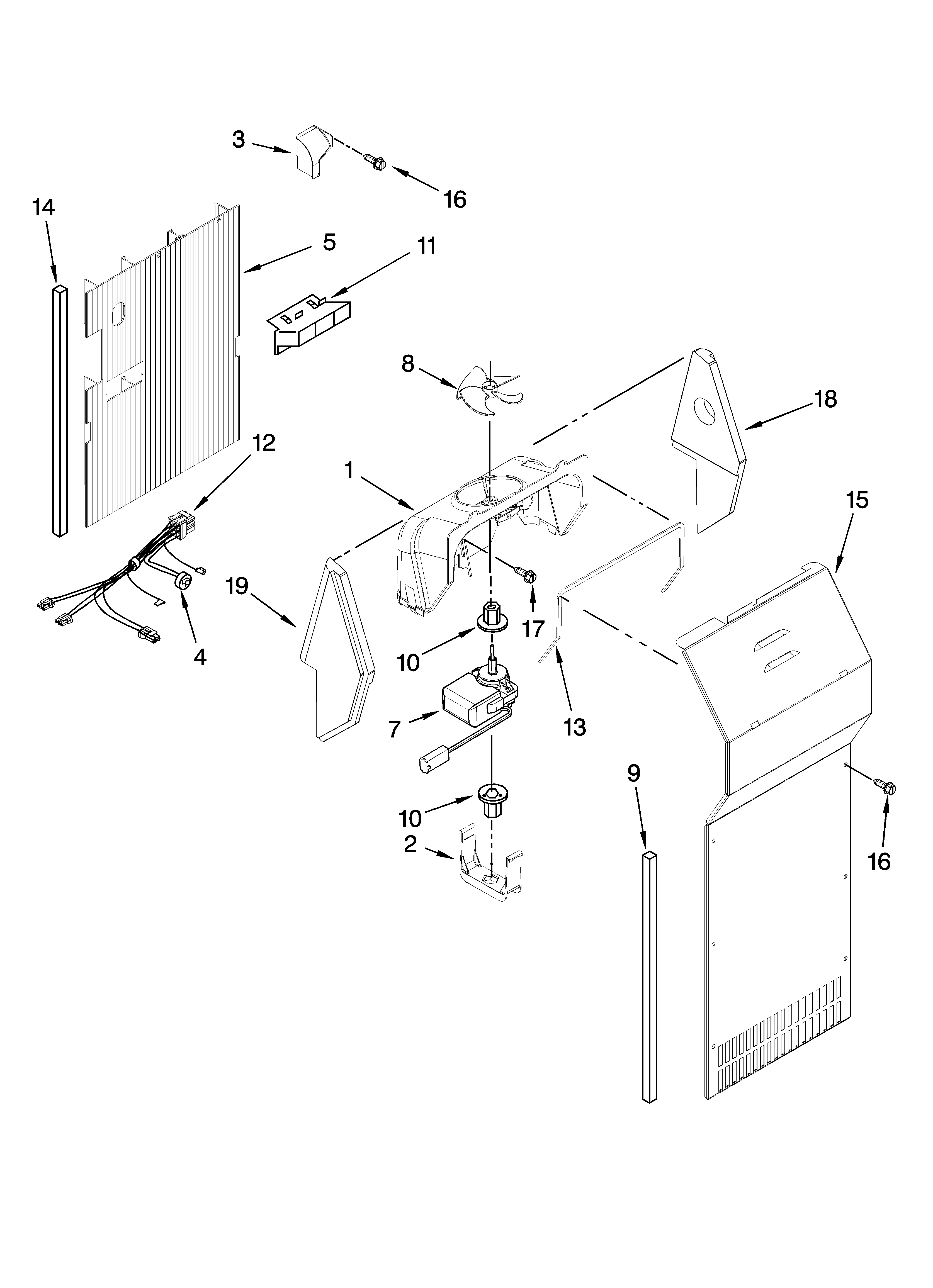

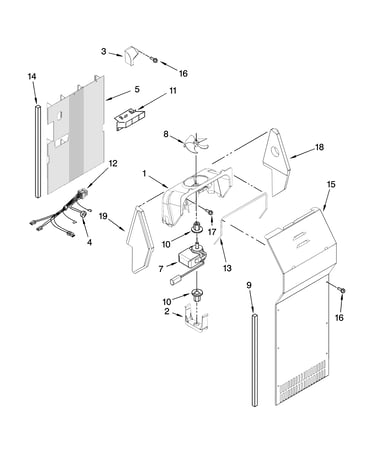

Air flow parts diagram
Refrigerator defrost bi-metal thermostat
Part #2319914
Replaced by #WPW10225581
?
Manufacturer substitution
This part replaces 2319914. Substitute parts can look different from the original.
$30.39 |
16% OFF Phone Price : $36.39
In Stock
#100
Icemaker parts, optional parts (not included) diagram
Refrigerator ice maker
Part #W10190966
Replaced by #WPW10190965
?
Manufacturer substitution
This part replaces W10190966. Substitute parts can look different from the original.
$75.42 |
7% OFF Phone Price : $81.42
In Stock
#9

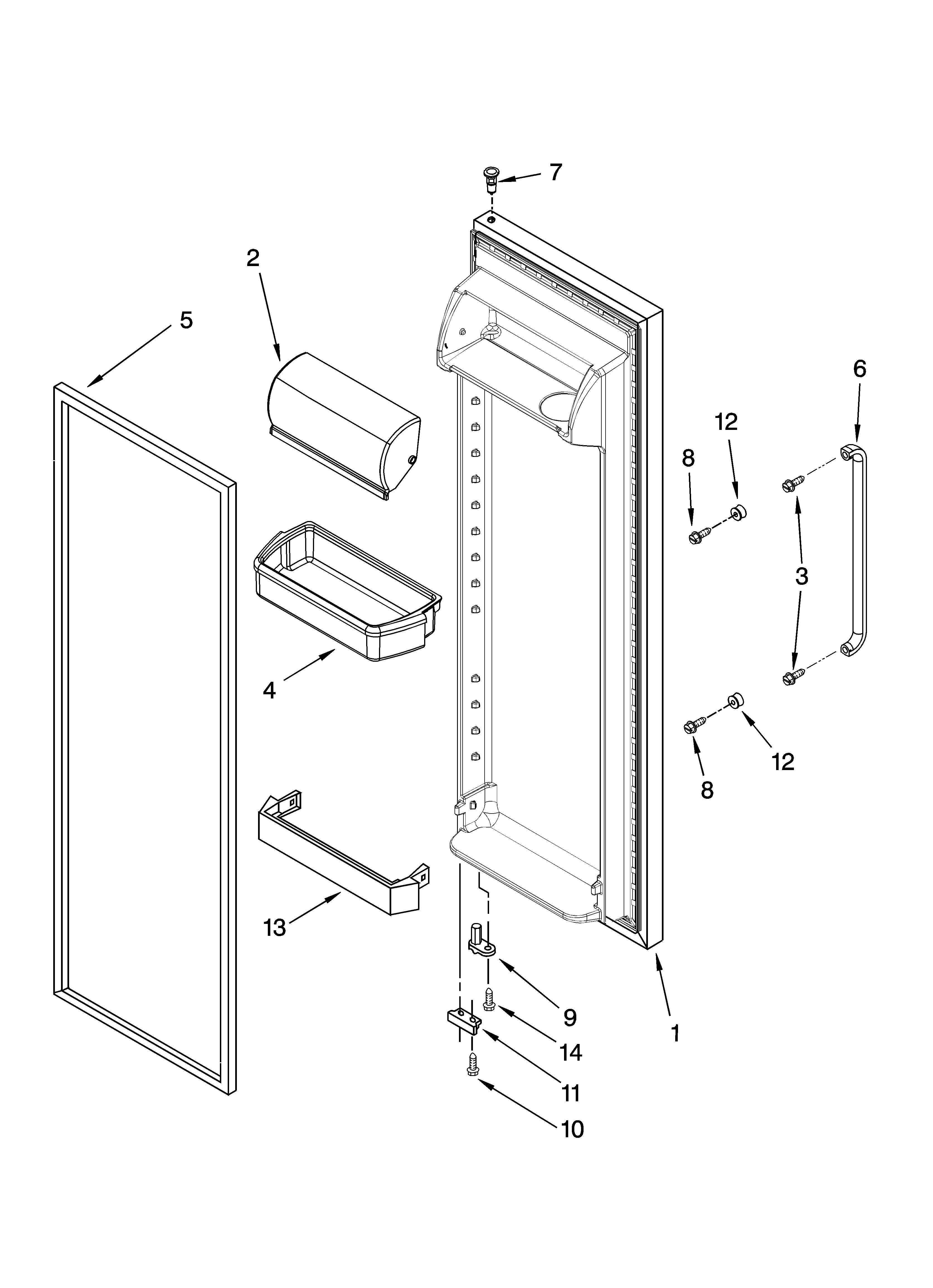

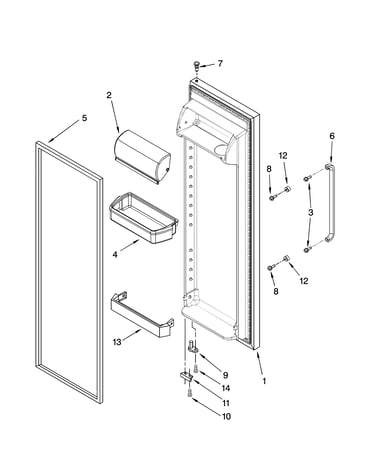

Refrigerator door parts diagram
Refrigerator door cam (black)
Part #2182178
Replaced by #WP2182179
?
Manufacturer substitution
This part replaces 2182178. Substitute parts can look different from the original.
$10.01 |
17% OFF Phone Price : $12.01
In Stock
#12

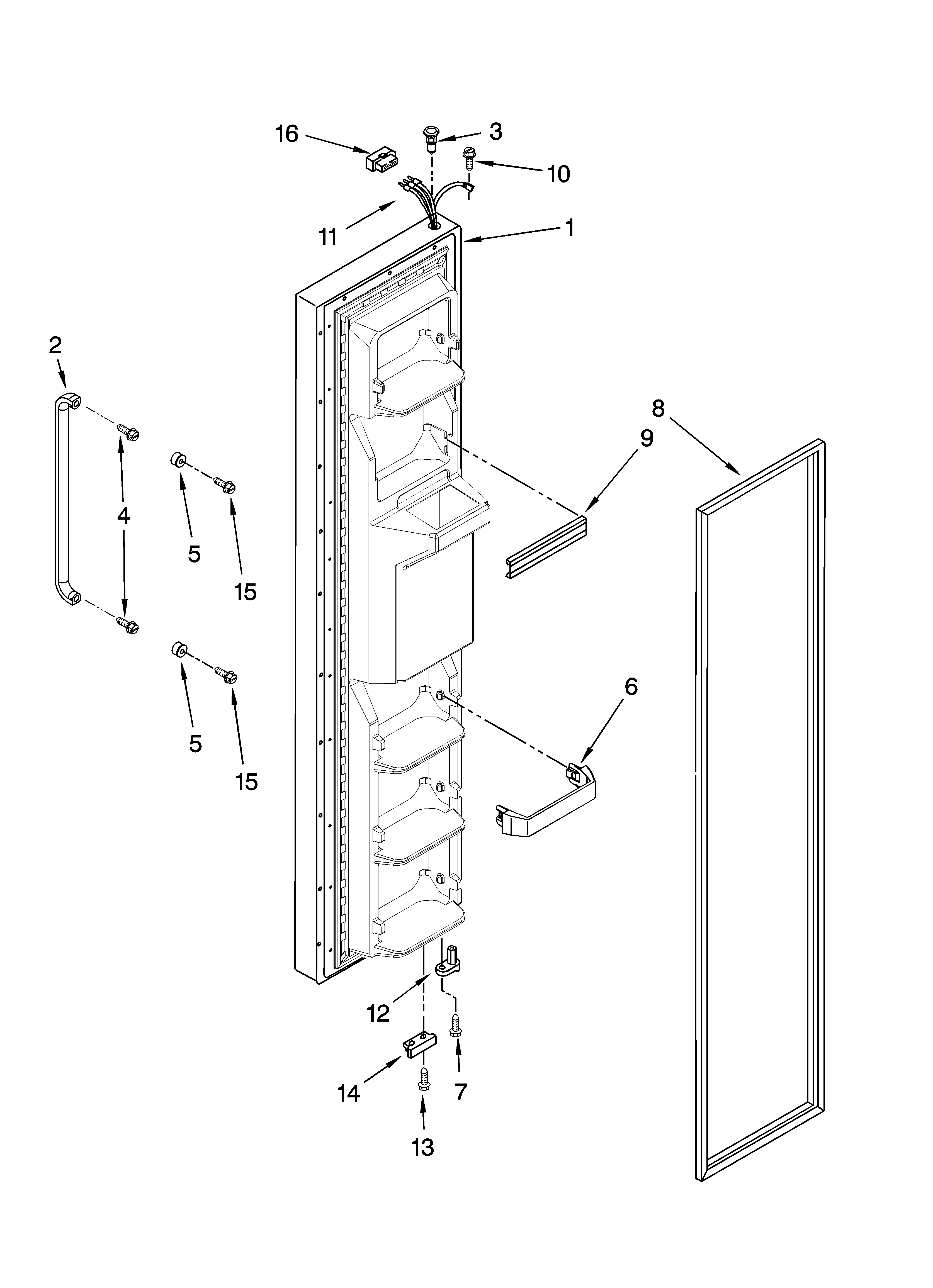

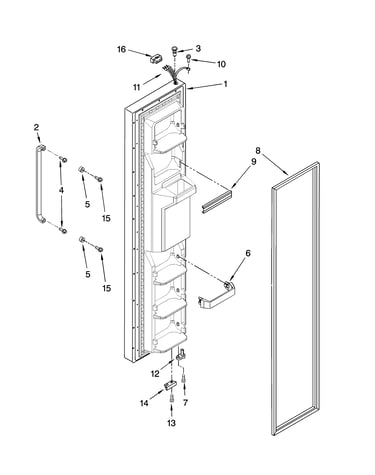

Freezer door parts diagram
Refrigerator door closer cam
Part #2182179
Replaced by #WP2182179
?
Manufacturer substitution
This part replaces 2182179. Substitute parts can look different from the original.
$10.01 |
17% OFF Phone Price : $12.01
In Stock
#11
Refrigerator shelf parts diagram
Refrigerator meat pan
Part #2188654
Replaced by #WP2188664
?
Manufacturer substitution
This part replaces 2188654. Substitute parts can look different from the original.
$53.65 |
10% OFF Phone Price : $59.65
In Stock
