Model # 3K45SS Official KitchenAid mixer
Here are the diagrams and repair parts for Official KitchenAid 3K45SS mixer, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.

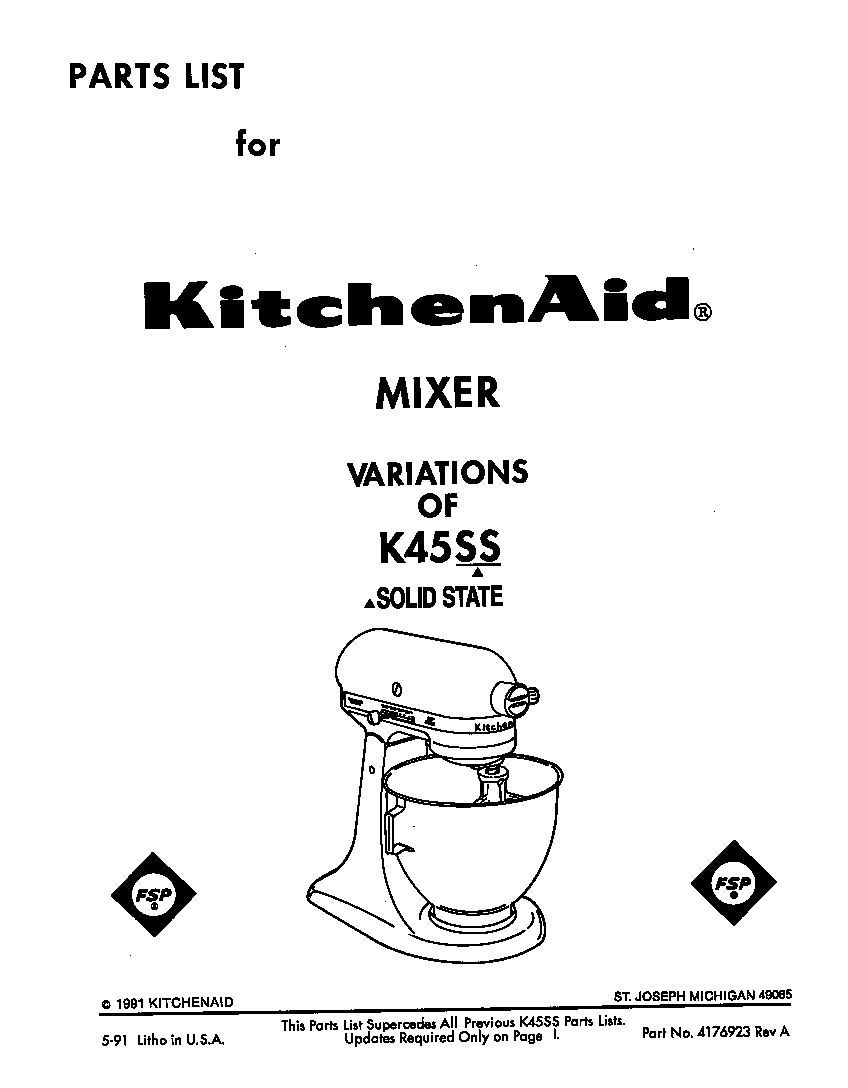

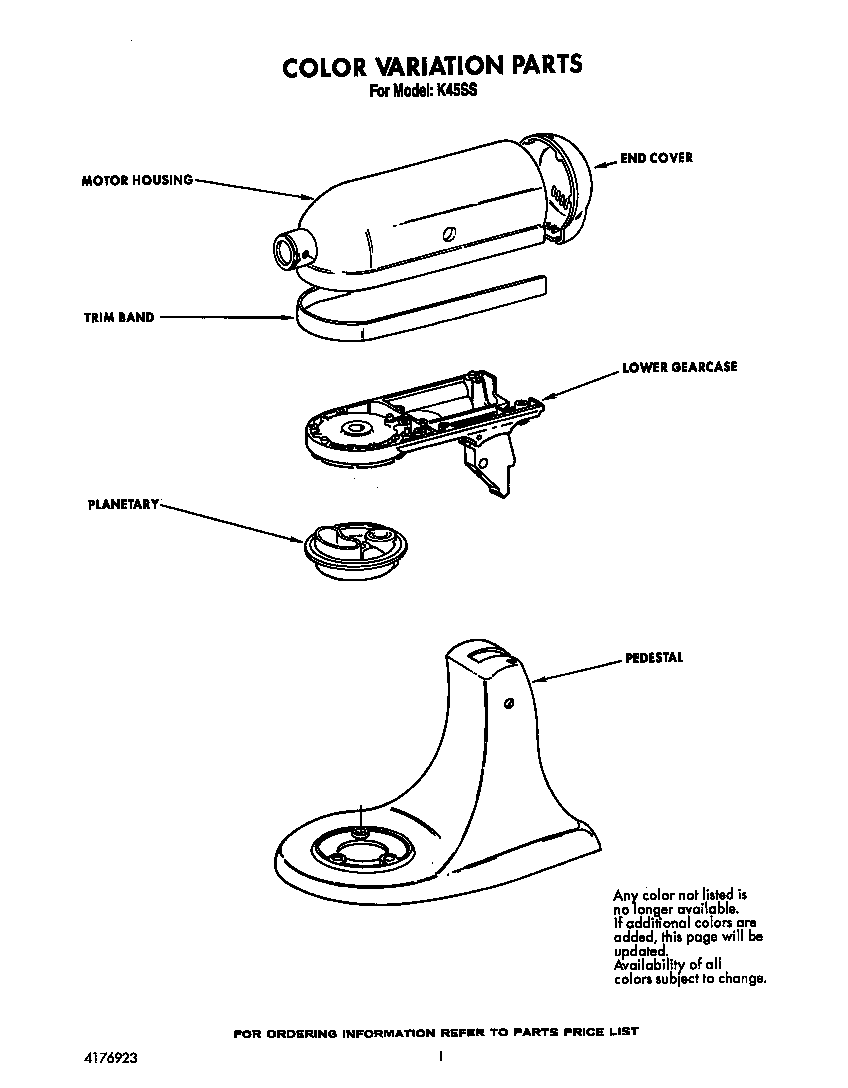

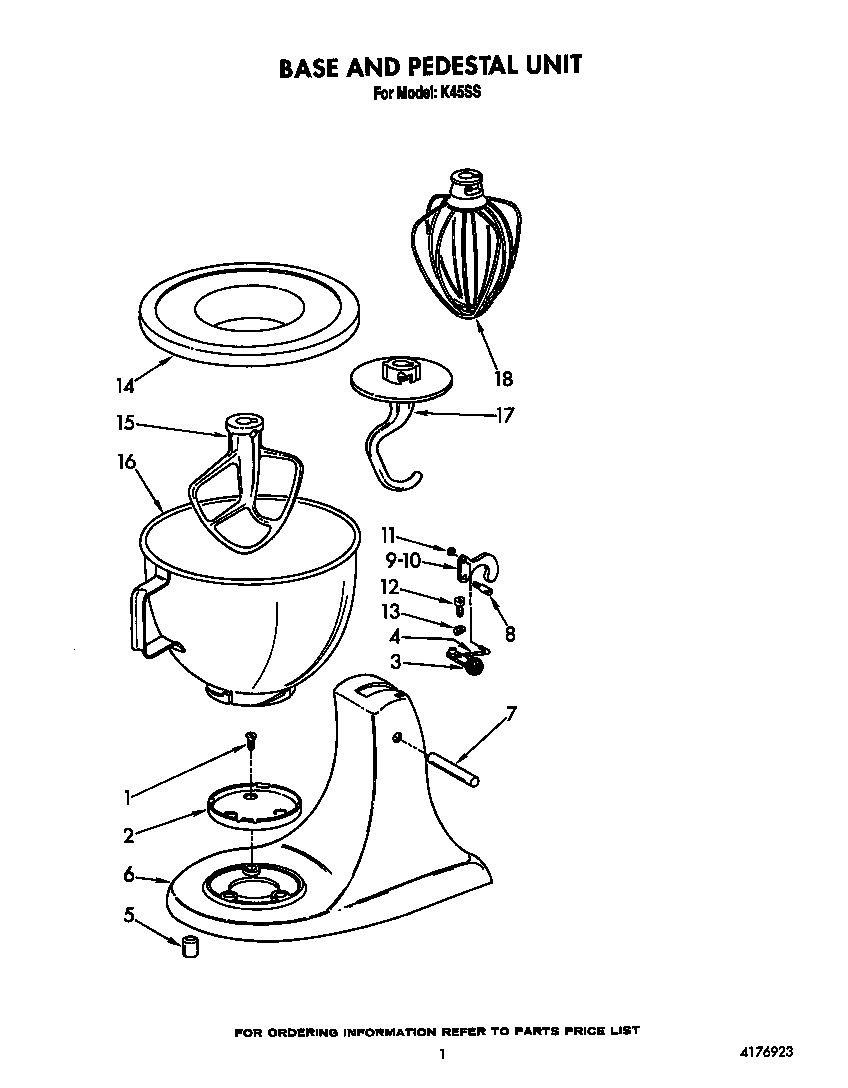

Model diagram and schematic
SEARCH WITHIN THIS MODEL
ALL PARTS
Showing 10 of 127 parts |
#60

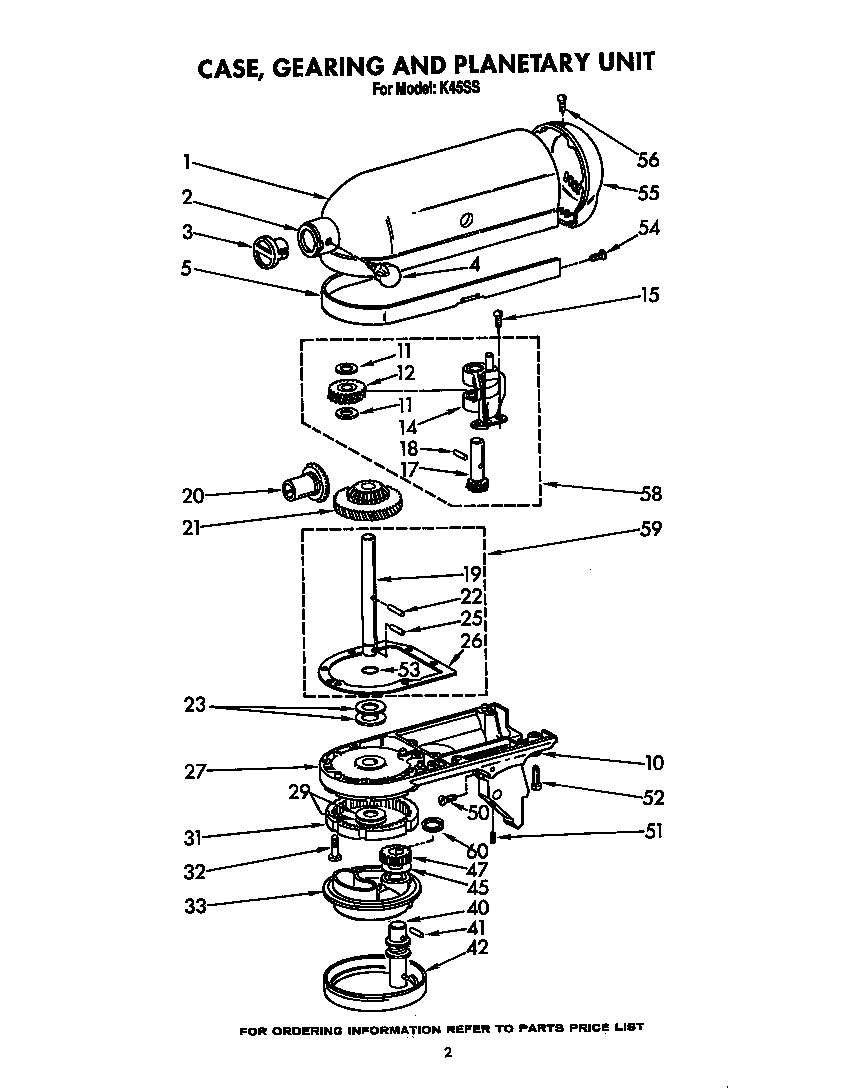

Case, gearing and planetary unit diagram
Ring-e
Part #4176072
Replaced by #WP9703438
?
Manufacturer substitution
This part replaces 4176072. Substitute parts can look different from the original.
This item is not returnable
$3.79 |
21% OFF Phone Price : $4.79
In Stock
#12
Case, gearing and planetary unit diagram
Gear
Part #4162897
Replaced by #WPW10112253
?
Manufacturer substitution
This part replaces 4162897. Substitute parts can look different from the original.
$13.58 |
13% OFF Phone Price : $15.58
Back Order
#53
Case, gearing and planetary unit diagram
Ring-o
Part #4159817
Replaced by #WP67500-55
?
Manufacturer substitution
This part replaces 4159817. Substitute parts can look different from the original.
This item is not returnable
$5.19 |
16% OFF Phone Price : $6.19
Back Order
#58
Case, gearing and planetary unit diagram
Gear
Part #4162101
Replaced by #WP240309-2
?
Manufacturer substitution
This part replaces 4162101. Substitute parts can look different from the original.
$31.06 |
16% OFF Phone Price : $37.06
In Stock
#29

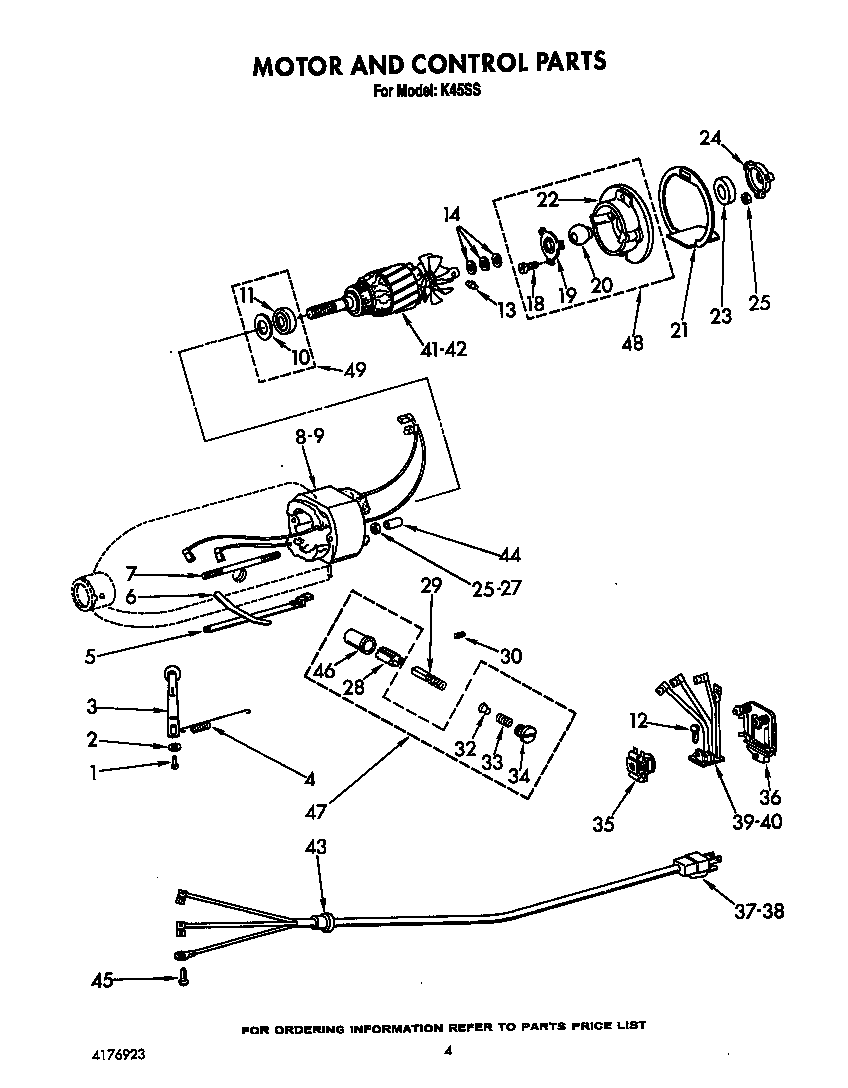

Motor and control diagram
Brush-mtr
Part #4162648
Replaced by #WPW10380496
?
Manufacturer substitution
This part replaces 4162648. Substitute parts can look different from the original.
$7.50 |
12% OFF Phone Price : $8.50
In Stock
#36
Motor and control diagram
Plate-ctrl
Part #4162402
Replaced by #WPW10119326
?
Manufacturer substitution
This part replaces 4162402. Substitute parts can look different from the original.
This item is not returnable
$17.46 |
10% OFF Phone Price : $19.46
Back Order
Pin-dowel
Part #4161950
Replaced by #WP9707223
?
Manufacturer substitution
This part replaces 4161950. Substitute parts can look different from the original.
This item is not returnable
$4.68 |
18% OFF Phone Price : $5.68
In Stock
#39
Motor and control diagram
Phase control board
Part #4163711
Replaced by #WPW10325124
?
Manufacturer substitution
This part replaces 4163711. Substitute parts can look different from the original.
This item is not returnable
$16.63 |
11% OFF Phone Price : $18.63
In Stock
#20
Case, gearing and planetary unit diagram
Gear hub
Part #4161405
Replaced by #W11192794
?
Manufacturer substitution
This part replaces 4161405. Substitute parts can look different from the original.
$33.69 |
15% OFF Phone Price : $39.69
In Stock
#21
Case, gearing and planetary unit diagram
Gear-centr
Part #4161403
Replaced by #W11192794
?
Manufacturer substitution
This part replaces 4161403. Substitute parts can look different from the original.
$33.69 |
15% OFF Phone Price : $39.69
In Stock
Most common symptoms to help you fix your stand mixers
Choose a symptom to see related stand mixer repairs.
Main causes: bad wiring connections, faulty speed control plate, electronic control board failure…
Main causes: phase control board failure, wiring connection problem, faulty electronic control board…
Main causes: bad lubricating grease, mixer sitting idle for weeks at a time, mixer running constantly for more than 30 m…
Main cause: worn carbon motor brushes…
Main causes: bad worm gear, damaged planetary gear assembly…
Main cause: attachment clearance setting needs adjustment…
Main causes: lack of electrical power, wiring failure, worn carbon motor brushes, bad drive motor, tripped overload swit…
Most common repair guides to help fix your stand mixers
These step-by-step repair guides will help you safely fix what’s broken on your stand mixer.
How to replace a stand mixer worm gear
Here’s how to replace the worm gear in your stand mixer if it’s worn or damaged.…
Repair difficulty
Time required
30 minutes or less
How to replace a stand mixer phase control board
The phase control board works with the governor and control plate to control motor speed. Replace the phase control boar…
Repair difficulty
Time required
30 minutes or less
How to replace stand mixer motor brushes
If the carbon brushes are worn and damaged, replace them using these steps.…
Repair difficulty
Time required
15 minutes or less
Effective articles & videos to help repair your stand mixers
Use the advice and tips in these articles and videos to get the most out of your stand mixer.
Learn about all the convenient features on our Sears PartsDirect website that make your parts purchases easier.…
Learn some of the most common symbols found in a wiring diagram and what they mean.…
Learn how to use a multimeter to check for wiring problems in an appliance that's not working…
