Model # JXW9036HP1 Official Jenn-Air range hood

Here are the diagrams and repair parts for Official Jenn-Air JXW9036HP1 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Range Hood Grease Filter W10351890
#10

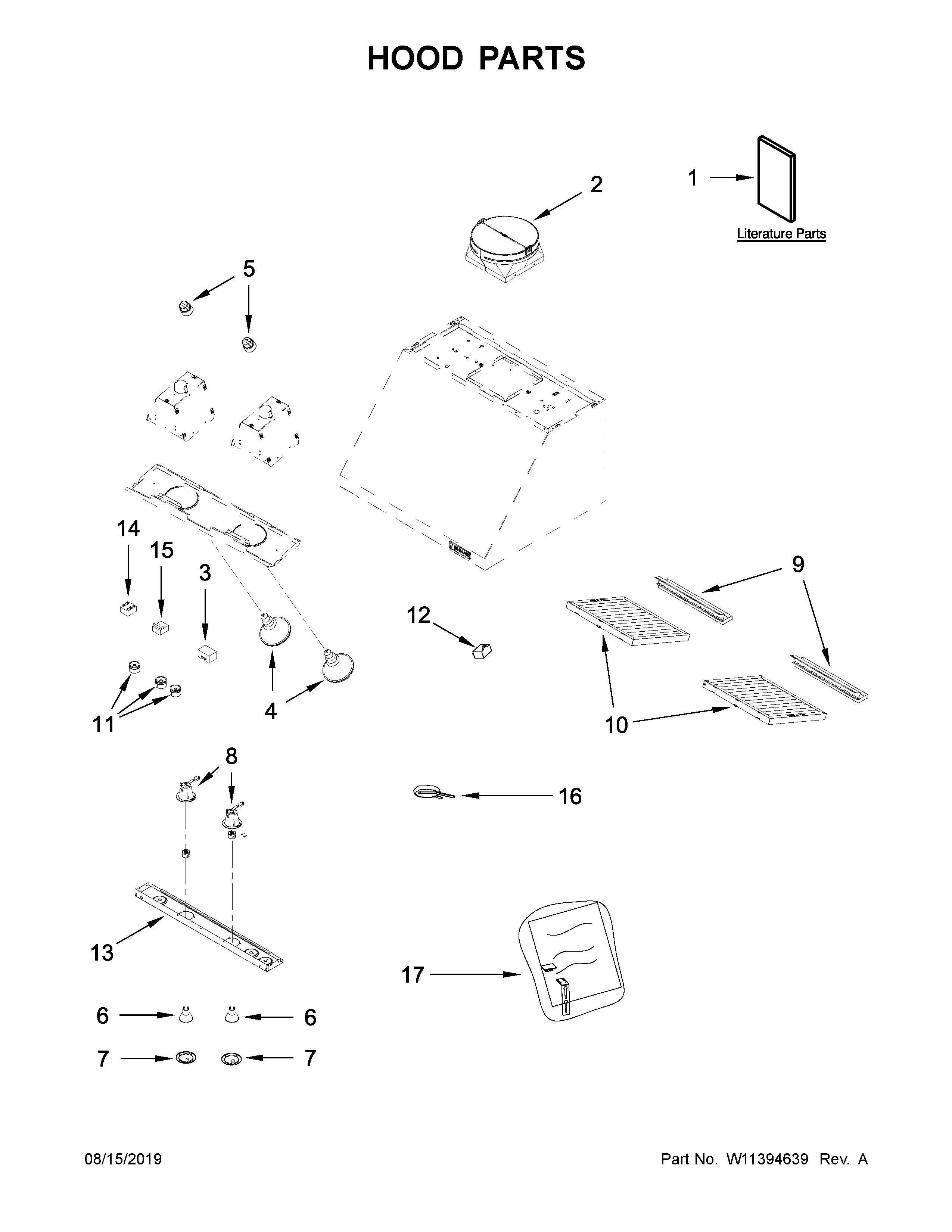

Hood parts diagram

Range hood grease filter

Part #W10351890

$73.64 |
8% OFF Phone Price : $79.64
In Stock
Range Hood Vent Damper W11156393
#2

Hood parts diagram

Range hood vent damper

Part #W11156393

$99.69 |
11% OFF Phone Price : $111.69
In Stock
Fan Assembly (1200 Cfm Internal Blower Motor) W11122047
#1A

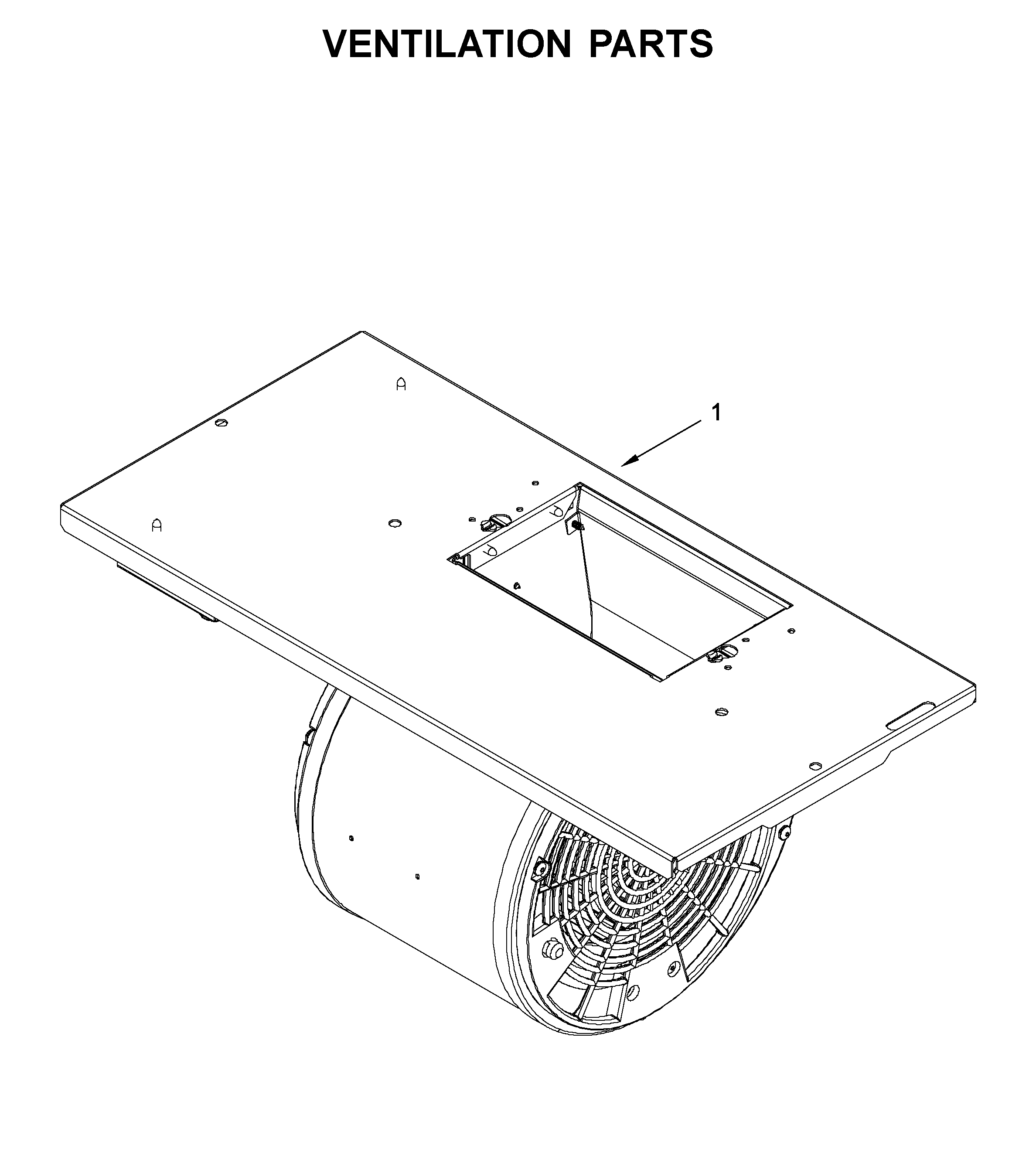

Ventilation parts diagram

Fan assembly (1200 cfm internal blower motor)

Part #W11122047

Replaced by #W11123949

?
Manufacturer substitution
This part replaces W11122047. Substitute parts can look different from the original.
$550.96 |
$12.00 OFF Phone Price : $562.96
In Stock
Hardware W10293977
#17

Hood parts diagram

Hardware

Part #W10293977

$49.20
In Stock
Support W10295804
#13

Hood parts diagram

Support

Part #W10295804

$217.58
In Stock
Chnl-grse W10294011
#9A

Hood parts diagram

Chnl-grse

Part #W10294011

$200.99
In Stock
Range Hood Light Socket W10295808
#8

Hood parts diagram

Range hood light socket

Part #W10295808

$53.93 |
10% OFF Phone Price : $59.93
In Stock
Support W10295807
#13A

Hood parts diagram

Support

Part #W10295807

$204.33
In Stock
Range Hood Grease Channel W10294003
#9

Hood parts diagram

Range hood grease channel

Part #W10294003

$166.57 |
7% OFF Phone Price : $178.57
In Stock
Whirlpool Range Backsplash Kit (stainless) W10285449
#NI

Hood parts diagram

Whirlpool range backsplash kit (stainless)

Part #W10285449

$684.90 |
10% OFF Was : $761.00
In Stock
