Side-By-Side Refrigerator

Model # 79551092010 Official Kenmore Elite refrigerator

Here are the diagrams and repair parts for Official Kenmore Elite 79551092010 refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part

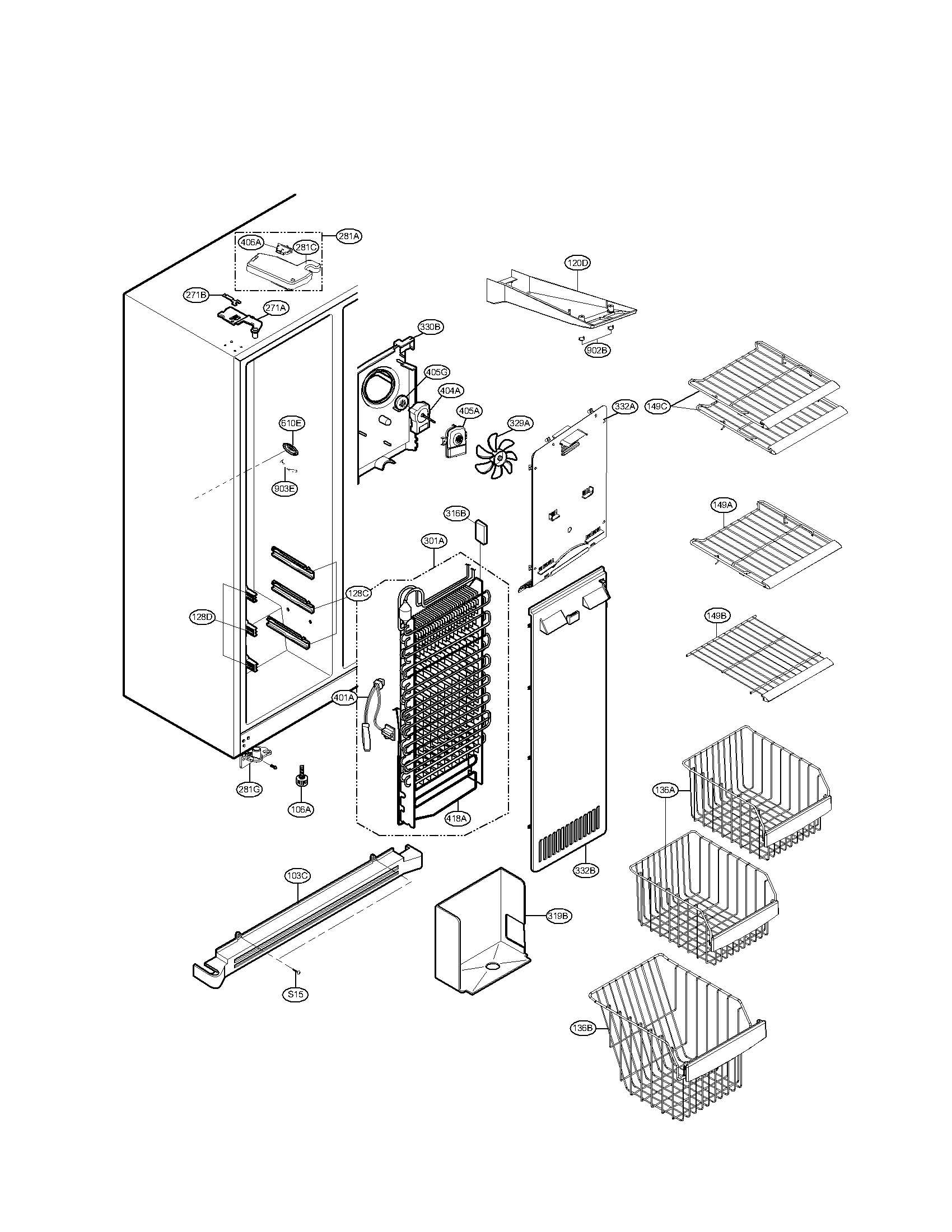

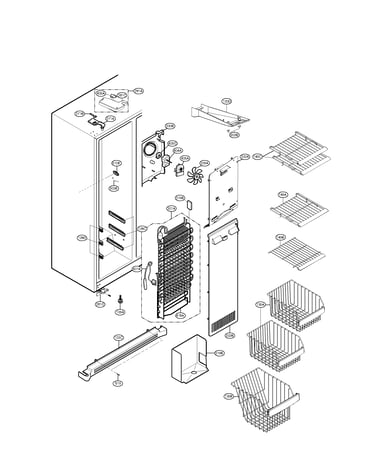

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
79551092010 Refrigerators
Refrigerator Filter Dryer 5851JA2007A
#317A

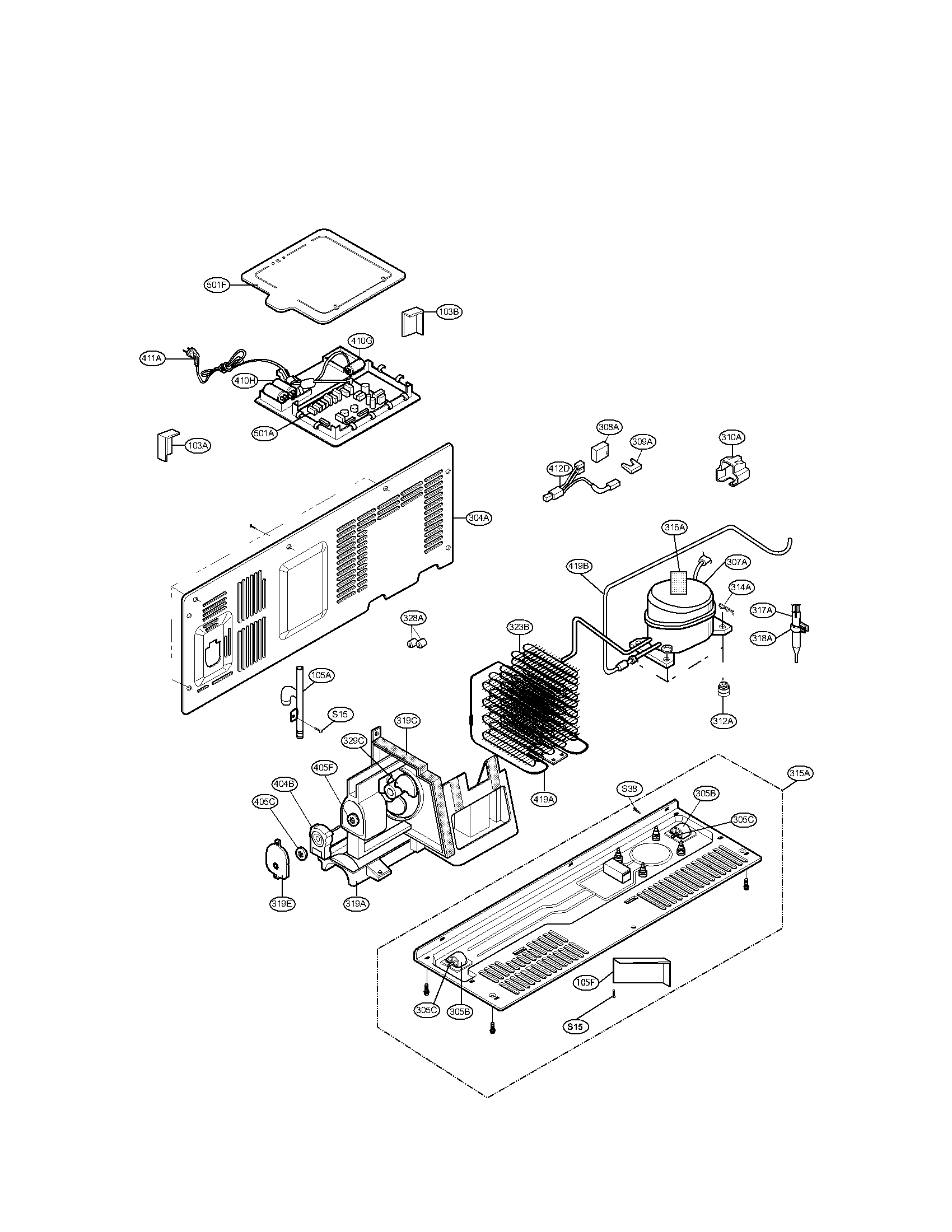

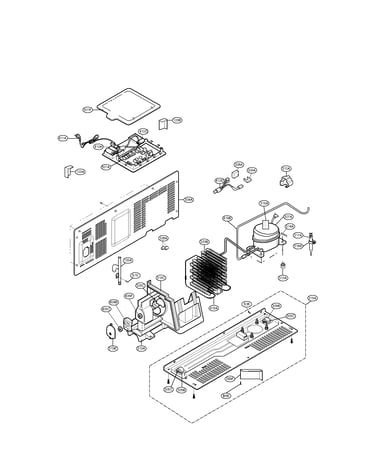

Machine compartment parts diagram

Refrigerator filter dryer

Part #5851JA2007A

Replaced by #ADH73150210

?
Manufacturer substitution
This part replaces 5851JA2007A. Substitute parts can look different from the original.
2 (1)
BEST SELLER
$81.59 |
7% OFF Phone Price : $87.59
In Stock
Refrigerator Water Tube Fitting MCD61866802
#621B

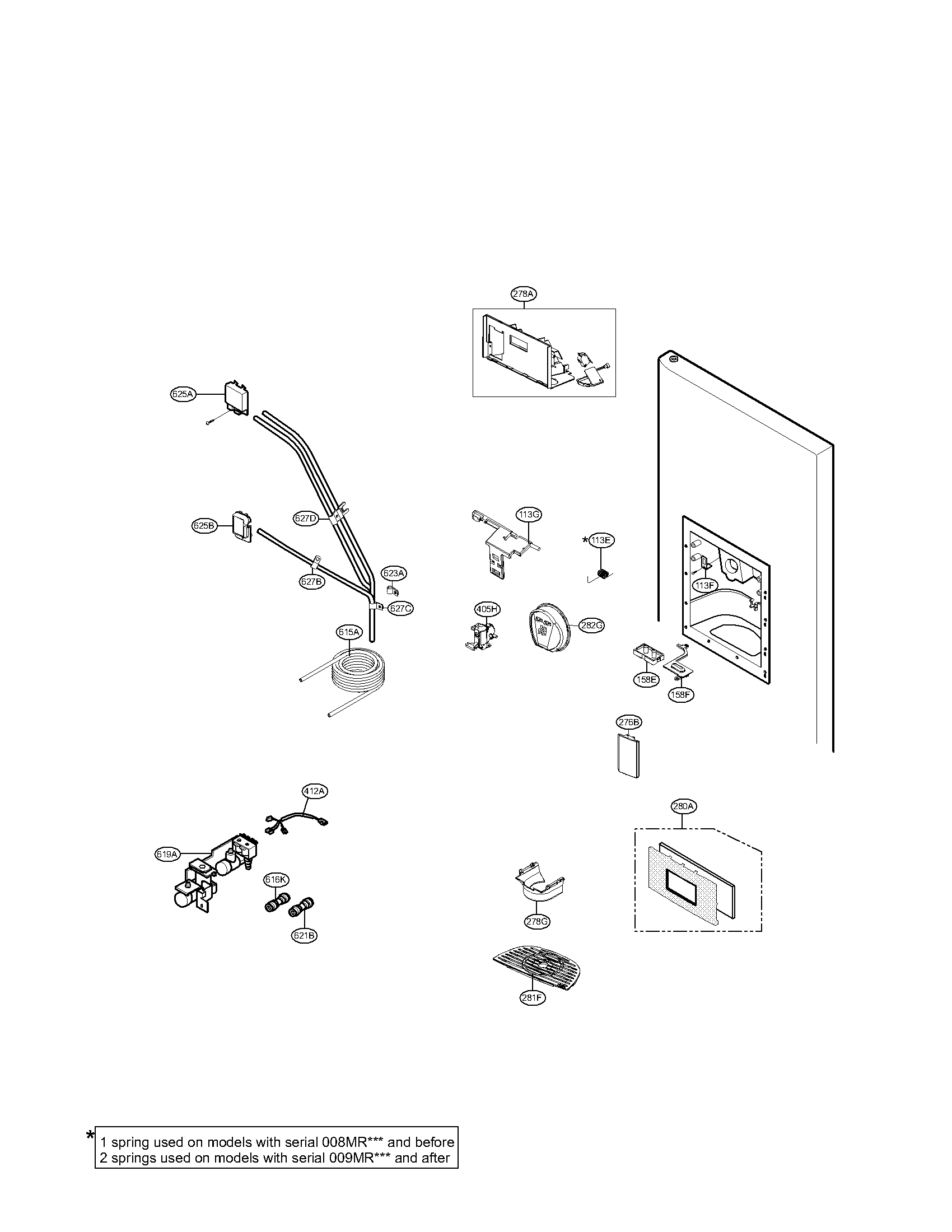

Ice, water, and dispenser parts diagram

Refrigerator water tube fitting

Part #MCD61866802

Replaced by #4932JA3002C

?
Manufacturer substitution
This part replaces MCD61866802. Substitute parts can look different from the original.
3.17 (6)
BEST SELLER
$20.67 |
22% OFF Phone Price : $26.67
In Stock
Refrigerator Clamp 4930JA3034A
#318A

Machine compartment parts diagram

Refrigerator clamp

Part #4930JA3034A

BEST SELLER
$8.67 |
10% OFF Phone Price : $9.67
In Stock
Refrigerator Sensor 6500JK1003A
#903D

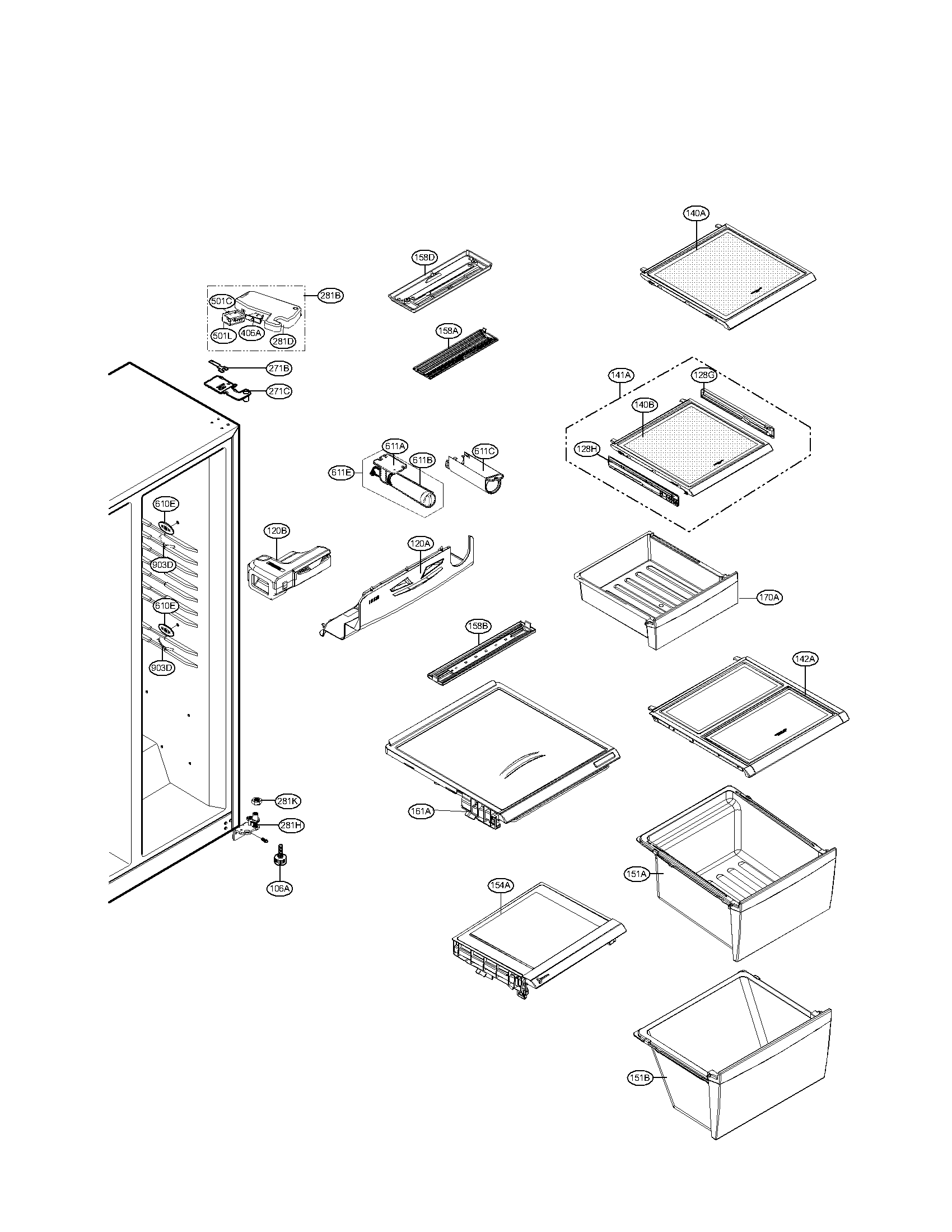

Refrigerator compartment parts diagram

Refrigerator sensor

Part #6500JK1003A

Replaced by #6500JB2001B

?
Manufacturer substitution
This part replaces 6500JK1003A. Substitute parts can look different from the original.
4.5 (2)
BEST SELLER
$32.67 |
16% OFF Phone Price : $38.67
In Stock
Refrigerator Compressor TCA31748011
#307A

Machine compartment parts diagram

Refrigerator compressor

Part #TCA31748011

Replaced by #TCA37091209

?
Manufacturer substitution
This part replaces TCA31748011. Substitute parts can look different from the original.
BEST SELLER
$411.45 |
$12.00 OFF Phone Price : $423.45
In Stock
Refrigerator Compressor Mount Retainer Clip (replaces 4620ja3015e, Mjb61877901) 4620JA3015A
#314A

Machine compartment parts diagram

Refrigerator compressor mount retainer clip (replaces 4620ja3015e, mjb61877901)

Part #4620JA3015A

BEST SELLER
$8.67 |
10% OFF Phone Price : $9.67
In Stock
Refrigerator Refrigerant Line Noise Damper 5072JA3003F
#316A

Machine compartment parts diagram

Refrigerator refrigerant line noise damper

Part #5072JA3003F

BEST SELLER
$8.67 |
10% OFF Phone Price : $9.67
In Stock
Refrigerator Door Bin AAP72911202
#241D

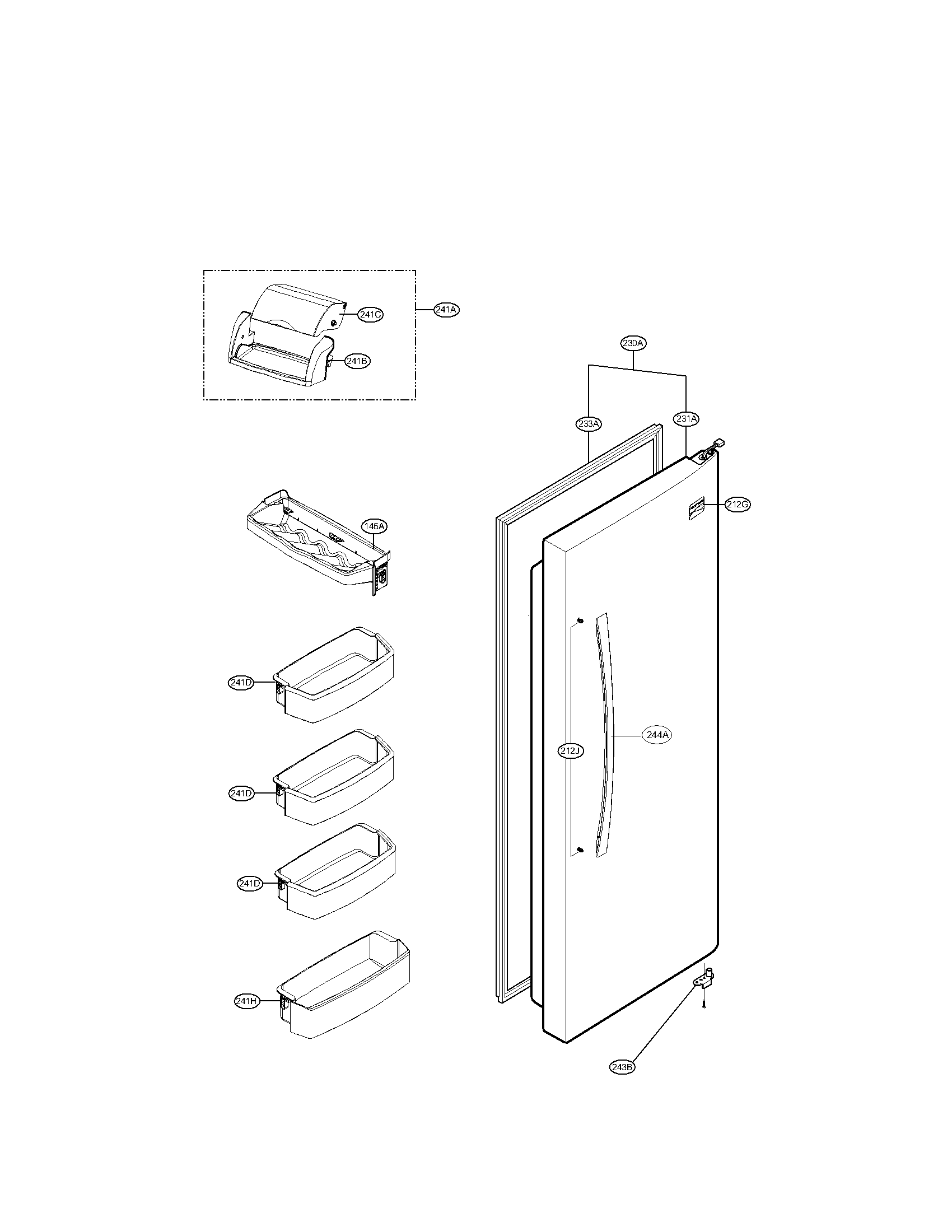

Refrigerator door parts diagram

Refrigerator door bin

Part #AAP72911202

Replaced by #MAN61844501

?
Manufacturer substitution
This part replaces AAP72911202. Substitute parts can look different from the original.
3.92 (13)
BEST SELLER
$92.94 |
6% OFF Phone Price : $98.94
In Stock
Refrigerator Door Hinge 4621JA3002H
#243B

Refrigerator door parts diagram

Refrigerator door hinge

Part #4621JA3002H

Replaced by #AJC34211602

?
Manufacturer substitution
This part replaces 4621JA3002H. Substitute parts can look different from the original.
2 (1)
BEST SELLER
$20.67 |
22% OFF Phone Price : $26.67
In Stock
Refrigerator Ice Maker Assembly AEQ36756917
#600A

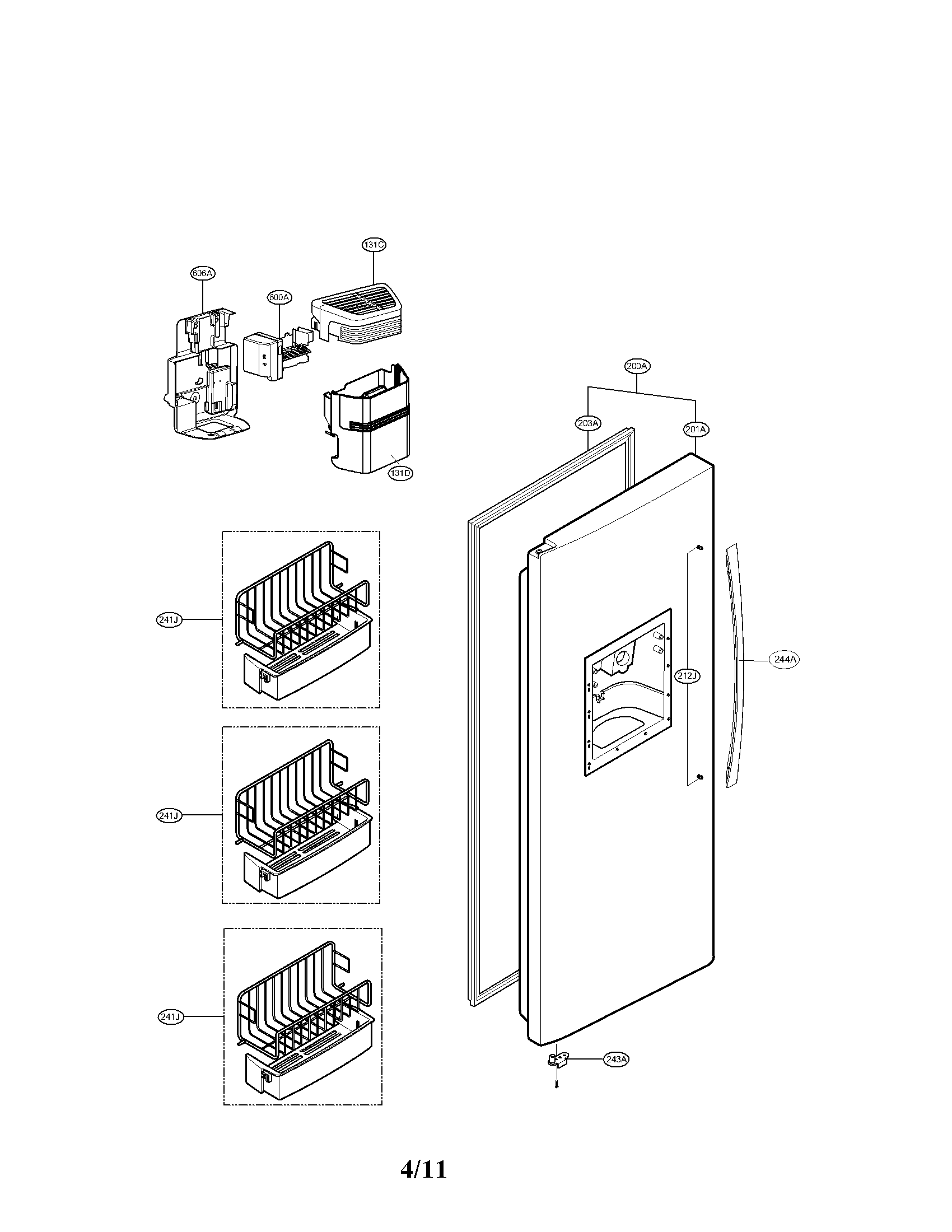

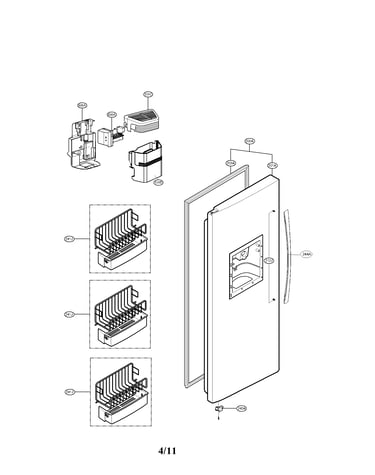

Freezer door parts diagram

Refrigerator ice maker assembly

Part #AEQ36756917

Replaced by #AEQ36756918

?
Manufacturer substitution
This part replaces AEQ36756917. Substitute parts can look different from the original.
4.5 (12)
BEST SELLER
$483.58 |
$12.00 OFF Phone Price : $495.58
In Stock
