Maytag
Dryer

Model # MLG27PDBXW0 Official Maytag gas commercial dryer

Here are the diagrams and repair parts for Official Maytag MLG27PDBXW0 gas commercial dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 176 parts  |
Dryer Thermal Fuse 3392519
#34

Upper and lower bulkhead parts diagram

Dryer thermal fuse

Part #3392519

Replaced by #WP3392519

?
Manufacturer substitution
This part replaces 3392519. Substitute parts can look different from the original.
BEST SELLER
$19.12 |
9% OFF Phone Price : $21.12
In Stock
Dryer Drum Support Roller W10314171
#21

Upper and lower bulkhead parts diagram

Dryer drum support roller

Part #W10314171

Replaced by #WPW10314173

?
Manufacturer substitution
This part replaces W10314171. Substitute parts can look different from the original.
BEST SELLER
$16.24 |
11% OFF Phone Price : $18.24
In Stock
Dryer Gas Valve Coil Kit 694539
#14

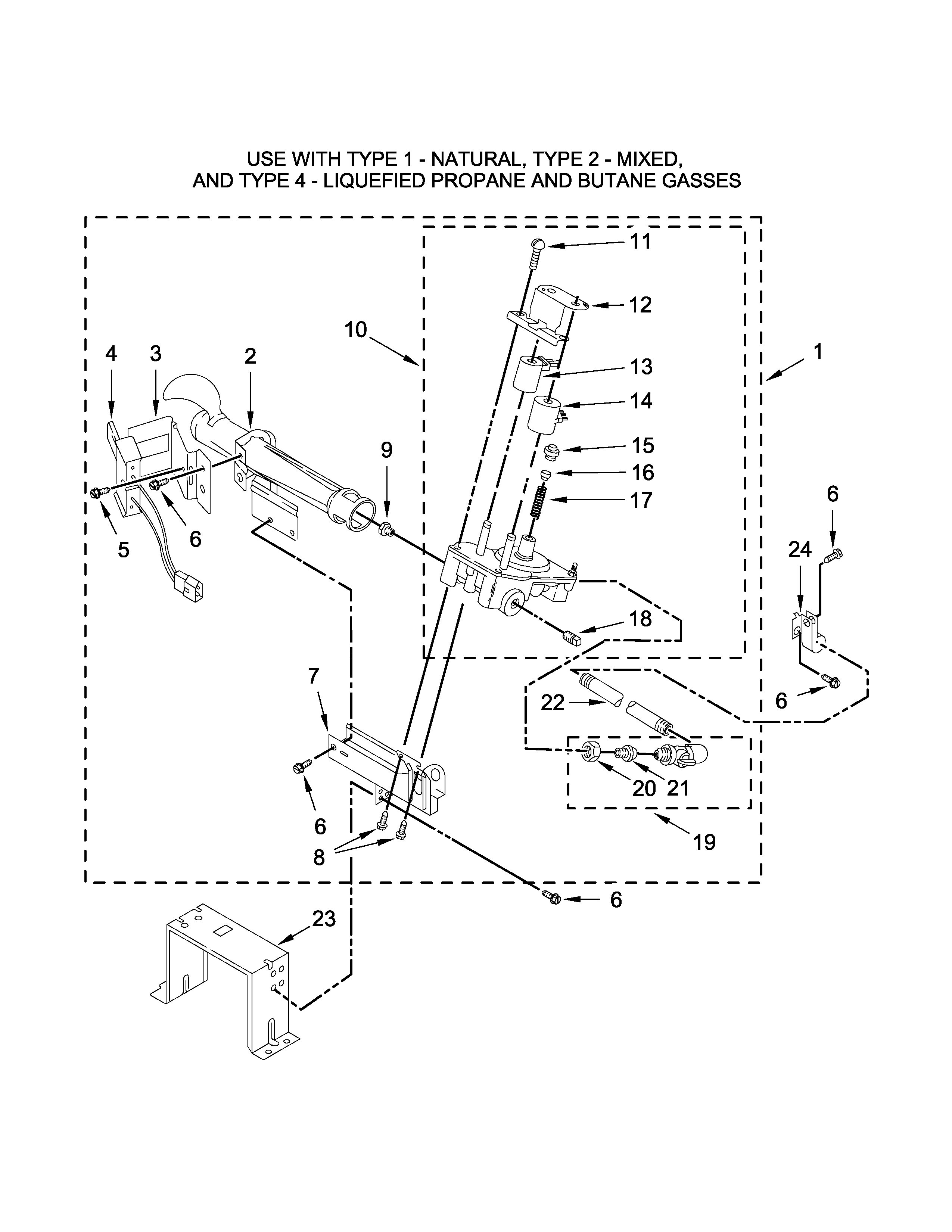

Burner assembly parts diagram

Dryer gas valve coil kit

Part #694539

Replaced by #279834

?
Manufacturer substitution
This part replaces 694539. Substitute parts can look different from the original.
BEST SELLER
$29.18 |
17% OFF Phone Price : $35.18
In Stock
Dryer Valve Coil Kit 694540
#13

Burner assembly parts diagram

Dryer valve coil kit

Part #694540

Replaced by #279834

?
Manufacturer substitution
This part replaces 694540. Substitute parts can look different from the original.
BEST SELLER
$29.18 |
17% OFF Phone Price : $35.18
In Stock
Whirlpool Dryer Repair Kit (4392067) (replaces 2015, 80047) - Dryer Maintenance Kit By Whirlpool 4392067
#NI

Optional parts (not included) diagram

Whirlpool dryer repair kit (4392067) (replaces 2015, 80047) - dryer maintenance kit by whirlpool

Part #4392067

BEST SELLER
$49.32 |
11% OFF Phone Price : $55.32
In Stock
Igniter 686590
Igniter

Part #686590

Replaced by #279311

?
Manufacturer substitution
This part replaces 686590. Substitute parts can look different from the original.
BEST SELLER
$22.08 |
21% OFF Phone Price : $28.08
In Stock
Motor Pulley 3394341
Motor pulley

Part #3394341

Replaced by #WP8066184

?
Manufacturer substitution
This part replaces 3394341. Substitute parts can look different from the original.
BEST SELLER
$34.26 |
15% OFF Phone Price : $40.26
In Stock
Dryer Support Roller Tri-ring Washer W10512946
#20

Upper and lower bulkhead parts diagram

Dryer support roller tri-ring washer

Part #W10512946

Replaced by #WPW10512946

?
Manufacturer substitution
This part replaces W10512946. Substitute parts can look different from the original.
BEST SELLER
$6.73 |
13% OFF Phone Price : $7.73
In Stock
Dryer Radiant Sensor 338906
#22

Upper and lower bulkhead parts diagram

Dryer radiant sensor

Part #338906

Replaced by #WP338906

?
Manufacturer substitution
This part replaces 338906. Substitute parts can look different from the original.
BEST SELLER
$38.79 |
13% OFF Phone Price : $44.79
In Stock
Dryer Drum Support Roller Shaft W10359272
#19

Upper and lower bulkhead parts diagram

Dryer drum support roller shaft

Part #W10359272

Replaced by #WPW10359272

?
Manufacturer substitution
This part replaces W10359272. Substitute parts can look different from the original.
BEST SELLER
$35.77 |
14% OFF Phone Price : $41.77
In Stock
