Model # ML02CCXHW Official Whirlpool refrigerator
Here are the diagrams and repair parts for Official Whirlpool ML02CCXHW refrigerator, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

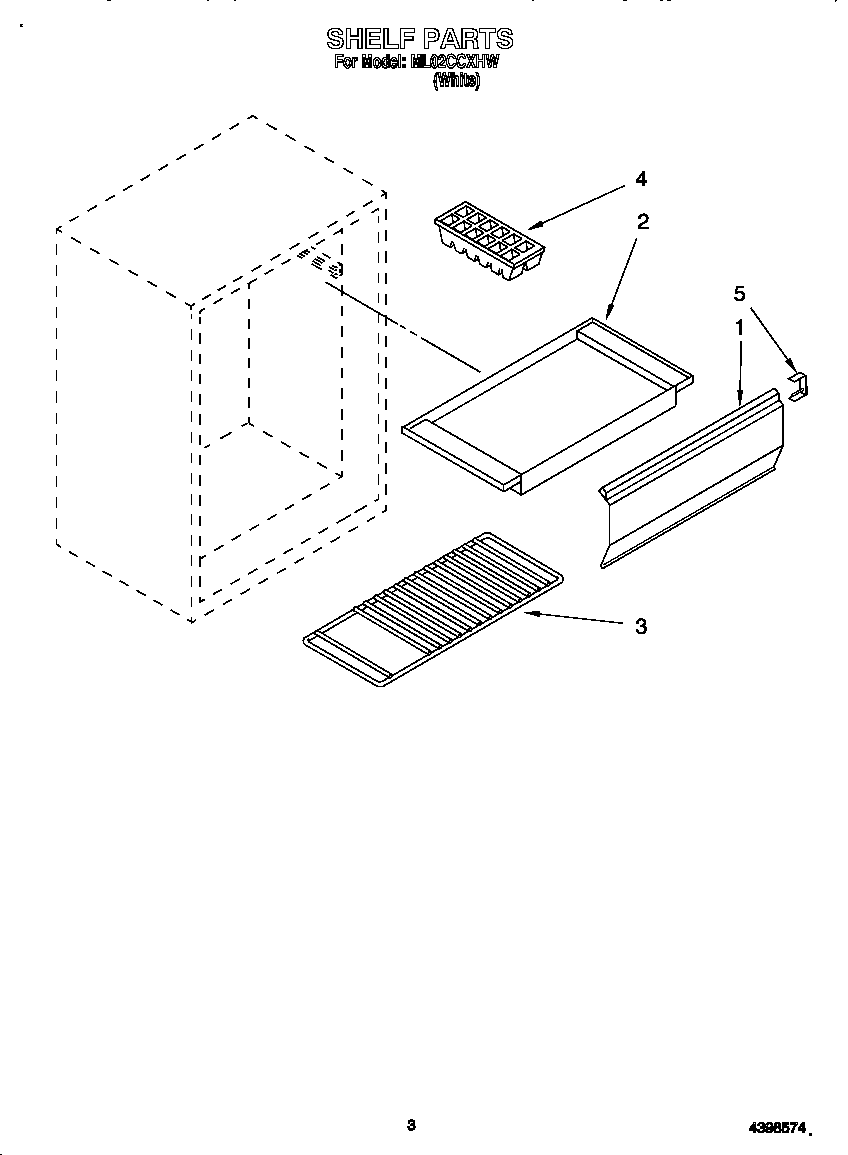

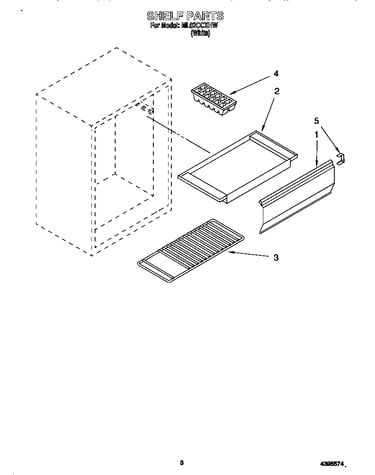

SELECT DIAGRAM
Browse Parts forML02CCXHW Refrigerators
- #5

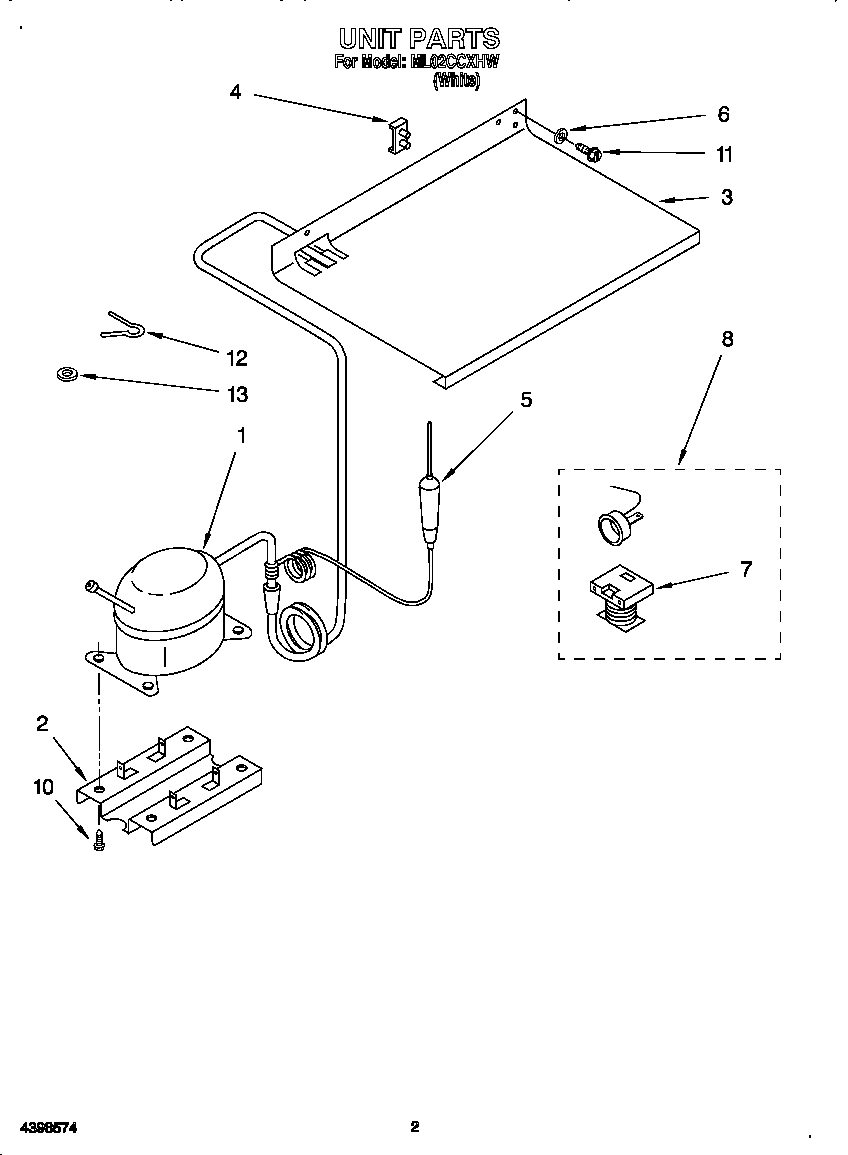

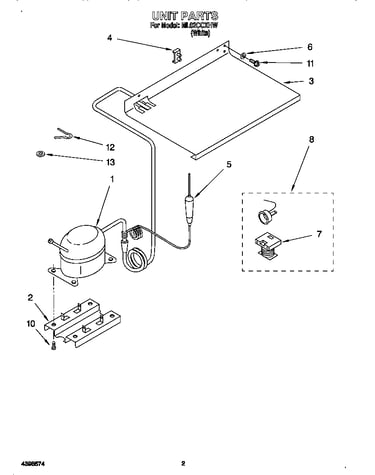

Unit diagram
Drier tubePart #4312496
Replaced by #W10843121
?Manufacturer substitutionThis part replaces 4312496. Substitute parts can look different from the original.$30.51 |16% OFF Phone Price : $36.51In Stock - #8
Unit diagram
Refrigerator overloadPart #4312462
$104.20In Stock - #3

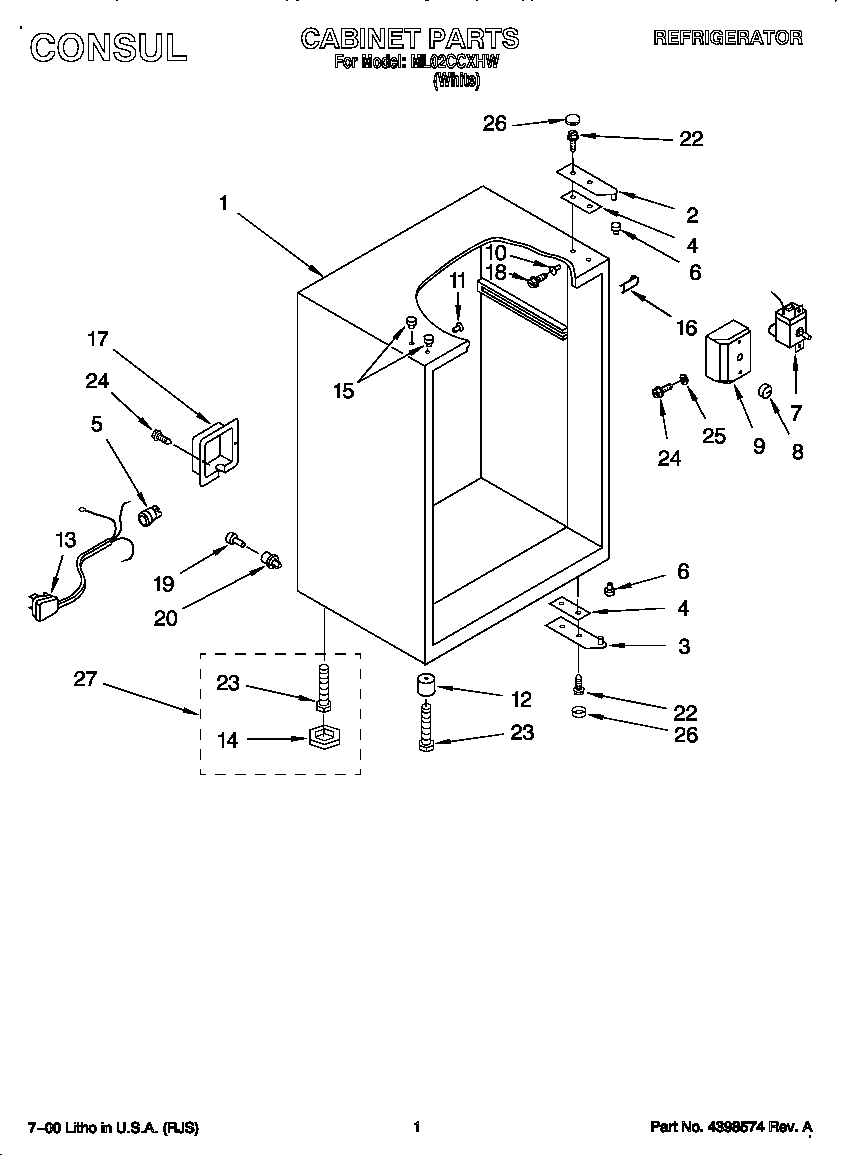

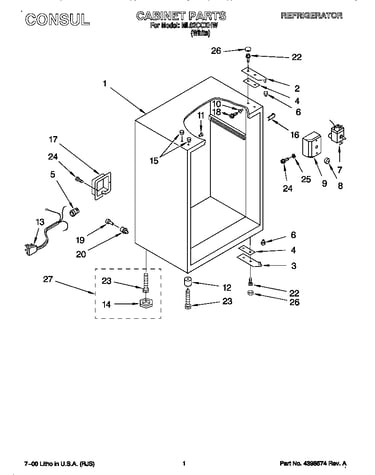

Cabinet diagram
Refrigerator lower door hingePart #4312505
$37.33In Stock - #2
Cabinet diagram
Door hingePart #4312436
$41.42In Stock - #12
Cabinet diagram
Refrigerator levelerPart #4312504
Replaced by #4312445
?Manufacturer substitutionThis part replaces 4312504. Substitute parts can look different from the original.$34.53In Stock - #10
Unit diagram
ScrewPart #4312464
Replaced by #WP4312464
?Manufacturer substitutionThis part replaces 4312464. Substitute parts can look different from the original.This item is not returnable$4.60In Stock - Screw
Part #4312450
Replaced by #W11233072
?Manufacturer substitutionThis part replaces 4312450. Substitute parts can look different from the original.$16.43 |11% OFF Phone Price : $18.43In Stock - #8

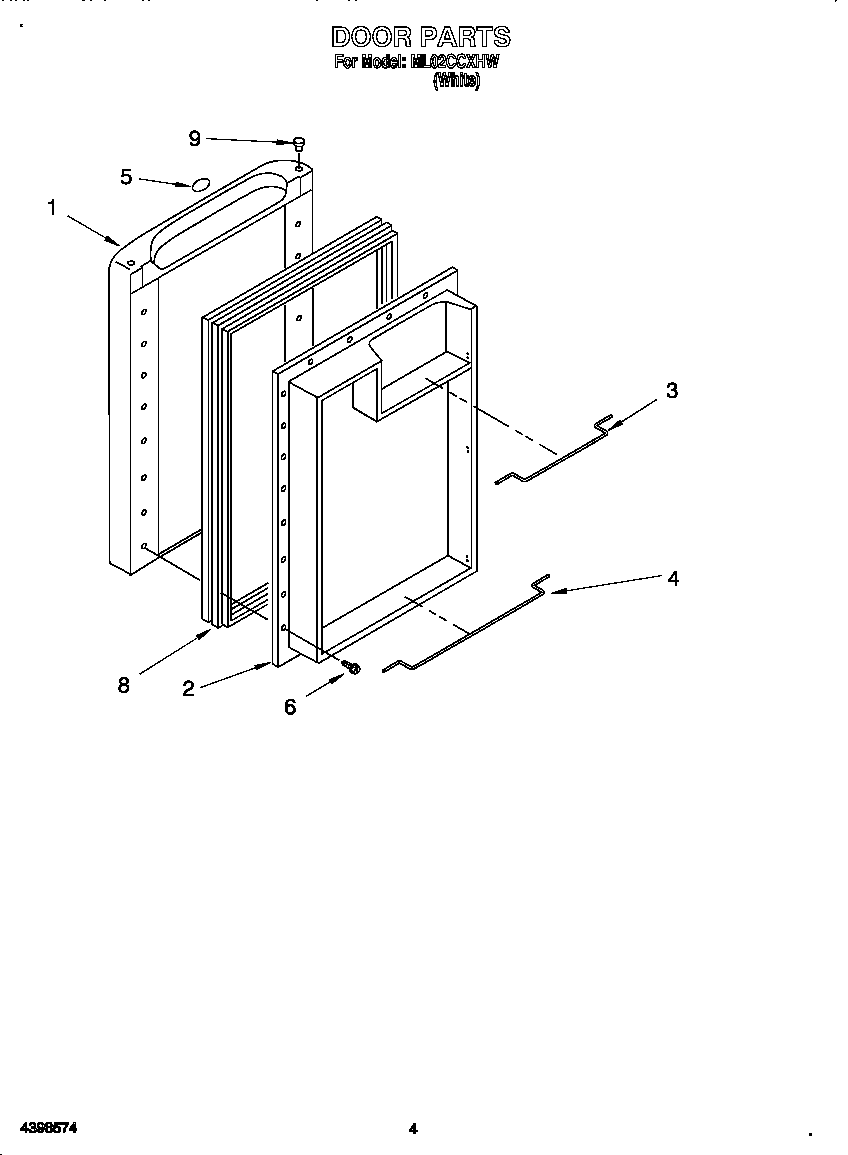

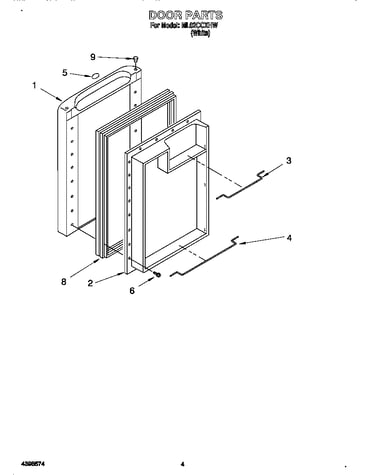

Door diagram
Refrigerator door gasketPart #4312503
The manufacturer no longer makes this part, and there's no substitute part
- #1
Cabinet diagram
For field installable icemaker repair parts list, refer to model 106.8560Part #N/P
The manufacturer no longer makes this part, and there's no substitute part
- #19
Cabinet diagram
Refrigerator dowel pinPart #4312451
The manufacturer no longer makes this part, and there's no substitute part
