GE
Gas Wall Oven

Model # JGRC14GEP2BG Official GE gas wall oven

Here are the diagrams and repair parts for Official GE JGRC14GEP2BG gas wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

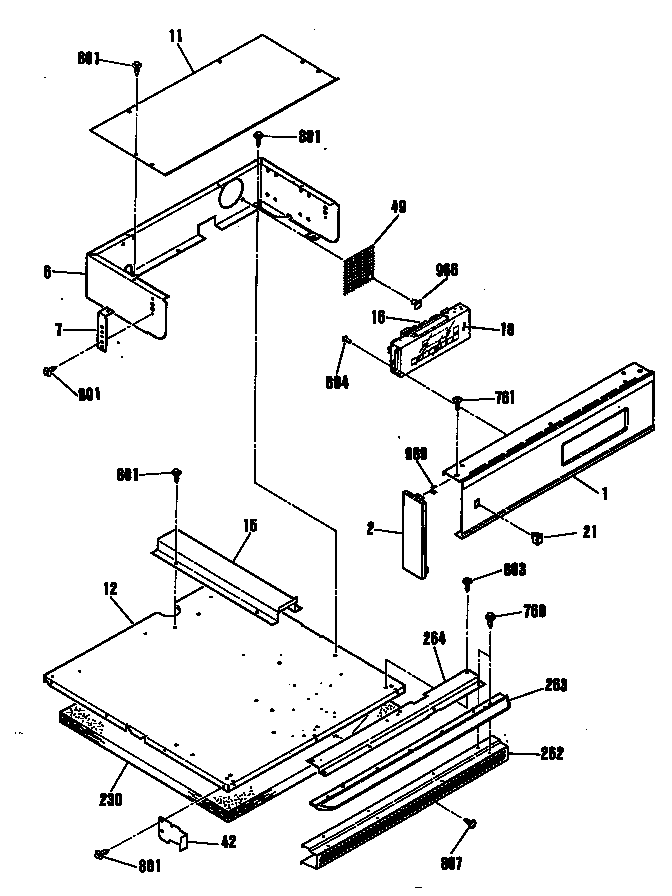

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 127 parts  |
G.e. Kenmore Range Oven Burner Igniter (replaces Wb02x9154, Wb13k10027, Wb13k3) WB2X9154
#316

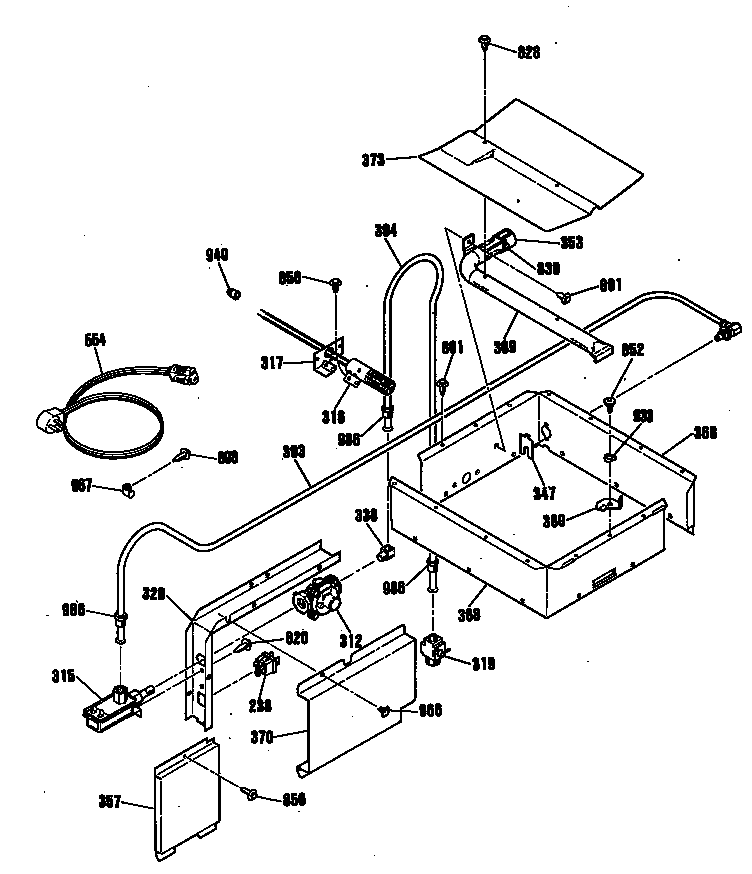

Gas lines diagram

G.e. kenmore range oven burner igniter (replaces wb02x9154, wb13k10027, wb13k3)

Part #WB2X9154

BEST SELLER
$86.63 |
6% OFF Phone Price : $92.63
In Stock
40a15bulb STD372401
#257

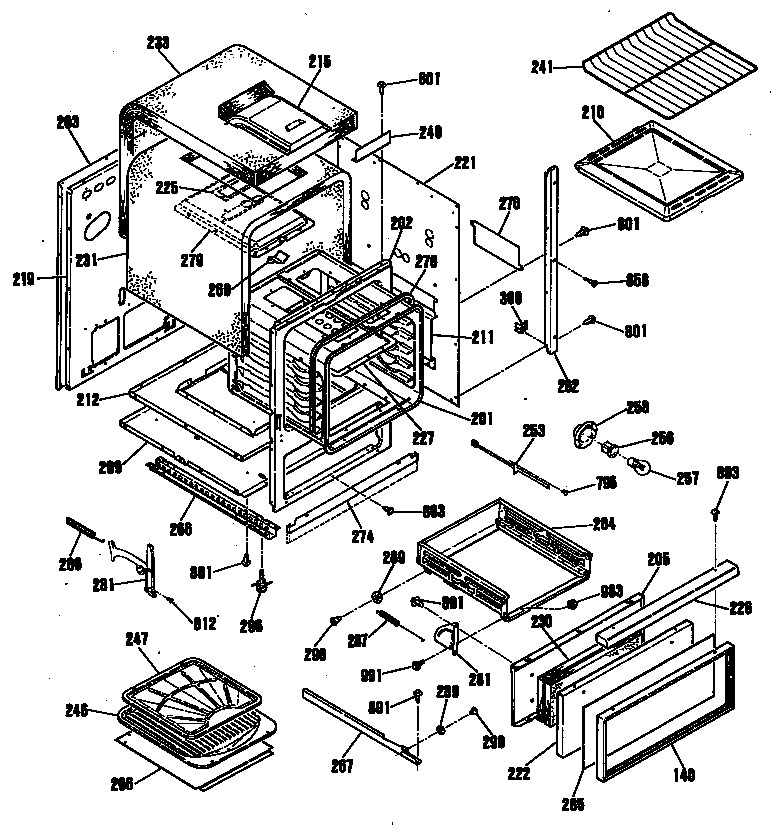

Oven diagram

40a15bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Sensor WB20X106
#253

Oven diagram

Sensor

Part #WB20X106

Replaced by #WB21X5301

?
Manufacturer substitution
This part replaces WB20X106. Substitute parts can look different from the original.
BEST SELLER
$147.17 |
8% OFF Phone Price : $159.17
Back Order
Screw-4-pk WB1M01
Screw-4-pk

Part #WB1M01

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB1M01. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Dryer Screw WH2X930

#NI

All parts diagram

Dryer screw

Part #WH2X930

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Oven Gas Supply Tube WB28K5026
#303

Gas lines diagram

Range oven gas supply tube

Part #WB28K5026

$42.02 |
12% OFF Phone Price : $48.02
In Stock
Range Gas Control Valve WB21K5009
#315

Gas lines diagram

Range gas control valve

Part #WB21K5009

$169.71 |
7% OFF Phone Price : $181.71
In Stock
Wall Oven Bake Burner WB16K5014
#309

Gas lines diagram

Wall oven bake burner

Part #WB16K5014

$141.65 |
8% OFF Phone Price : $153.65
In Stock
Nut, 12-pack WB1X1181
#940

Gas lines diagram

Nut, 12-pack

Part #WB1X1181

Replaced by #WB1X371D

?
Manufacturer substitution
This part replaces WB1X1181. Substitute parts can look different from the original.
$25.20
In Stock
Ov Lamp H WB8X303
#256

Oven diagram

Ov lamp h

Part #WB8X303

$29.99 |
17% OFF Phone Price : $35.99
In Stock
