Model # GT1986PKCA Official Maytag refrigerator

Here are the diagrams and repair parts for Official Maytag GT1986PKCA refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

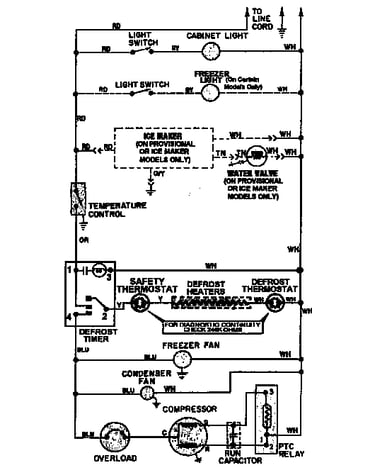

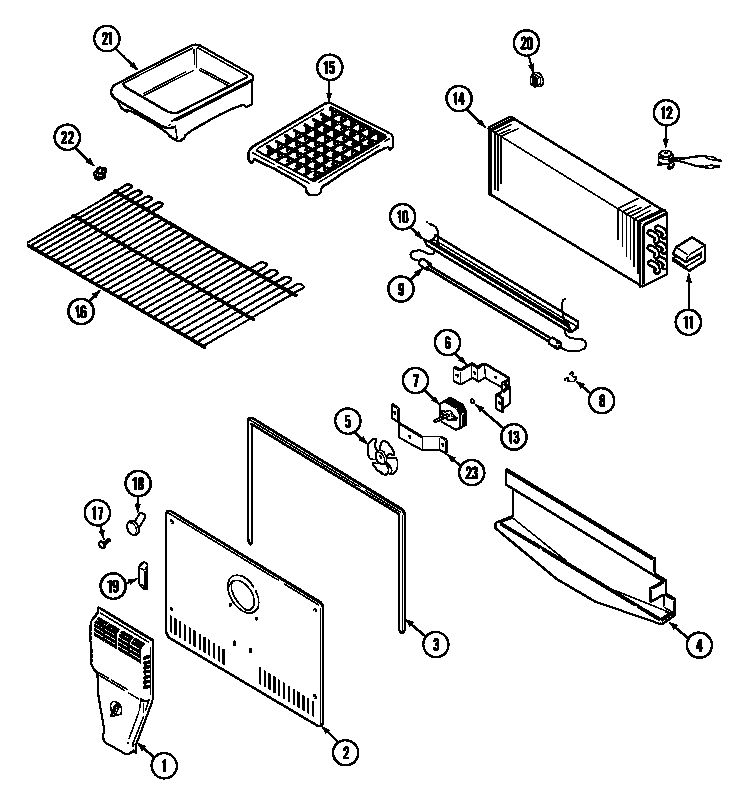

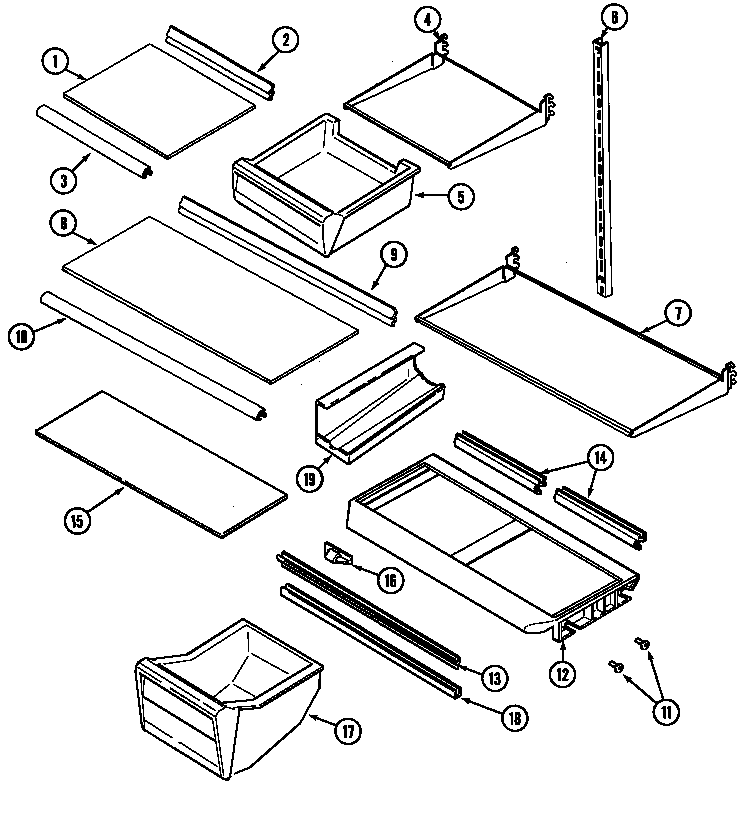

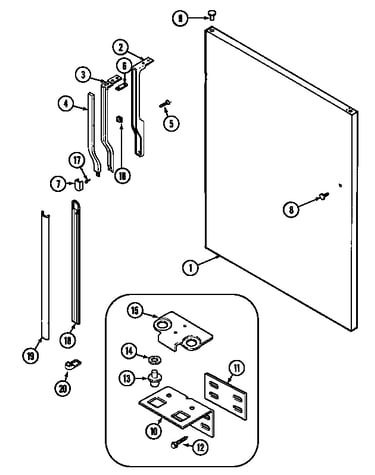

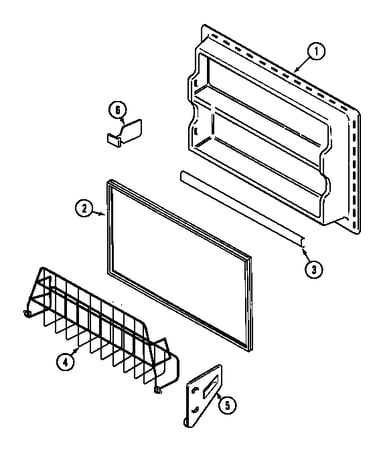

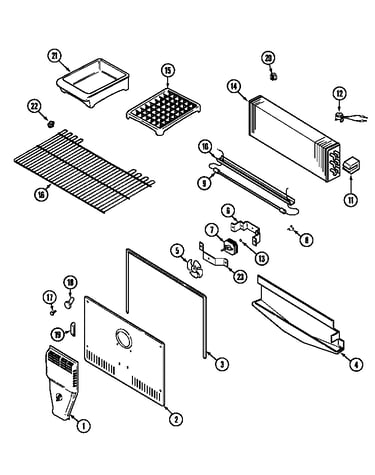

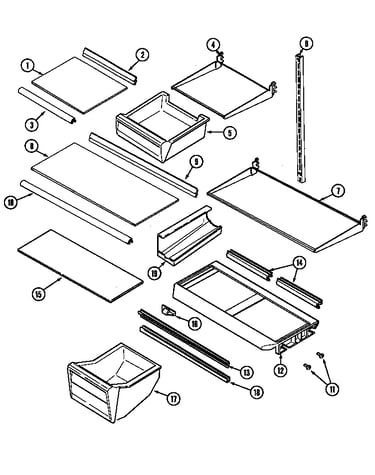

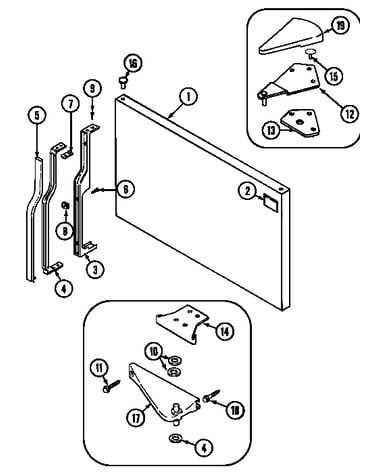

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 202 parts  |
Refrigerator Uv Dye Dryer 13900-1
#13

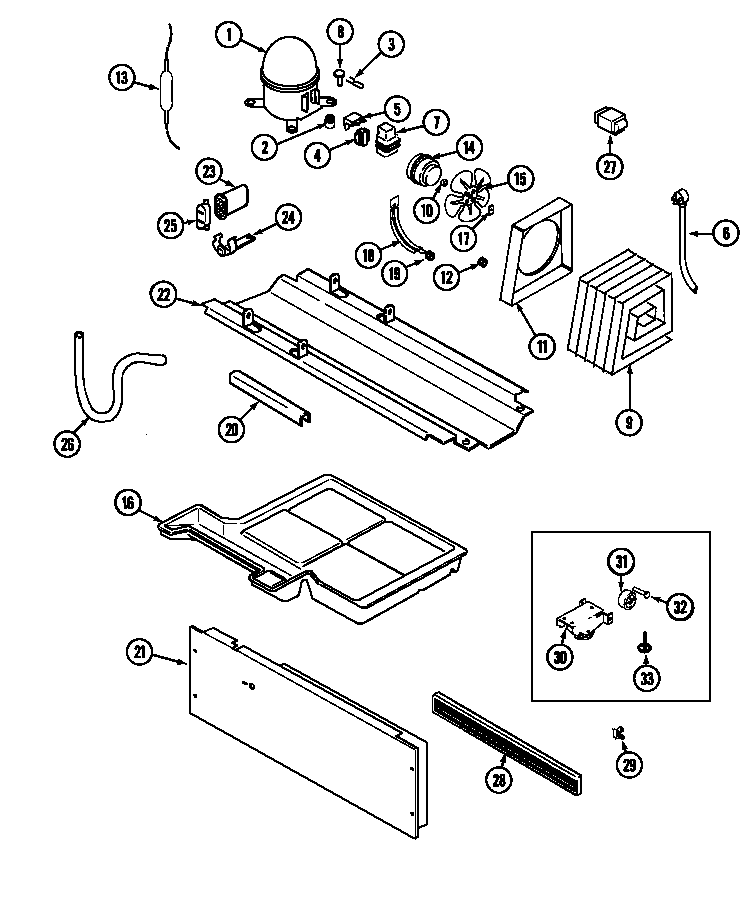

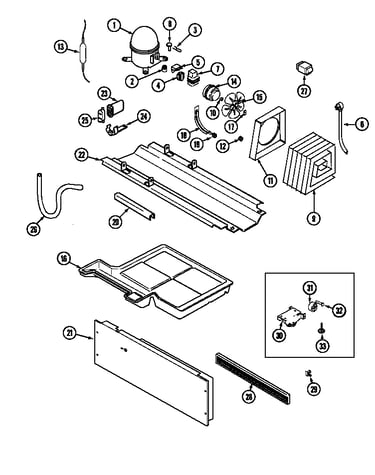

Compressor diagram

Refrigerator uv dye dryer

Part #13900-1

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900-1. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Light Switch 66987-1
#1

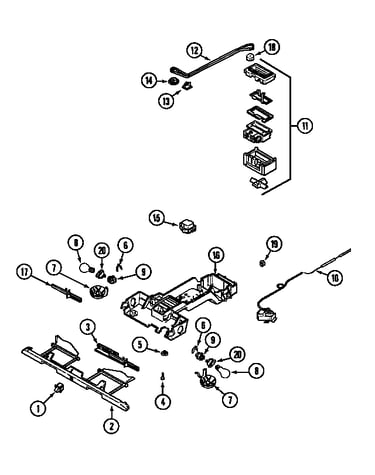

Controls diagram

Light switch

Part #66987-1

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 66987-1. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Refrigerator Screw 65275-49
#21A

Compressor diagram

Refrigerator screw

Part #65275-49

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 65275-49. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Refrigerator Thermostat 95092-1
#20

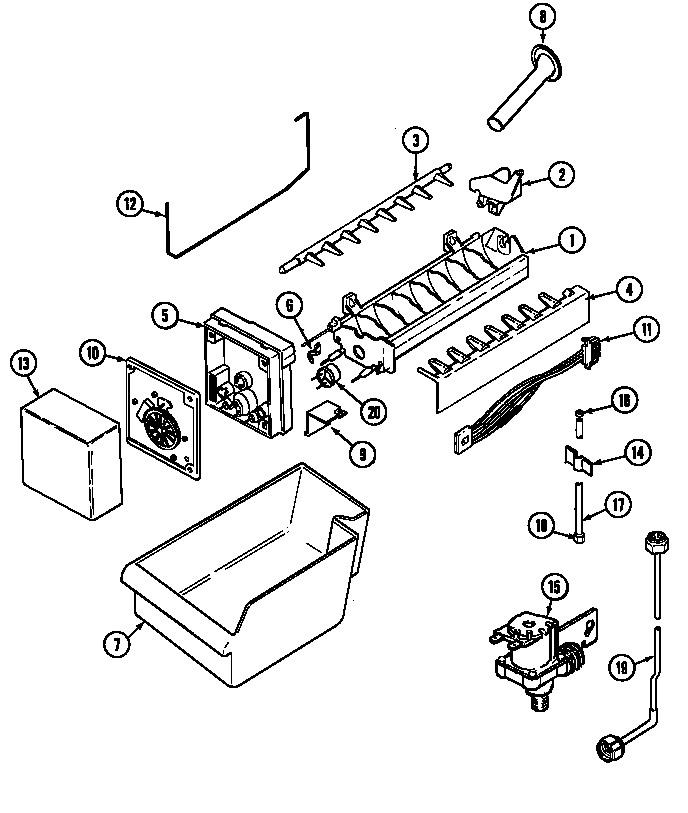

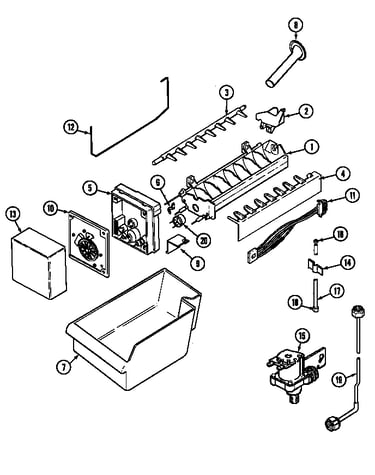

Optional ice maker kit-uki1000akx diagram

Refrigerator thermostat

Part #95092-1

Replaced by #WP627985

?
Manufacturer substitution
This part replaces 95092-1. Substitute parts can look different from the original.
BEST SELLER
$47.98 |
11% OFF Phone Price : $53.98
In Stock
Refrigerator Screw 95106-1
#5A

Optional ice maker kit-uki1000akx diagram

Refrigerator screw

Part #95106-1

Replaced by #WP681249

?
Manufacturer substitution
This part replaces 95106-1. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Refrigerator Ice Maker Fill Cup 95100-1
#2

Optional ice maker kit-uki1000akx diagram

Refrigerator ice maker fill cup

Part #95100-1

Replaced by #WP628356

?
Manufacturer substitution
This part replaces 95100-1. Substitute parts can look different from the original.
This item is not returnable
$27.77 |
18% OFF Phone Price : $33.77
In Stock
Refrigerator Clamp Spring 60333-4
#16

Optional ice maker kit-uki1000akx diagram

Refrigerator clamp spring

Part #60333-4

Replaced by #WPM0114003

?
Manufacturer substitution
This part replaces 60333-4. Substitute parts can look different from the original.
$8.09 |
11% OFF Phone Price : $9.09
In Stock
Refrigerator Overload 61001983
#5

Compressor diagram

Refrigerator overload

Part #61001983

Replaced by #WP2183456

?
Manufacturer substitution
This part replaces 61001983. Substitute parts can look different from the original.
$54.19 |
10% OFF Phone Price : $60.19
In Stock
Refrigerator Condenser Blade 61001821
#15

Compressor diagram

Refrigerator condenser blade

Part #61001821

Replaced by #WP12587601

?
Manufacturer substitution
This part replaces 61001821. Substitute parts can look different from the original.
$62.33 |
9% OFF Phone Price : $68.33
In Stock
Egg Tray 60066-1
#3

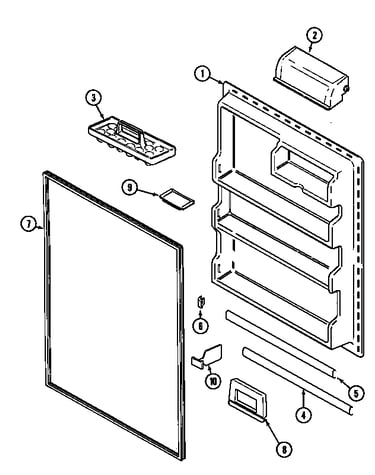

Fresh food inner door diagram

Egg tray

Part #60066-1

Replaced by #WP67004411

?
Manufacturer substitution
This part replaces 60066-1. Substitute parts can look different from the original.
This item is not returnable
$5.95 |
14% OFF Phone Price : $6.95
In Stock
