Model # GFC1000G03 Official GE garbage disposal
Here are the diagrams and repair parts for Official GE GFC1000G03 garbage disposal, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.

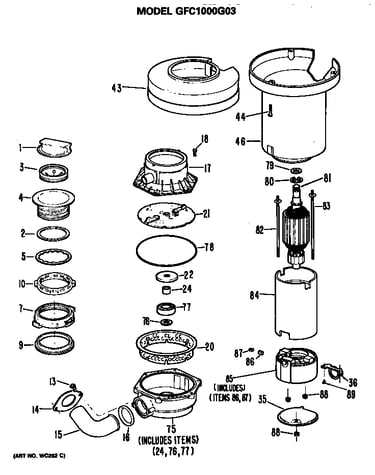

Model diagram and schematic
SEARCH WITHIN THIS MODEL
ALL PARTS
Showing 10 of 32 parts |
#7
All parts diagram
Mounting ring
Part #WC5X104
Replaced by #WC15X20161
?
Manufacturer substitution
This part replaces WC5X104. Substitute parts can look different from the original.
$50.75 |
11% OFF Phone Price : $56.75
In Stock
#14
All parts diagram
Mounting plate
Part #WC2X354
This item is not returnable
$5.49
In Stock
#3
All parts diagram
Guard stopper
Part #WC3X111
Replaced by #WC11X20163
?
Manufacturer substitution
This part replaces WC3X111. Substitute parts can look different from the original.
$14.56 |
12% OFF Phone Price : $16.56
In Stock
#10
All parts diagram
Support ring
Part #WC5X103
Replaced by #WC05X10002
?
Manufacturer substitution
This part replaces WC5X103. Substitute parts can look different from the original.
This item is not returnable
$11.68 |
15% OFF Phone Price : $13.68
In Stock
#20
All parts diagram
Ring grinding
Part #WC20X23
The manufacturer no longer makes this part, and there's no substitute part
#80
All parts diagram
Retaining ring
Part #WC1X240
The manufacturer no longer makes this part, and there's no substitute part
#89
All parts diagram
Screw
Part #WH2X5132
The manufacturer no longer makes this part, and there's no substitute part
#75
All parts diagram
Housing drain asm
Part #WC24X199
The manufacturer no longer makes this part, and there's no substitute part
#44
All parts diagram
Screw #8-11 x 3.5"
Part #WC1X257
The manufacturer no longer makes this part, and there's no substitute part
#78
All parts diagram
Gasket hopper
Part #WC3X115
The manufacturer no longer makes this part, and there's no substitute part
