Model # 16631 Official Huffy 26" women's freespirit white mountain bike

Here are the diagrams and repair parts for Official Huffy 16631 26" women's freespirit white mountain bike, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

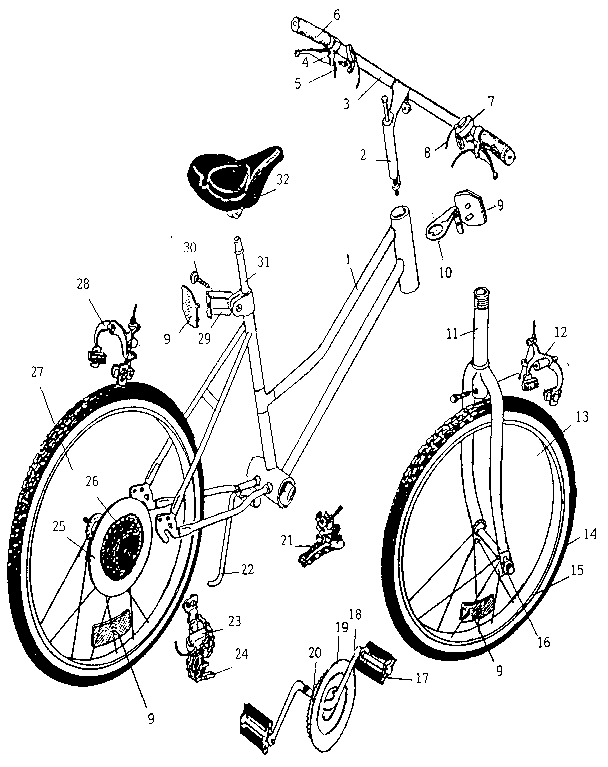

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Lifestyler Tool:spoke W 103048

#NI

All parts diagram

Lifestyler tool:spoke w

Part #103048

The manufacturer no longer makes this part, and there's no substitute part

Ft.wheel Asm 045064
#13

Unit parts diagram

Ft.wheel asm

Part #045064

The manufacturer no longer makes this part, and there's no substitute part

Lifestyler Ft/rr Spoke 049025

#NI

All parts diagram

Lifestyler ft/rr spoke

Part #049025

The manufacturer no longer makes this part, and there's no substitute part

Columbia Bicycle Pedal Set 070016
#17

Unit parts diagram

Columbia bicycle pedal set

Part #070016

The manufacturer no longer makes this part, and there's no substitute part

Bca Tool 103017

#NI

All parts diagram

Bca tool

Part #103017

The manufacturer no longer makes this part, and there's no substitute part

Roadmaster Bicycle Front Axle And Bearing Assembly 053011

#NI

All parts diagram

Roadmaster bicycle front axle and bearing assembly

Part #053011

The manufacturer no longer makes this part, and there's no substitute part

Bicycle Wheel, Rear 045510
#27

Unit parts diagram

Bicycle wheel, rear

Part #045510

The manufacturer no longer makes this part, and there's no substitute part

Lifestyler Spoke/nipple 049513

#NI

All parts diagram

Lifestyler spoke/nipple

Part #049513

The manufacturer no longer makes this part, and there's no substitute part

Rr Axle Brgs 054021

#NI

All parts diagram

Rr axle brgs

Part #054021

The manufacturer no longer makes this part, and there's no substitute part

Derailleur 085501
#23

Unit parts diagram

Derailleur

Part #085501

The manufacturer no longer makes this part, and there's no substitute part
