Kenmore
Electric Wall Oven

Model # 6654098913 Official Kenmore wall oven

Here are the diagrams and repair parts for Official Kenmore 6654098913 wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

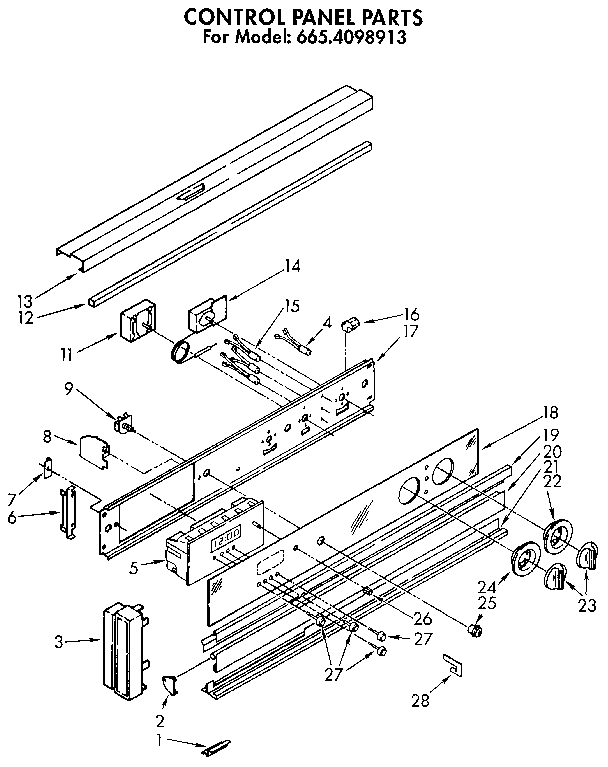

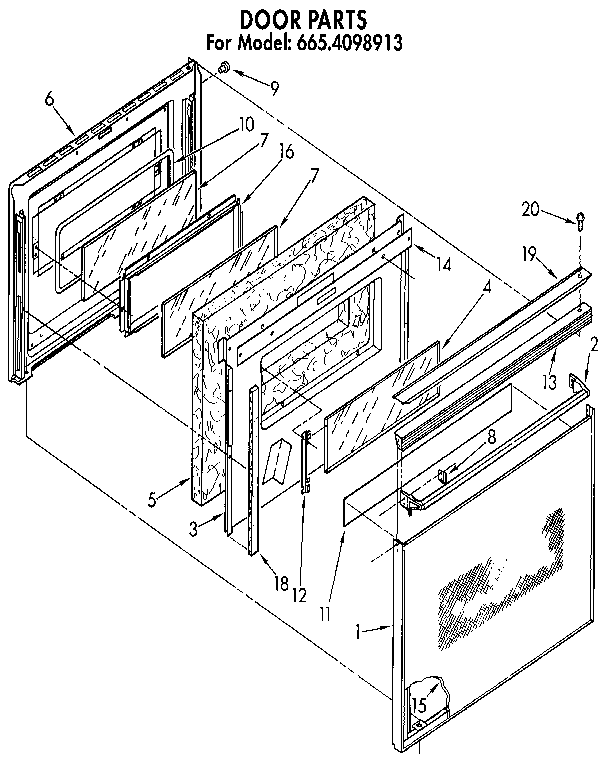

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 152 parts  |
Light Bulb 311255
#46

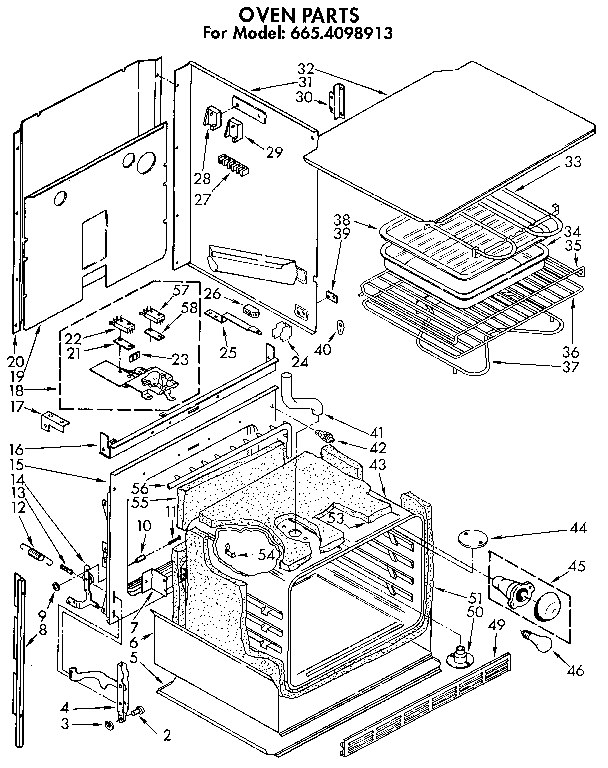

Oven diagram

Light bulb

Part #311255

Replaced by #40A15

?
Manufacturer substitution
This part replaces 311255. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Bake Element 661170
#37

Oven diagram

Bake element

Part #661170

Replaced by #WP308180

?
Manufacturer substitution
This part replaces 661170. Substitute parts can look different from the original.
BEST SELLER
$41.44 |
13% OFF Phone Price : $47.44
In Stock
Screw 3148107
Screw

Part #3148107

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 3148107. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Light Socket 3150505
#45

Oven diagram

Light socket

Part #3150505

Replaced by #W11594027

?
Manufacturer substitution
This part replaces 3150505. Substitute parts can look different from the original.
$56.53 |
10% OFF Phone Price : $62.53
In Stock
Range Broil Element 660579
#33

Oven diagram

Range broil element

Part #660579

Replaced by #WP660579

?
Manufacturer substitution
This part replaces 660579. Substitute parts can look different from the original.
$67.38 |
8% OFF Phone Price : $73.38
In Stock
Spring Anchor 308125
#13

Oven diagram

Spring anchor

Part #308125

Replaced by #WP308125

?
Manufacturer substitution
This part replaces 308125. Substitute parts can look different from the original.
$9.29 |
10% OFF Phone Price : $10.29
In Stock
Screw 355515
Screw

Part #355515

Replaced by #WP355515

?
Manufacturer substitution
This part replaces 355515. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Clip Bulb 313382
#54

Oven diagram

Clip bulb

Part #313382

Replaced by #98005642

?
Manufacturer substitution
This part replaces 313382. Substitute parts can look different from the original.
$35.73
In Stock
Broiler Pan 3147845
#34

Oven diagram

Broiler pan

Part #3147845

Replaced by #4396923

?
Manufacturer substitution
This part replaces 3147845. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Clip 313438
#2

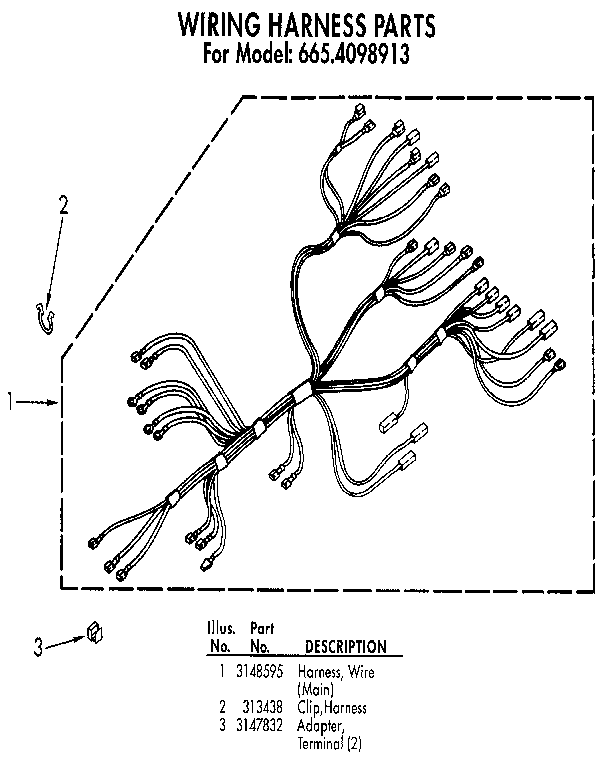

Wiring harness diagram

Clip

Part #313438

Replaced by #16515

?
Manufacturer substitution
This part replaces 313438. Substitute parts can look different from the original.
This item is not returnable
$20.39 |
23% OFF Phone Price : $26.39
In Stock
