Model # ED24SCP Official Dacor dishwasher

Here are the diagrams and repair parts for Official Dacor ED24SCP dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

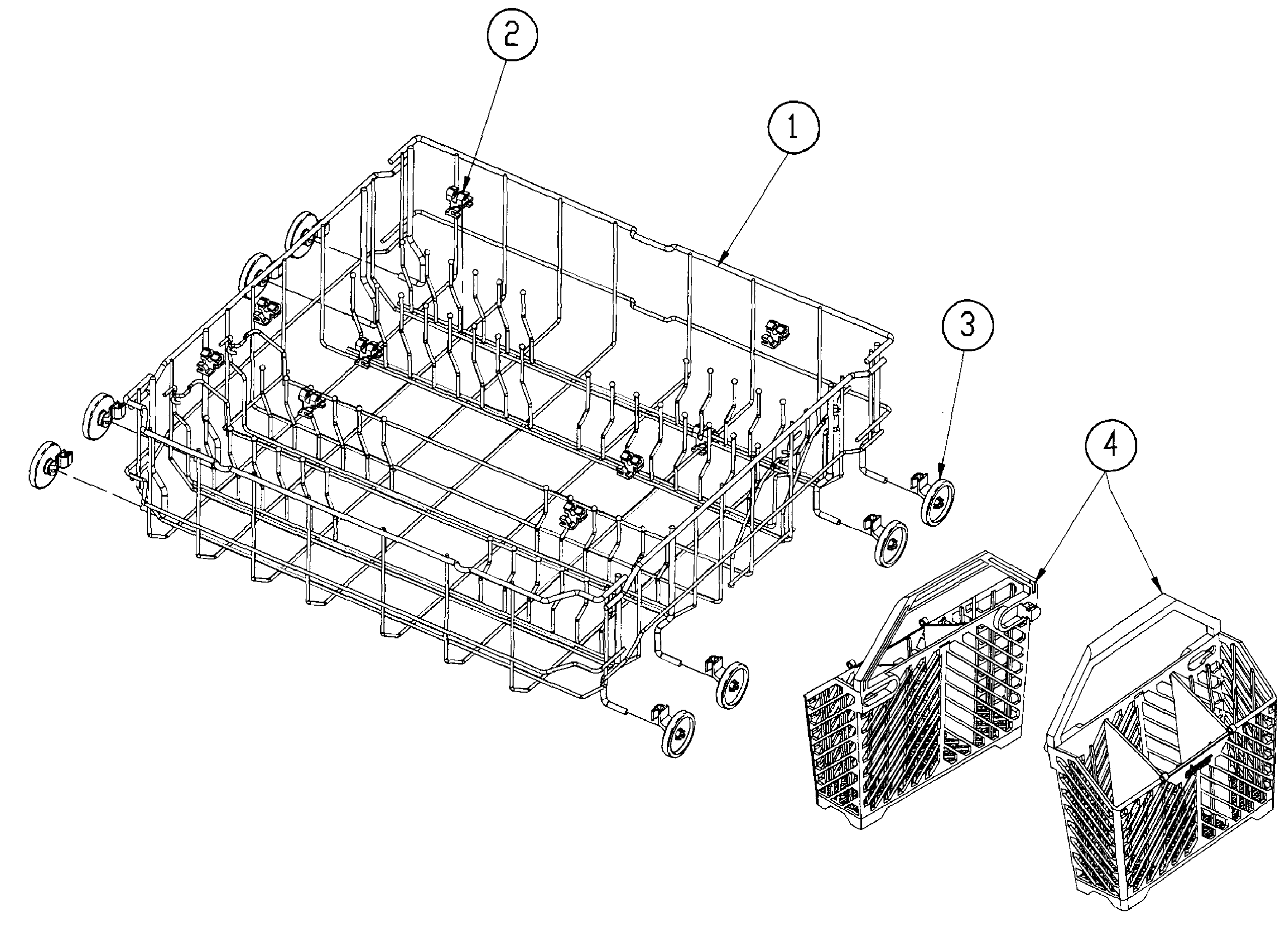

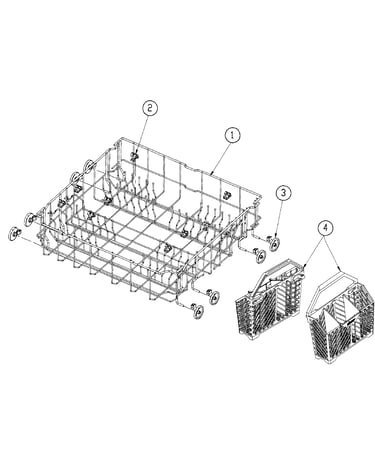

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 132 parts  |
Dishwasher Door Seal 72051
#19

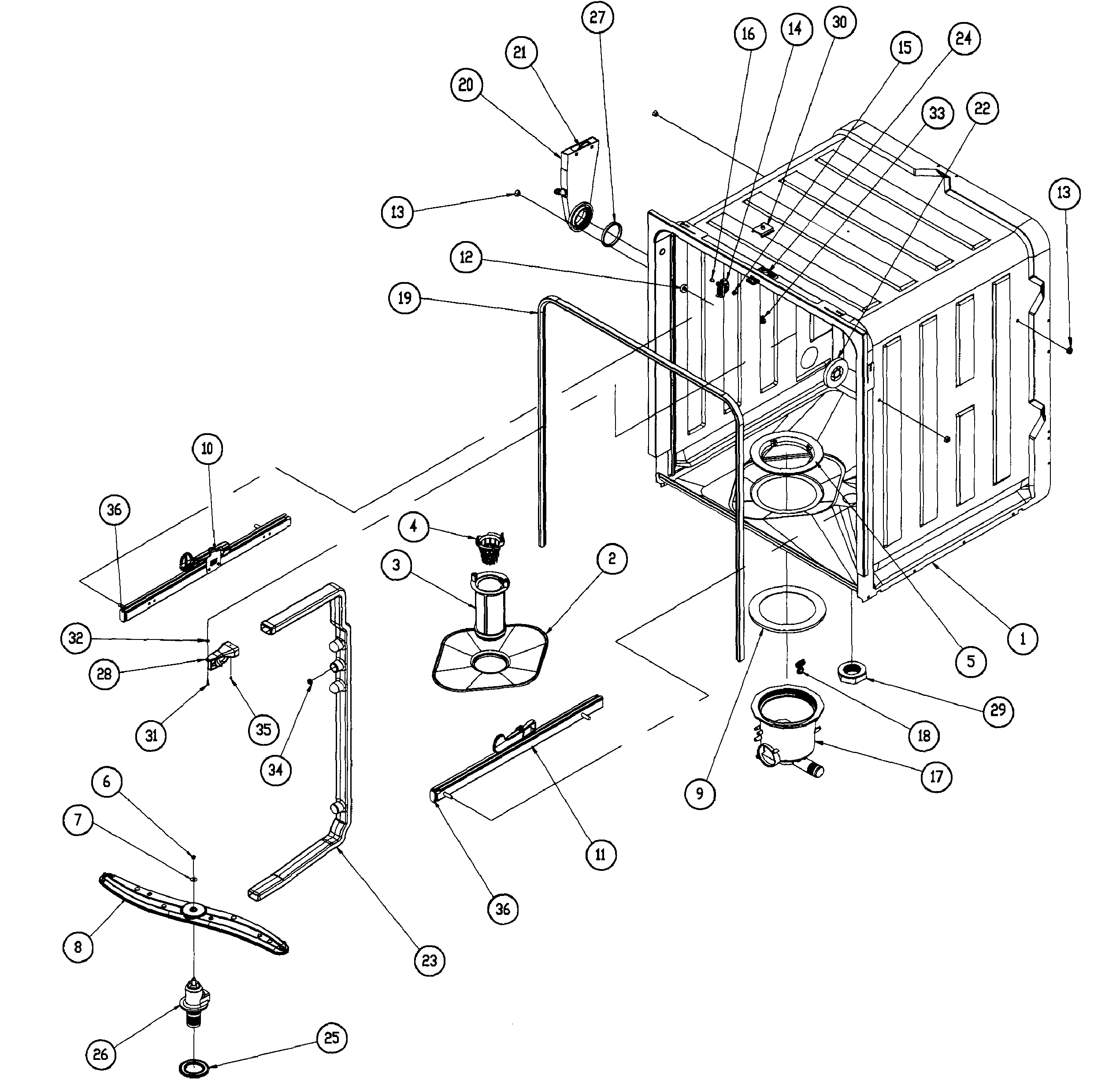

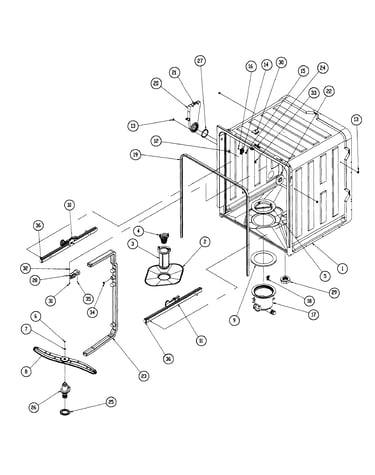

Tank assy diagram

Dishwasher door seal

Part #72051

$44.49
In Stock
Appliance Screw, #8 X 3/8-in 83263
#5

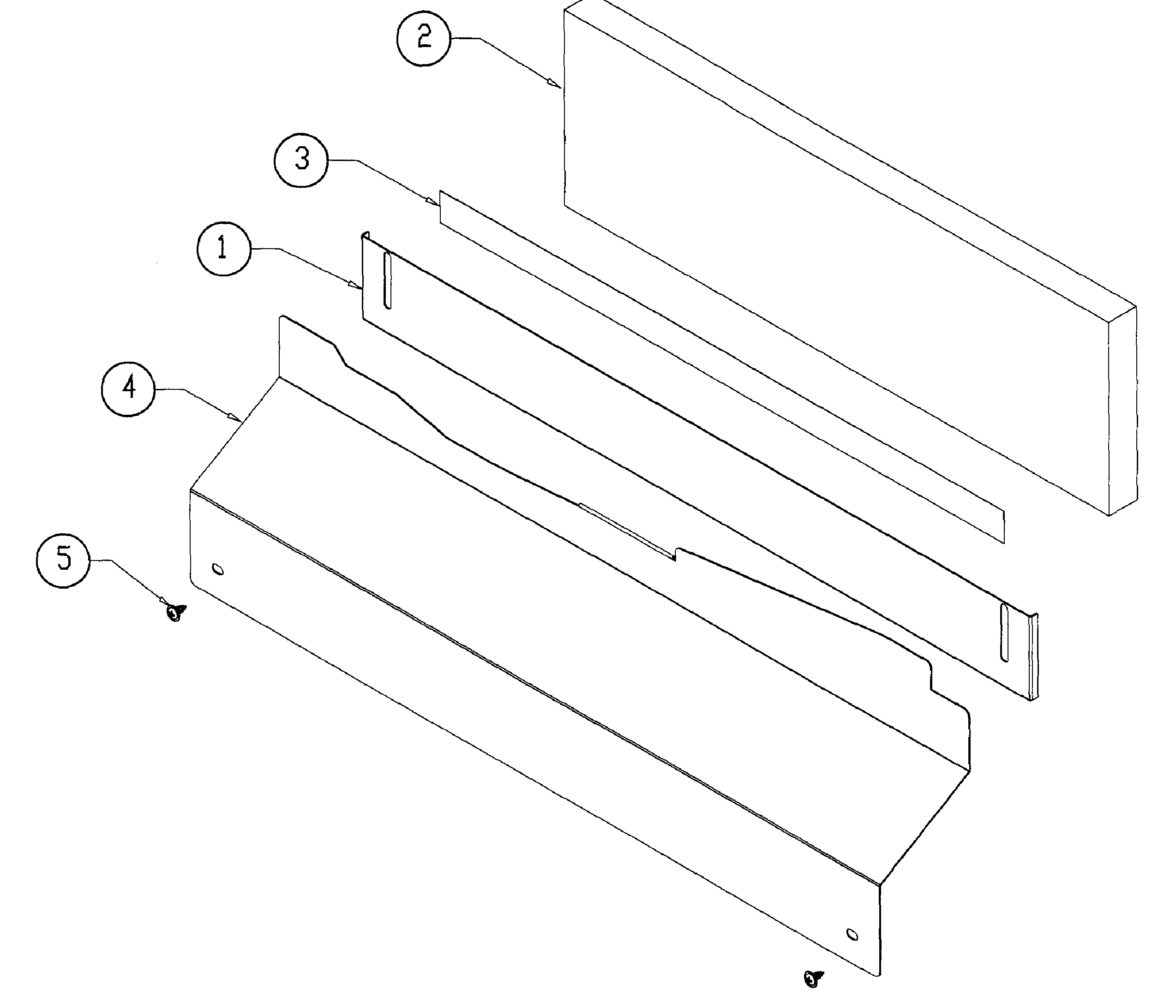

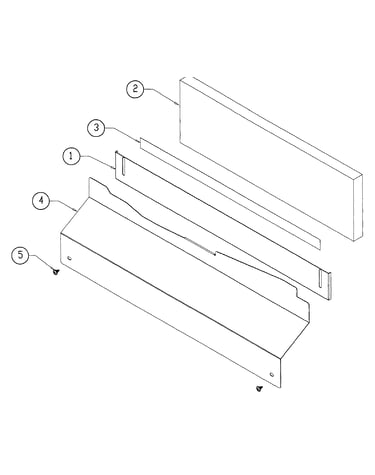

Toe kick diagram

Appliance screw, #8 x 3/8-in

Part #83263

This item is not returnable
$2.16
In Stock
Screw 83571
#4

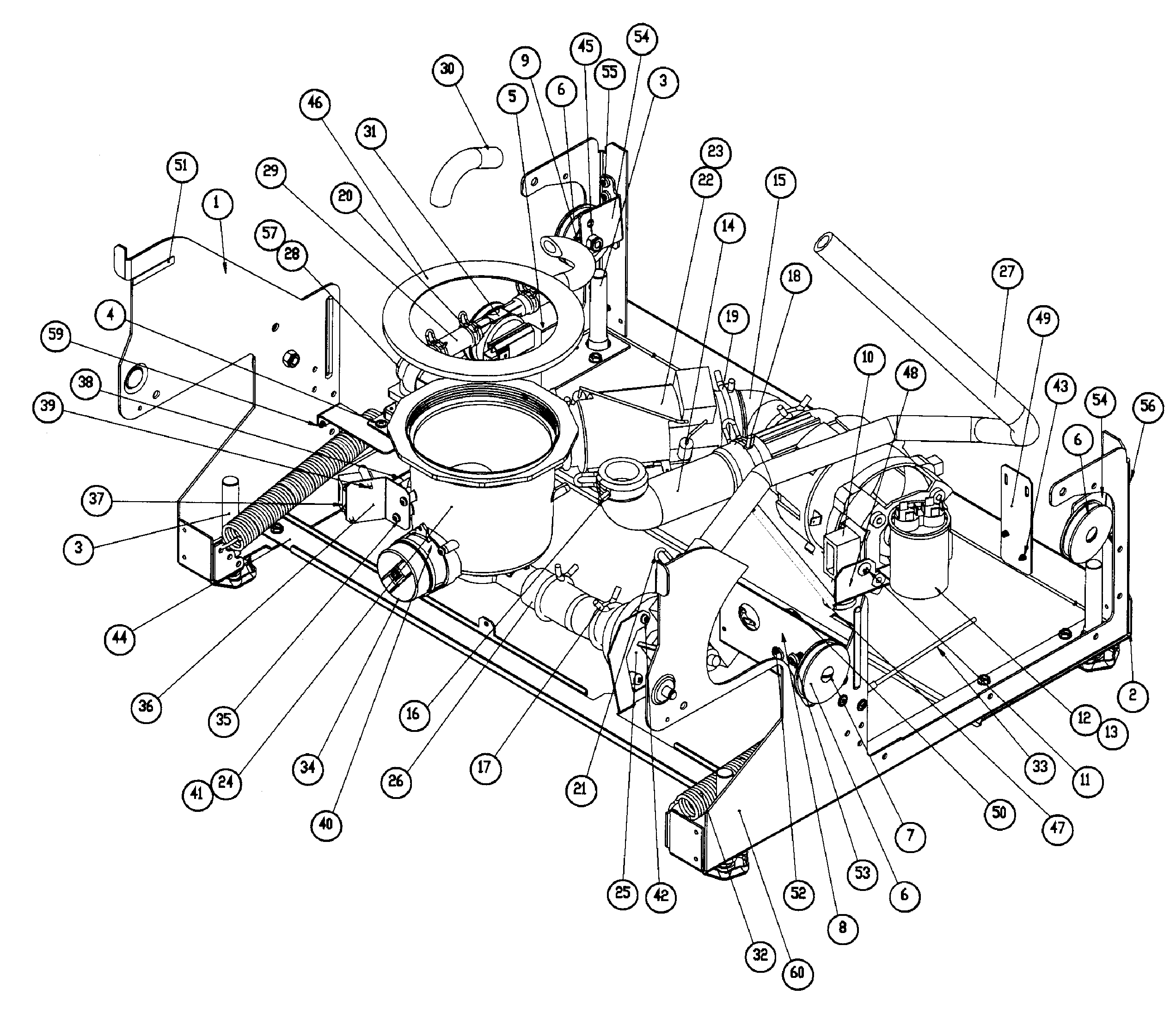

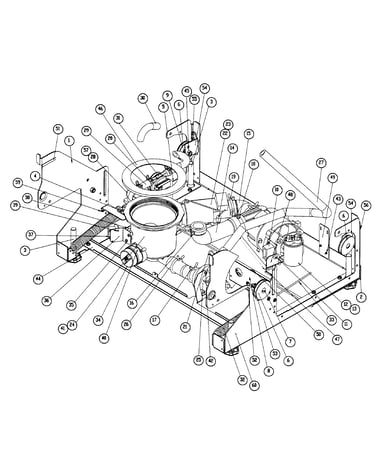

Base assy diagram

Screw

Part #83571

Replaced by #83263

?
Manufacturer substitution
This part replaces 83571. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Logo 72510CP
#7

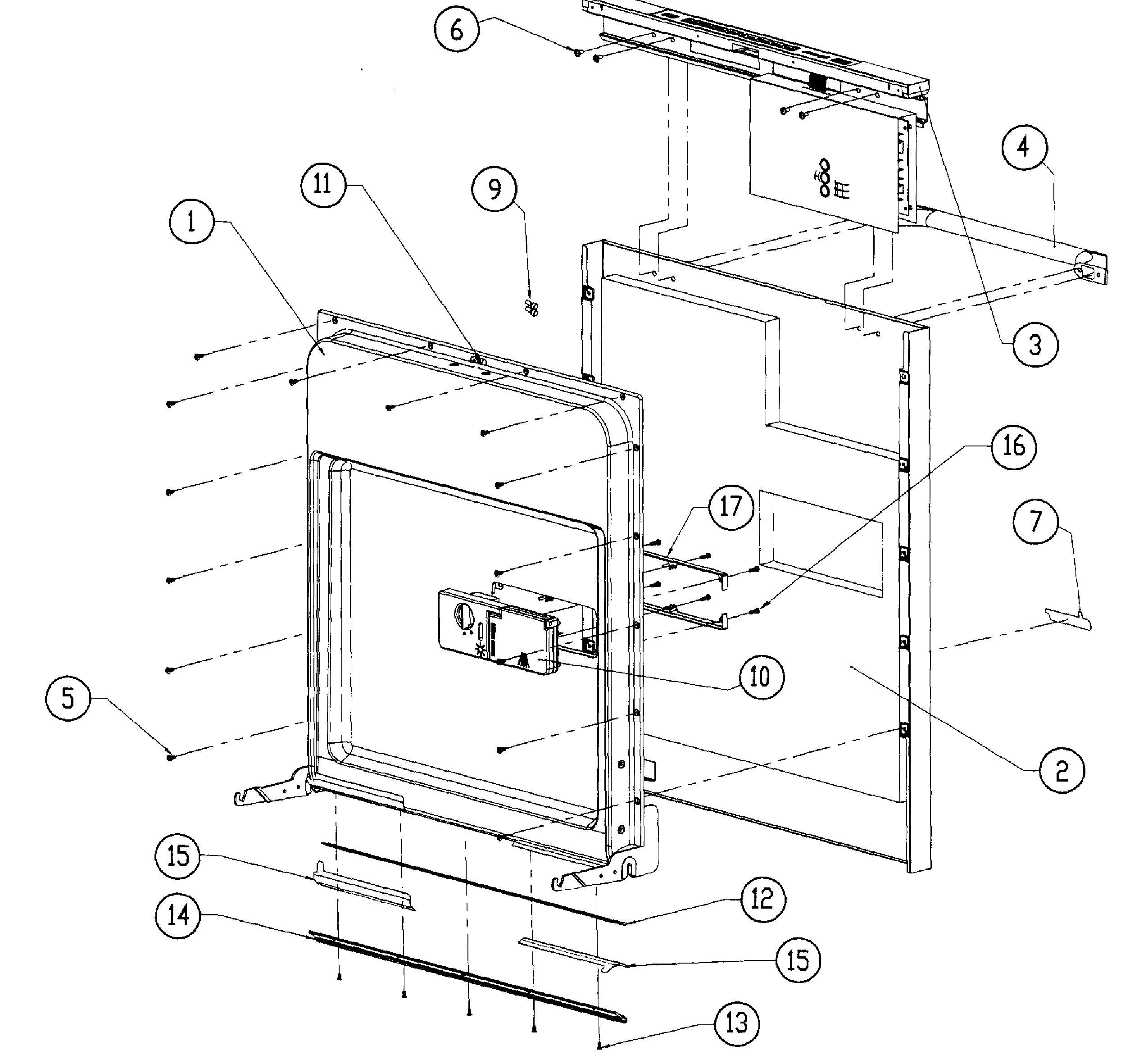

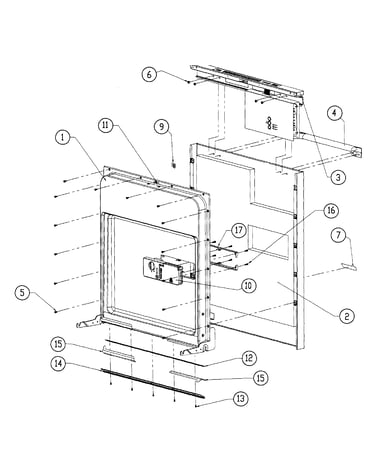

Door assy diagram

Logo

Part #72510CP

$27.49
In Stock
Locknut Fr 83456
#61

Base assy diagram

Locknut fr

Part #83456

This item is not returnable
$2.16
In Stock
Dishwasher Door Latch 700268
#11

Door assy diagram

Dishwasher door latch

Part #700268

$45.99
In Stock
Dishwasher Dishrack, Upper 102548
#1

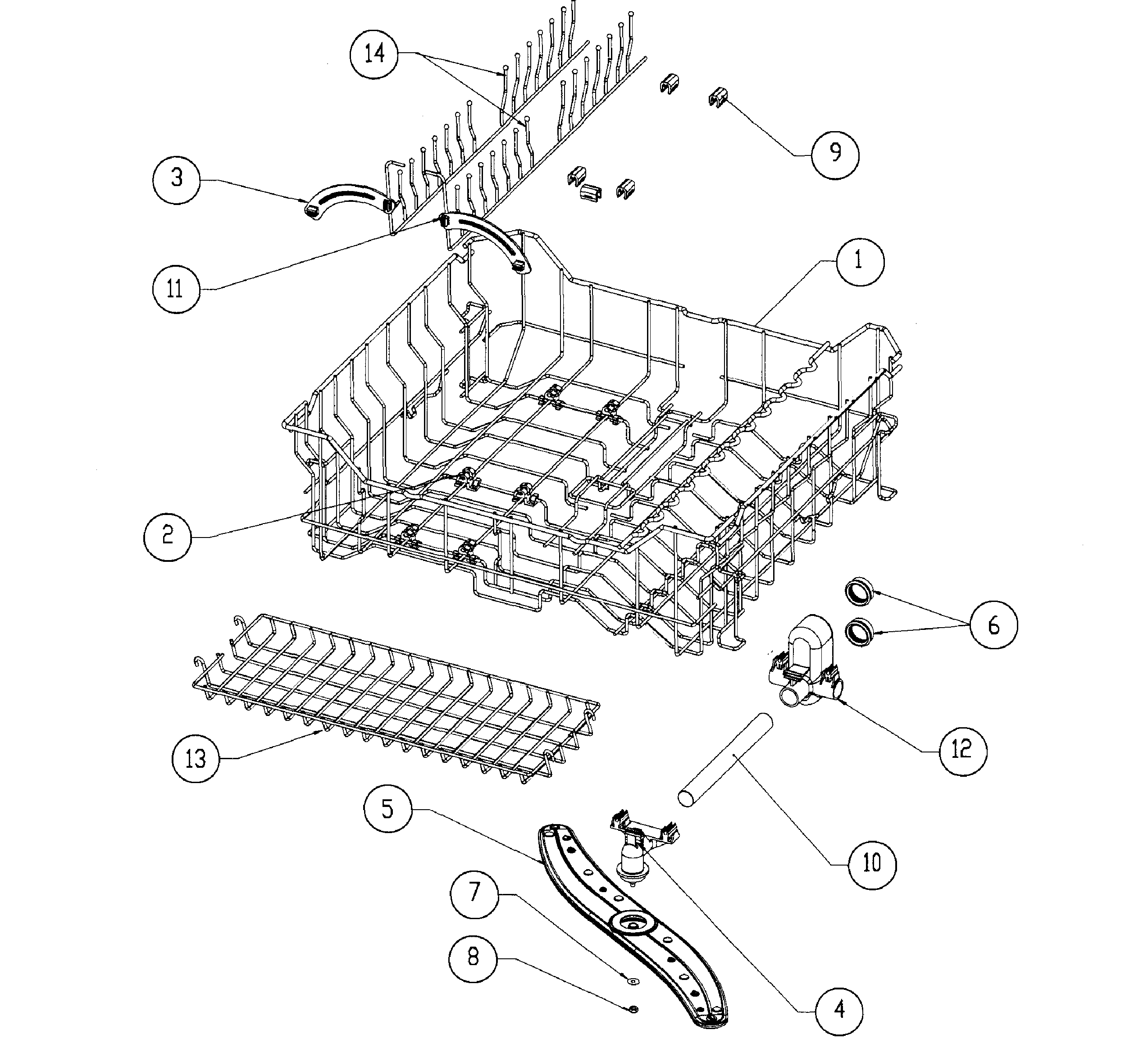

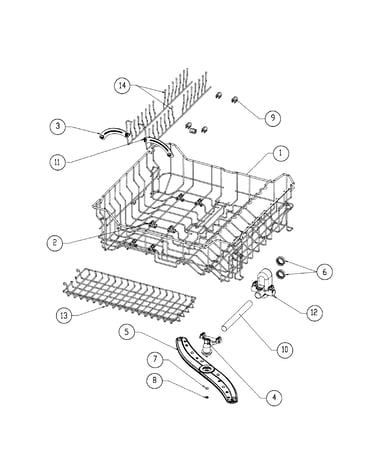

Upper rack diagram

Dishwasher dishrack, upper

Part #102548

$391.49
In Stock
Buttom 103226
#16

Tank assy diagram

Buttom

Part #103226

This item is not returnable
$2.16
In Stock

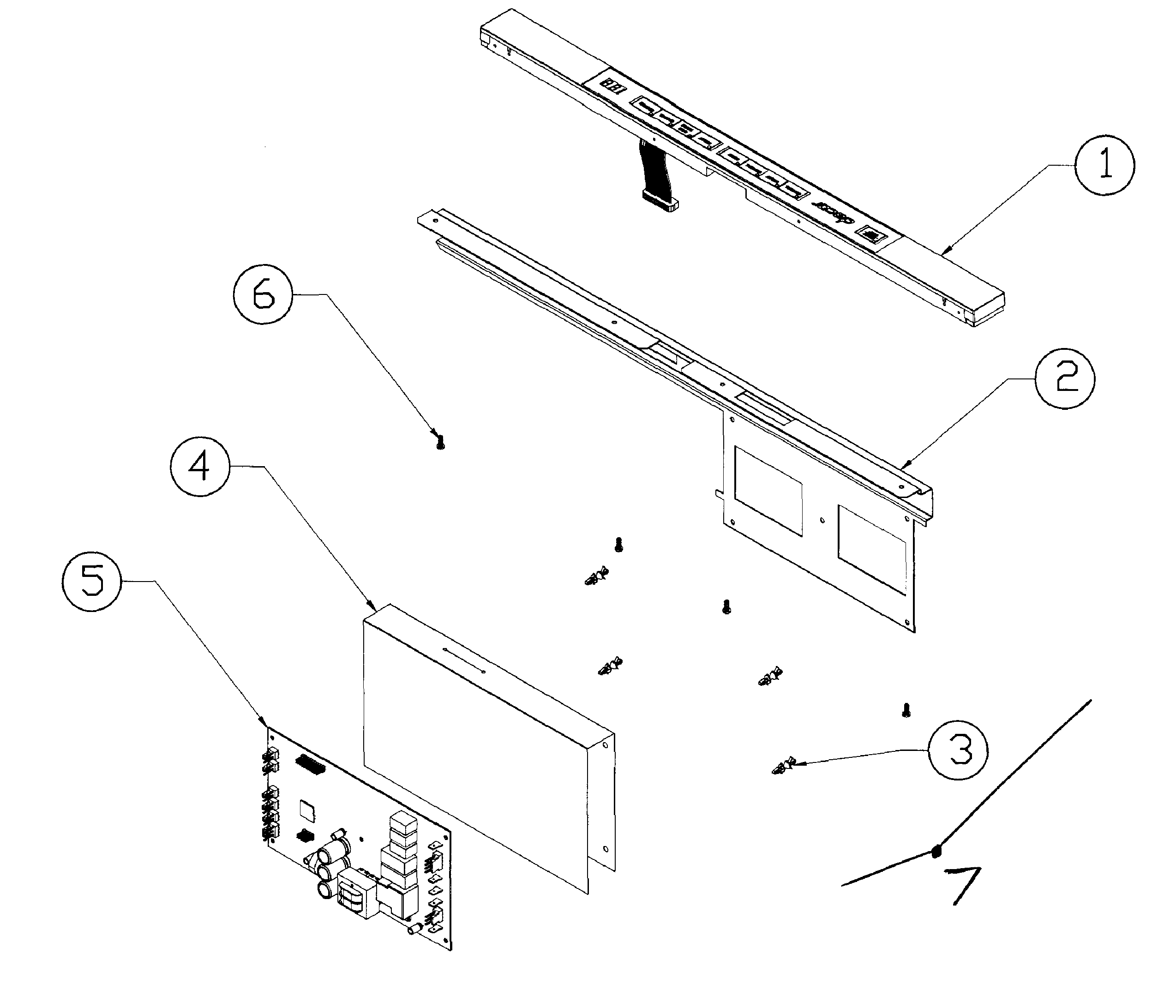

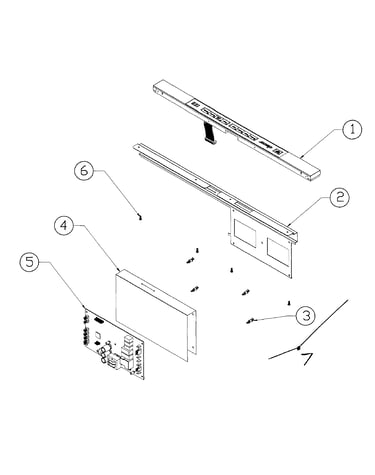

Bezel Bracket 101692
Bezel bracket

Part #101692

$26.49
In Stock
Screw 101541
#7

Base assy diagram

Screw

Part #101541

$13.49
In Stock
