Craftsman
Gas Walk-Behind Mower

Model # 917378000 Official Craftsman power-propelled side-discharge lawn mower

Here are the diagrams and repair parts for Official Craftsman 917378000 power-propelled side-discharge lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Blade 69334
Blade

Part #69334

Replaced by #532406713

?
Manufacturer substitution
This part replaces 69334. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$28.29 |
17% OFF Phone Price : $34.29
In Stock
Bolt 58714
#4

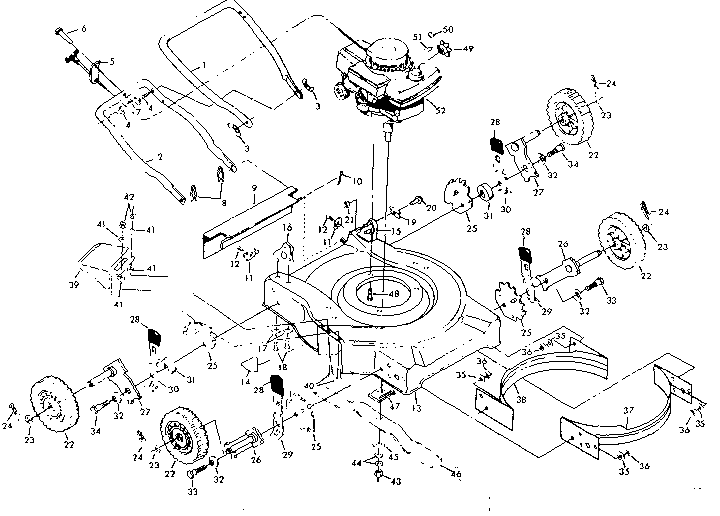

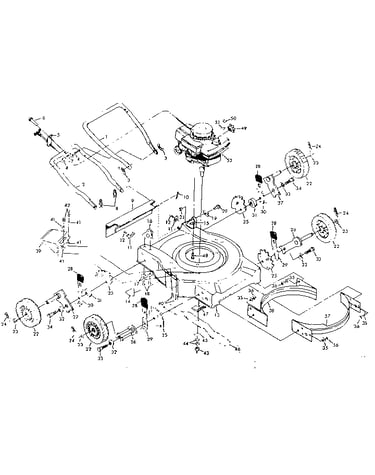

Main frame diagram

Bolt

Part #58714

Replaced by #532183724

?
Manufacturer substitution
This part replaces 58714. Substitute parts can look different from the original.
This item is not returnable
$11.98 |
14% OFF Phone Price : $13.98
In Stock
Selctr Sprng 84888
#30

Main frame diagram

Selctr sprng

Part #84888

Replaced by #532401621

?
Manufacturer substitution
This part replaces 84888. Substitute parts can look different from the original.
$8.54
In Stock
Bracket, Left 85664
#15

Main frame diagram

Bracket, left

Part #85664

Replaced by #532192983

?
Manufacturer substitution
This part replaces 85664. Substitute parts can look different from the original.
$37.31
In Stock
Washer 62335
#32

Main frame diagram

Washer

Part #62335

Replaced by #532062335

?
Manufacturer substitution
This part replaces 62335. Substitute parts can look different from the original.
$13.69
In Stock
Washer 59289
#17

Main frame diagram

Washer

Part #59289

Replaced by #532059289

?
Manufacturer substitution
This part replaces 59289. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Screw 57968
#40

Main frame diagram

Screw

Part #57968

The manufacturer no longer makes this part, and there's no substitute part

Lawn Mower Retainer Clip, 4-pack 55015
#24

Main frame diagram

Lawn mower retainer clip, 4-pack

Part #55015

Replaced by #582934801

?
Manufacturer substitution
This part replaces 55015. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Clip 85827
#10

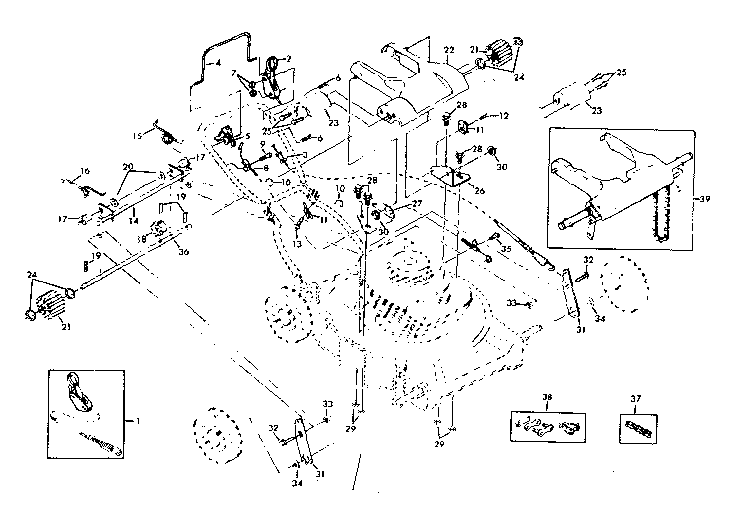

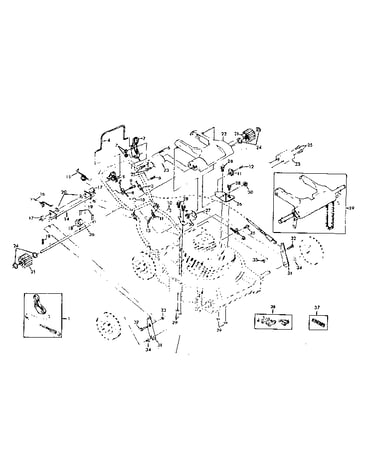

Drive assembly diagram

Clip

Part #85827

Replaced by #582940401

?
Manufacturer substitution
This part replaces 85827. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Washer 74232
#34

Drive assembly diagram

Washer

Part #74232

Replaced by #819171912

?
Manufacturer substitution
This part replaces 74232. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
