Side-By-Side Refrigerator

Model # MSX20BABBWH Official GE refrigerator - b series

Here are the diagrams and repair parts for Official GE MSX20BABBWH refrigerator - b series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

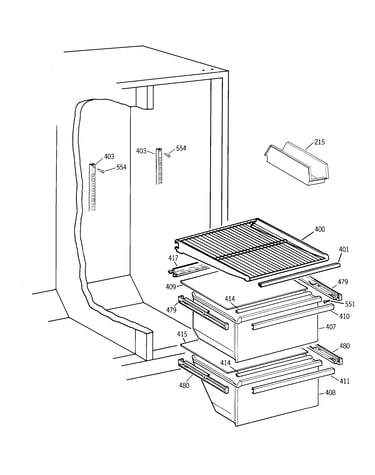

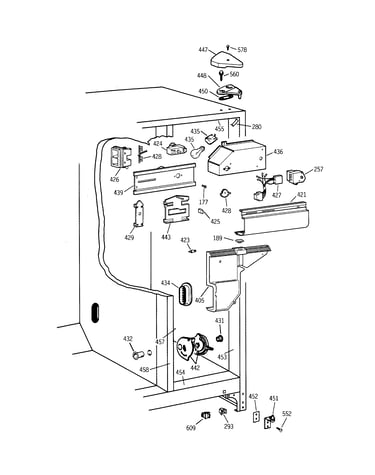

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 192 parts  |
Dryer Filter WR86X0096
#740

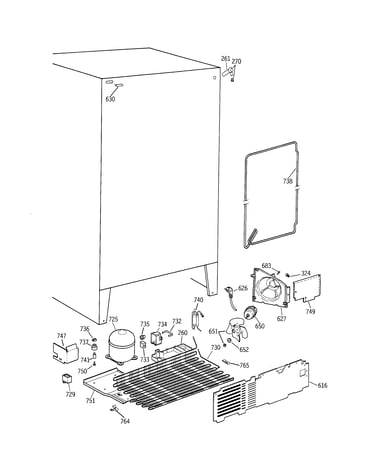

Unit parts diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Capacitor WR62X0079
#729

Unit parts diagram

Capacitor

Part #WR62X0079

Replaced by #WR55X24064

?
Manufacturer substitution
This part replaces WR62X0079. Substitute parts can look different from the original.
BEST SELLER
$40.73 |
13% OFF Phone Price : $46.73
In Stock
Hi Side Asm WR87X0471
#725

Unit parts diagram

Hi side asm

Part #WR87X0471

Replaced by #WR87X20798

?
Manufacturer substitution
This part replaces WR87X0471. Substitute parts can look different from the original.
BEST SELLER
$382.57 |
$12.00 OFF Phone Price : $394.57
In Stock
Refrigerator Defrost Thermostat WR50X0122
#240

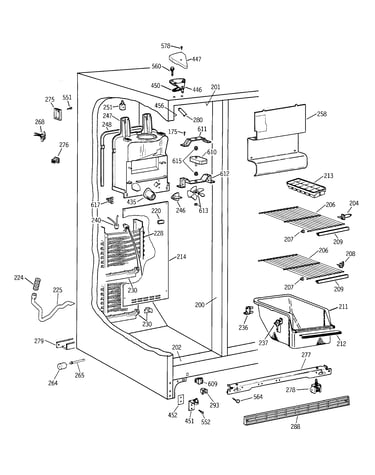

Freezer section diagram

Refrigerator defrost thermostat

Part #WR50X0122

Replaced by #WR50X122

?
Manufacturer substitution
This part replaces WR50X0122. Substitute parts can look different from the original.
BEST SELLER
$37.61 |
14% OFF Phone Price : $43.61
In Stock
Refrigerator Door Hinge WR13X10020
Refrigerator door hinge

Part #WR13X10020

BEST SELLER
$30.16 |
17% OFF Phone Price : $36.16
In Stock
Condenser Motor WR60X10010
#650

Unit parts diagram

Condenser motor

Part #WR60X10010

Replaced by #WR60X187

?
Manufacturer substitution
This part replaces WR60X10010. Substitute parts can look different from the original.
BEST SELLER
$207.94 |
5% OFF Phone Price : $219.94
In Stock
Ring/fan Bld WR02X3198
#613

Freezer section diagram

Ring/fan bld

Part #WR02X3198

Replaced by #WR60X114

?
Manufacturer substitution
This part replaces WR02X3198. Substitute parts can look different from the original.
This item is not returnable
$15.03 |
12% OFF Phone Price : $17.03
In Stock
Lo Side Asm WR85X0282
#228

Freezer section diagram

Lo side asm

Part #WR85X0282

Replaced by #WR87X28949

?
Manufacturer substitution
This part replaces WR85X0282. Substitute parts can look different from the original.
$340.63
In Stock
Refrigerator Relay Protector WR07X0240
#733

Unit parts diagram

Refrigerator relay protector

Part #WR07X0240

Replaced by #WR07X10055

?
Manufacturer substitution
This part replaces WR07X0240. Substitute parts can look different from the original.
This item is not returnable
$21.30 |
22% OFF Phone Price : $27.30
In Stock
Ground Screw WR01X1466
#NI

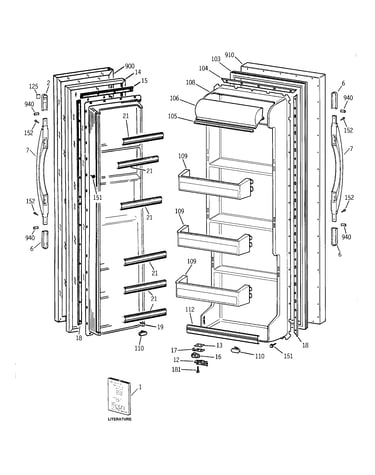

Doors diagram

Ground screw

Part #WR01X1466

Replaced by #WZ5X158D

?
Manufacturer substitution
This part replaces WR01X1466. Substitute parts can look different from the original.
$34.63 |
15% OFF Phone Price : $40.63
In Stock
