Model # DYF42BNDI00 Official Dacor refrigerator

Here are the diagrams and repair parts for Official Dacor DYF42BNDI00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

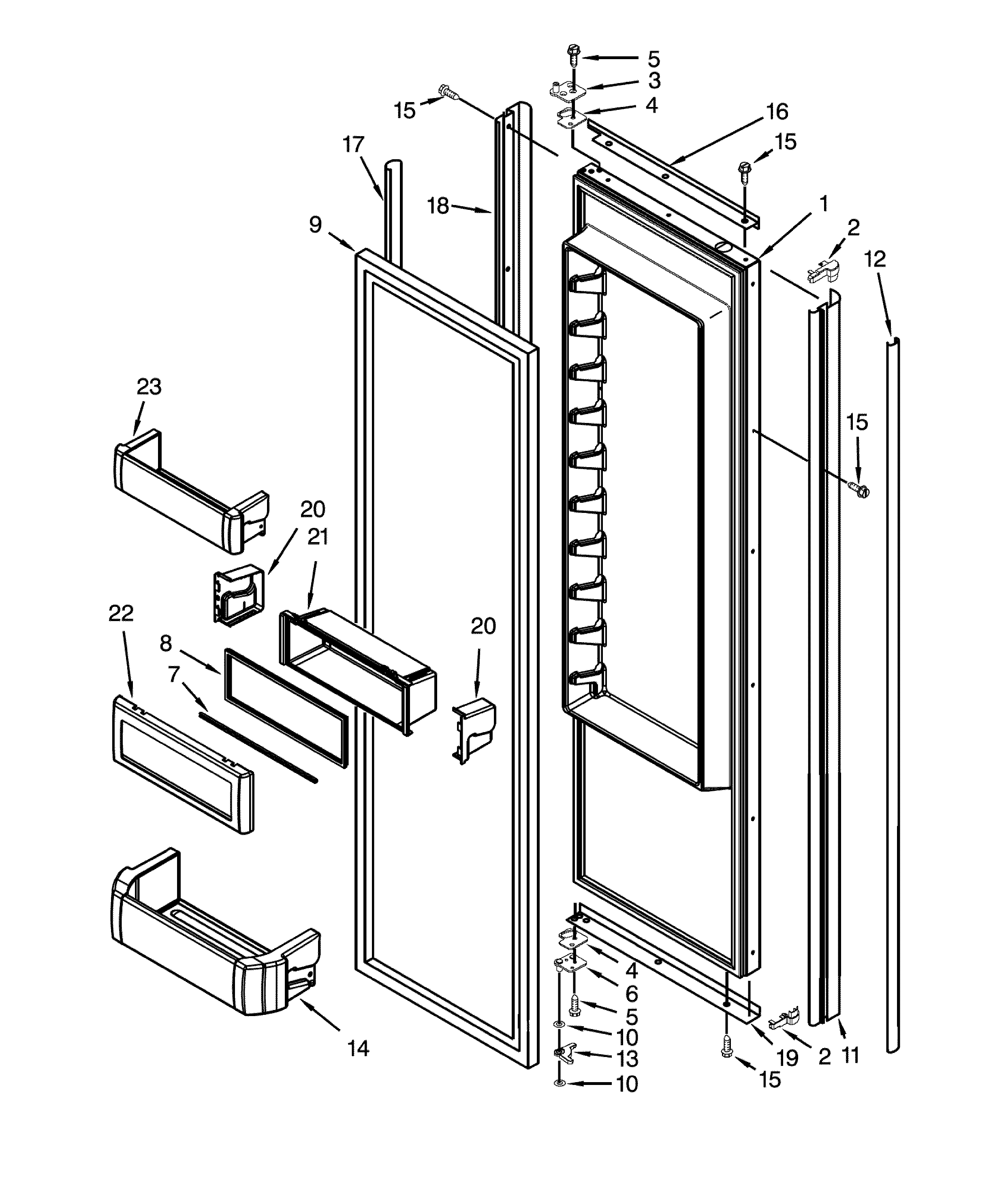

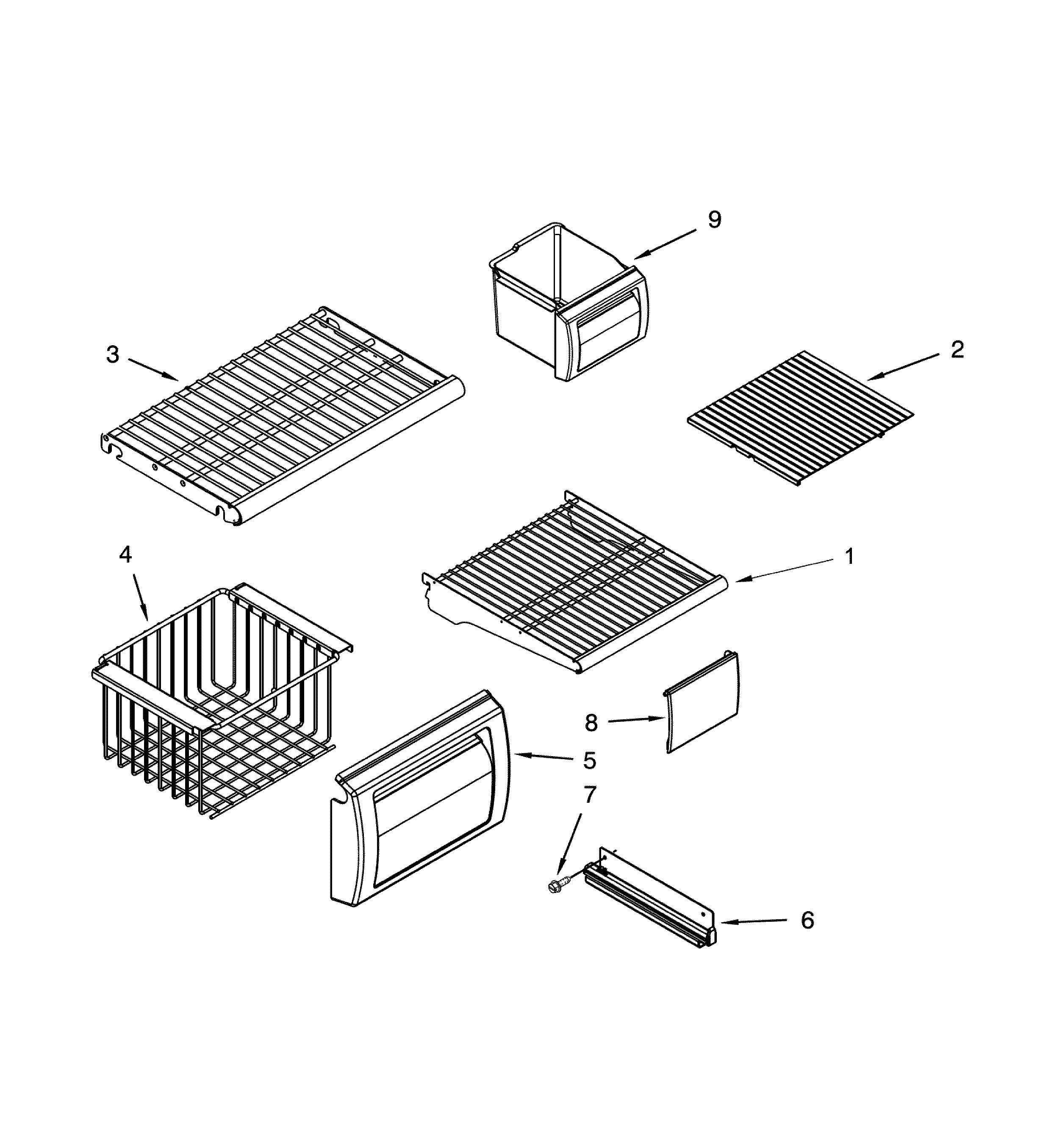

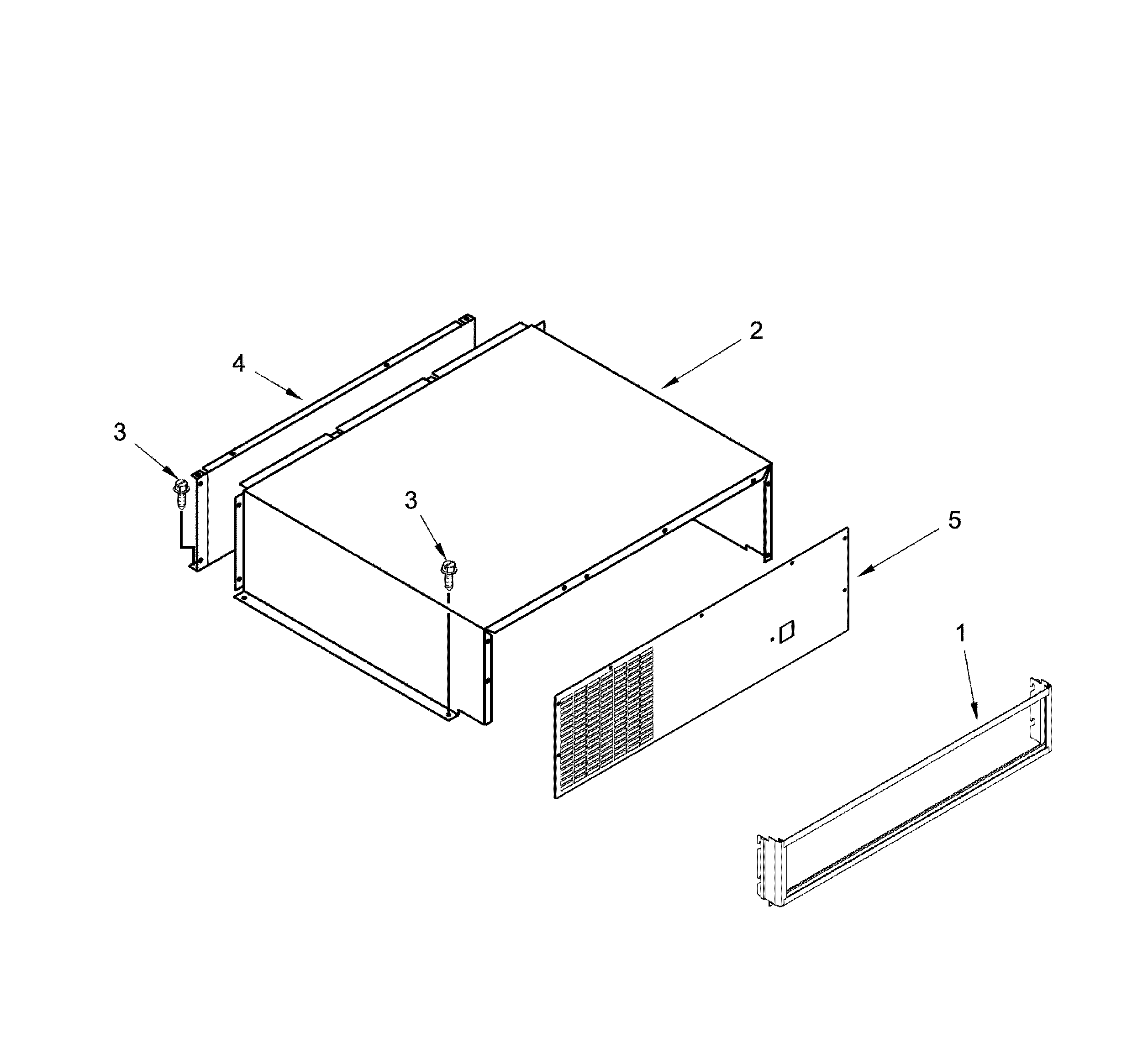

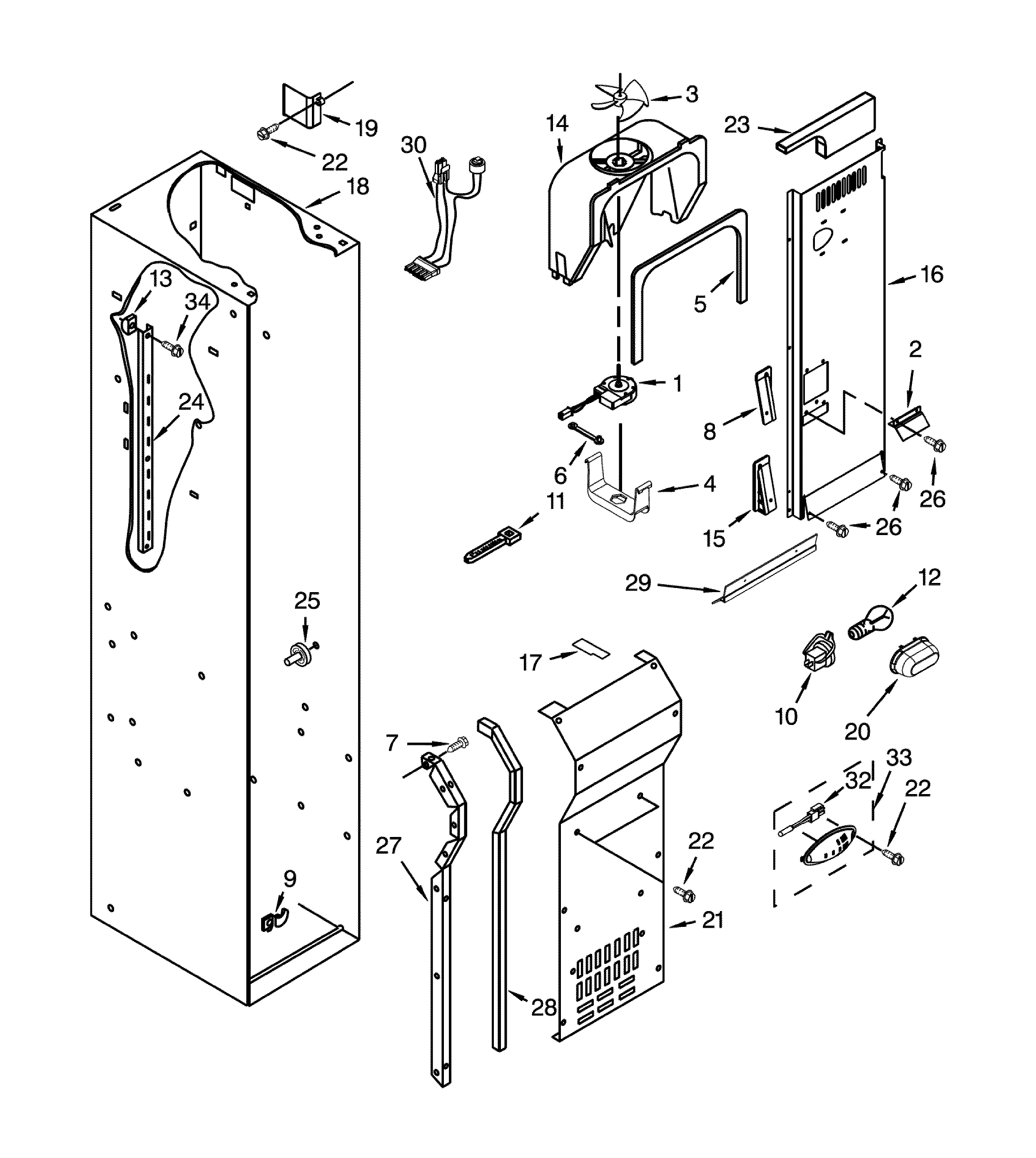

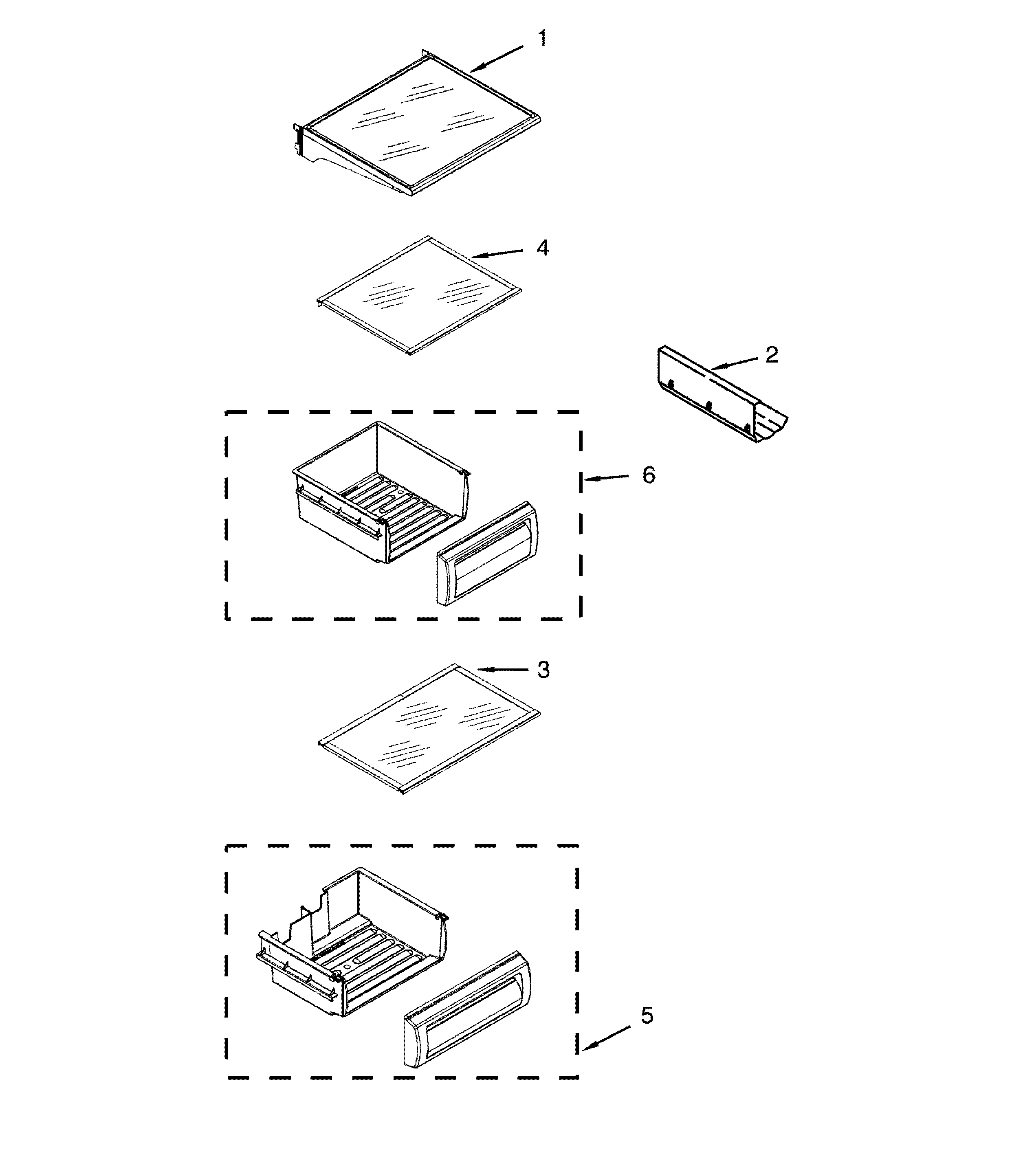

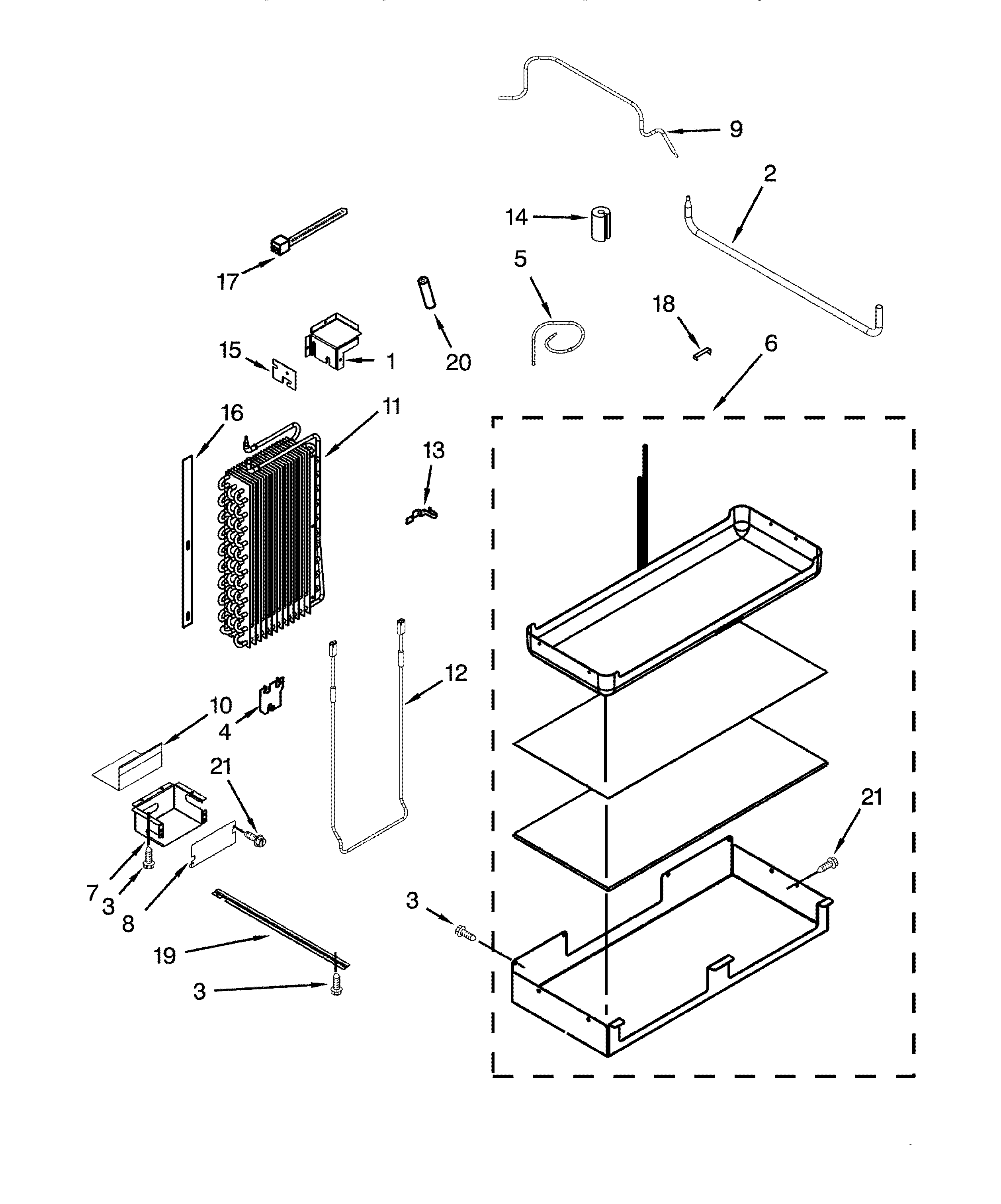

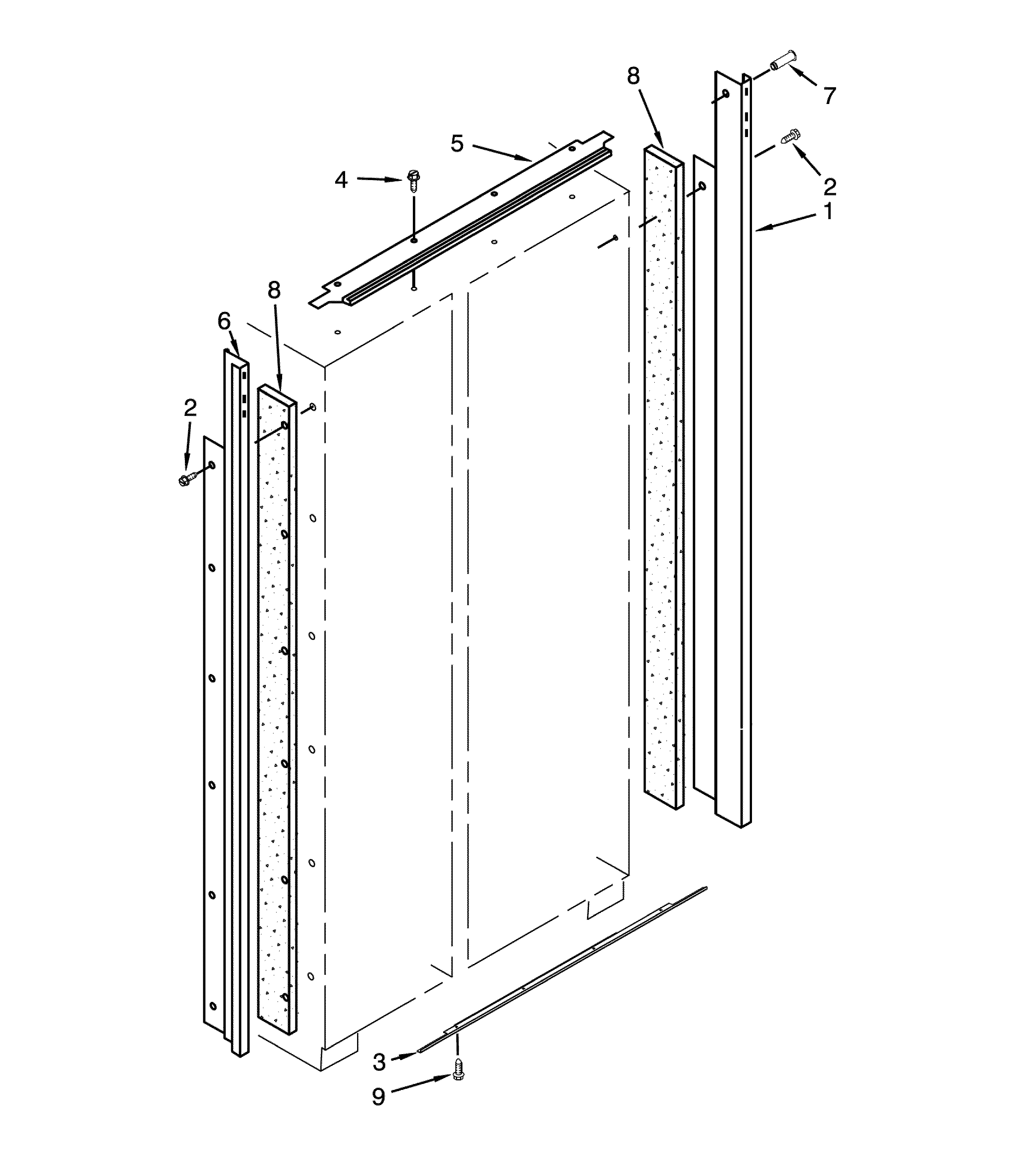

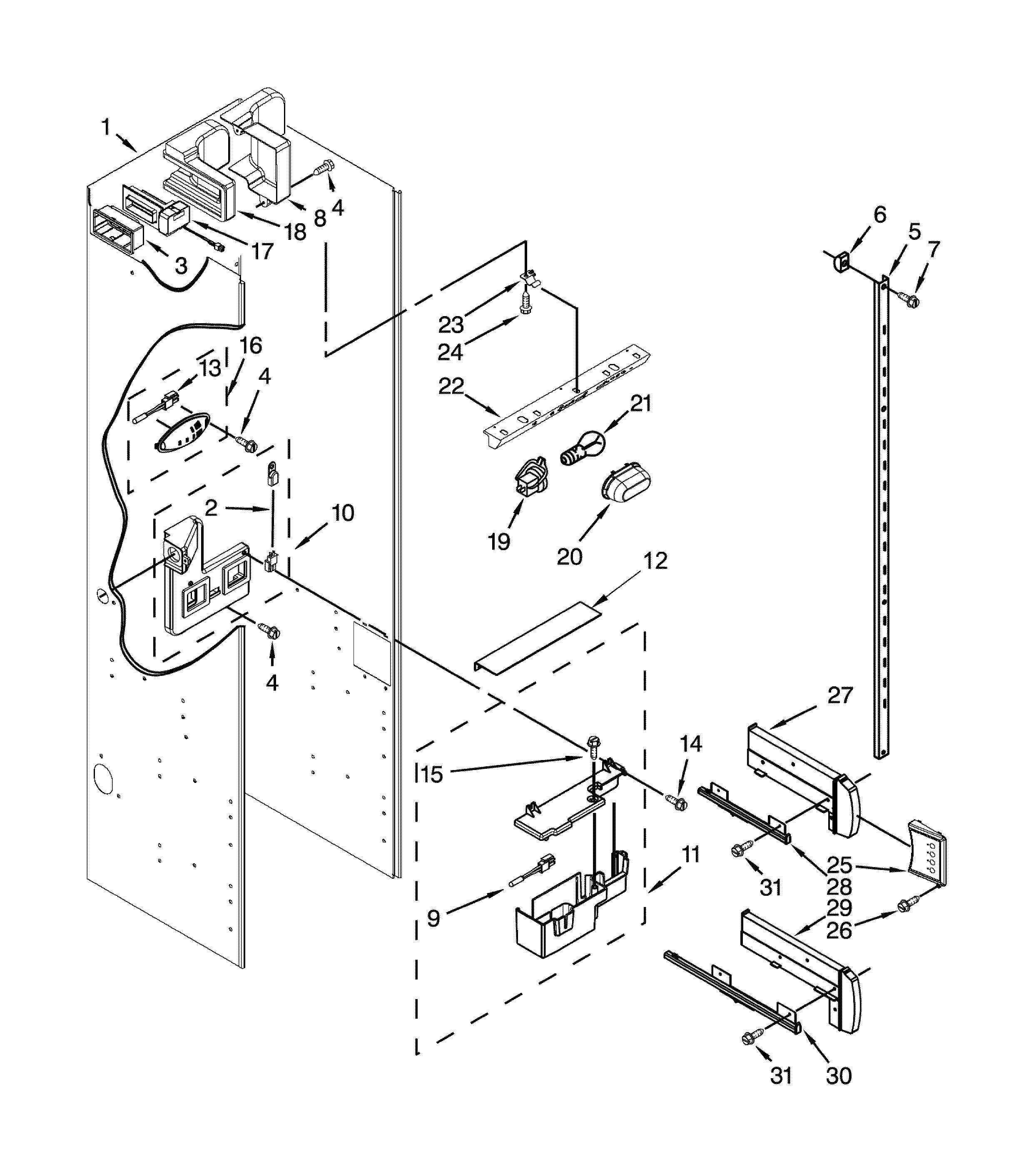

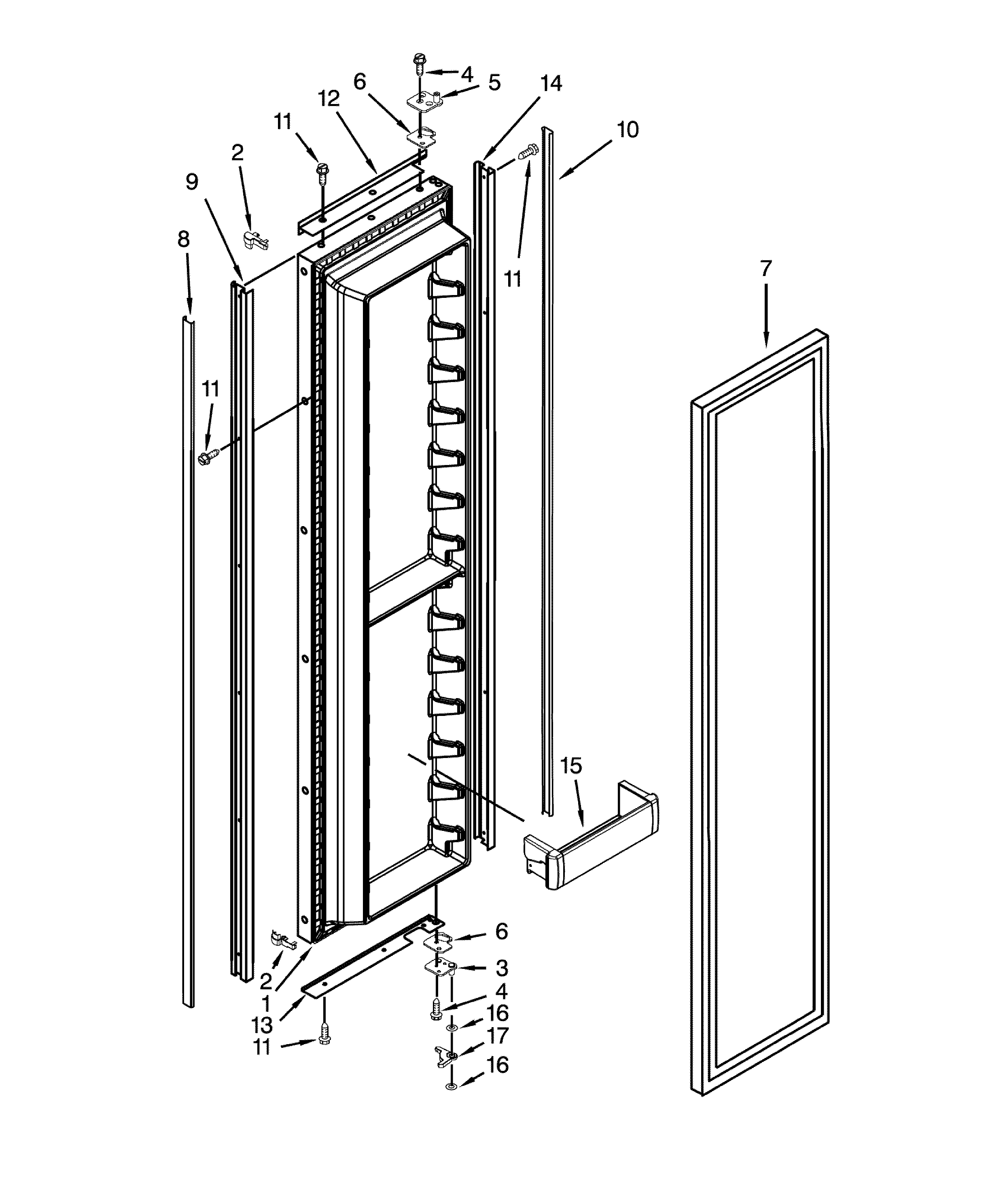

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 263 parts  |
Drier Tube W10175593
#21

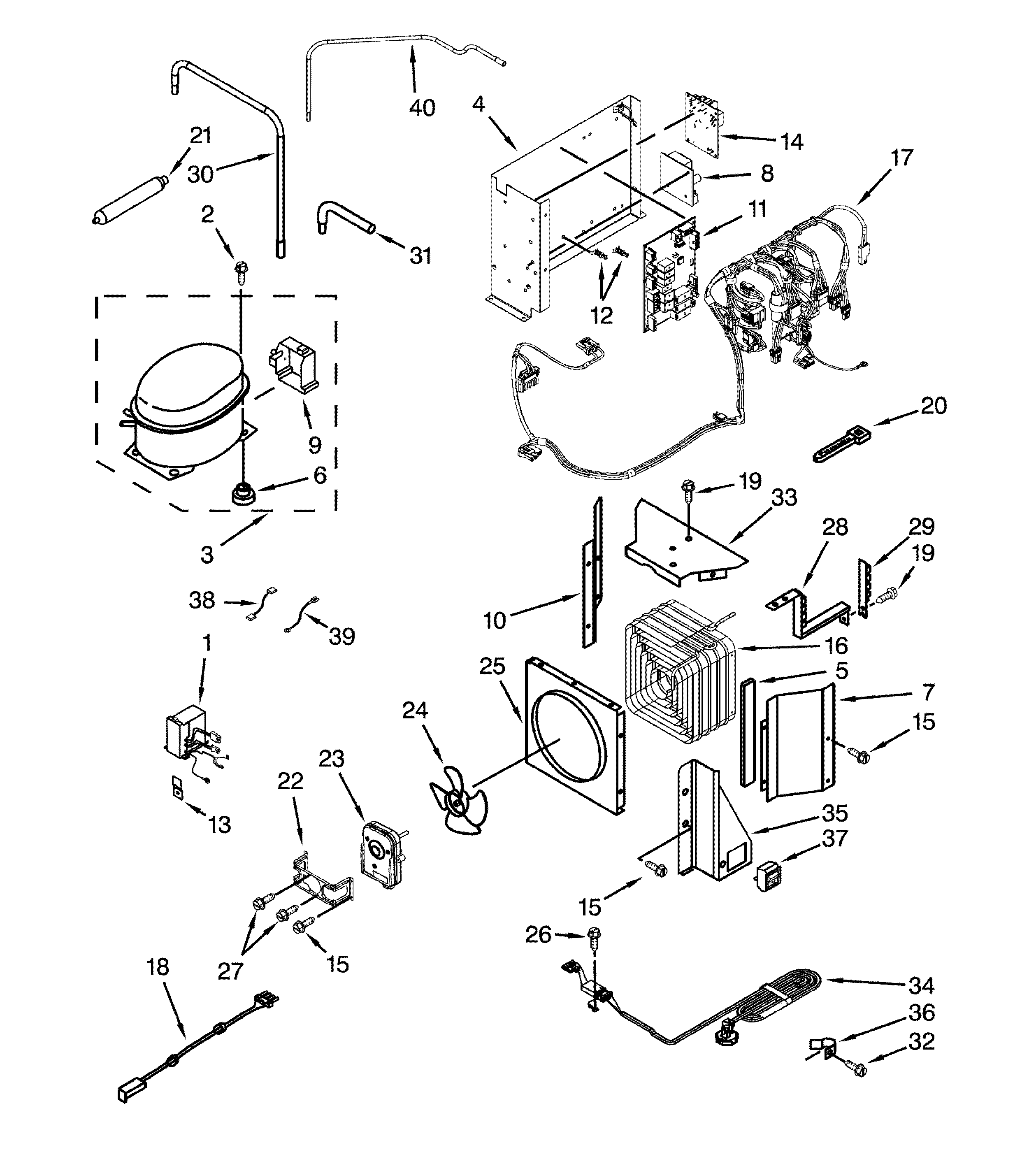

Upper unit parts diagram

Drier tube

Part #W10175593

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces W10175593. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Light Switch 1118894
#39

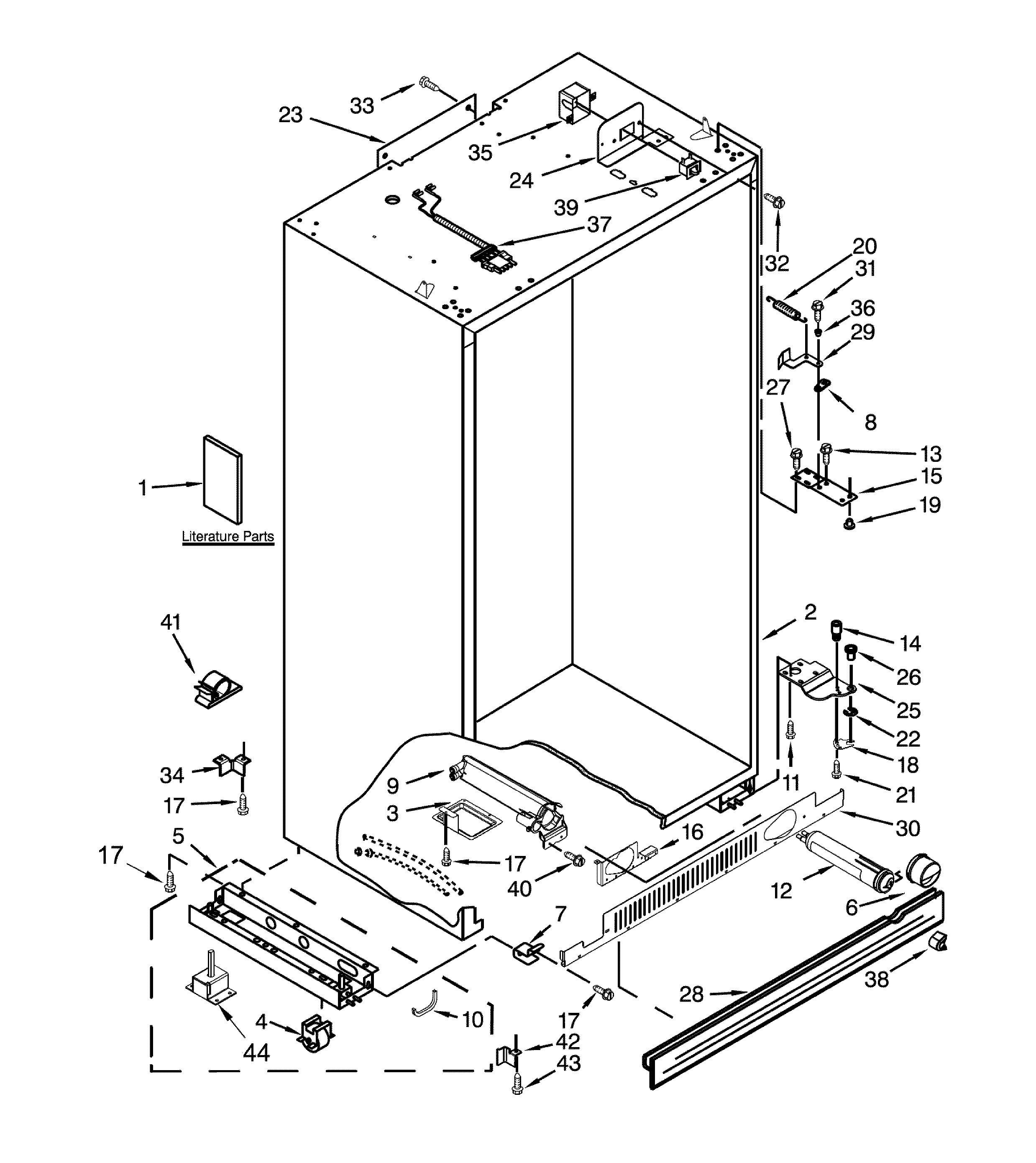

Cabinet parts diagram

Refrigerator light switch

Part #1118894

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 1118894. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Water Filter Cap (black) 2260518B
#6

Cabinet parts diagram

Refrigerator water filter cap (black)

Part #2260518B

Replaced by #WP2260518B

?
Manufacturer substitution
This part replaces 2260518B. Substitute parts can look different from the original.
BEST SELLER
$27.49 |
18% OFF Phone Price : $33.49
In Stock
Refrigerator Freeer Door Switch 1115373
#39A

Cabinet parts diagram

Refrigerator freeer door switch

Part #1115373

Replaced by #W11457217

?
Manufacturer substitution
This part replaces 1115373. Substitute parts can look different from the original.
BEST SELLER
$24.79 |
19% OFF Phone Price : $30.79
In Stock
Refrigerator Ice Maker Shut-off Arm 2304354
#31

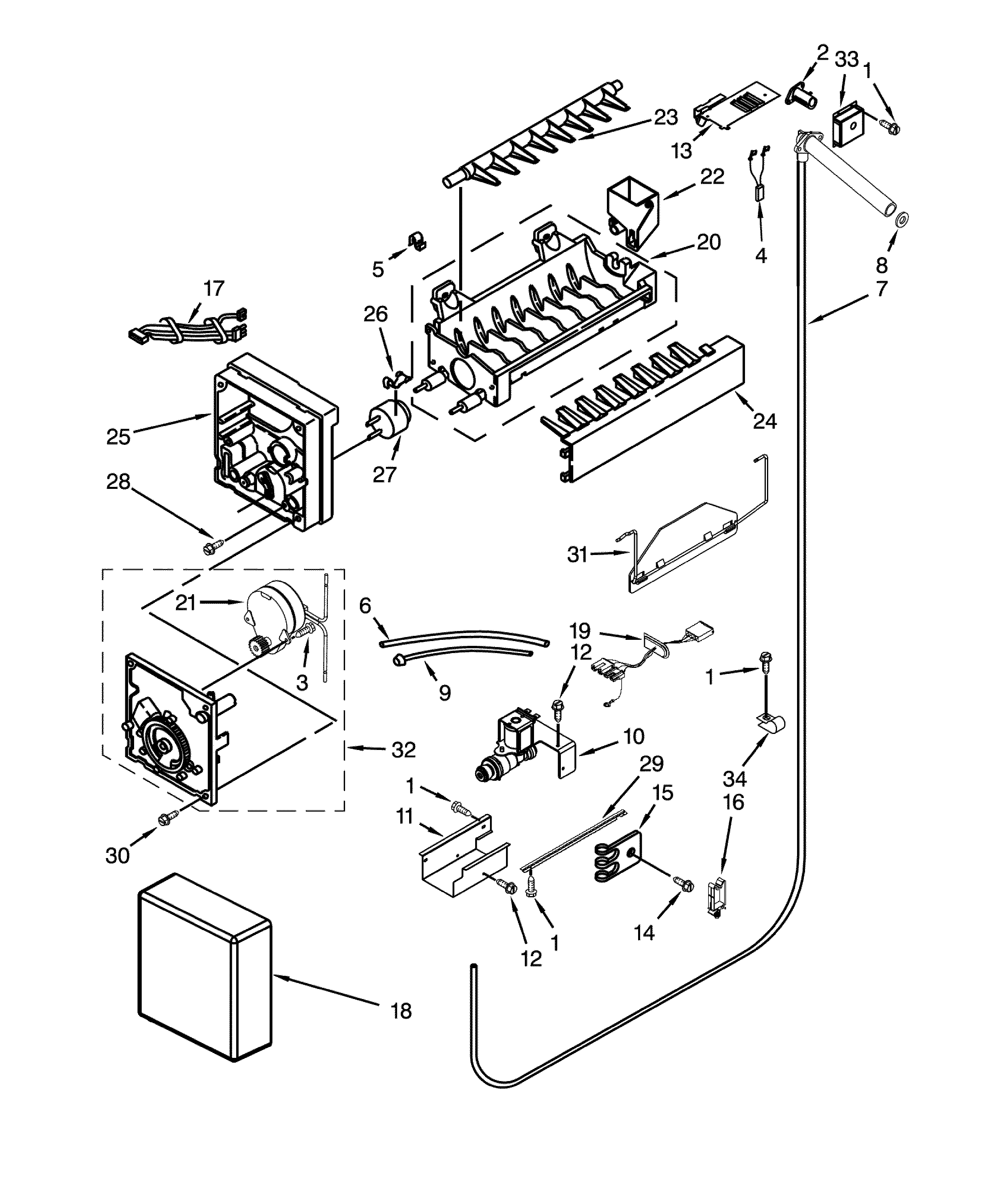

Ice maker parts diagram

Refrigerator ice maker shut-off arm

Part #2304354

Replaced by #W11342242

?
Manufacturer substitution
This part replaces 2304354. Substitute parts can look different from the original.
BEST SELLER
$35.37 |
15% OFF Phone Price : $41.37
In Stock
Refrigerator Screw 8533928
Refrigerator screw

Part #8533928

Replaced by #WP8533928

?
Manufacturer substitution
This part replaces 8533928. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Refrigerator Ice Maker W10277450
#100

Ice maker parts diagram

Refrigerator ice maker

Part #W10277450

Replaced by #WPW10277450

?
Manufacturer substitution
This part replaces W10277450. Substitute parts can look different from the original.
BEST SELLER
$191.66 |
6% OFF Phone Price : $203.66
In Stock
Motor Mold 626691
#32

Ice maker parts diagram

Motor mold

Part #626691

Replaced by #8201515

?
Manufacturer substitution
This part replaces 626691. Substitute parts can look different from the original.
BEST SELLER
$92.27 |
6% OFF Phone Price : $98.27
In Stock
Screw 489276
#30

Ice maker parts diagram

Screw

Part #489276

Replaced by #WP681249

?
Manufacturer substitution
This part replaces 489276. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Refrigerator Ice Mold W10122527
#20

Ice maker parts diagram

Refrigerator ice mold

Part #W10122527

Replaced by #WPW10190929

?
Manufacturer substitution
This part replaces W10122527. Substitute parts can look different from the original.
BEST SELLER
$123.29 |
9% OFF Phone Price : $135.29
In Stock
