Model # 580321520 Official Craftsman portable alternator

Here are the diagrams and repair parts for Official Craftsman 580321520 portable alternator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

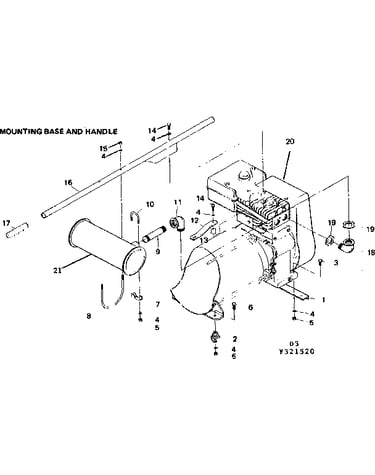

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Binding Post 25367
#8

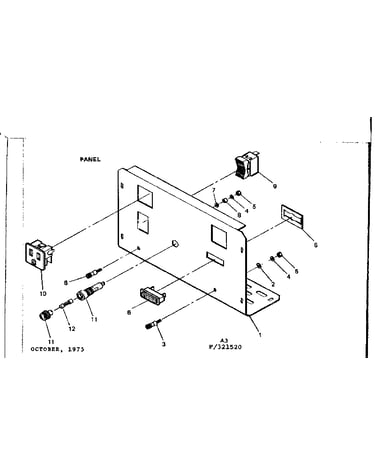

Panel diagram

Binding post

Part #25367

Replaced by #25367GS

?
Manufacturer substitution
This part replaces 25367. Substitute parts can look different from the original.
$31.71
In Stock
Screw 24421
#16

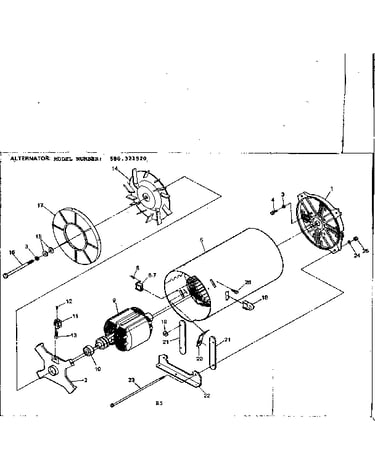

Alternator diagram

Screw

Part #24421

Replaced by #24421GS

?
Manufacturer substitution
This part replaces 24421. Substitute parts can look different from the original.
$26.36
In Stock
Washer 22145
#19

Alternator diagram

Washer

Part #22145

Replaced by #STD551025

?
Manufacturer substitution
This part replaces 22145. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Fan Cover 44357
#17

Alternator diagram

Fan cover

Part #44357

Replaced by #44357GS

?
Manufacturer substitution
This part replaces 44357. Substitute parts can look different from the original.
$25.89 |
19% OFF Phone Price : $31.89
In Stock
Housing 22694
Housing

Part #22694

Replaced by #22694GS

?
Manufacturer substitution
This part replaces 22694. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Brush Assembly A-24044-A
#13

Alternator diagram

Brush assembly

Part #A-24044-A

The manufacturer no longer makes this part, and there's no substitute part

Carrier Plat 44943
#2

Alternator diagram

Carrier plat

Part #44943

The manufacturer no longer makes this part, and there's no substitute part

Screw 24489
#2

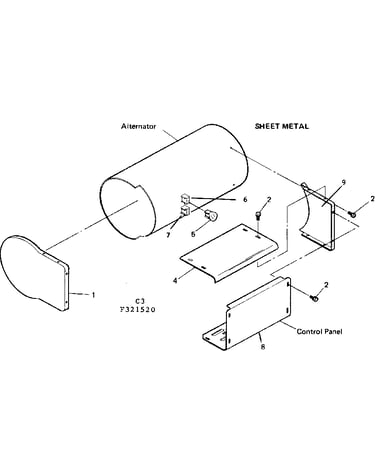

Sheet metal diagram

Screw

Part #24489

The manufacturer no longer makes this part, and there's no substitute part

Rectifier 28293
Rectifier

Part #28293

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 22471
#5

Panel diagram

Hex nut

Part #22471

The manufacturer no longer makes this part, and there's no substitute part
