Model # KF200KDW2 Official White-Westinghouse electric range - 5995201661
Here are the diagrams and repair parts for Official White-Westinghouse KF200KDW2 electric range - 5995201661, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
KF200KDW2 Ranges
#5

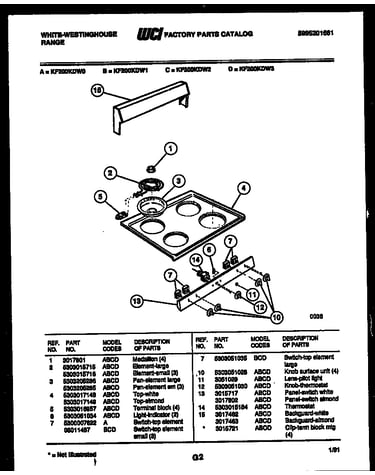

Backguard and cooktop parts diagram
Terminal
Part #5303016957
Replaced by #5303935058
?
Manufacturer substitution
This part replaces 5303016957. Substitute parts can look different from the original.
$8.00 |
11% OFF Phone Price : $9.00
In Stock
#3
Backguard and cooktop parts diagram
Pan
Part #5303205286
Replaced by #316048413
?
Manufacturer substitution
This part replaces 5303205286. Substitute parts can look different from the original.
This item is not returnable
$6.66 |
13% OFF Phone Price : $7.66
In Stock
#3A
Backguard and cooktop parts diagram
Pan
Part #5303205285
Replaced by #316048414
?
Manufacturer substitution
This part replaces 5303205285. Substitute parts can look different from the original.
This item is not returnable
$6.83 |
13% OFF Phone Price : $7.83
In Stock
#28

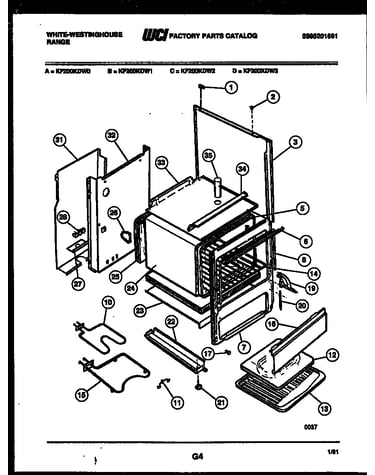

Body parts diagram
Block
Part #5306563359
Replaced by #5304409888
?
Manufacturer substitution
This part replaces 5306563359. Substitute parts can look different from the original.
$9.82 |
9% OFF Phone Price : $10.82
In Stock
#2A
Backguard and cooktop parts diagram
Range coil surface element, 6-in
Part #5303015716
Replaced by #318372210
?
Manufacturer substitution
This part replaces 5303015716. Substitute parts can look different from the original.
$23.64 |
20% OFF Phone Price : $29.64
In Stock
#7A
Backguard and cooktop parts diagram
Switch
Part #08011487
Replaced by #5303935086
?
Manufacturer substitution
This part replaces 08011487. Substitute parts can look different from the original.
$39.05 |
13% OFF Phone Price : $45.05
In Stock
#7
Backguard and cooktop parts diagram
Switch
Part #5300007822
Replaced by #5303935086
?
Manufacturer substitution
This part replaces 5300007822. Substitute parts can look different from the original.
$39.05 |
13% OFF Phone Price : $45.05
In Stock
#7
Backguard and cooktop parts diagram
Switch
Part #5303051035
Replaced by #5303935086
?
Manufacturer substitution
This part replaces 5303051035. Substitute parts can look different from the original.
$39.05 |
13% OFF Phone Price : $45.05
In Stock
#2
Backguard and cooktop parts diagram
Range coil surface element, 8-in
Part #5303015715
Replaced by #316442300
?
Manufacturer substitution
This part replaces 5303015715. Substitute parts can look different from the original.
$22.49 |
21% OFF Phone Price : $28.49
In Stock
#6

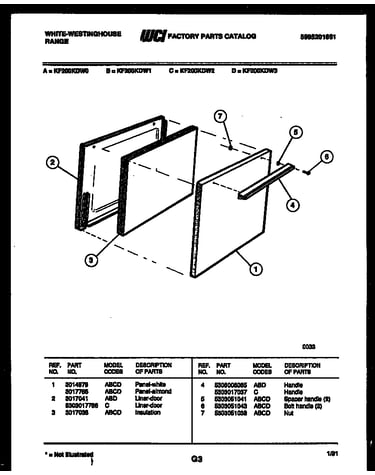

Door parts diagram
Screw
Part #5303051043
Replaced by #5303292012
?
Manufacturer substitution
This part replaces 5303051043. Substitute parts can look different from the original.
$15.60
