Model # 30466002 Official Ikea range hood

Here are the diagrams and repair parts for Official Ikea 30466002 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

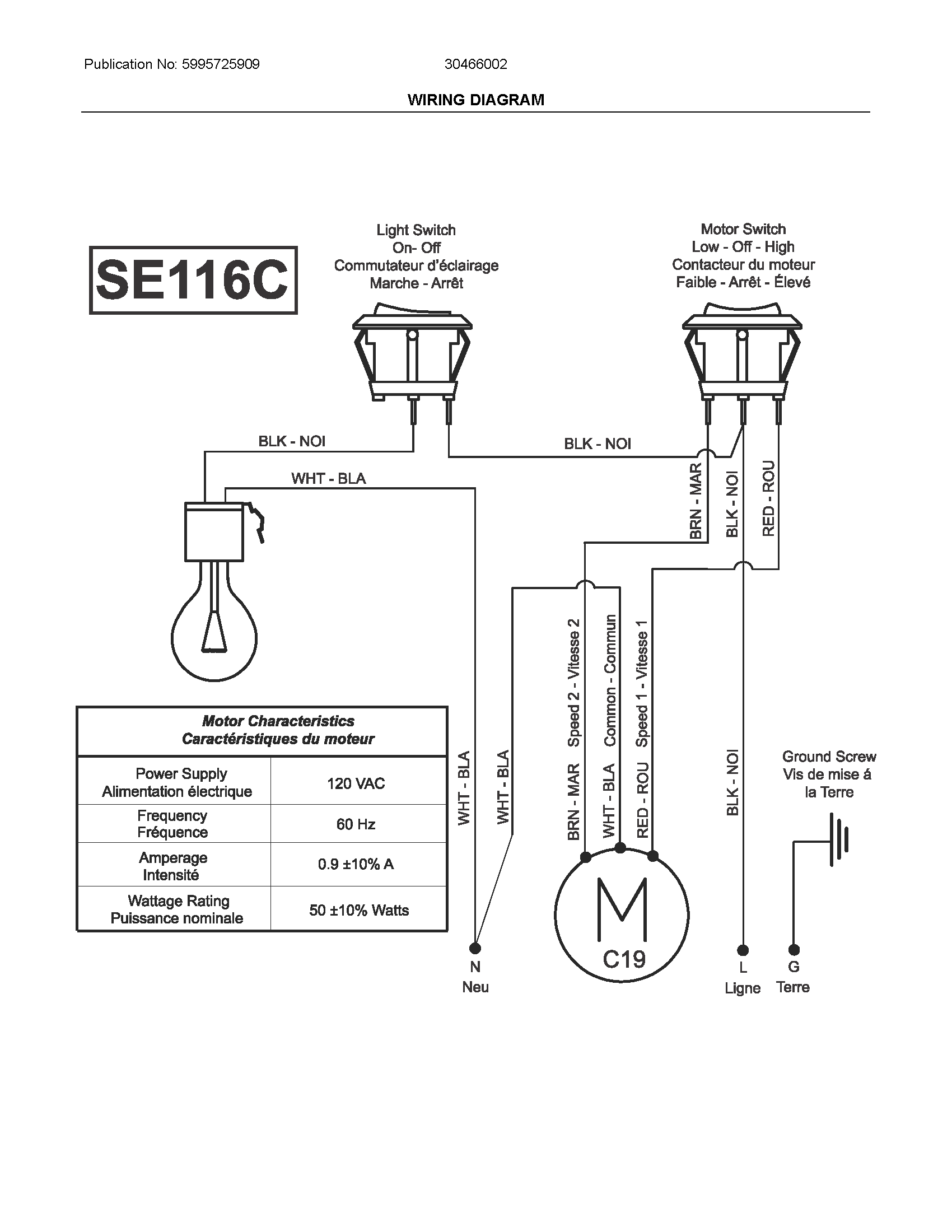

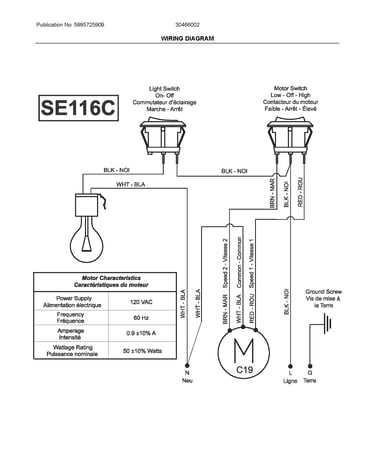

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 11 parts  |
Range Hood Grease Filter (replaces 5304490019) 5304523620
#23

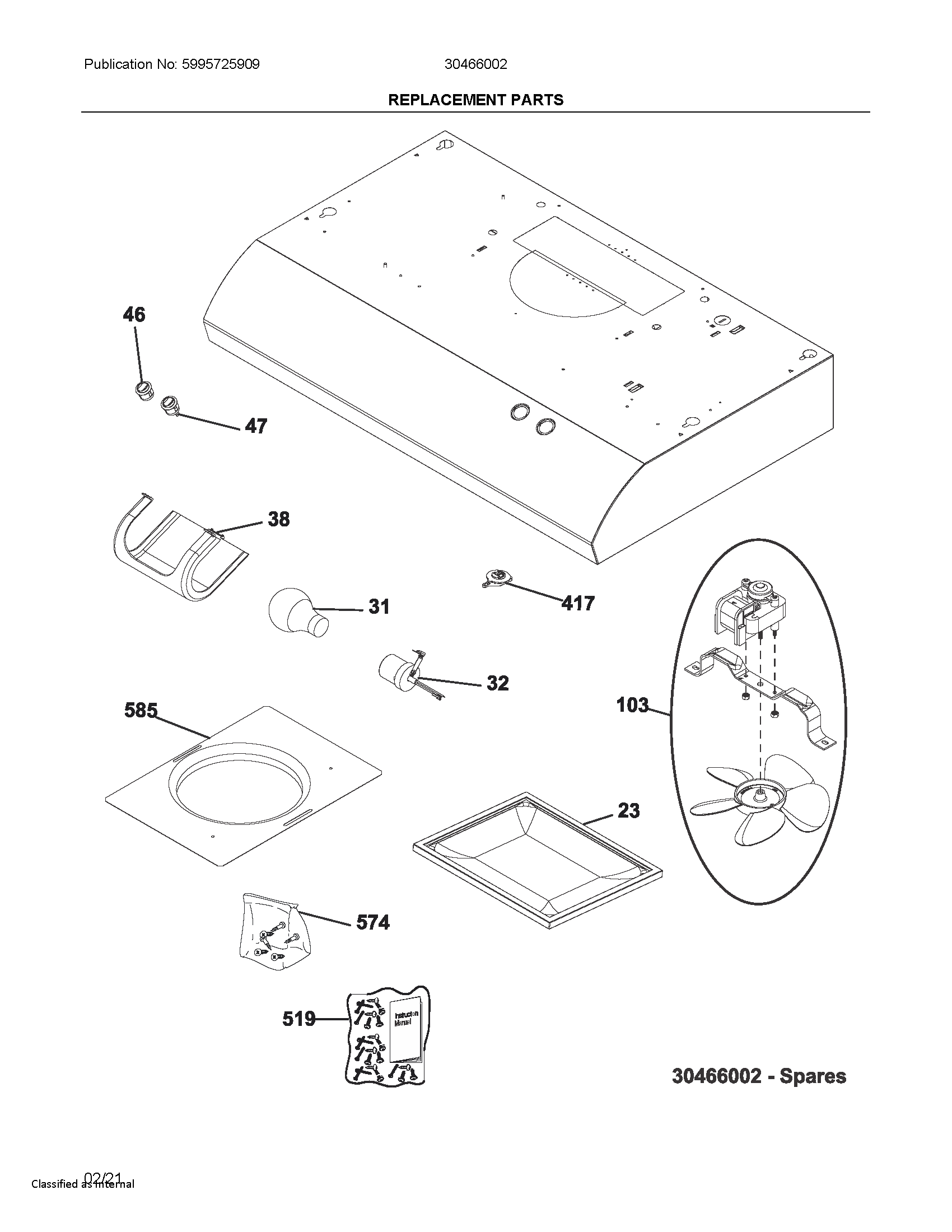

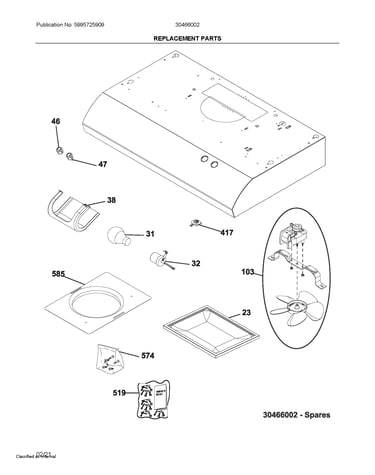

Replacement parts diagram

Range hood grease filter (replaces 5304490019)

Part #5304523620

$55.53
In Stock
Panel 5304523627
#585

Replacement parts diagram

Panel

Part #5304523627

$53.13
In Stock
Ikea Switch,motor 5304523629
#47

Replacement parts diagram

Ikea switch,motor

Part #5304523629

$38.23 |
14% OFF Phone Price : $44.23
In Stock
Mounting Kit 5304502766
#574

Replacement parts diagram

Mounting kit

Part #5304502766

$21.66
In Stock
Socket 5304523622
#32

Replacement parts diagram

Socket

Part #5304523622

$55.09
In Stock
Latch 5304490026
#417

Replacement parts diagram

Latch

Part #5304490026

$22.49
In Stock
Ikea Switch-light 5304523628
#46

Replacement parts diagram

Ikea switch-light

Part #5304523628

$29.80 |
17% OFF Phone Price : $35.80
In Stock
Cover 5304490021
#38

Replacement parts diagram

Cover

Part #5304490021

$90.69
In Stock
Motor 5304523625
#103

Replacement parts diagram

Motor

Part #5304523625

$176.66
In Stock
Bulb-lamp 5304523621
#31

Replacement parts diagram

Bulb-lamp

Part #5304523621

$107.26
In Stock
