Upright Vacuum

Model # 1163341090 Official Kenmore upright vacuum

Here are the diagrams and repair parts for Official Kenmore 1163341090 upright vacuum, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for1163341090 Vacuum Cleaners

  • Vacuum Screw 4368563
    Vacuum screw

    Part #4368563

    The manufacturer no longer makes this part, and there's no substitute part

  • Vacuum Crevice Tool 4368684
    #5

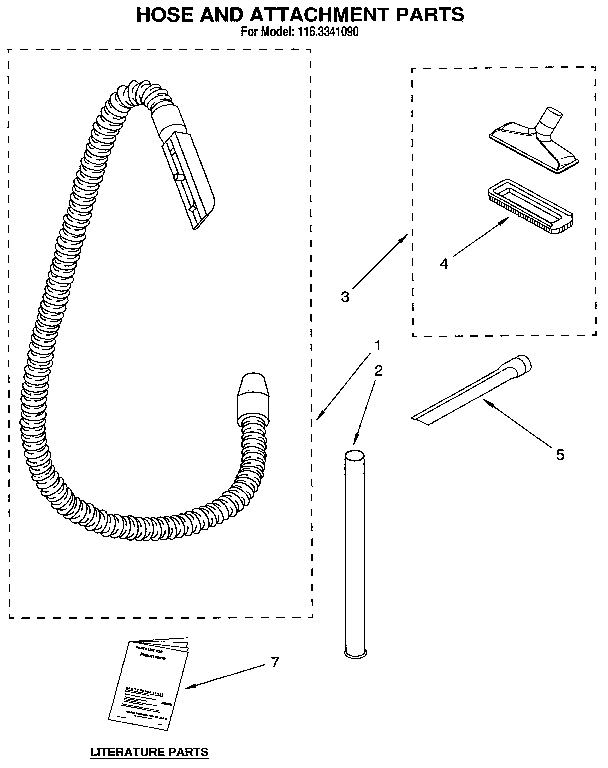

    Hose and attachment diagram

    Vacuum crevice tool

    Part #4368684

    The manufacturer no longer makes this part, and there's no substitute part

  • Rear Wheel 4369026
    #6

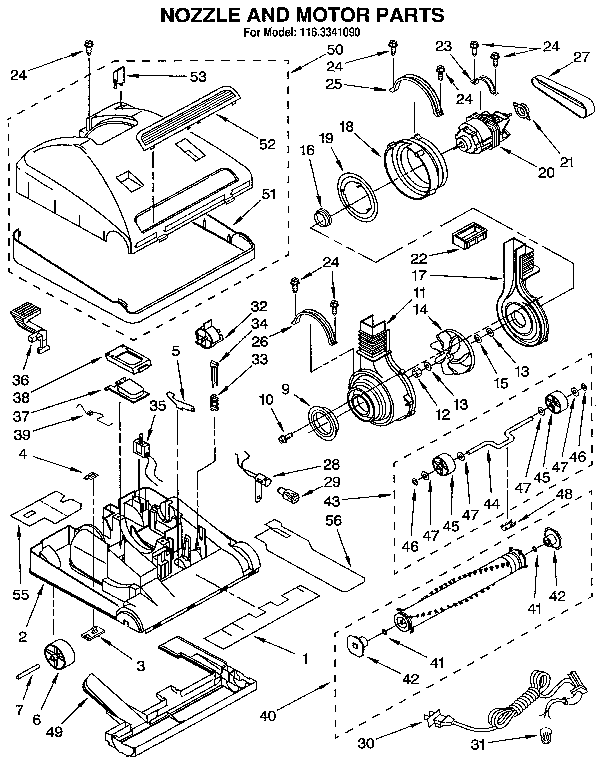

    Nozzle and motor diagram

    Rear wheel

    Part #4369026

    The manufacturer no longer makes this part, and there's no substitute part

  • Lower Plate 4369030
    #49

    Nozzle and motor diagram

    Lower plate

    Part #4369030

    The manufacturer no longer makes this part, and there's no substitute part

  • Shaft Handle 4369034
    #1

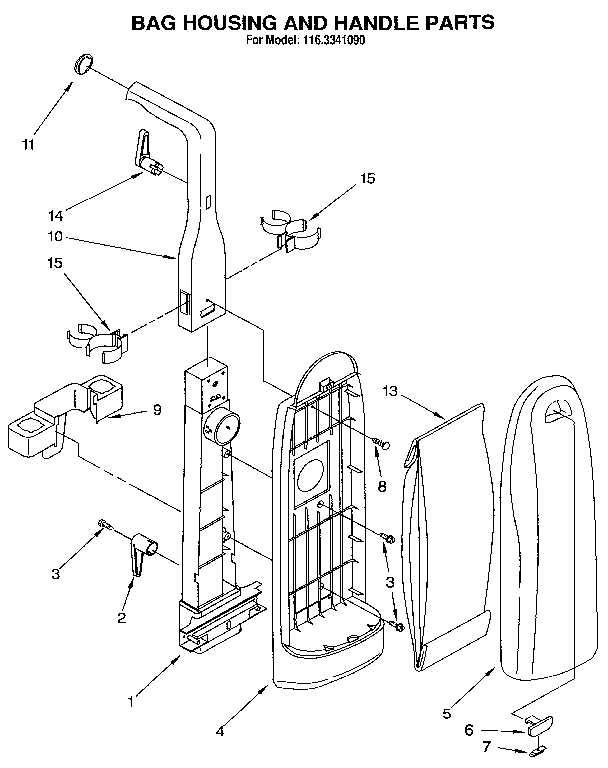

    Bag housing and handle diagram

    Shaft handle

    Part #4369034

    The manufacturer no longer makes this part, and there's no substitute part

  • Actuator 4368760
    #32

    Nozzle and motor diagram

    Actuator

    Part #4368760

    The manufacturer no longer makes this part, and there's no substitute part

  • Bulb-suprt 4368566
    #28

    Nozzle and motor diagram

    Bulb-suprt

    Part #4368566

    The manufacturer no longer makes this part, and there's no substitute part

  • (not Serviced, Use Old ) Screw, Motor  Brush N/P
    #7

    Hose and attachment diagram

    (not serviced, use old ) screw, motor brush

    Part #N/P

    The manufacturer no longer makes this part, and there's no substitute part

  • Lever 4368837
    #5

    Nozzle and motor diagram

    Lever

    Part #4368837

    The manufacturer no longer makes this part, and there's no substitute part

  • Wiring Diagram LIT4368826
    #7B

    Hose and attachment diagram

    Wiring diagram

    Part #LIT4368826

    The manufacturer no longer makes this part, and there's no substitute part

Most common symptoms to help you fix your vacuum cleaners

Choose a symptom to see related vacuum cleaner repairs.

Main causes: damaged vacuum hose, clogged motor air filter, bad suction motor…

Main causes: weak suction motor, vacuum bag is full, clog in suction air path, dirty exhaust filter, leaky vacuum hose…

Main causes: broken drive belt, damaged brush roll, tripped brush roll motor overload, bad brush roll motor, wiring fail…

Main causes: lack of power, bad power cord, drive motor failure, wiring failure…
