Kenmore
Canister Vacuum

Model # 1162497580 Official Kenmore vacuum cleaner hose & attachment parts

Here are the diagrams and repair parts for Official Kenmore 1162497580 vacuum cleaner hose & attachment parts, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |

Cable Tie 596702
#36

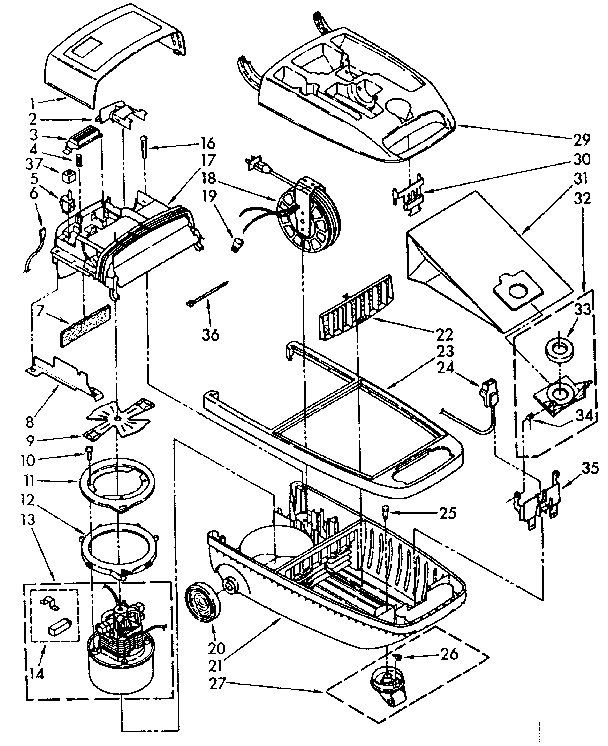

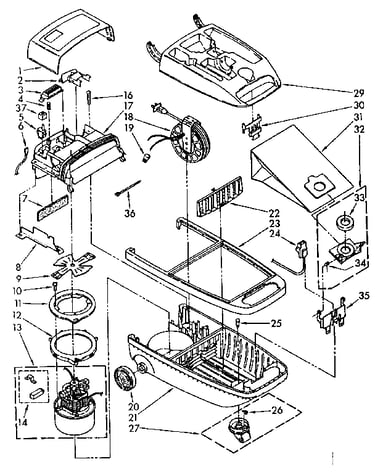

Vacuum cleaner parts diagram

Cable tie

Part #596702

The manufacturer no longer makes this part, and there's no substitute part

Filter 706061
#22

Vacuum cleaner parts diagram

Filter

Part #706061

The manufacturer no longer makes this part, and there's no substitute part

Brush 742798
#18

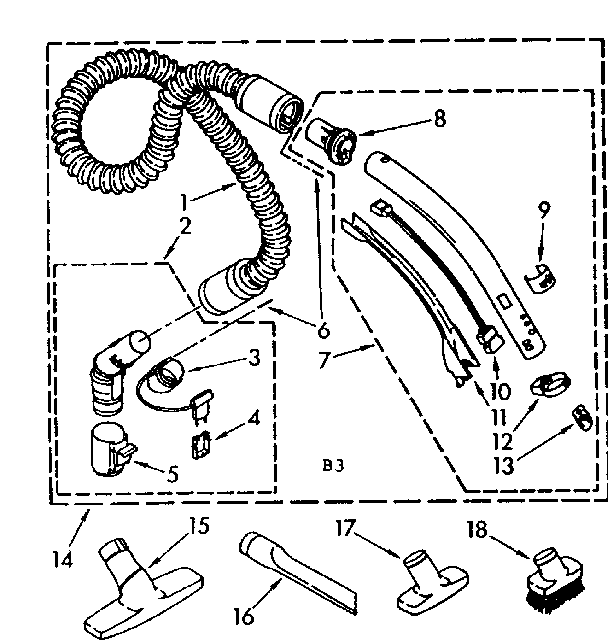

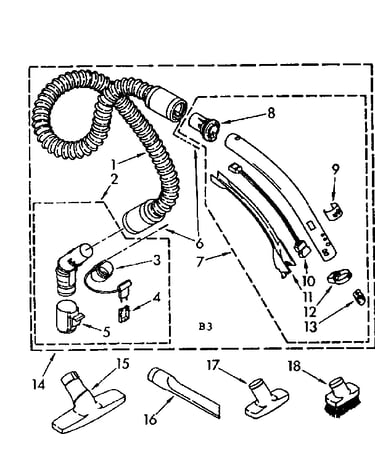

Hose and attachment parts diagram

Brush

Part #742798

The manufacturer no longer makes this part, and there's no substitute part

Bumper 706008
#23

Vacuum cleaner parts diagram

Bumper

Part #706008

The manufacturer no longer makes this part, and there's no substitute part

Motor 705358
#13

Vacuum cleaner parts diagram

Motor

Part #705358

The manufacturer no longer makes this part, and there's no substitute part

Hose 743280
#1

Hose and attachment parts diagram

Hose

Part #743280

The manufacturer no longer makes this part, and there's no substitute part

Control 743374
#9

Hose and attachment parts diagram

Control

Part #743374

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle 743503
#7

Hose and attachment parts diagram

Vacuum handle

Part #743503

The manufacturer no longer makes this part, and there's no substitute part

Label LIT706599

#NI

All parts diagram

Label

Part #LIT706599

The manufacturer no longer makes this part, and there's no substitute part

Hose 743504
#14

Hose and attachment parts diagram

Hose

Part #743504

The manufacturer no longer makes this part, and there's no substitute part
