Model # FH721V-BS04 Official Kawasaki engine

Here are the diagrams and repair parts for Official Kawasaki FH721V-BS04 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

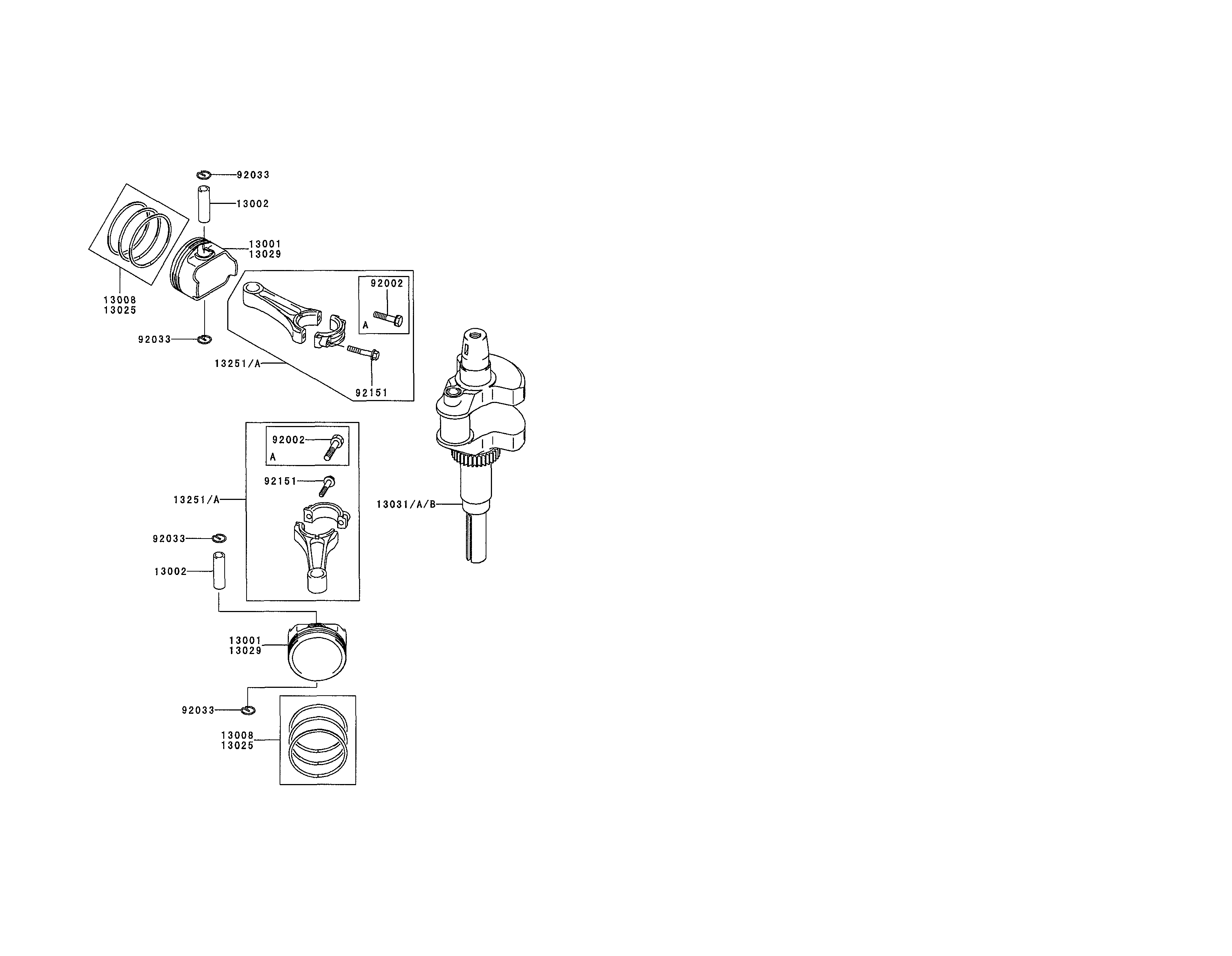

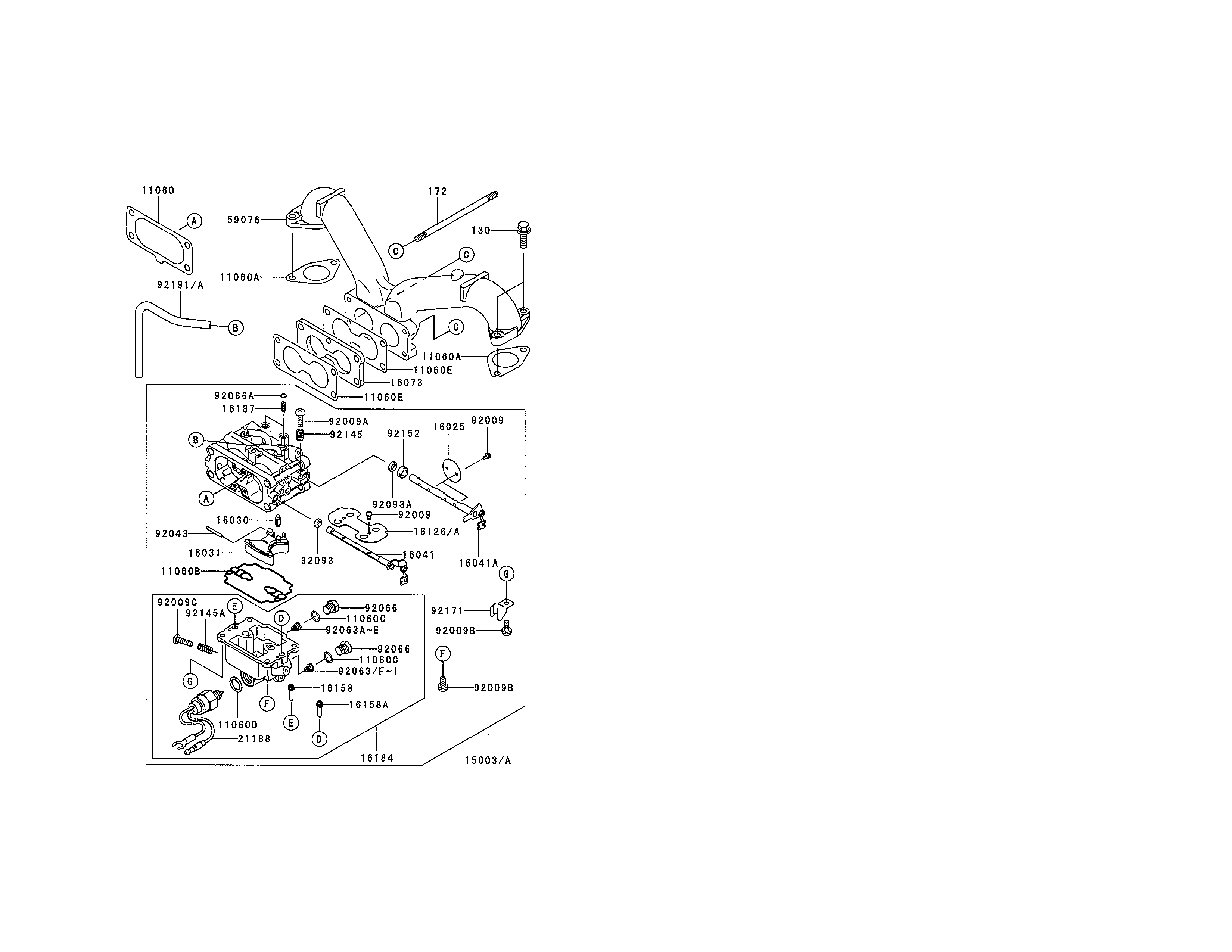

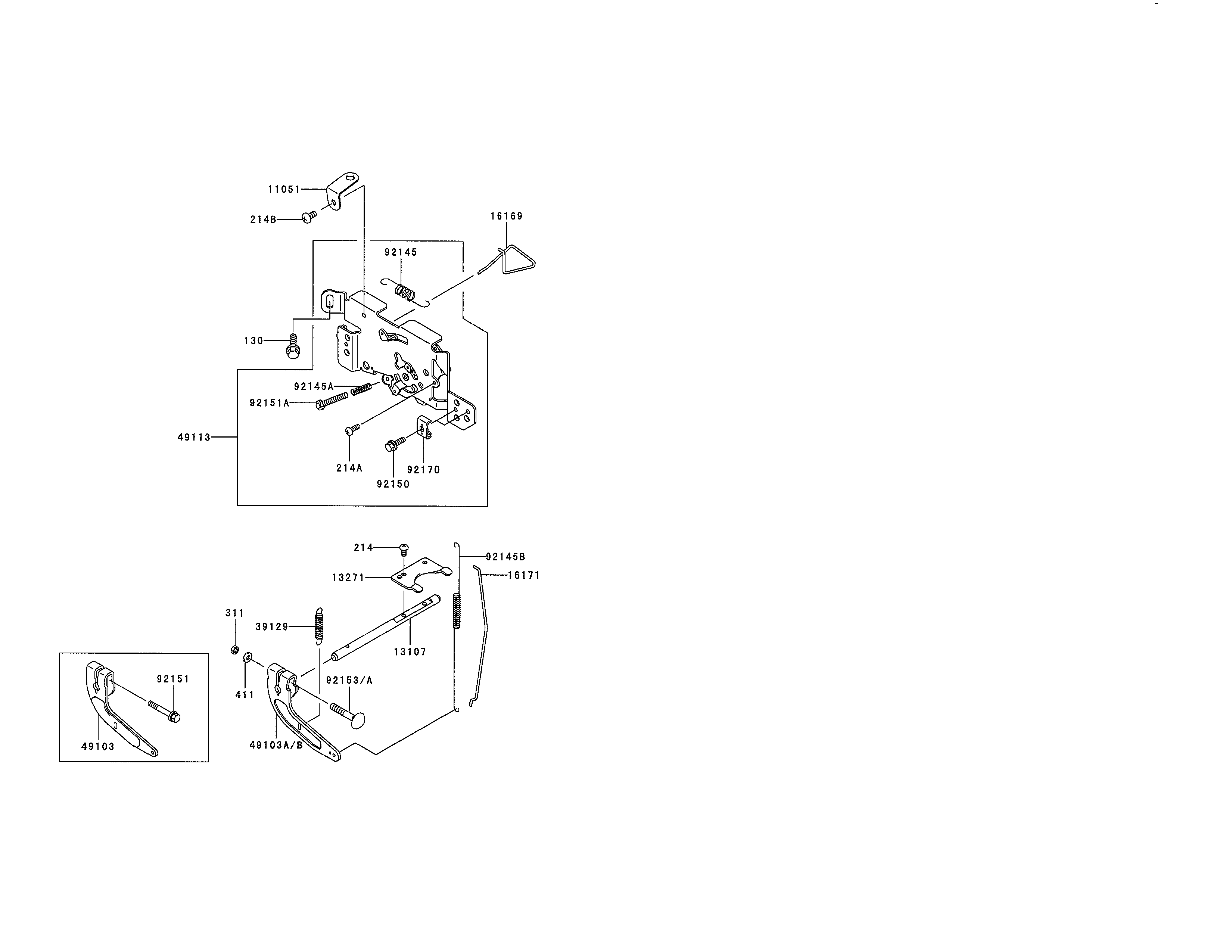

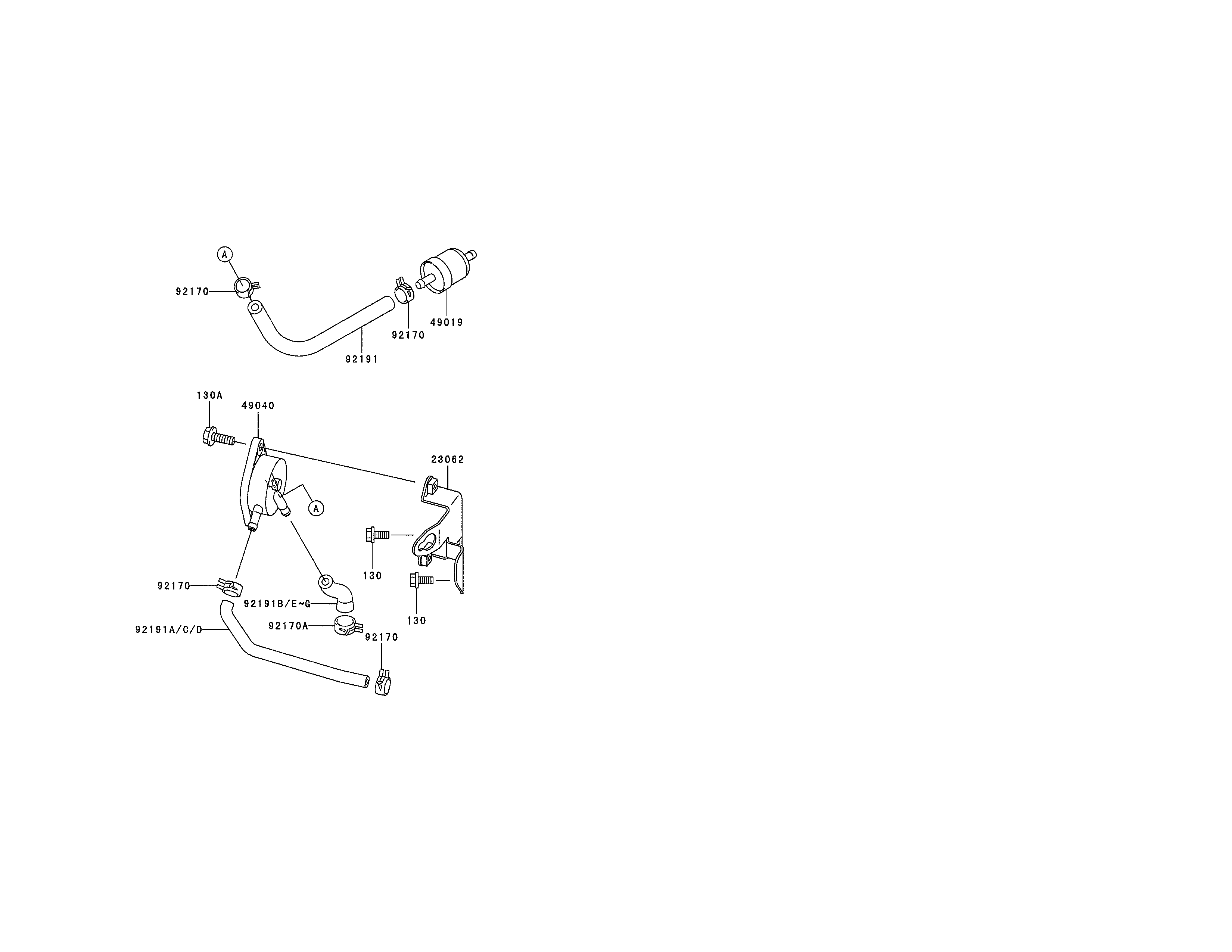

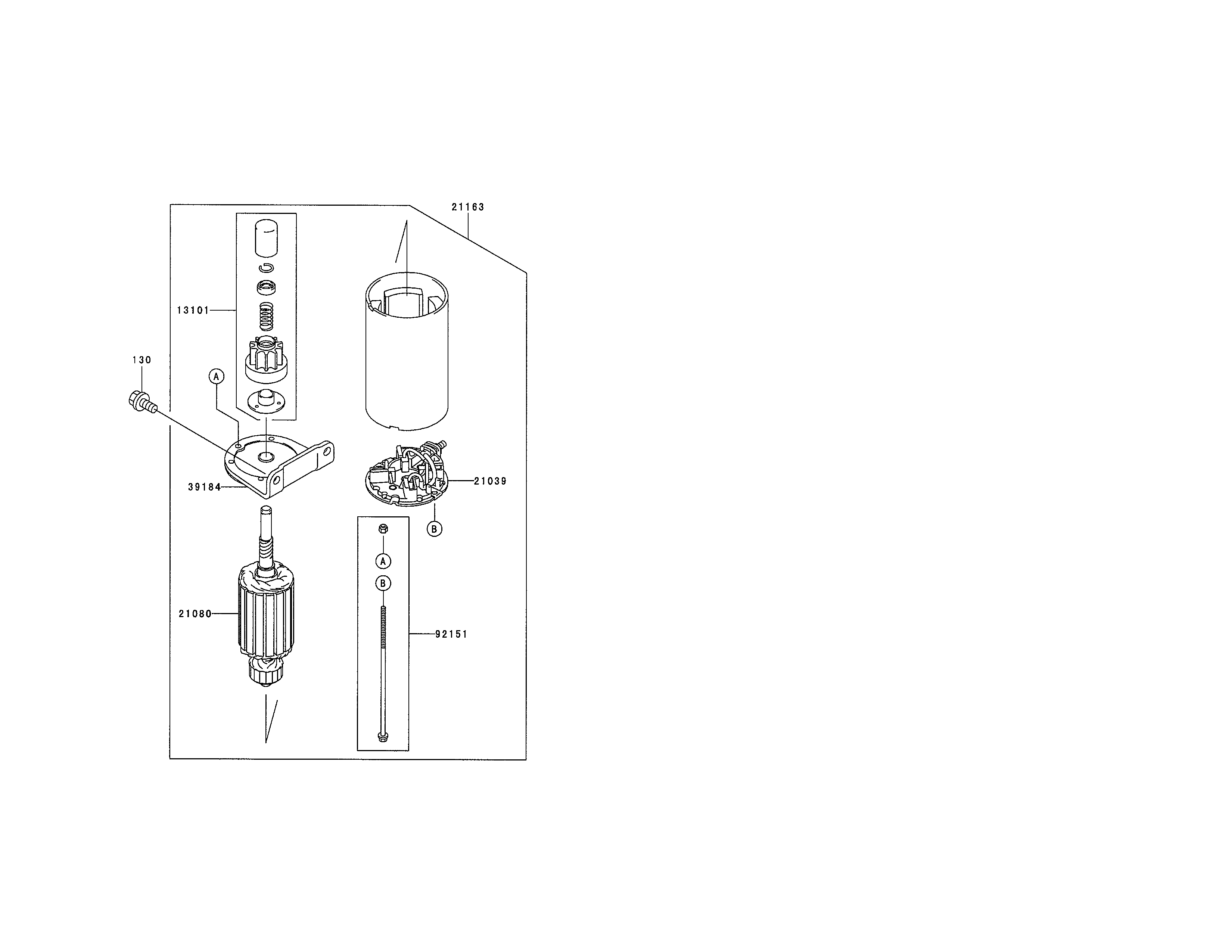

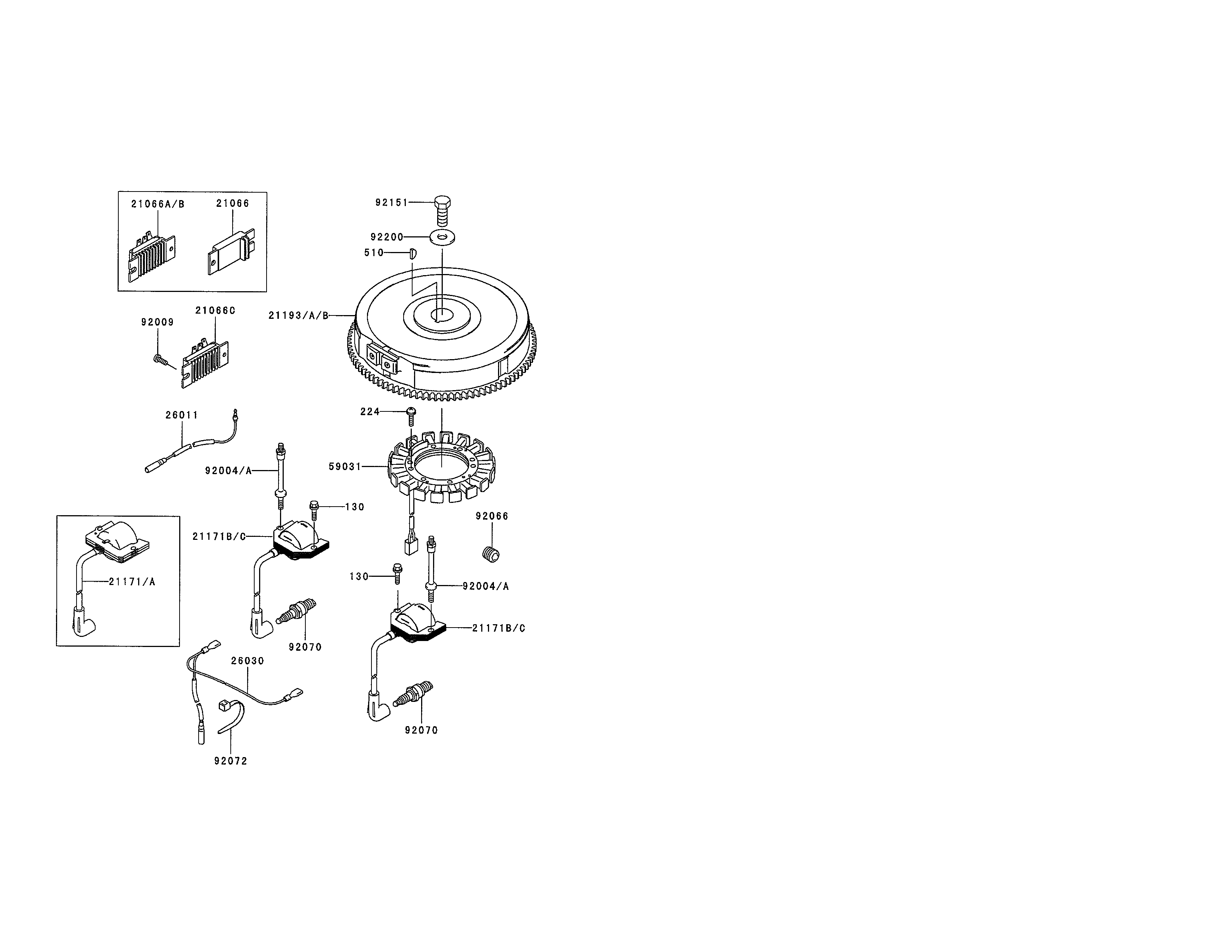

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 230 parts  |
Screw 92009-2341
#92009

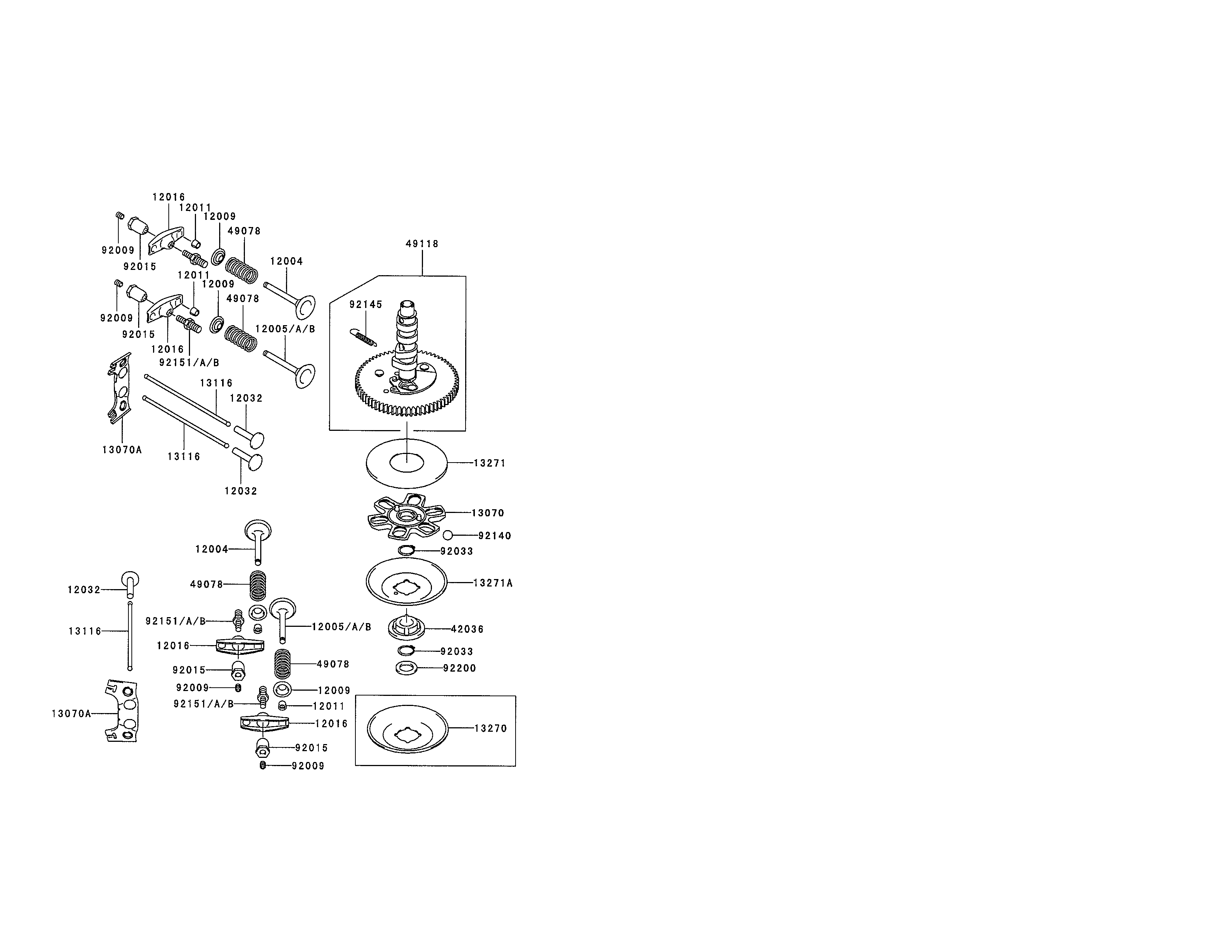

Valve/camshaft diagram

Screw

Part #92009-2341

Replaced by #KM-92009-2341

?
Manufacturer substitution
This part replaces 92009-2341. Substitute parts can look different from the original.
This item is not returnable
$6.69
In Stock
Lawn & Garden Equipment Engine Pre-filter 11013-7009
#11013

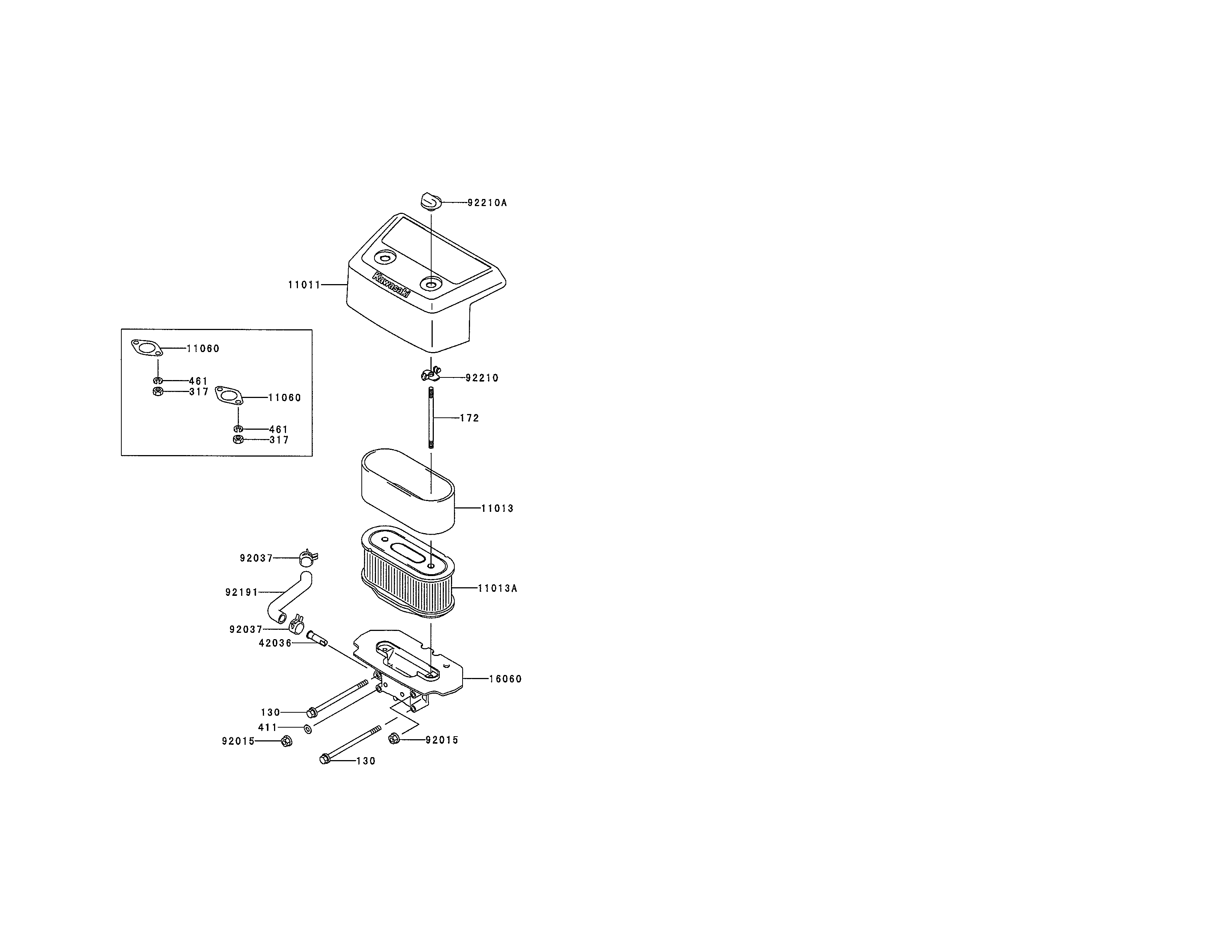

Air-filter/muffler diagram

Lawn & garden equipment engine pre-filter

Part #11013-7009

Replaced by #KM-11013-7009

?
Manufacturer substitution
This part replaces 11013-7009. Substitute parts can look different from the original.
$11.17
In Stock
Lawn Mower Spacer 92026-7007
#92026B

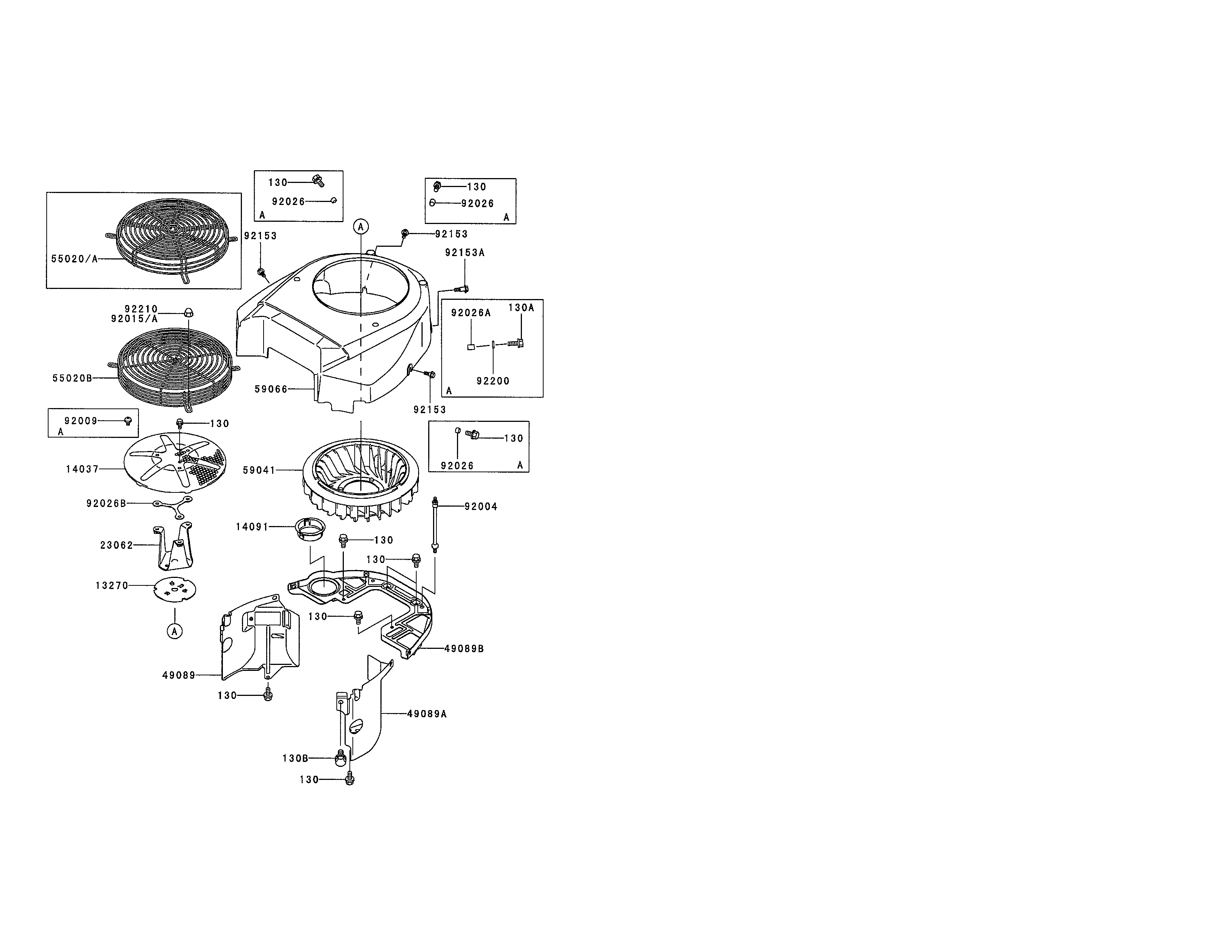

Cooling-equipment diagram

Lawn mower spacer

Part #92026-7007

Replaced by #KM-92026-7007

?
Manufacturer substitution
This part replaces 92026-7007. Substitute parts can look different from the original.
$12.43
In Stock
Retainer 12009-7001
#12009

Valve/camshaft diagram

Retainer

Part #12009-7001

Replaced by #KM-12009-7001

?
Manufacturer substitution
This part replaces 12009-7001. Substitute parts can look different from the original.
$10.60
In Stock
Pushrod 13116-7002
#13116

Valve/camshaft diagram

Pushrod

Part #13116-7002

Replaced by #KM-13116-7002

?
Manufacturer substitution
This part replaces 13116-7002. Substitute parts can look different from the original.
$8.46
In Stock
Lawn Mower O-ring 670D2016
#670

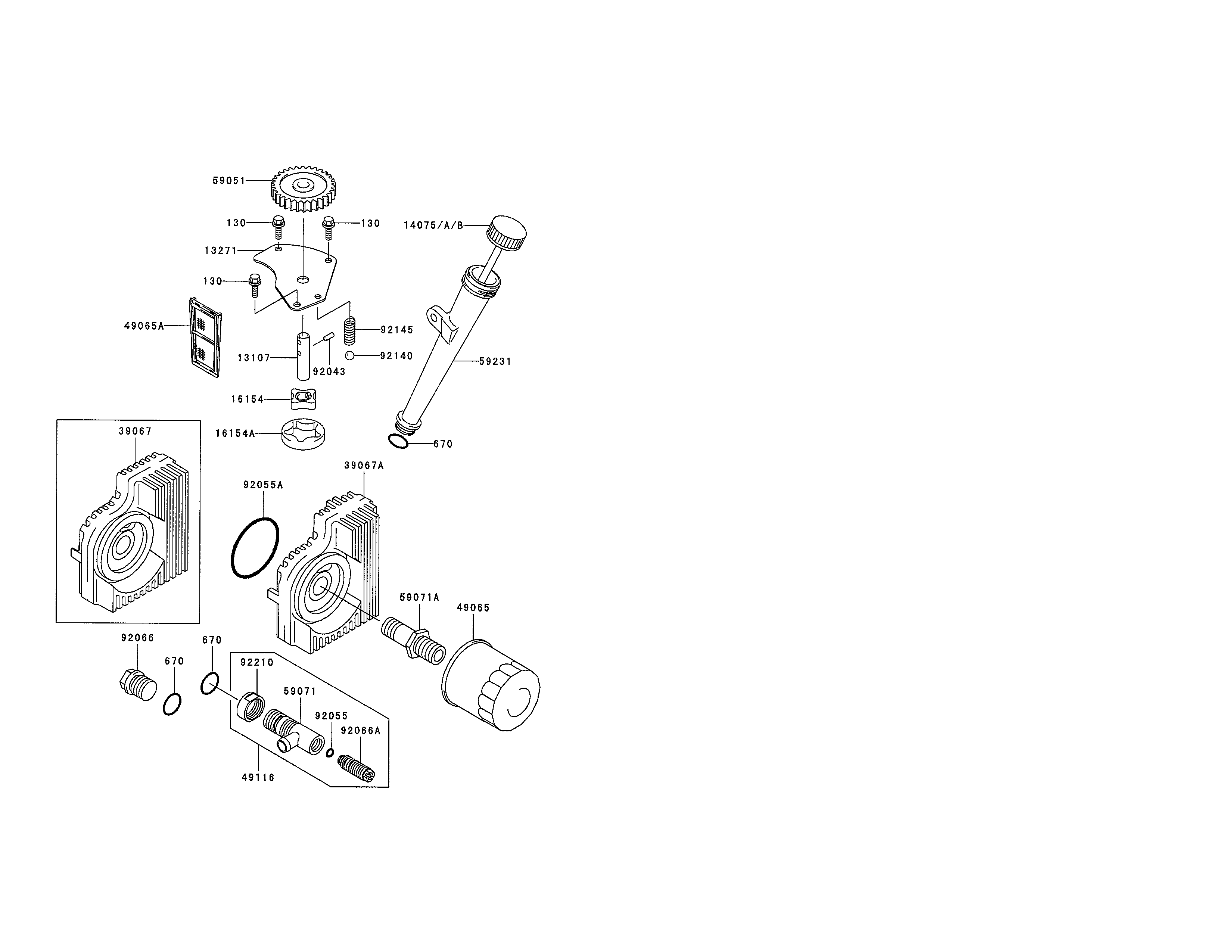

Lubrication-equipment diagram

Lawn mower o-ring

Part #670D2016

Replaced by #KM-670D2016

?
Manufacturer substitution
This part replaces 670D2016. Substitute parts can look different from the original.
This item is not returnable
$4.31
In Stock
Collet 12011-2056
#12011

Valve/camshaft diagram

Collet

Part #12011-2056

Replaced by #KM-12011-2056

?
Manufacturer substitution
This part replaces 12011-2056. Substitute parts can look different from the original.
This item is not returnable
$6.97
In Stock
Lawn & Garden Equipment Engine Bolt 92153-7008
#92153A

Cooling-equipment diagram

Lawn & garden equipment engine bolt

Part #92153-7008

Replaced by #KM-92154-2823

?
Manufacturer substitution
This part replaces 92153-7008. Substitute parts can look different from the original.
This item is not returnable
$5.00
In Stock
Gasket 11060-7016
#11060

Air-filter/muffler diagram

Gasket

Part #11060-7016

Replaced by #KM-11060-7016

?
Manufacturer substitution
This part replaces 11060-7016. Substitute parts can look different from the original.
This item is not returnable
$3.06
In Stock
Oil Seal 92049-7001
#92049

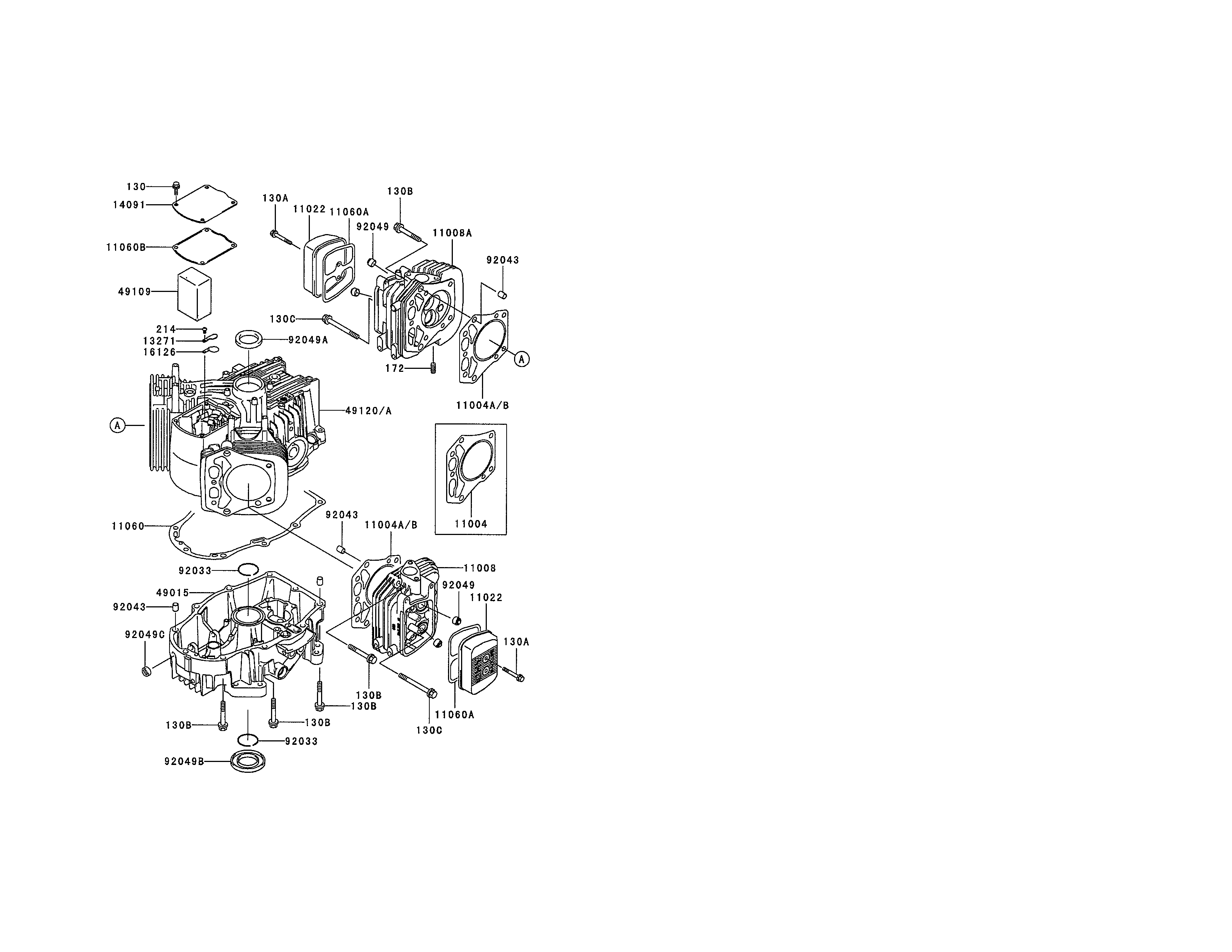

Cylinder/crankcase diagram

Oil seal

Part #92049-7001

Replaced by #KM-92049-0862

?
Manufacturer substitution
This part replaces 92049-7001. Substitute parts can look different from the original.
$20.63
In Stock
