Jenn-Air
Electric Range

Model # JES9900CCB00 Official Jenn-Air 30" electric slide-in range

Here are the diagrams and repair parts for Official Jenn-Air JES9900CCB00 30" electric slide-in range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

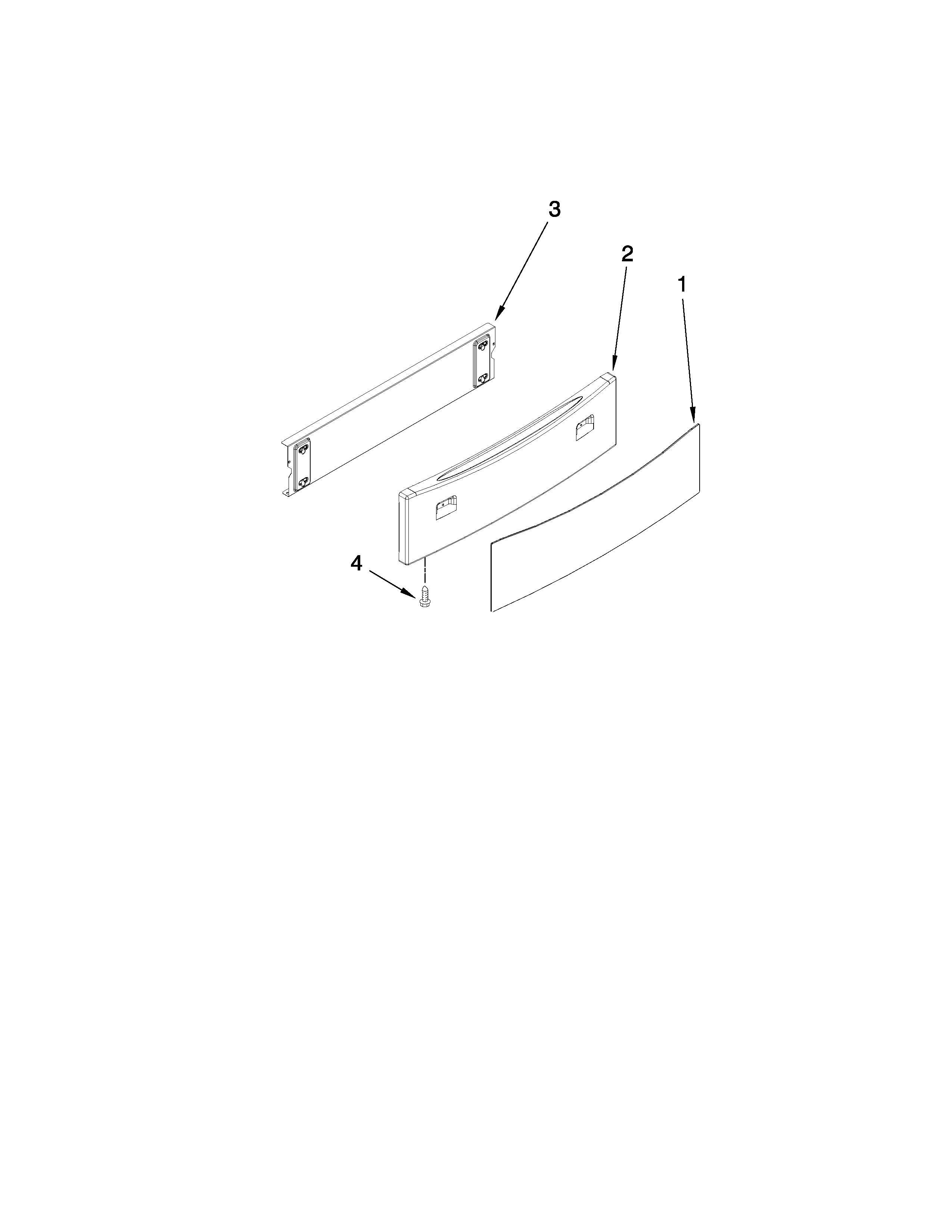

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 158 parts  |
Sensor 7430P042-60
#7

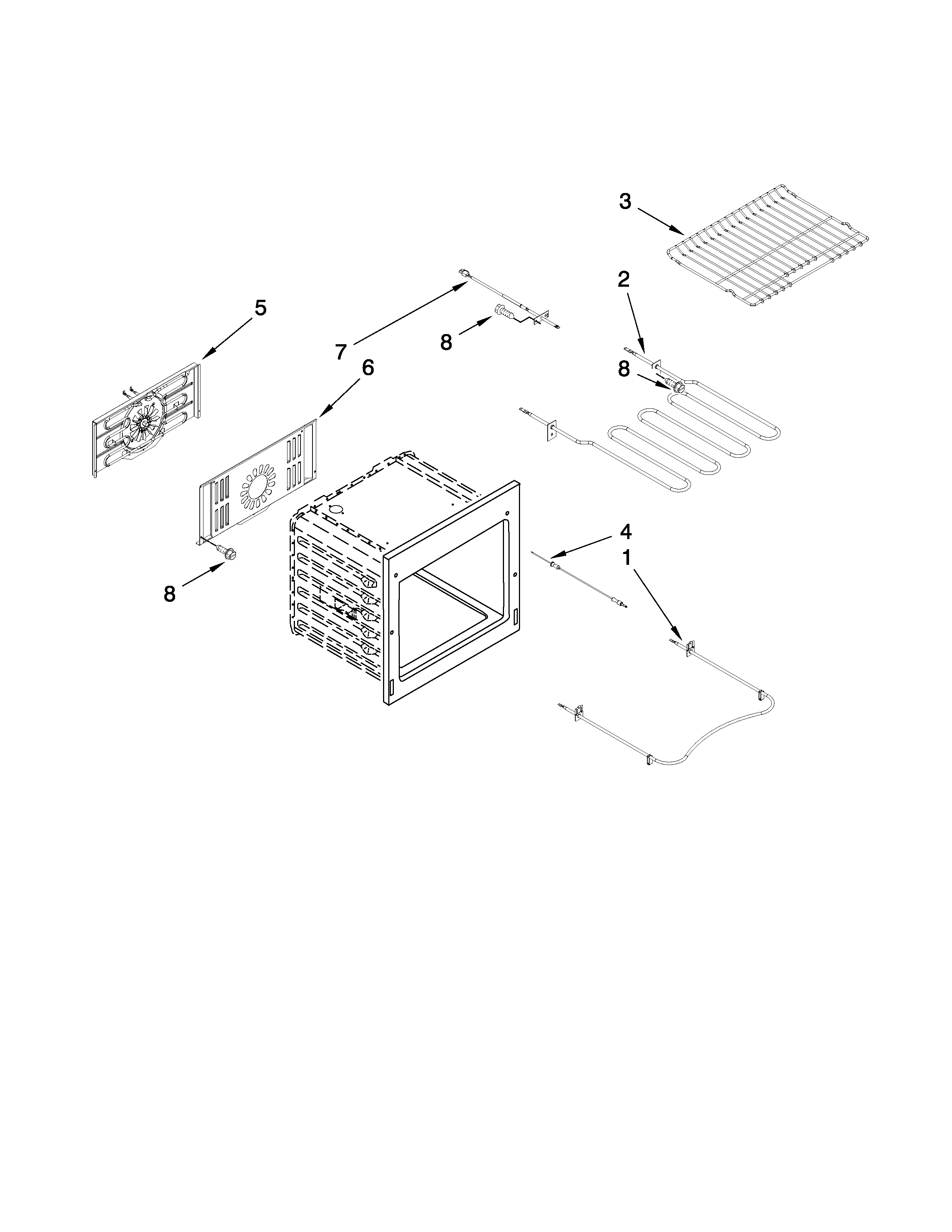

Internal oven parts diagram

Sensor

Part #7430P042-60

Replaced by #12001656

?
Manufacturer substitution
This part replaces 7430P042-60. Substitute parts can look different from the original.
BEST SELLER
$35.18 |
15% OFF Phone Price : $41.18
In Stock
Bake Element 7406P439-60
#1

Internal oven parts diagram

Bake element

Part #7406P439-60

Replaced by #WPW10310274

?
Manufacturer substitution
This part replaces 7406P439-60. Substitute parts can look different from the original.
BEST SELLER
$67.69 |
8% OFF Phone Price : $73.69
In Stock
Elmnt-surf 7406P431-60
#6

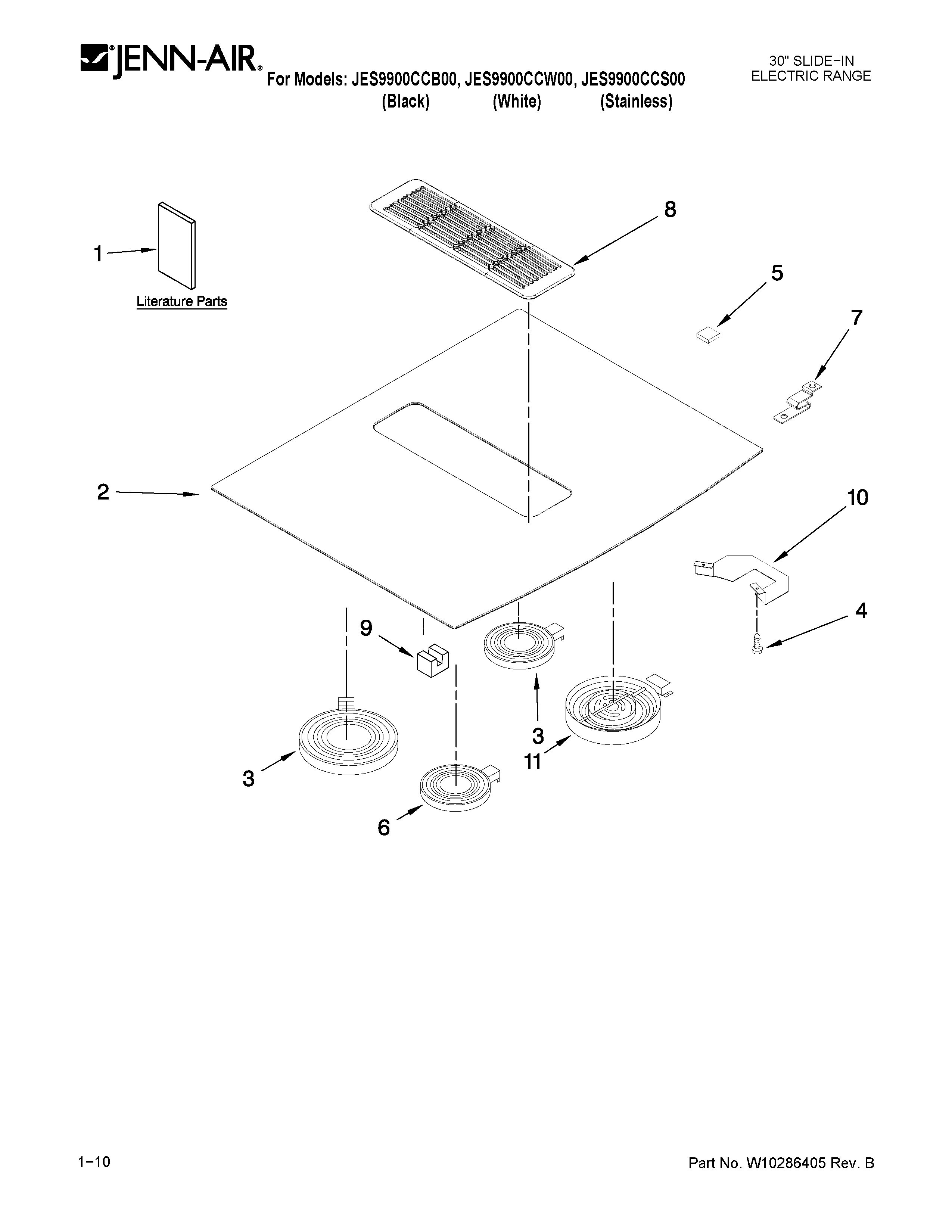

Cooktop parts diagram

Elmnt-surf

Part #7406P431-60

Replaced by #W10823692

?
Manufacturer substitution
This part replaces 7406P431-60. Substitute parts can look different from the original.
BEST SELLER
$123.90 |
9% OFF Phone Price : $135.90
In Stock
Switch- El 7450P011-60
#4

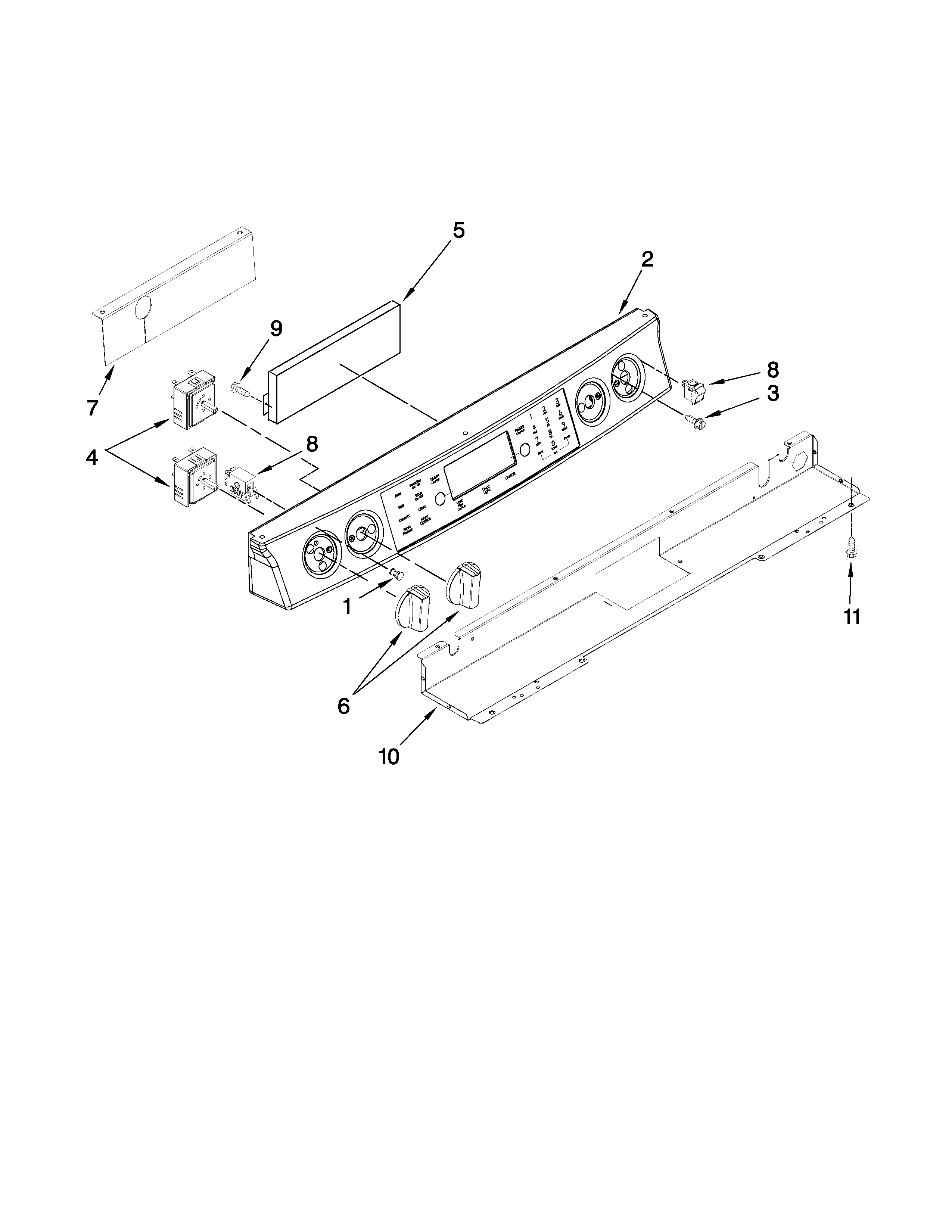

Control panel parts diagram

Switch- el

Part #7450P011-60

Replaced by #WP74010824

?
Manufacturer substitution
This part replaces 7450P011-60. Substitute parts can look different from the original.
BEST SELLER
$58.36 |
9% OFF Phone Price : $64.36
In Stock
Range Surface Element Control Switch W10185286
#4A

Control panel parts diagram

Range surface element control switch

Part #W10185286

Replaced by #WPW10185286

?
Manufacturer substitution
This part replaces W10185286. Substitute parts can look different from the original.
$136.10 |
8% OFF Phone Price : $148.10
In Stock
Door Glass 7902P436-60
#5

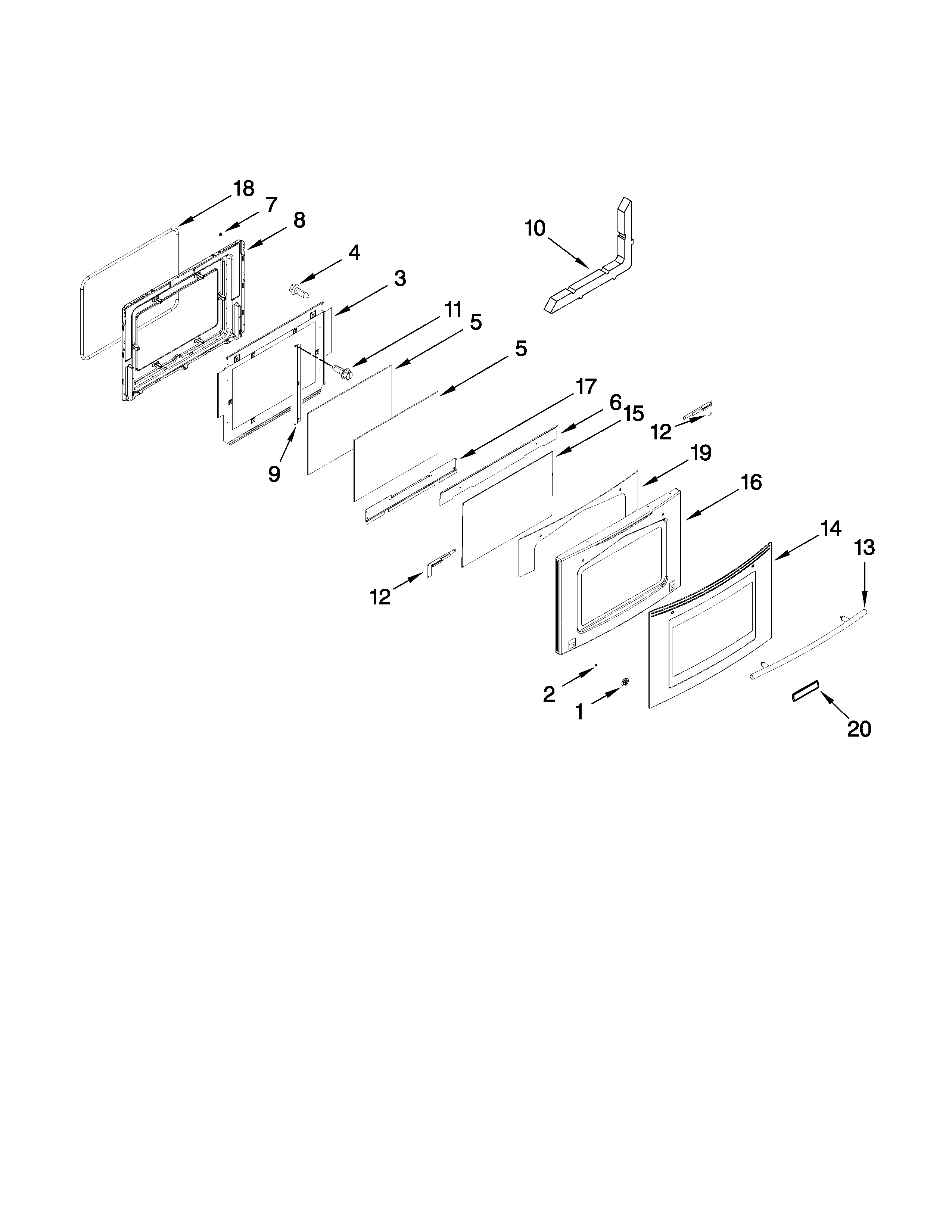

Door parts diagram

Door glass

Part #7902P436-60

Replaced by #74003645

?
Manufacturer substitution
This part replaces 7902P436-60. Substitute parts can look different from the original.
$104.75 |
10% OFF Phone Price : $116.75
In Stock
Wheel- Blo 7114P005-60
#10

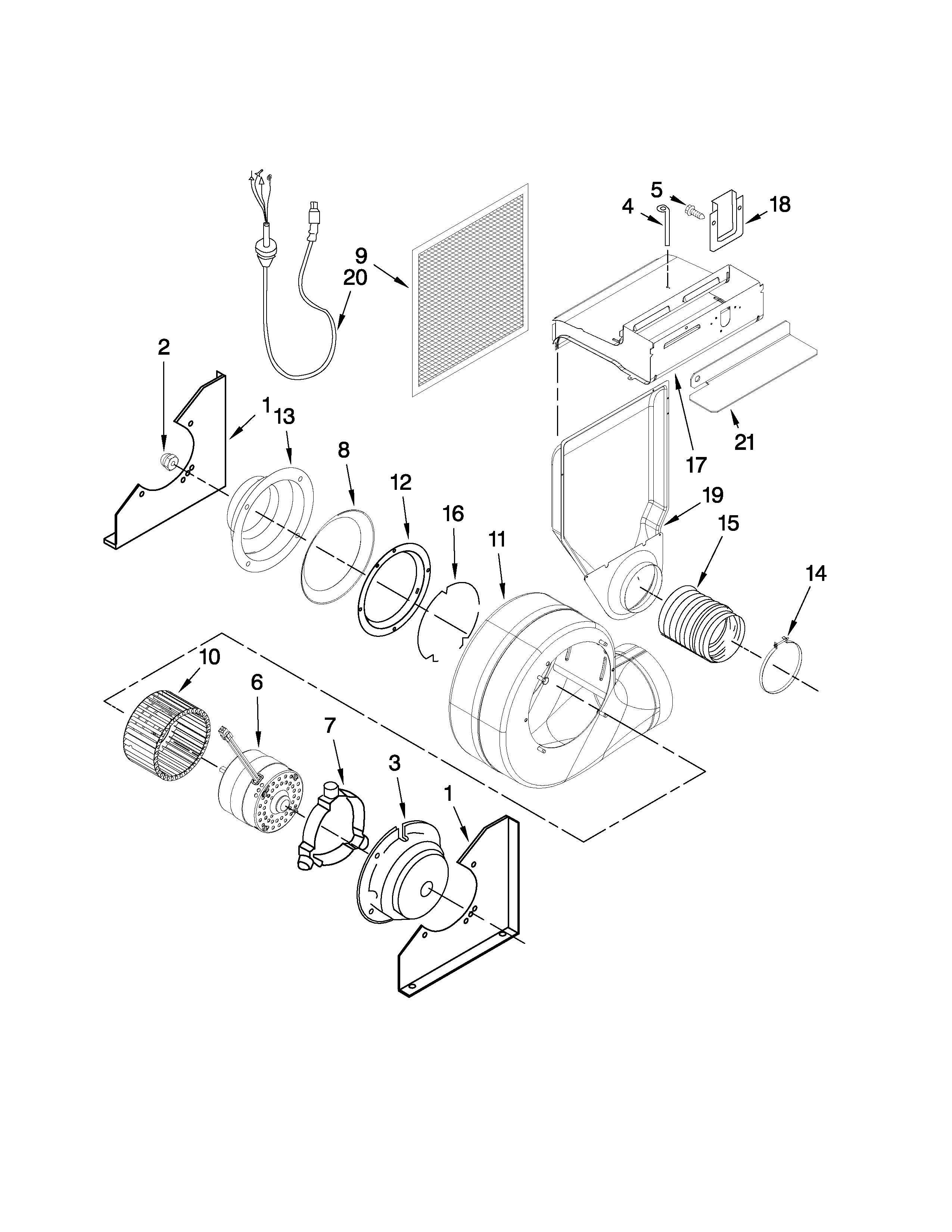

Blower assembly parts diagram

Wheel- blo

Part #7114P005-60

Replaced by #WPY707985

?
Manufacturer substitution
This part replaces 7114P005-60. Substitute parts can look different from the original.
$71.68 |
8% OFF Phone Price : $77.68
In Stock
Screw 7101P376-60
Screw

Part #7101P376-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P376-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Stand Mixer Screw, #10-24 X 1/4-in WP4159193
#NI

Optional parts (not included) diagram

Stand mixer screw, #10-24 x 1/4-in

Part #WP4159193

This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Screw 7101P282-60
#31

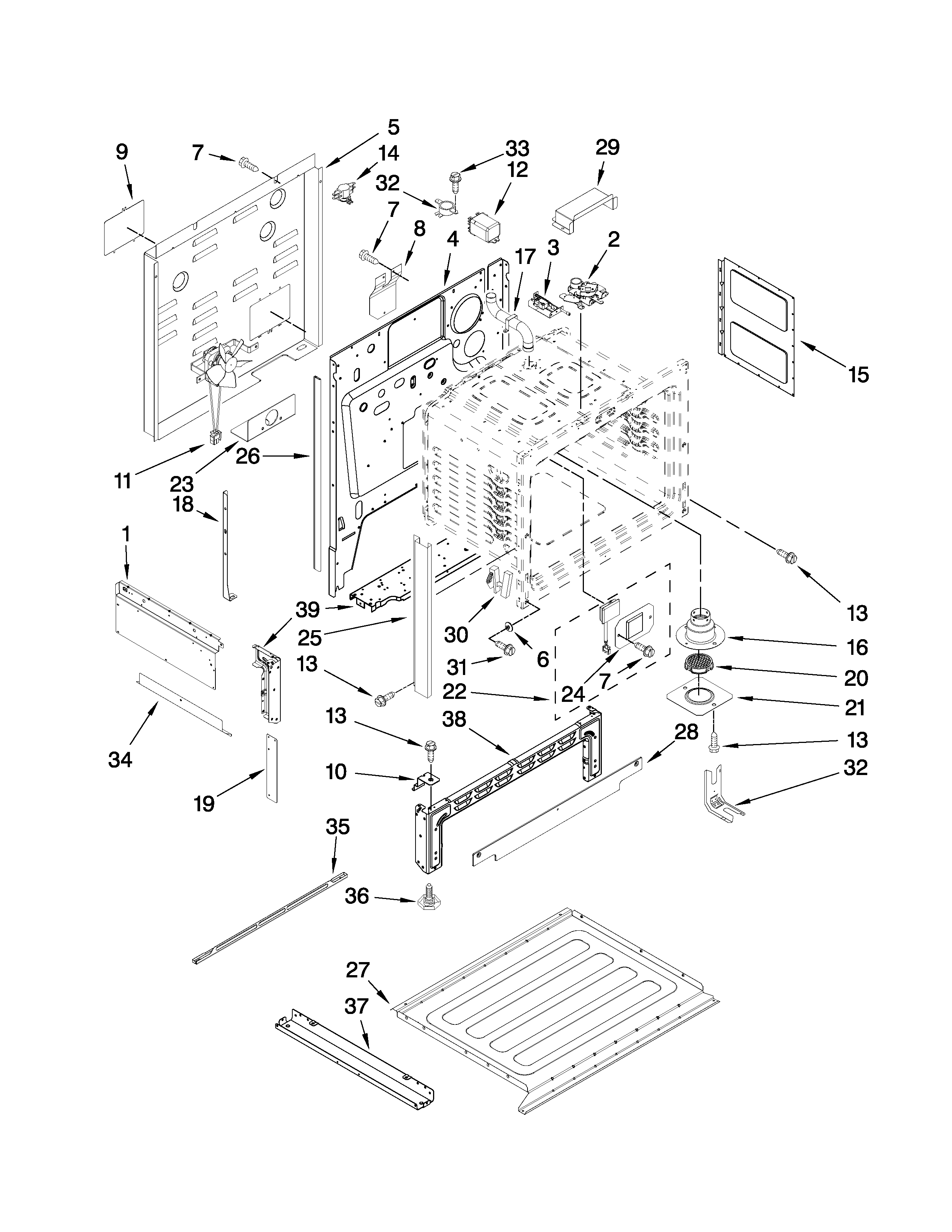

Chassis parts diagram

Screw

Part #7101P282-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P282-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
