Model # 50562X89 Official Yard King lawn tractor

Here are the diagrams and repair parts for Official Yard King 50562X89 lawn tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

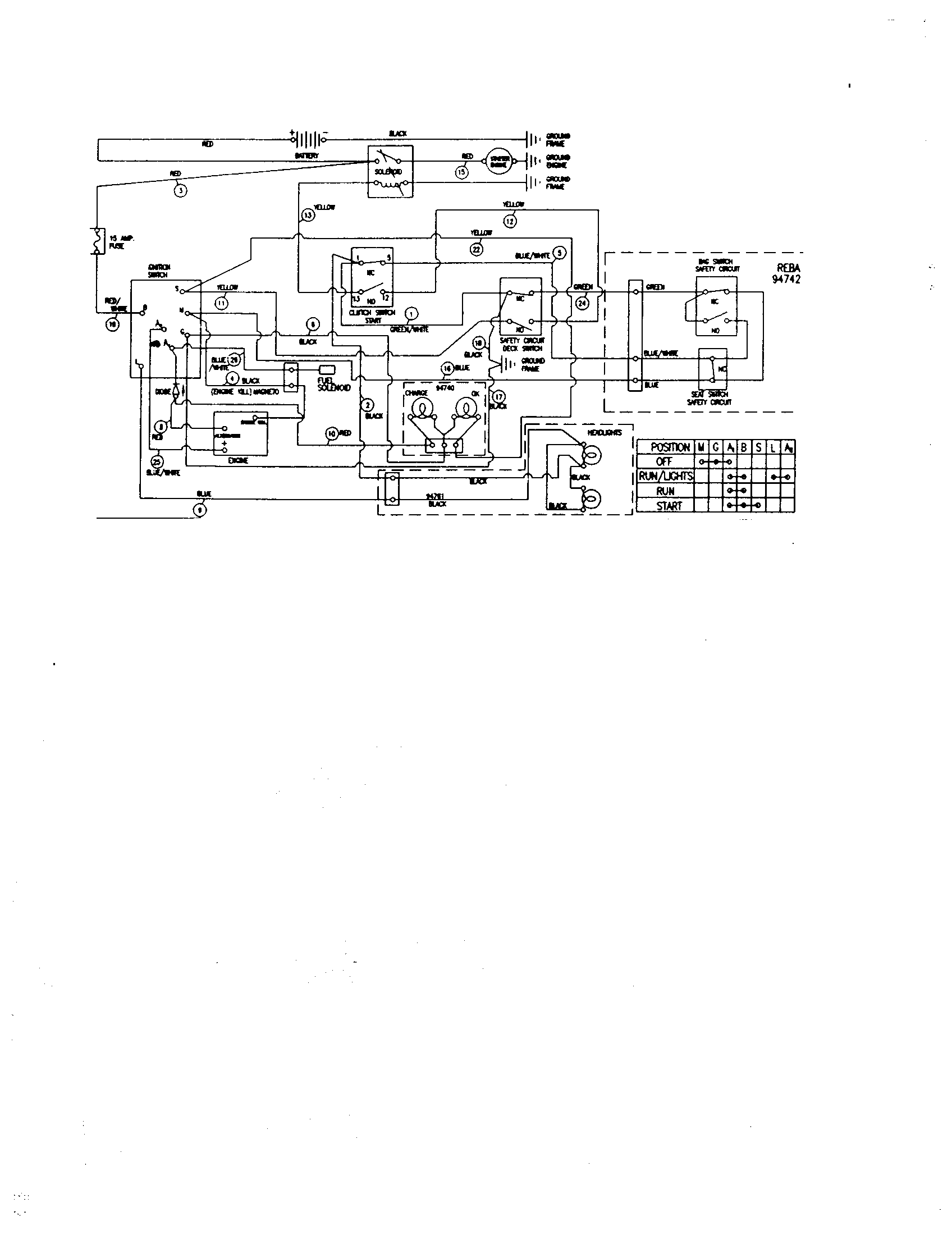

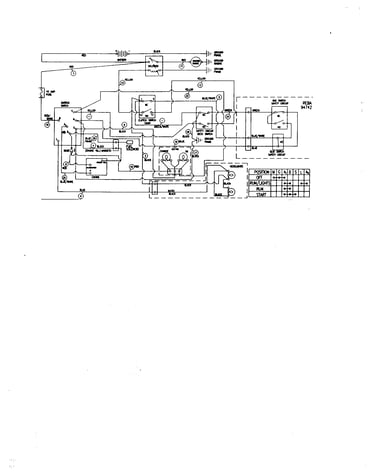

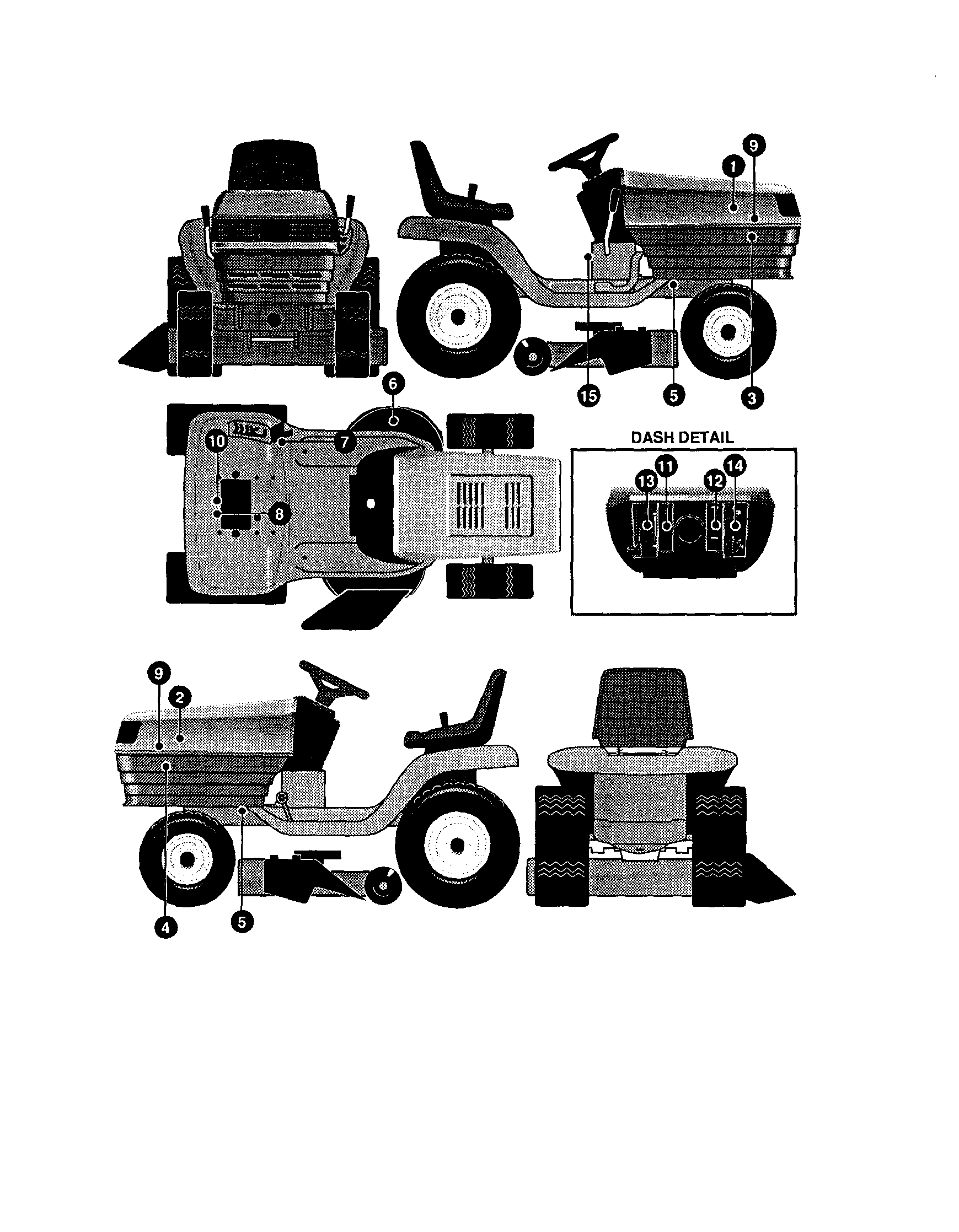

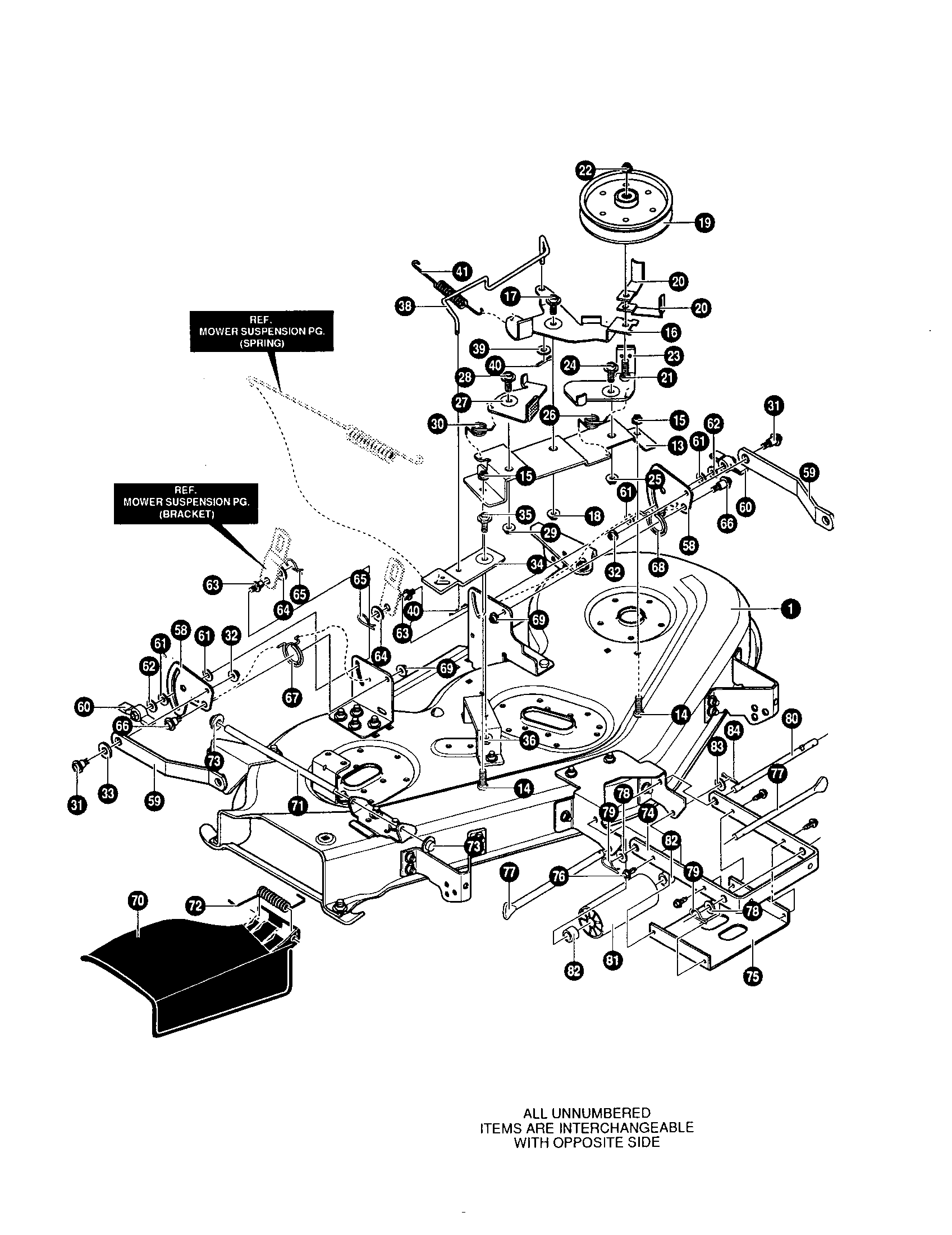

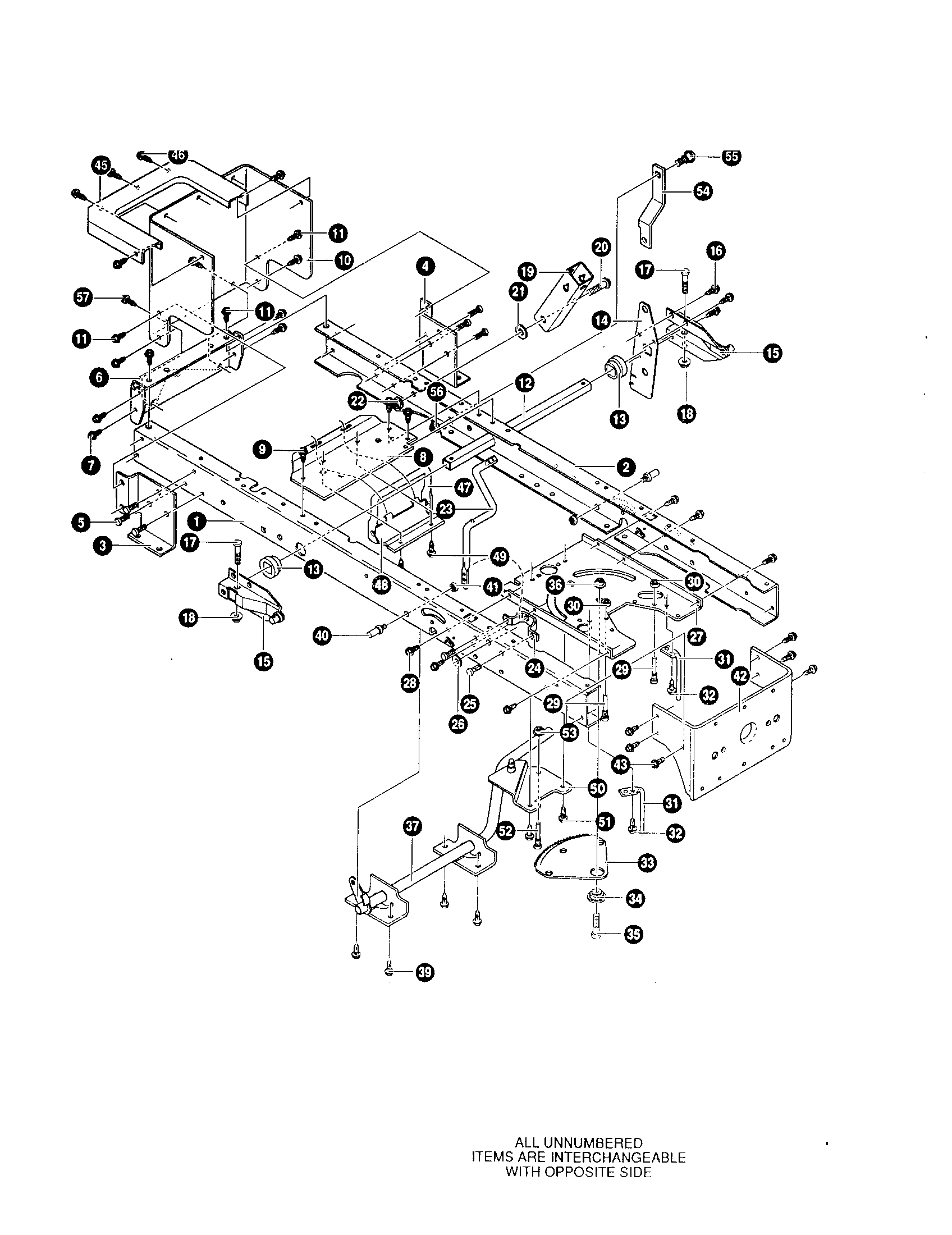

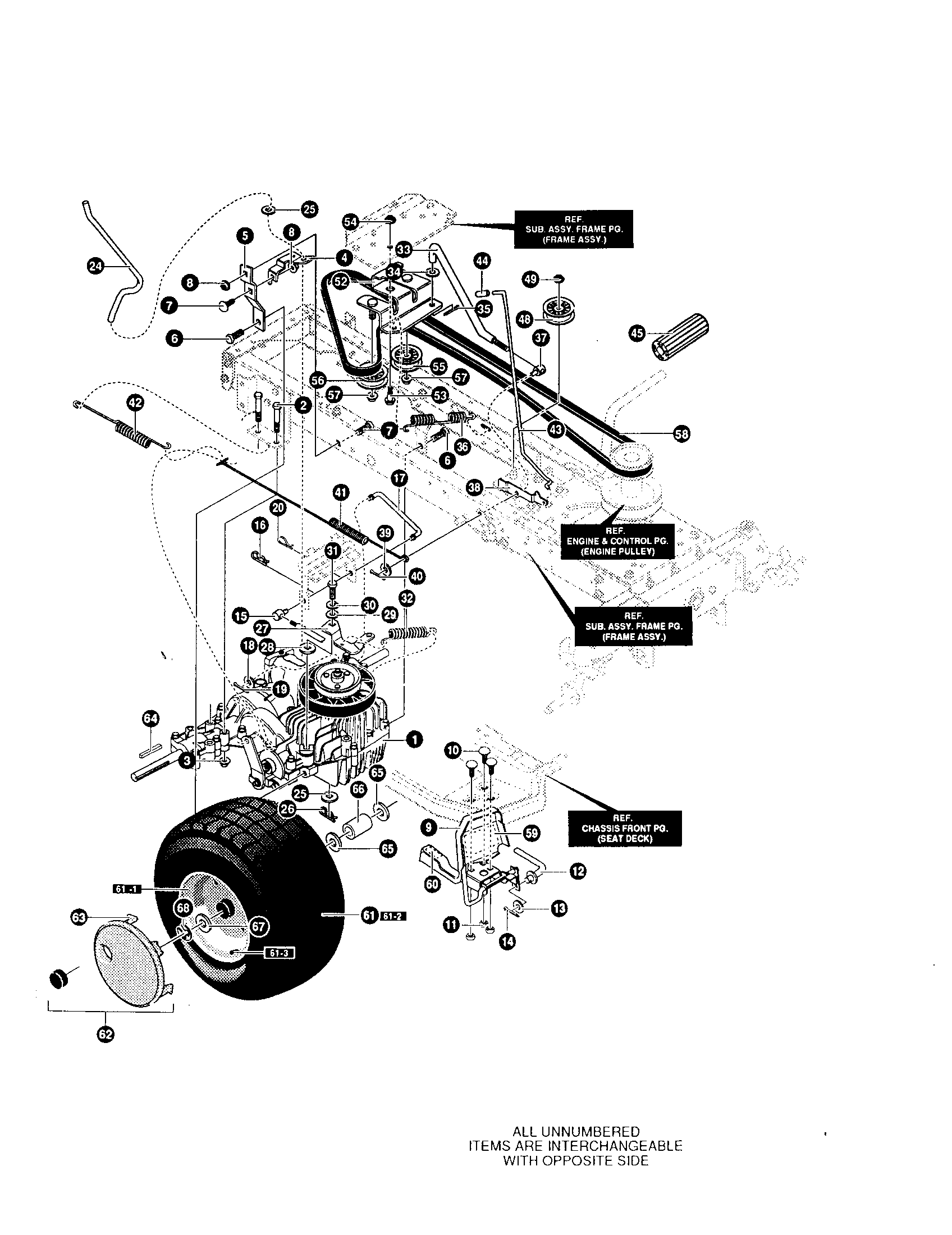

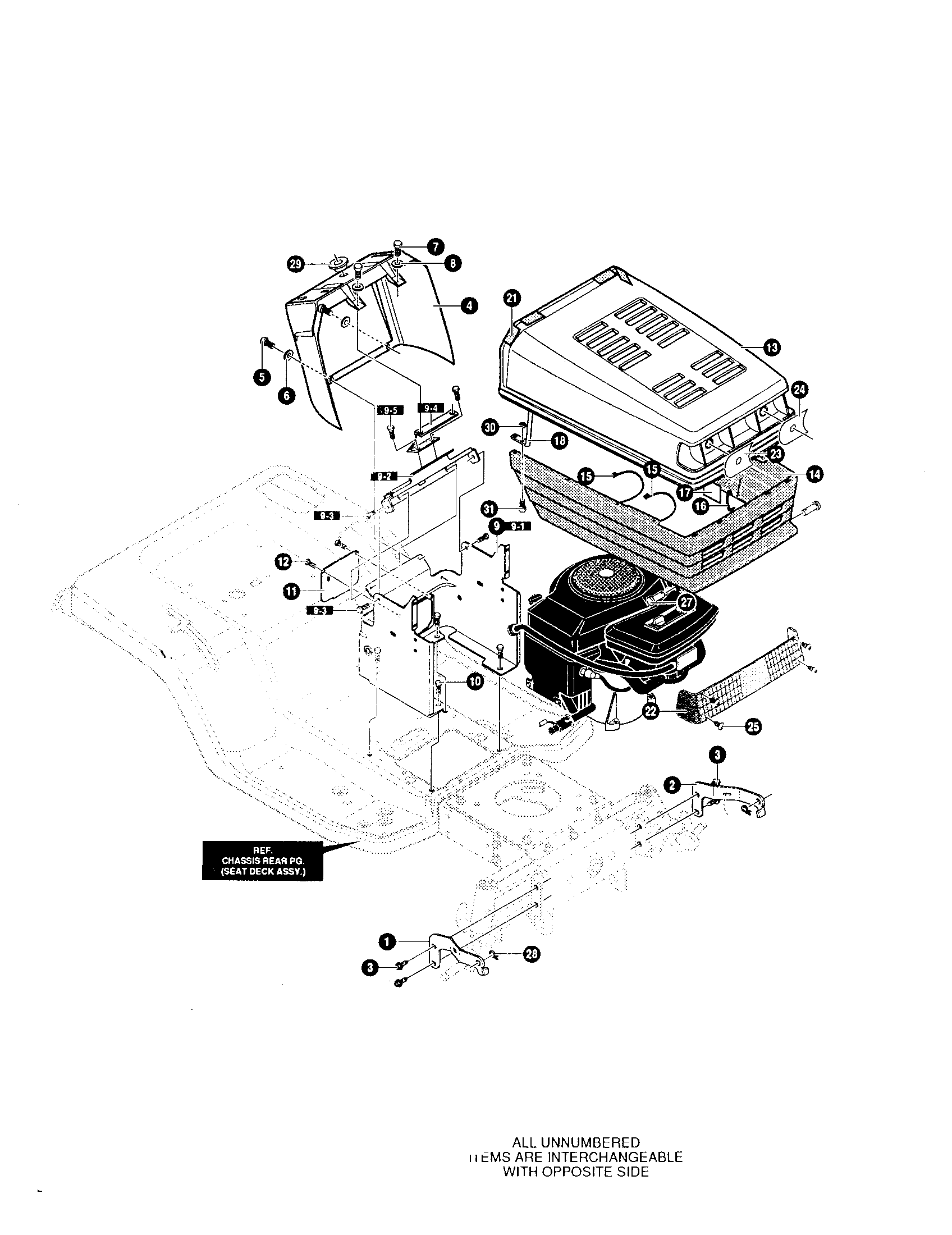

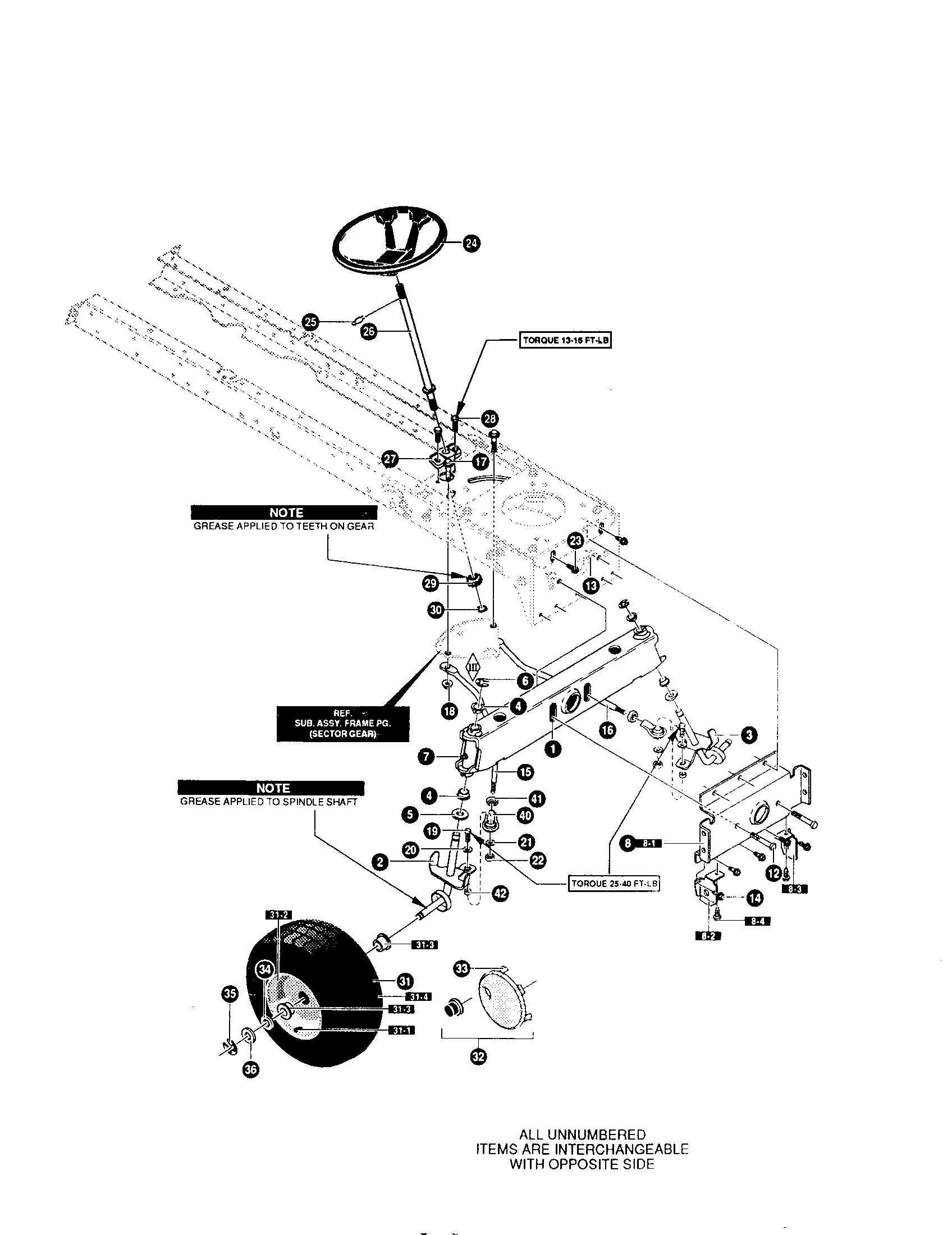

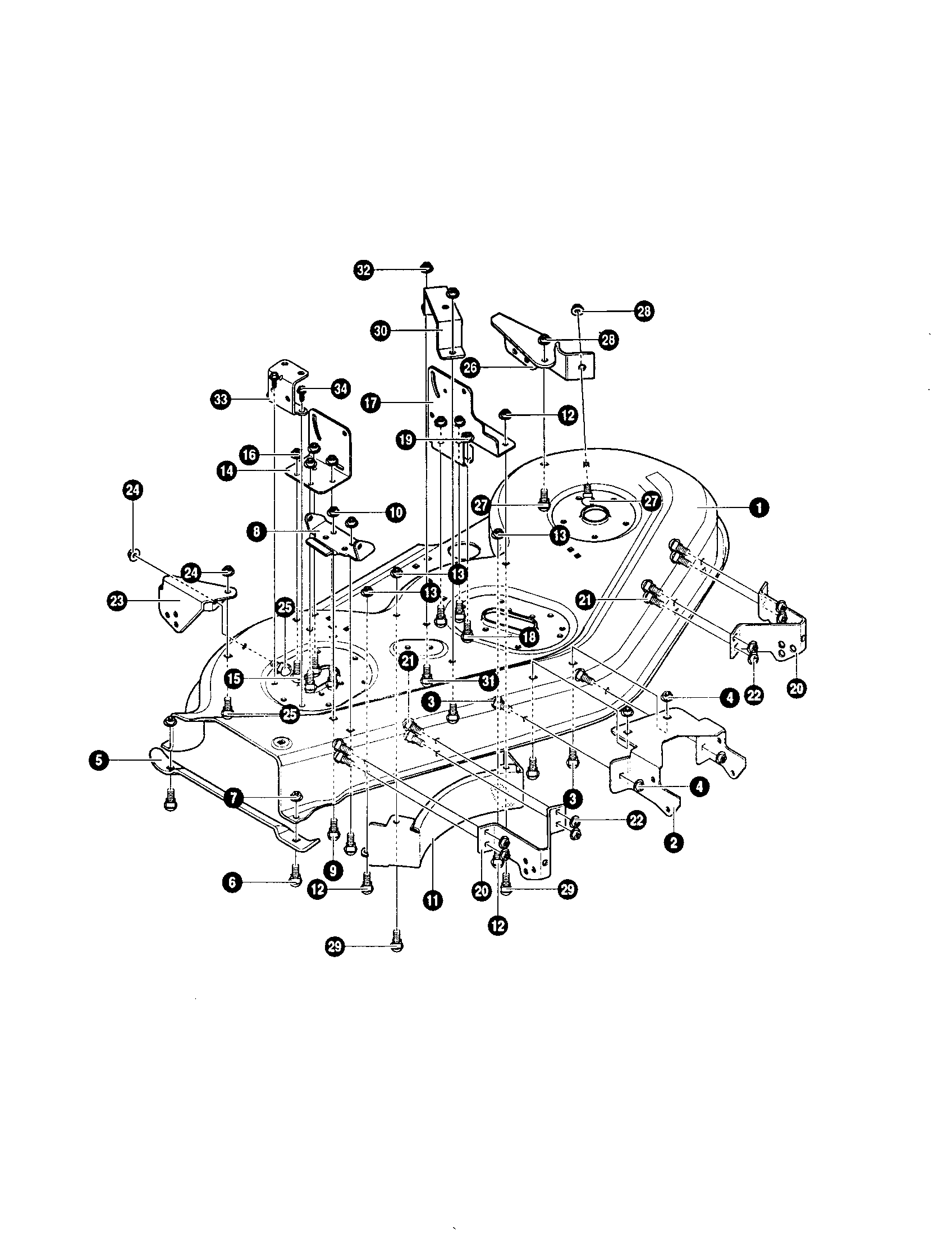

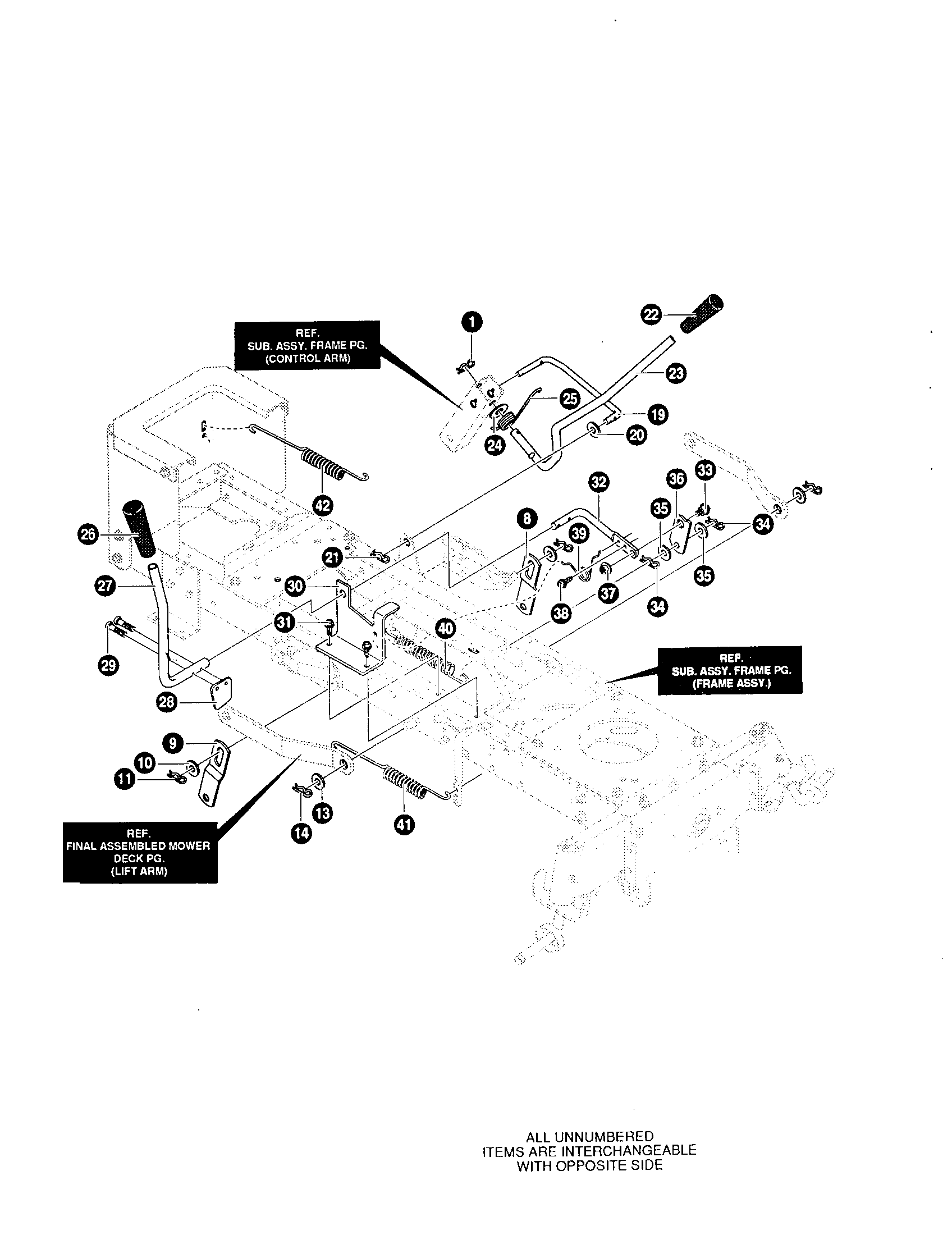

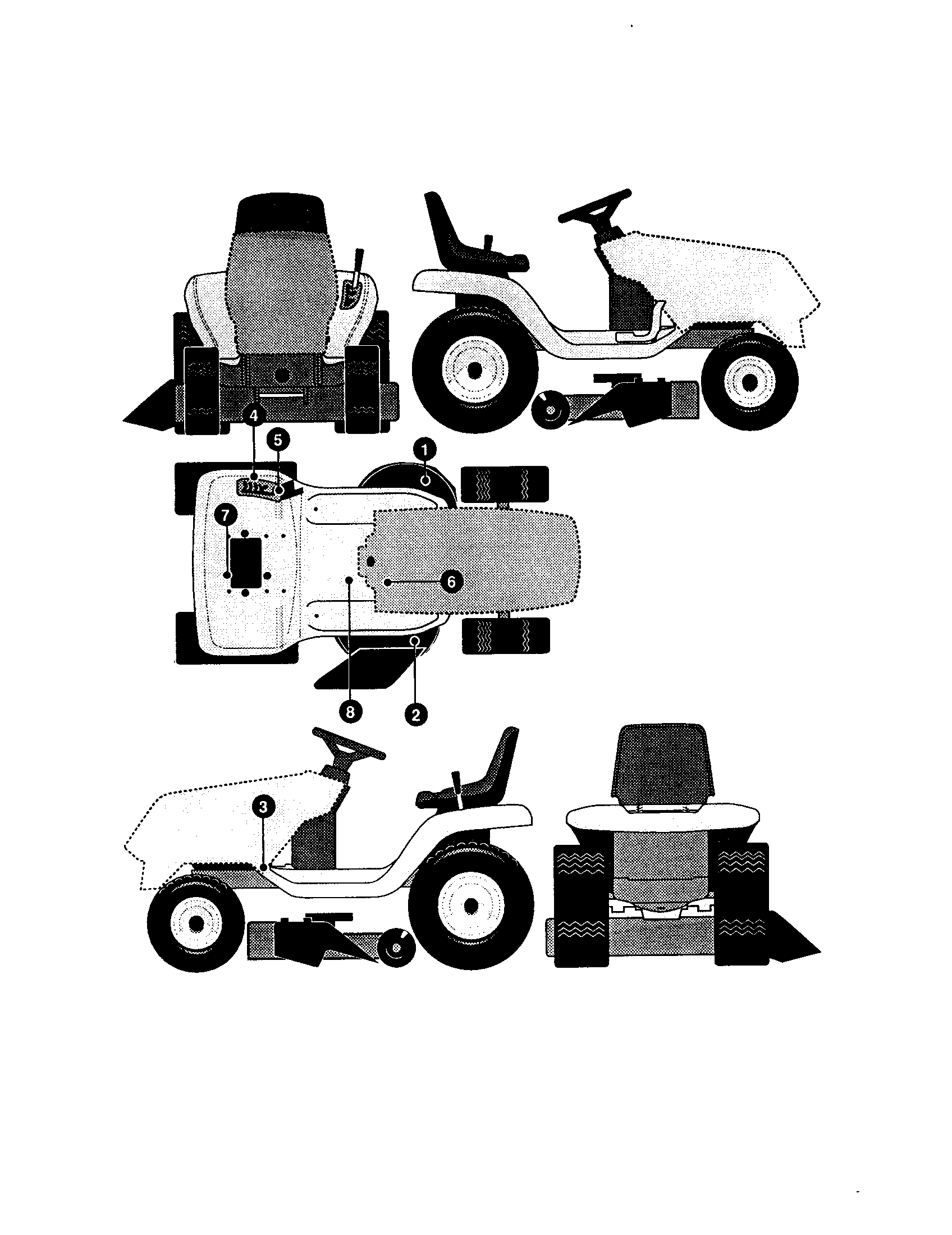

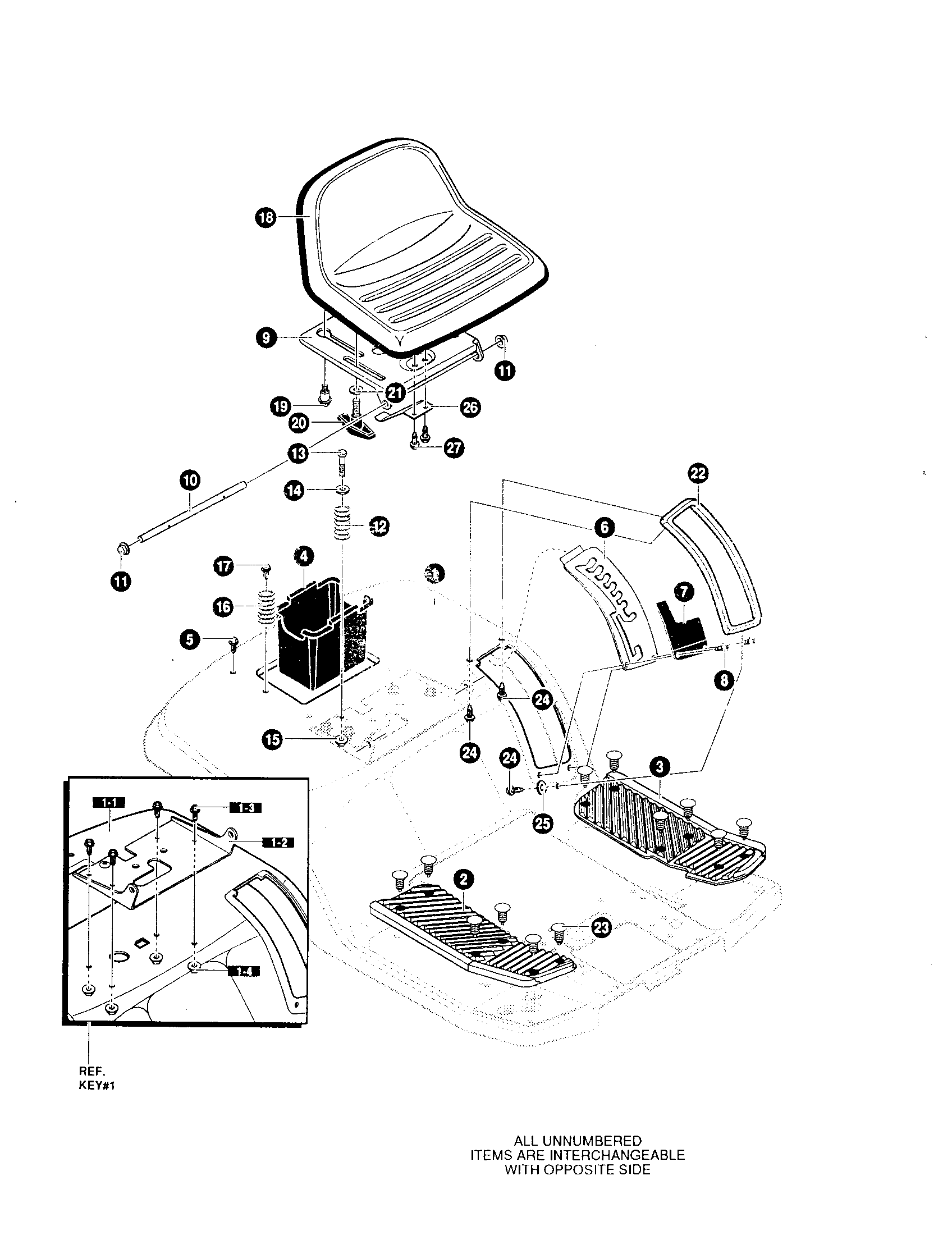

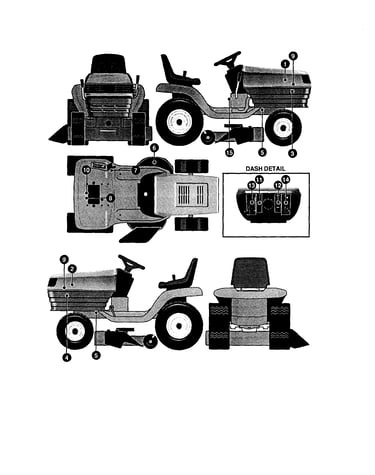

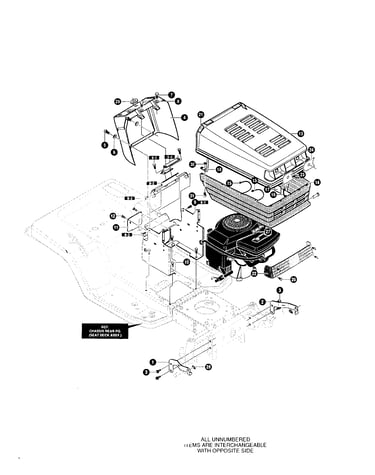

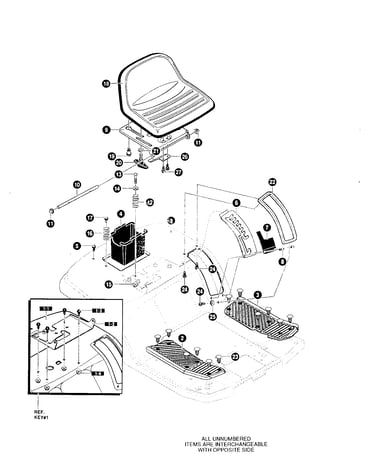

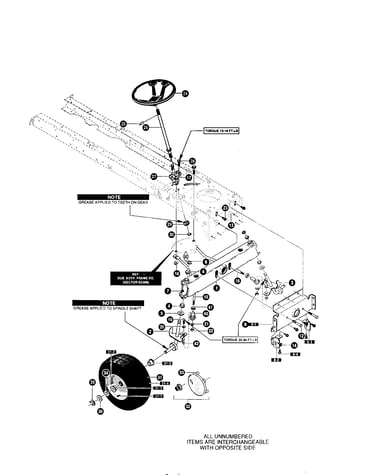

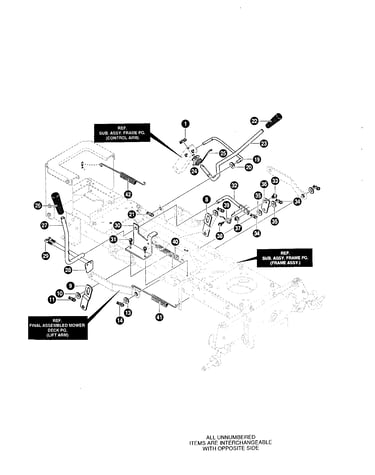

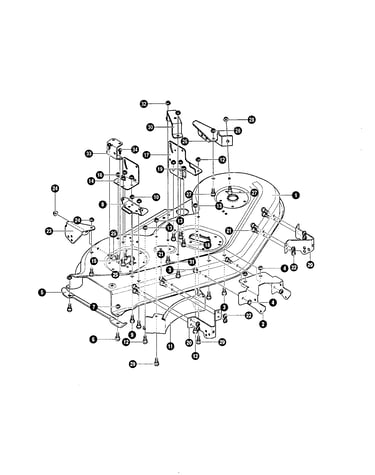

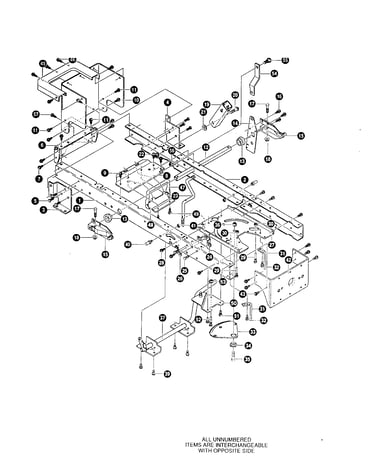

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 337 parts  |
Gas Line 48930
#24

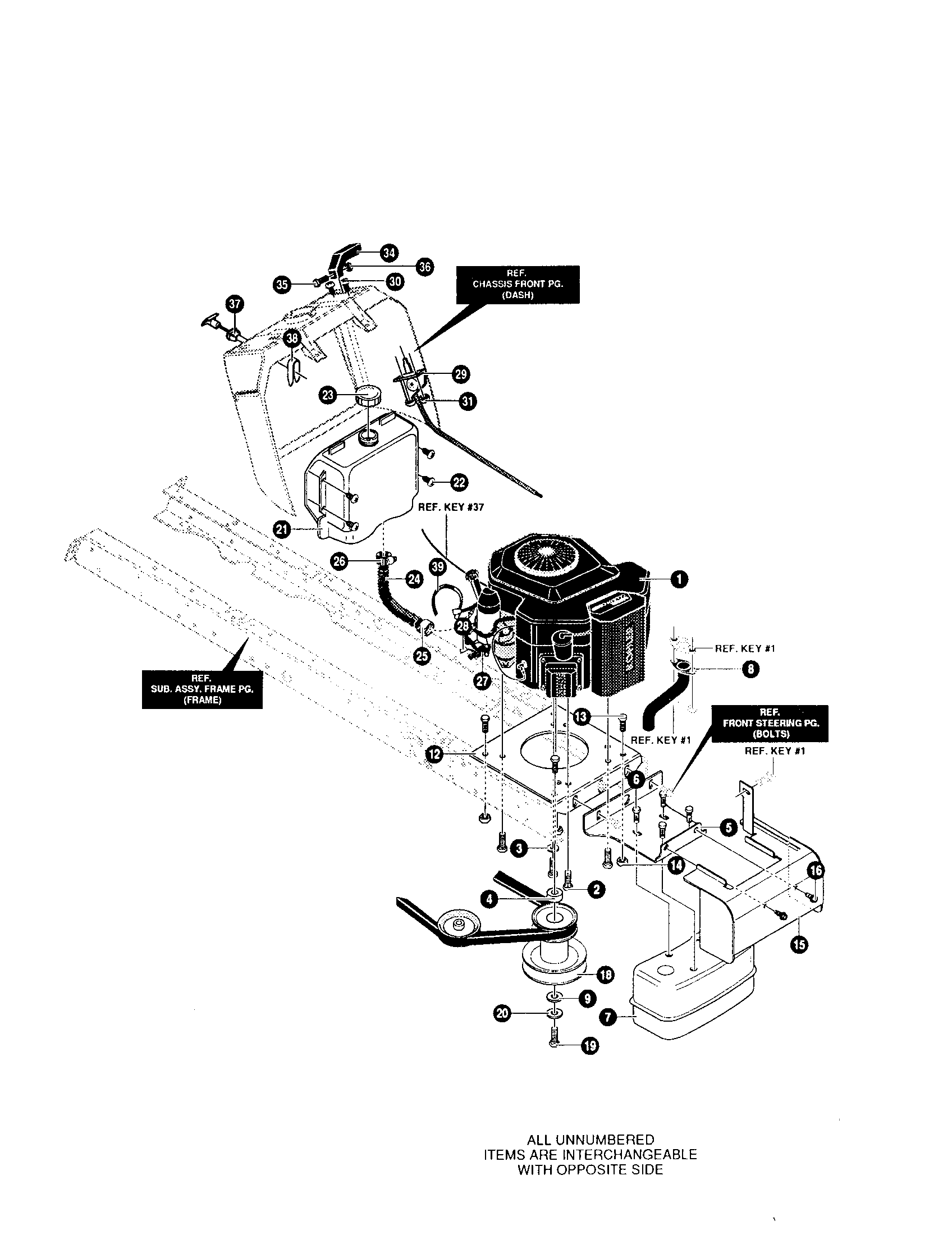

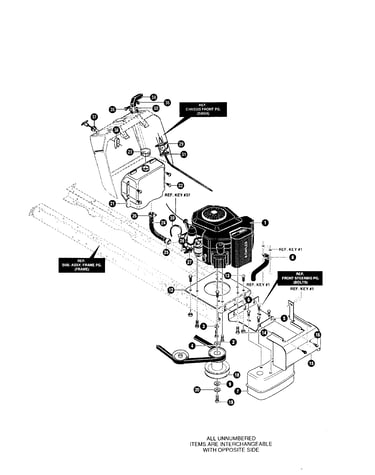

Engine/control diagram

Gas line

Part #48930

Replaced by #791766

?
Manufacturer substitution
This part replaces 48930. Substitute parts can look different from the original.
BEST SELLER
$9.30 |
10% OFF Phone Price : $10.30
In Stock
Retaining Ring 36625
Retaining ring

Part #36625

Replaced by #812000029

?
Manufacturer substitution
This part replaces 36625. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.50 |
22% OFF Phone Price : $4.50
In Stock
Nut, 1/4-20 710203
#15

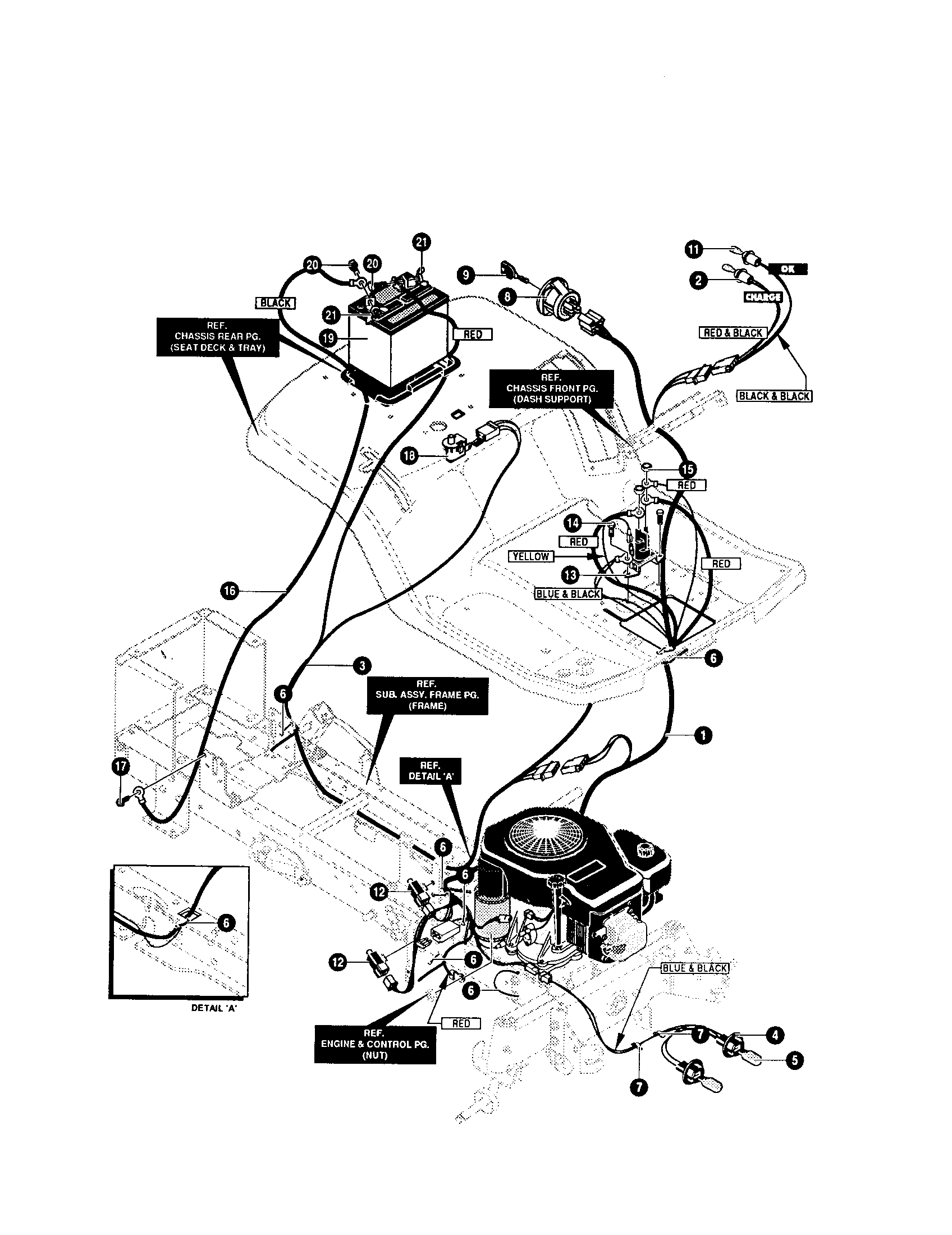

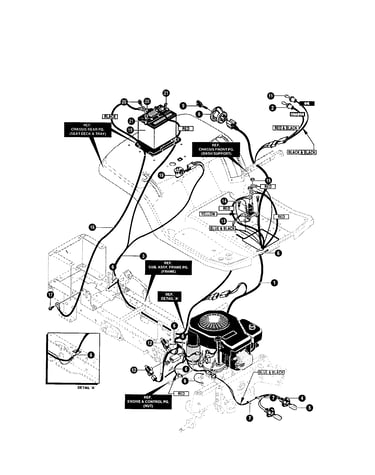

Electrical assembly diagram

Nut, 1/4-20

Part #710203

Replaced by #703232

?
Manufacturer substitution
This part replaces 710203. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.24 |
14% OFF Phone Price : $7.24
In Stock
Solenoid 94613
#13

Electrical assembly diagram

Solenoid

Part #94613

Replaced by #7701100MA

?
Manufacturer substitution
This part replaces 94613. Substitute parts can look different from the original.
$29.30 |
17% OFF Phone Price : $35.30
In Stock
Fuel Cap 300304
#23

Engine/control diagram

Fuel cap

Part #300304

Replaced by #092317MA

?
Manufacturer substitution
This part replaces 300304. Substitute parts can look different from the original.
This item is not returnable
$15.29 |
12% OFF Phone Price : $17.29
In Stock
Seat Switch 94159
#18

Electrical assembly diagram

Seat switch

Part #94159

Replaced by #7023354YP

?
Manufacturer substitution
This part replaces 94159. Substitute parts can look different from the original.
This item is not returnable
$20.60 |
23% OFF Phone Price : $26.60
In Stock
Belleville Washer 710118
#9

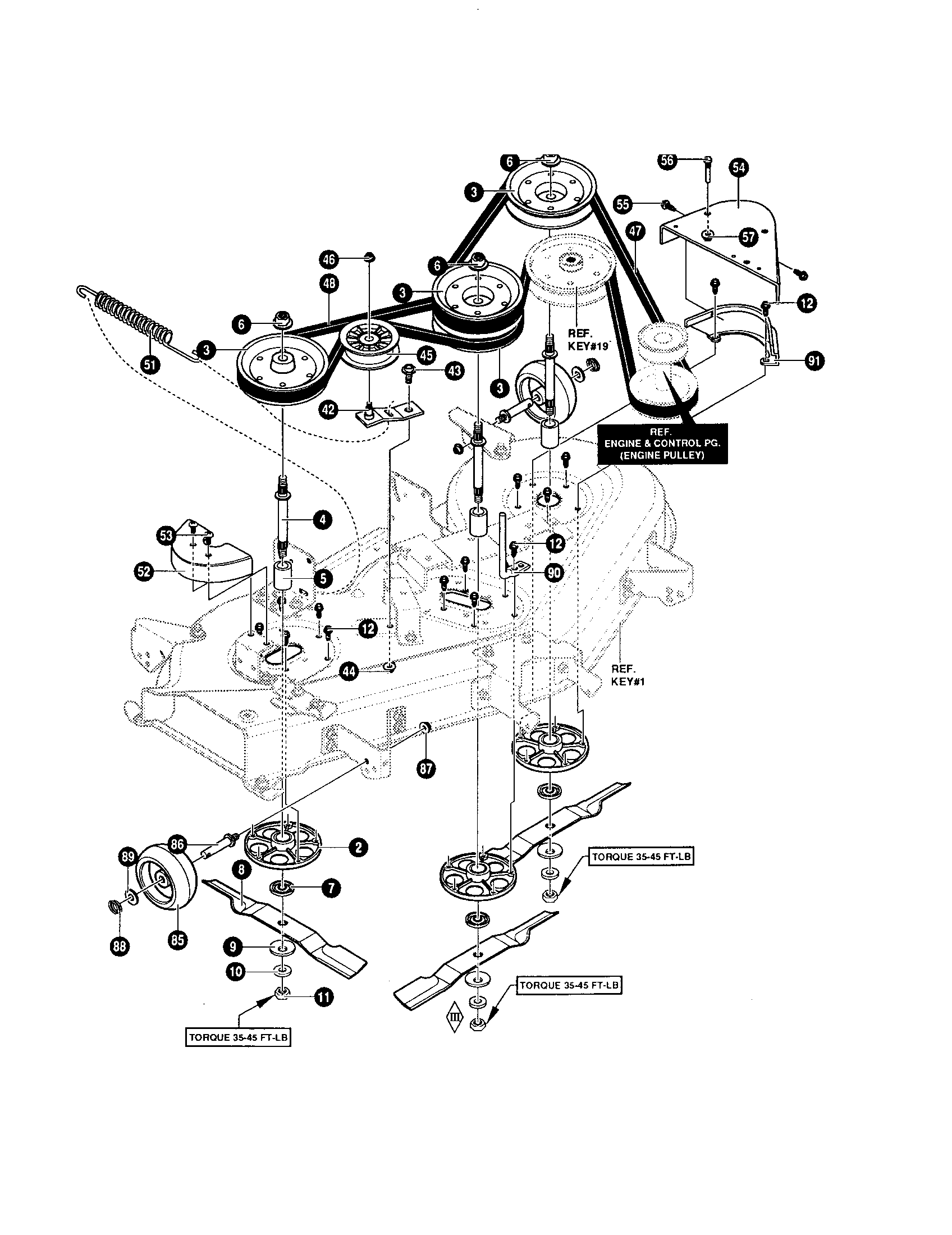

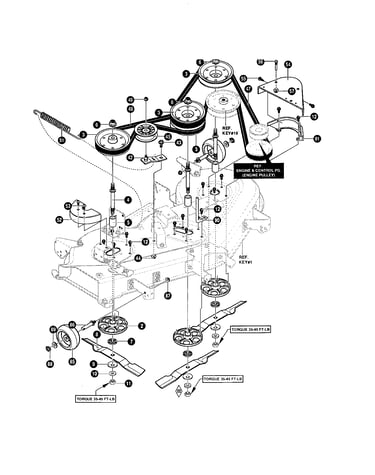

Jack shaft housing diagram
