Electric Wall Oven

Model # JKP56AS1AA Official GE electric wall oven

Here are the diagrams and repair parts for Official GE JKP56AS1AA electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

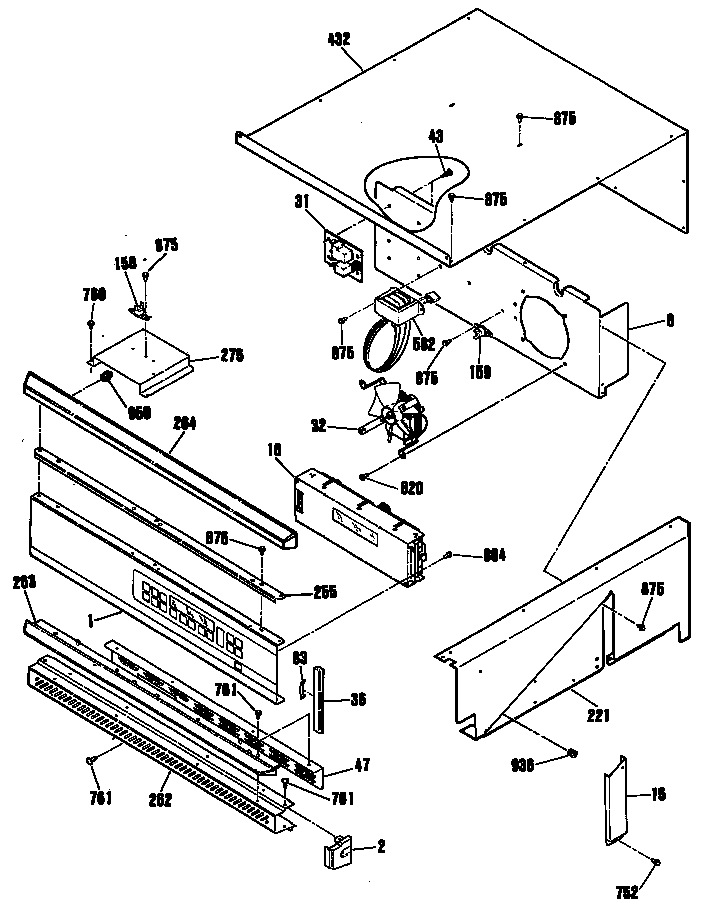

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 158 parts  |
40a15bulb STD372401
#257

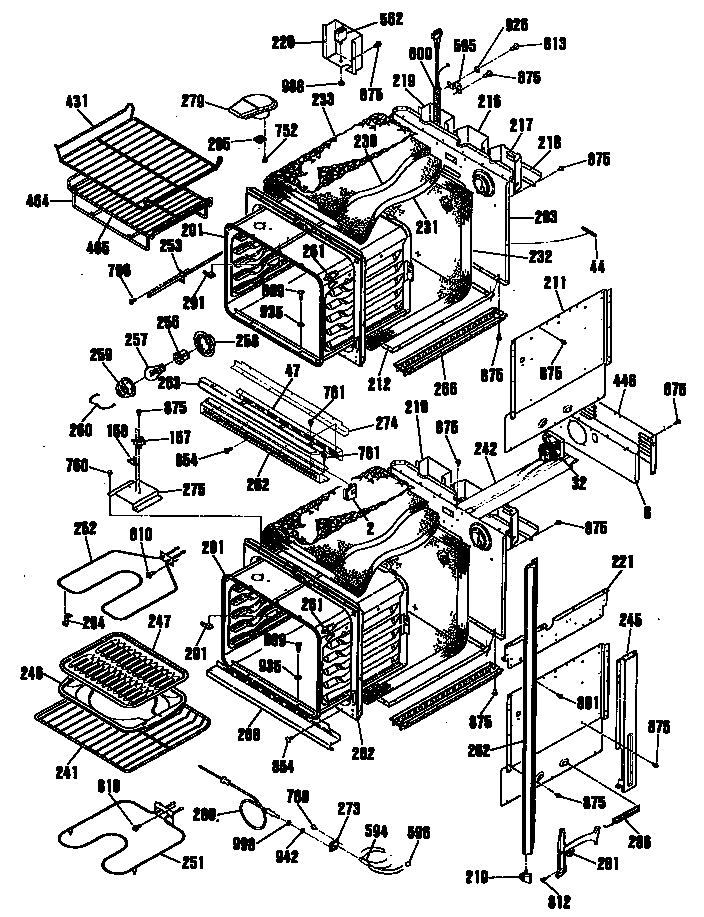

Ovens diagram

40a15bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Sensor WB20X106
#253

Ovens diagram

Sensor

Part #WB20X106

Replaced by #WB21X5301

?
Manufacturer substitution
This part replaces WB20X106. Substitute parts can look different from the original.
BEST SELLER
$144.49 |
8% OFF Phone Price : $156.49
In Stock
Range Bake Element (replaces 347753, Wb44k5008) WB44K5013
#251

Ovens diagram

Range bake element (replaces 347753, wb44k5008)

Part #WB44K5013

BEST SELLER
$71.33 |
8% OFF Phone Price : $77.33
In Stock
Range Broil Element Support (replaces Wb02k9719, Wb02x9719, Wb2x9438, Wb2x9576) WB2X9719
#294

Ovens diagram

Range broil element support (replaces wb02k9719, wb02x9719, wb2x9438, wb2x9576)

Part #WB2X9719

BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Oven Meat Probe Sensor (replaces Wb20k5034, Wb20x5034, Wb20x5064) WB20X5050
#280

Ovens diagram

Range oven meat probe sensor (replaces wb20k5034, wb20x5034, wb20x5064)

Part #WB20X5050

The manufacturer no longer makes this part, and there's no substitute part

Screw-4-pk WB1M01
Screw-4-pk

Part #WB1M01

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB1M01. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Oven Rack WB48K5006
#241A

Ovens diagram

Oven rack

Part #WB48K5006

Replaced by #WB48T10093

?
Manufacturer substitution
This part replaces WB48K5006. Substitute parts can look different from the original.
$43.96 |
12% OFF Phone Price : $49.96
In Stock
Screw-10-32 WB1X1253
Screw-10-32

Part #WB1X1253

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces WB1X1253. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Wall Oven Cooling Fan Limit Switch WB24K5033
Wall oven cooling fan limit switch

Part #WB24K5033

$23.29 |
20% OFF Phone Price : $29.29
In Stock
Gasket WB32K5025
#132

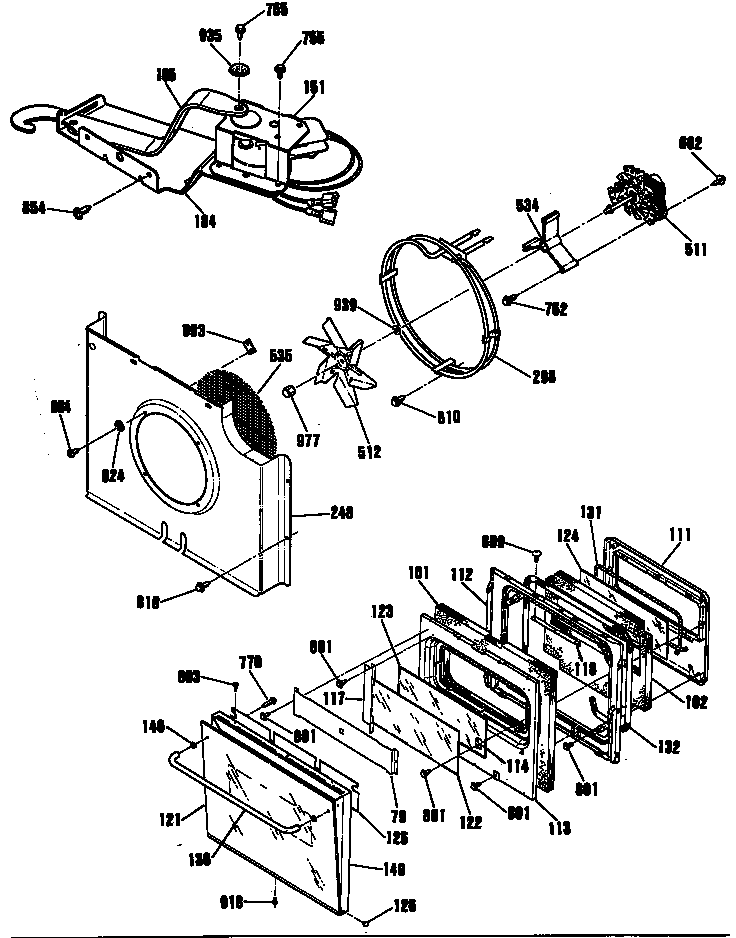

Lock/fan/door diagram

Gasket

Part #WB32K5025

Replaced by #WB32K5038

?
Manufacturer substitution
This part replaces WB32K5025. Substitute parts can look different from the original.
$77.17 |
7% OFF Phone Price : $83.17
In Stock

Most common symptoms to help you fix your wall oven

Choose a symptom to see related wall oven repairs.

View all

Why won't my wall oven door unlock?

Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure…

Read more

Why won't my wall oven broil?

Main causes: broken broil element, faulty broil burner igniter, control system failure…

Read more

Why won't my wall oven bake?

Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure…

Read more

Why isn't my wall oven at the temperature I set?

Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element…

Read more

Why doesn't my wall oven work?

Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat…

Read more

Why won't my wall oven heat?

Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, con…

Read more

Most common repair guides to help fix your wall oven

These step-by-step repair guides will help you safely fix what’s broken on your wall oven.

View all
How to replace a wall oven door outer glass panel

How to replace a wall oven door outer glass panel

Learn how to replace a damaged outer window panel on your wall oven door with these step-by-step instructions. …

Read more
Repair difficulty
Time required
 45 minutes or less
How to replace a wall oven control thermostat

How to replace a wall oven control thermostat

Get your oven temperature under your control by replacing a faulty oven control thermostat.…

Read more
Repair difficulty
Time required
 60 minutes or less
How to replace a wall oven thermal fuse

How to replace a wall oven thermal fuse

The thermal fuse trips to prevent the over from excessively overheating. The oven won't heat again until you replace the…

Read more
Repair difficulty
Time required
 60 minutes or less

Effective articles & videos to help repair your wall oven

Use the advice and tips in these articles and videos to get the most out of your wall oven.

View all
