Frigidaire
Wall Oven/Microwave Combo

Model # FGMC2765PFK Official Frigidaire wall oven/microwave combo

Here are the diagrams and repair parts for Official Frigidaire FGMC2765PFK wall oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

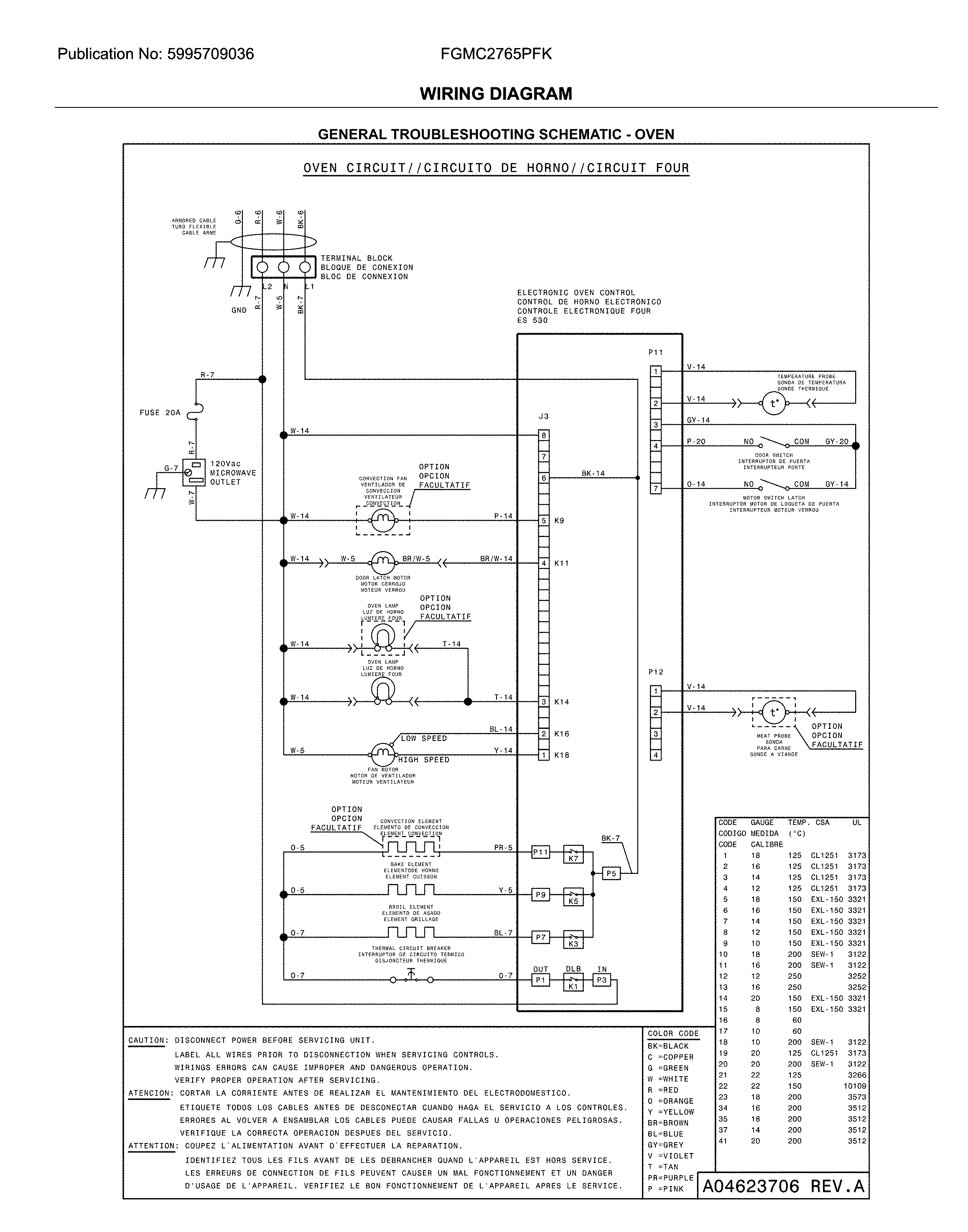

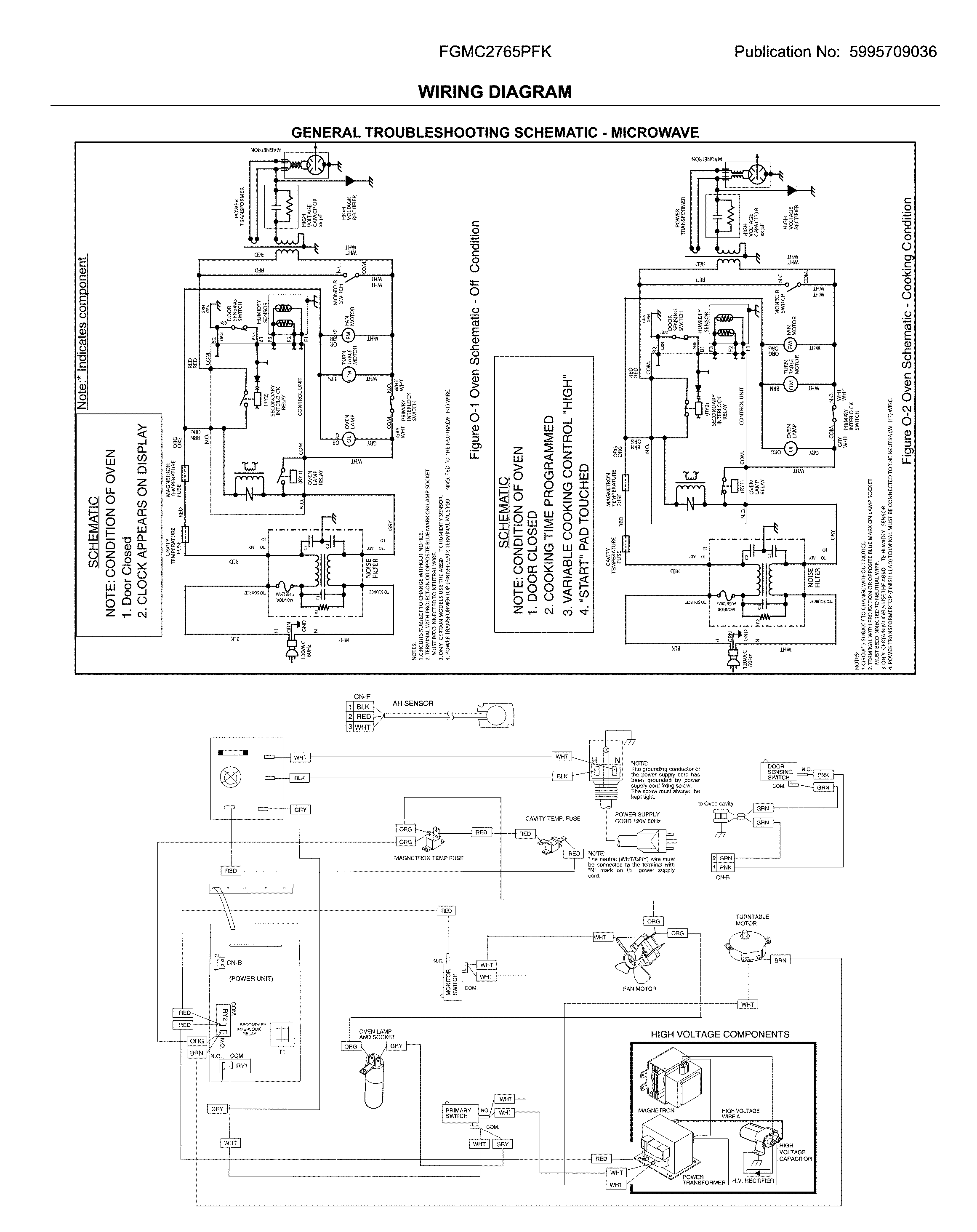

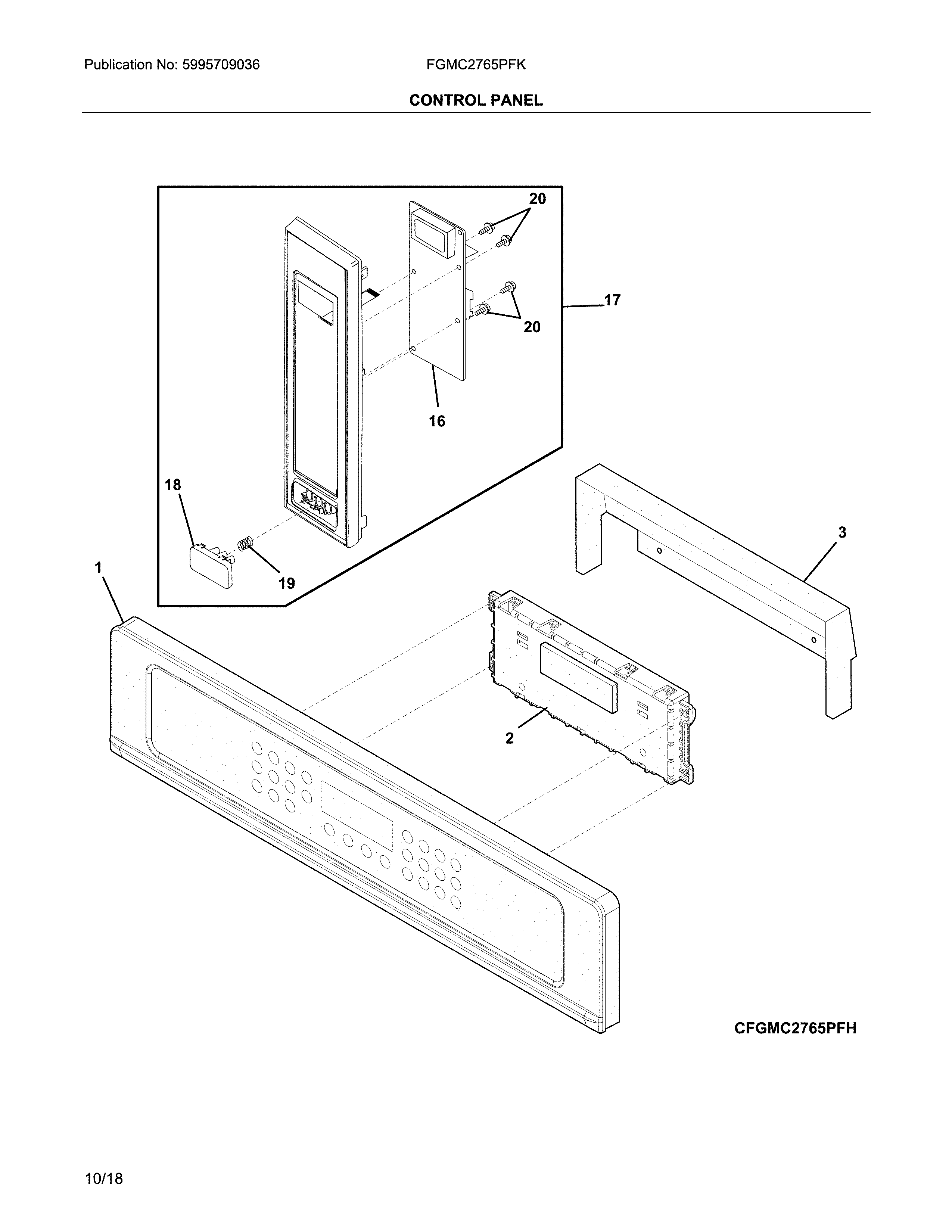

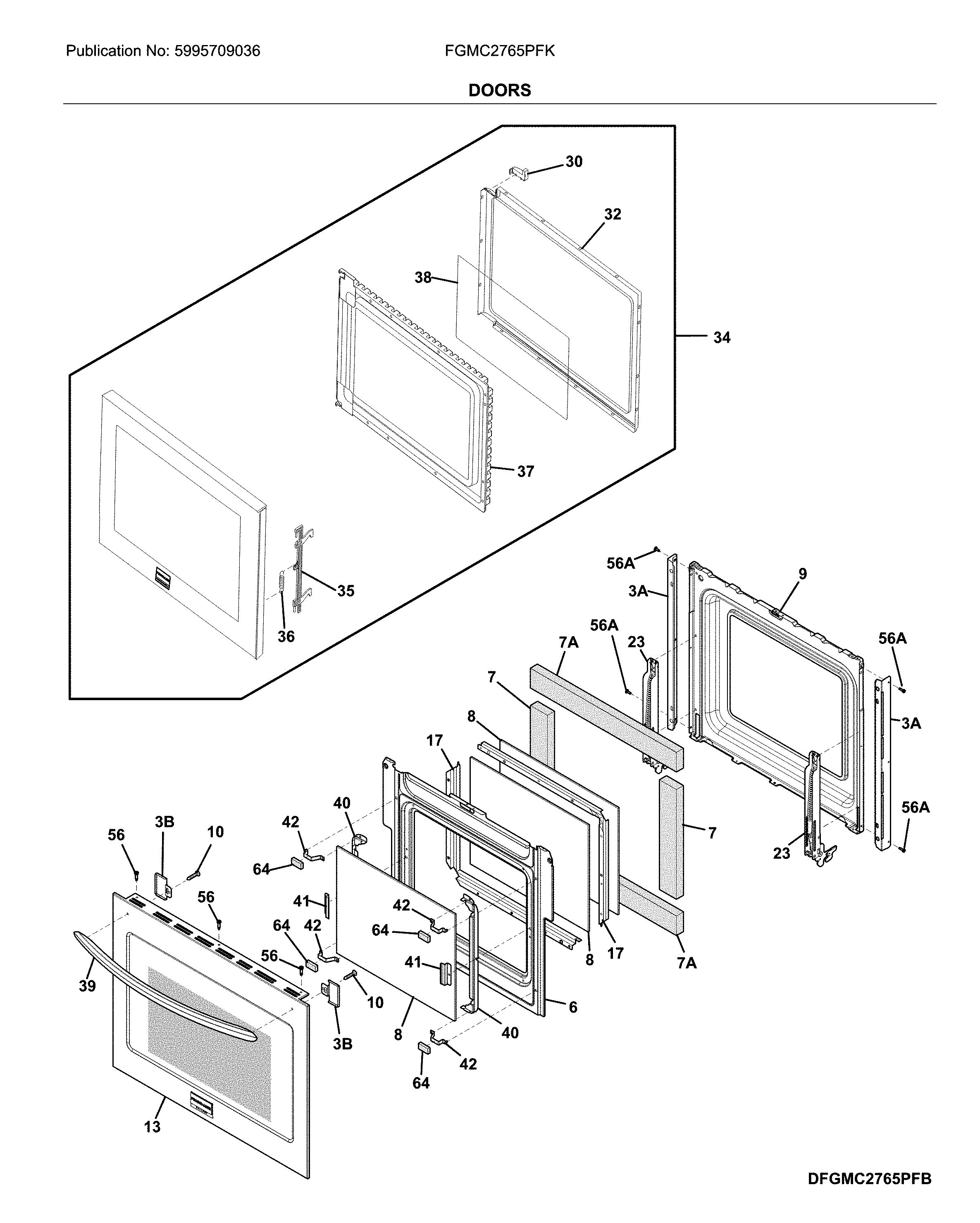

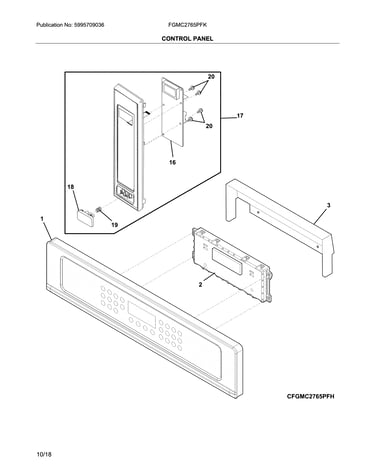

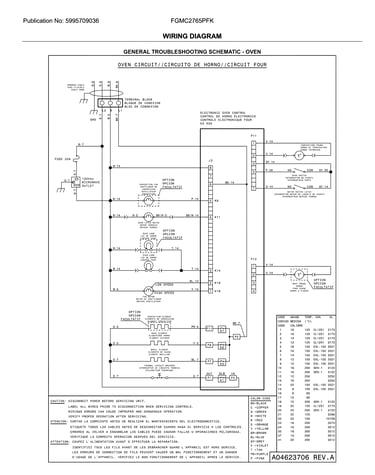

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 164 parts  |
Kenmore Pro Range High-limit Thermostat (replaces 318578501) 318578506
#119

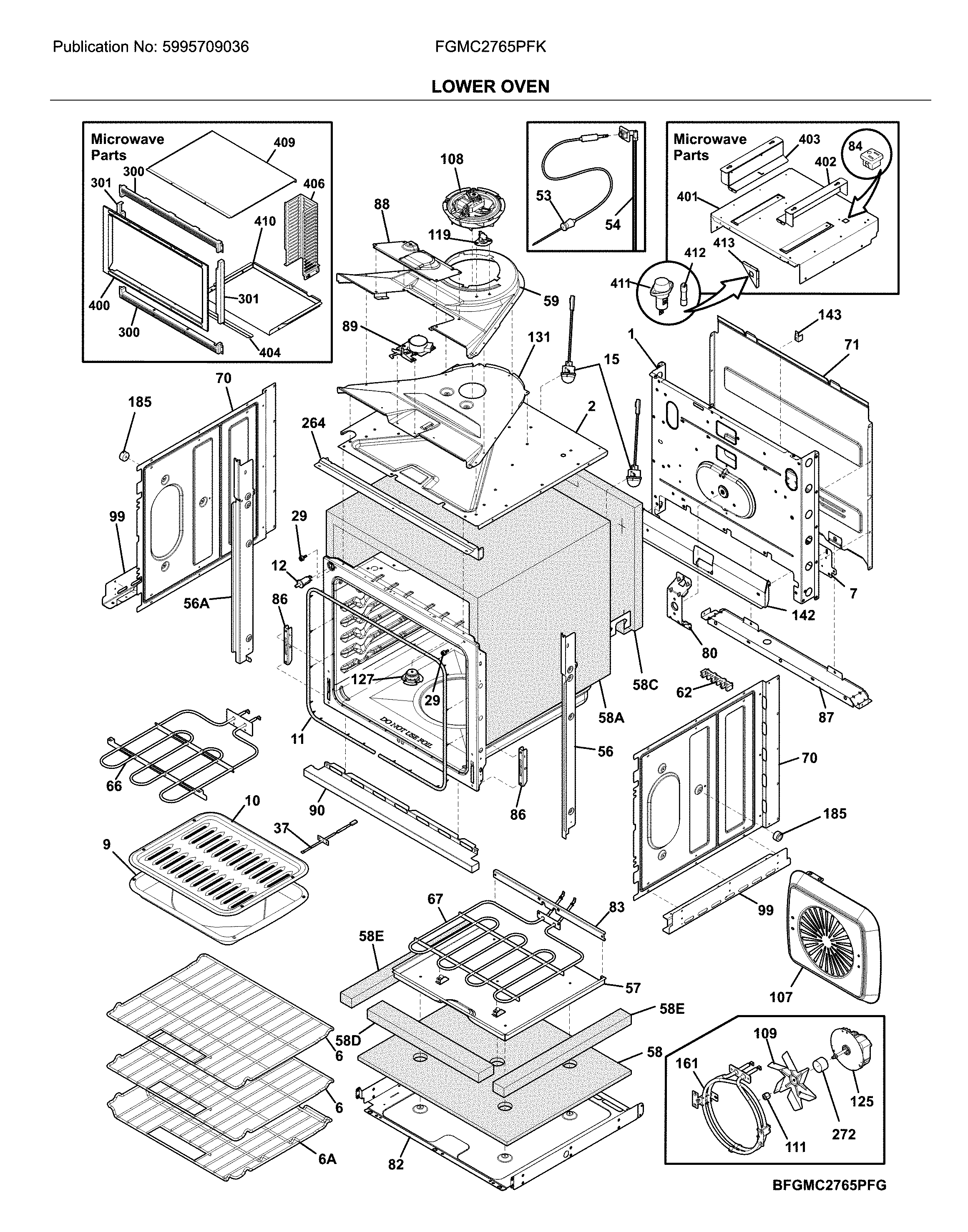

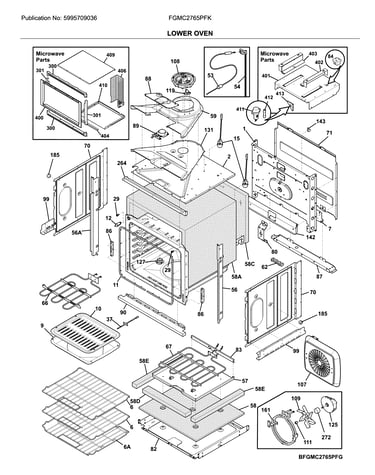

Lower oven diagram

Kenmore pro range high-limit thermostat (replaces 318578501)

Part #318578506

BEST SELLER
$37.66 |
14% OFF Phone Price : $43.66
In Stock
Microwave Door Interlock Switch (replaces 5304440026) 5304493153
#6

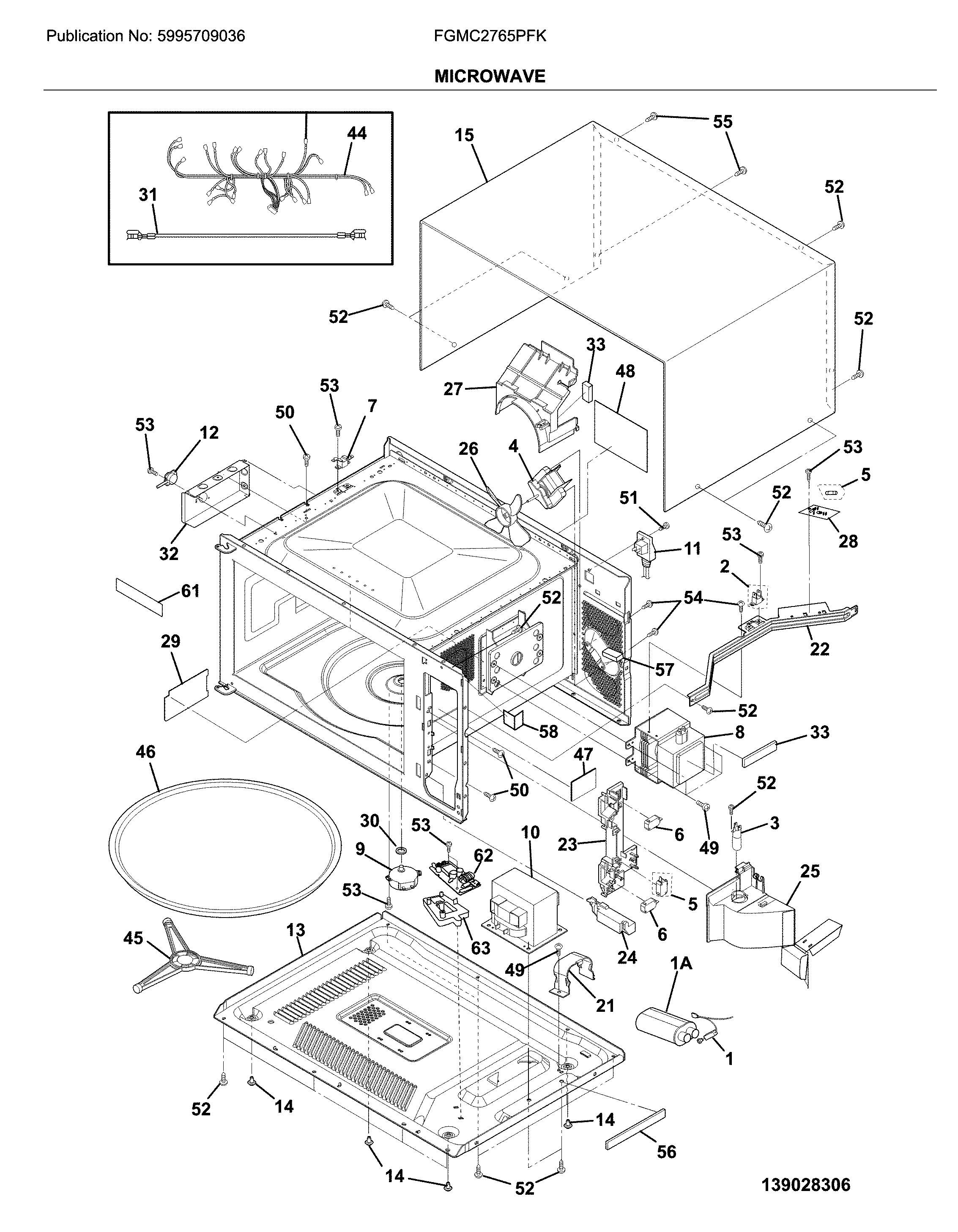

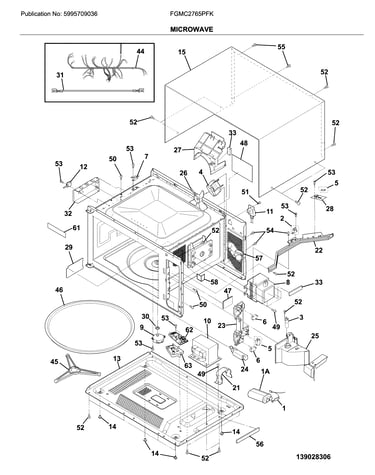

Microwave diagram

Microwave door interlock switch (replaces 5304440026)

Part #5304493153

BEST SELLER
$28.60 |
17% OFF Phone Price : $34.60
In Stock
Terminal Block 316056000
#62

Lower oven diagram

Terminal block

Part #316056000

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 316056000. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Cooking Appliance Oven Temperature Sensor 5304504897
#37

Lower oven diagram

Cooking appliance oven temperature sensor

Part #5304504897

BEST SELLER
$32.64 |
16% OFF Phone Price : $38.64
In Stock
Wall Oven Microwave Magnetron 5304472253
#8

Microwave diagram

Wall oven microwave magnetron

Part #5304472253

Replaced by #5304521745

?
Manufacturer substitution
This part replaces 5304472253. Substitute parts can look different from the original.
BEST SELLER
$140.66 |
10% OFF Was : $156.29
In Stock
Holder 318576200
#411

Lower oven diagram

Holder

Part #318576200

Replaced by #318647300

?
Manufacturer substitution
This part replaces 318576200. Substitute parts can look different from the original.
BEST SELLER
$108.36 |
10% OFF Phone Price : $120.36
In Stock
Fuse 318576100
#412

Lower oven diagram

Fuse

Part #318576100

Replaced by #318647300

?
Manufacturer substitution
This part replaces 318576100. Substitute parts can look different from the original.
BEST SELLER
$108.36 |
10% OFF Phone Price : $120.36
In Stock
Microwave Latch Body 5304503439
#23

Microwave diagram

Microwave latch body

Part #5304503439

BEST SELLER
$48.11 |
11% OFF Phone Price : $54.11
In Stock
Lever 5304464899
#24

Microwave diagram

Lever

Part #5304464899

Replaced by #5304485407

?
Manufacturer substitution
This part replaces 5304464899. Substitute parts can look different from the original.
BEST SELLER
$51.29 |
10% OFF Phone Price : $57.29
In Stock
Microwave High-voltage Capacitor 5304487566
#1A

Microwave diagram

Microwave high-voltage capacitor

Part #5304487566

BEST SELLER
$102.75 |
10% OFF Phone Price : $114.75
In Stock
