Model # GLEF369DCH Official Frigidaire electric range
Here are the diagrams and repair parts for Official Frigidaire GLEF369DCH electric range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forGLEF369DCH Ranges
- #54A

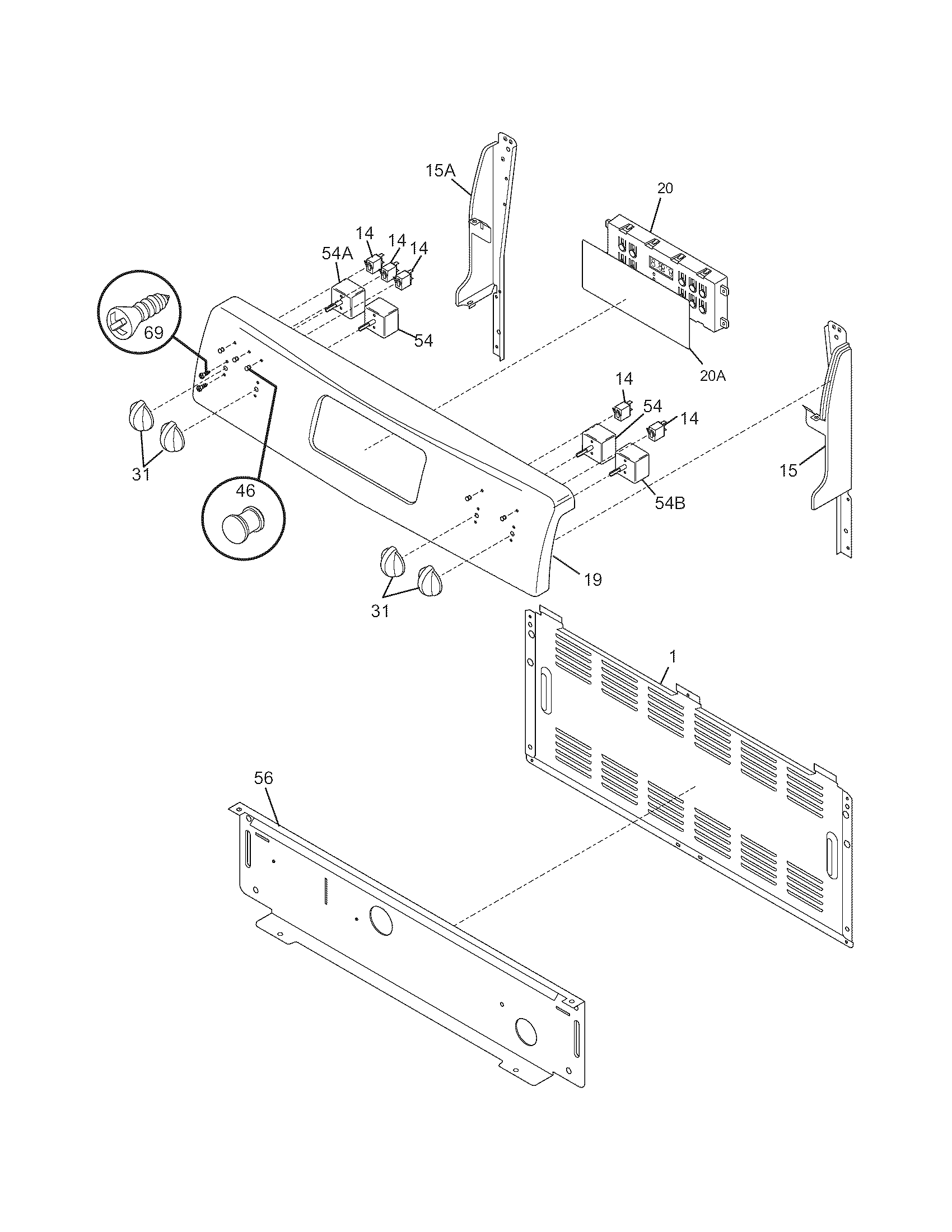

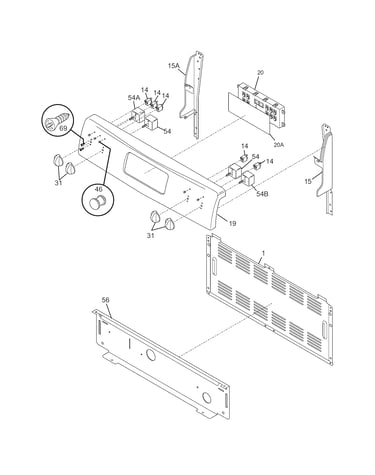

Backguard diagram
Range surface element control switchPart #316021501
Replaced by #316436001
?Manufacturer substitutionThis part replaces 316021501. Substitute parts can look different from the original.$35.16 |15% OFF Phone Price : $41.16In Stock - #54
Backguard diagram
Oven switchPart #316021500
Replaced by #316436000
?Manufacturer substitutionThis part replaces 316021500. Substitute parts can look different from the original.$54.14 |10% OFF Phone Price : $60.14In Stock - #54B
Backguard diagram
Cooktop surface element control switchPart #316238200
Replaced by #316238201
?Manufacturer substitutionThis part replaces 316238200. Substitute parts can look different from the original.$95.08 |11% OFF Phone Price : $107.08In Stock - #8

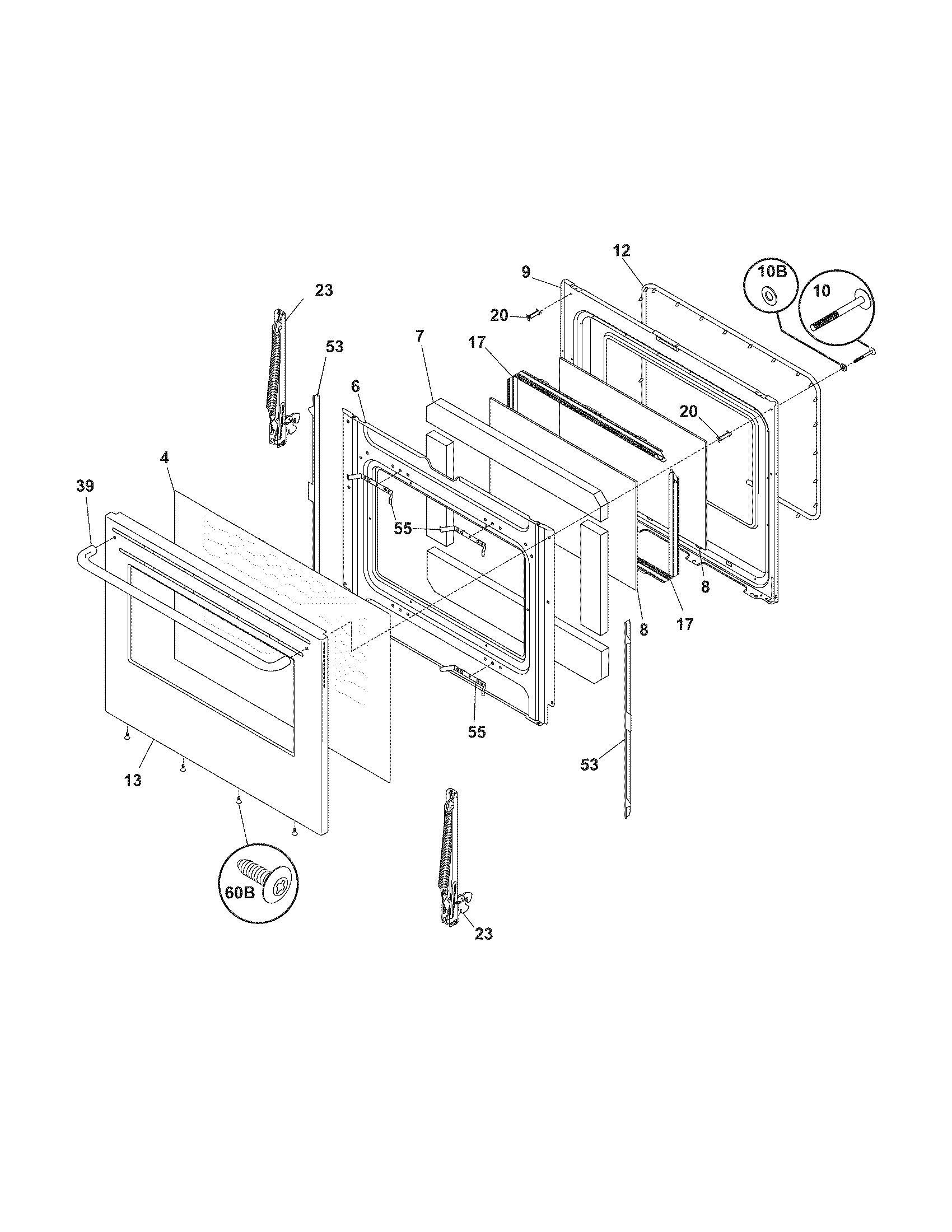

Door diagram
Range oven door inner glassPart #316117500
Replaced by #5304503232
?Manufacturer substitutionThis part replaces 316117500. Substitute parts can look different from the original.$72.95 |8% OFF Phone Price : $78.95In Stock - #15A

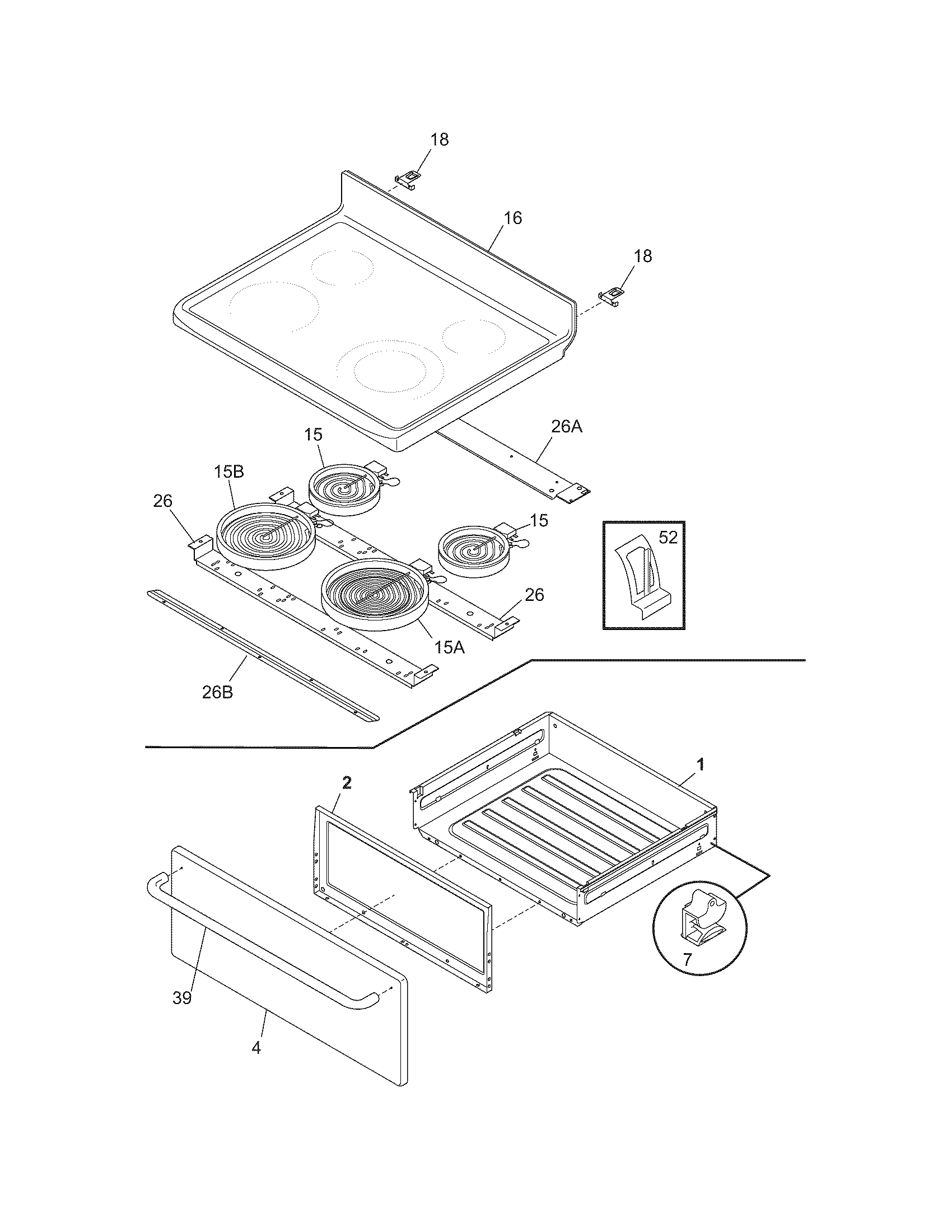

Top/drawer diagram
Range dual radiant surface elementPart #316418400
Replaced by #316555800
?Manufacturer substitutionThis part replaces 316418400. Substitute parts can look different from the original.$109.94 |10% OFF Phone Price : $121.94In Stock - #15B
Top/drawer diagram
Range radiant surface element, 9-inPart #316224200
Replaced by #316135401
?Manufacturer substitutionThis part replaces 316224200. Substitute parts can look different from the original.$103.83 |10% OFF Phone Price : $115.83In Stock - #14
Backguard diagram
Range indicator lightPart #316022500
$40.71 |13% OFF Phone Price : $46.71In Stock - #89

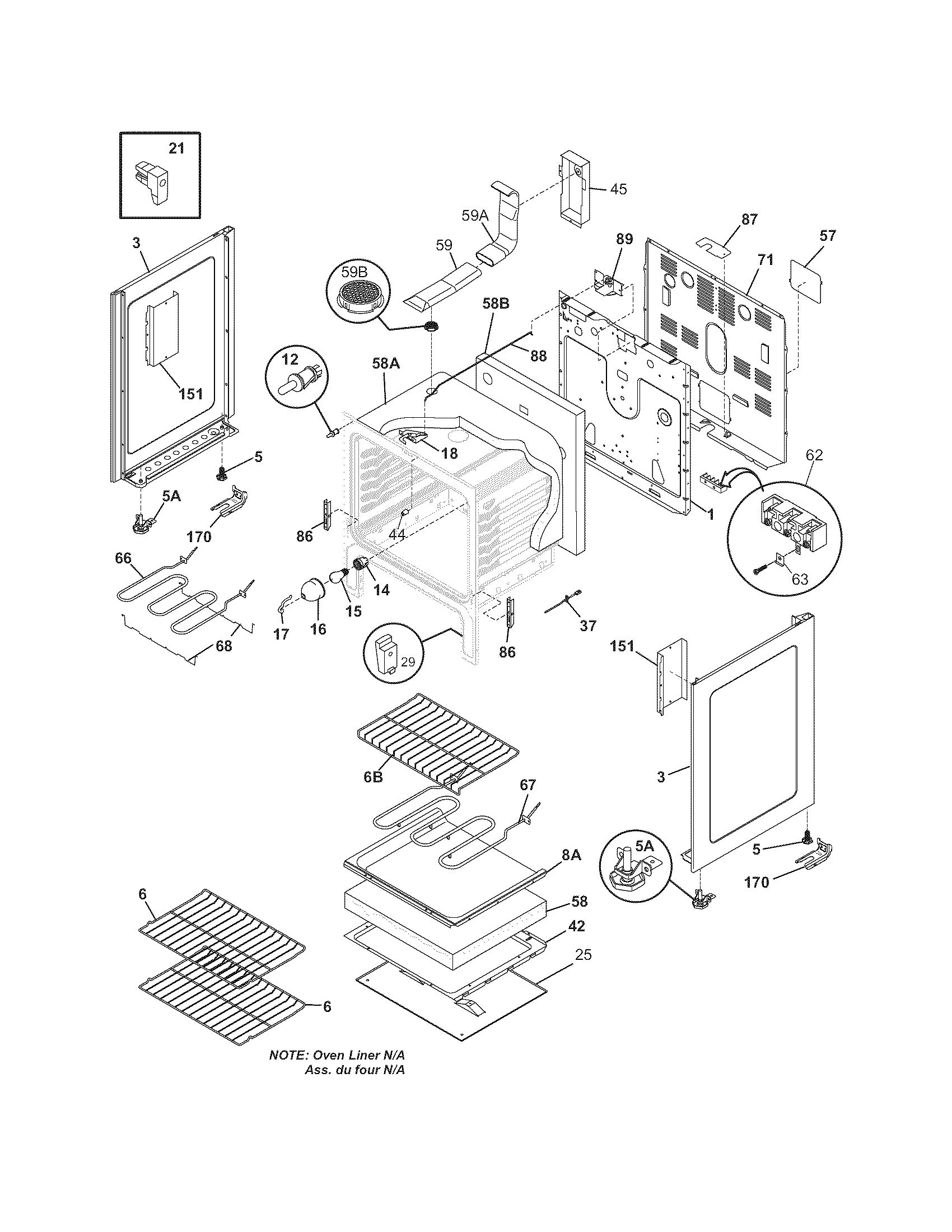

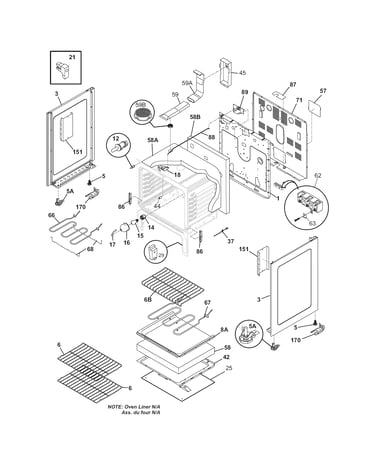

Body diagram
MotorPart #316415400
Replaced by #5304528973
?Manufacturer substitutionThis part replaces 316415400. Substitute parts can look different from the original.$36.94 |14% OFF Phone Price : $42.94In Stock - #12
Door diagram
Universal/multiflex (frigidaire) range oven door sealPart #316405000
$97.54 |11% OFF Phone Price : $109.54In Stock - #46
Backguard diagram
LensPart #316040201
Replaced by #318228310
?Manufacturer substitutionThis part replaces 316040201. Substitute parts can look different from the original.$10.20 |16% OFF Phone Price : $12.20In Stock
