Model # SHU9916UC/11 (FD 8002-8003) Official Bosch dishwasher

Here are the diagrams and repair parts for Official Bosch SHU9916UC-11-FD-8002-8003 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 129 parts  |
Motor 167082
#13

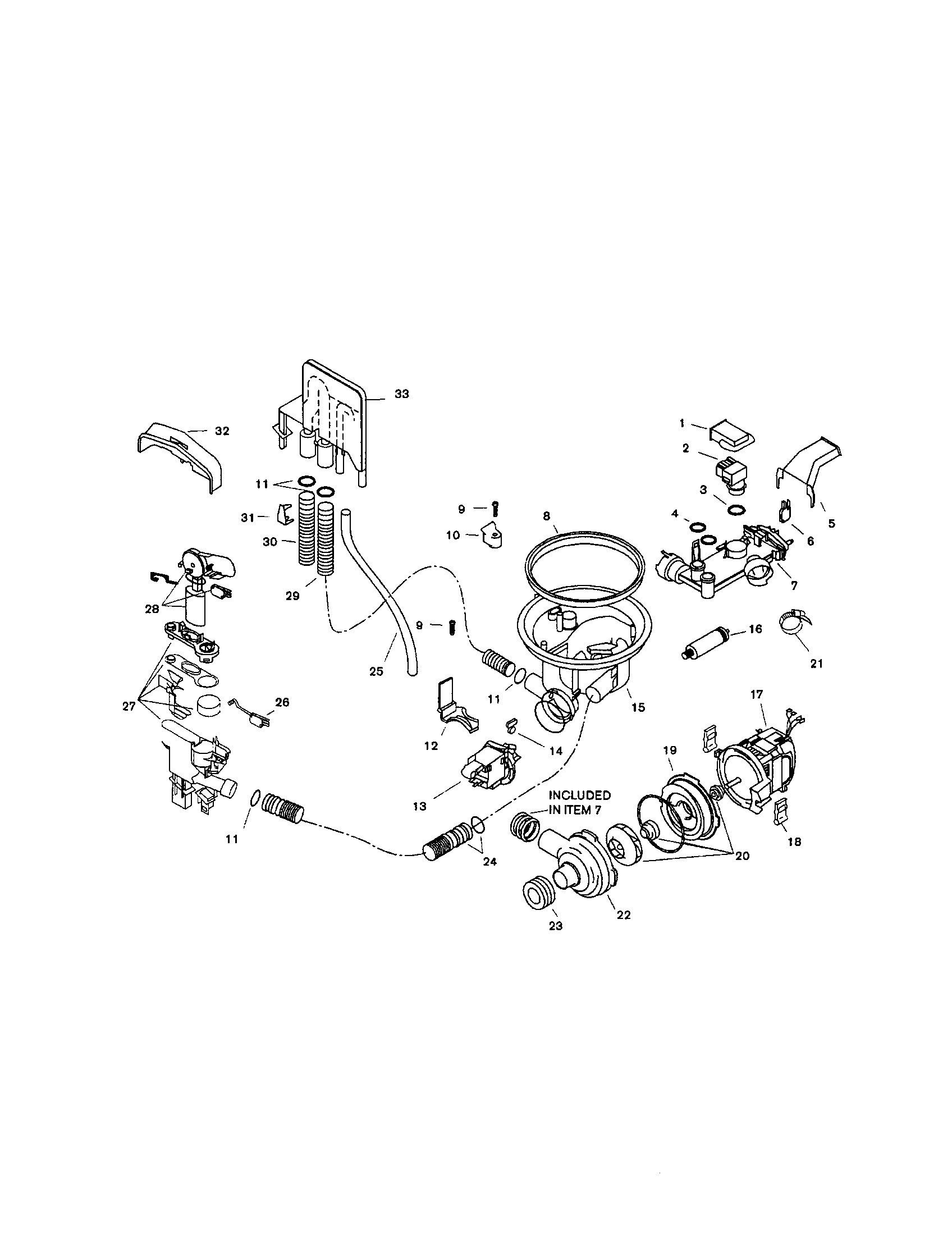

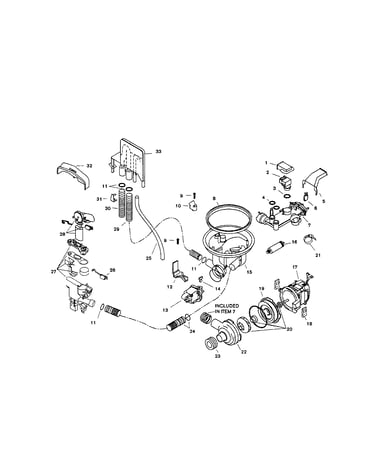

Component assemblies diagram

Motor

Part #167082

The manufacturer no longer makes this part, and there's no substitute part

Hose Clamp 172272
#21

Component assemblies diagram

Hose clamp

Part #172272

Replaced by #00172272

?
Manufacturer substitution
This part replaces 172272. Substitute parts can look different from the original.
BEST SELLER
$28.11 |
18% OFF Phone Price : $34.11
In Stock
Valve 189533
#19

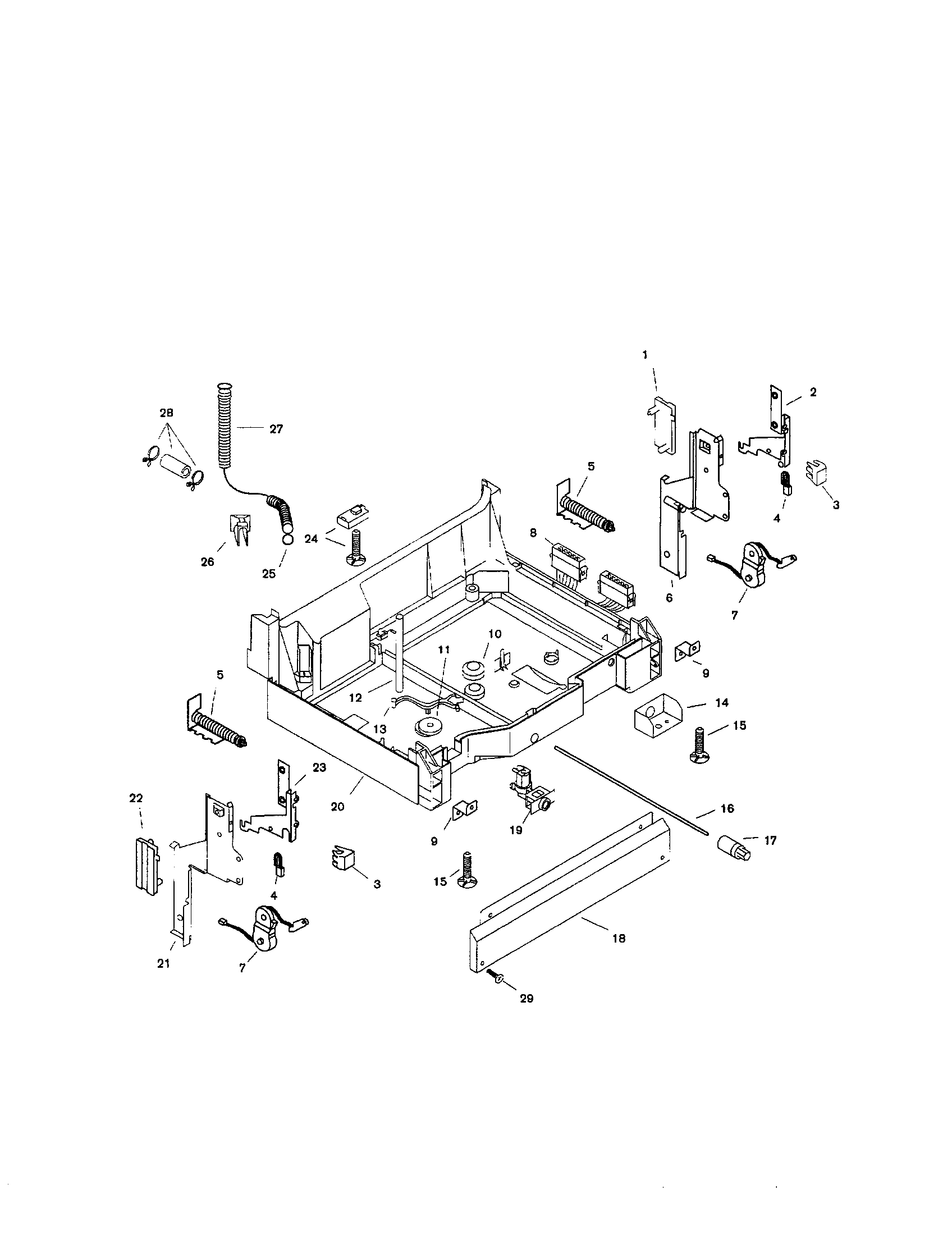

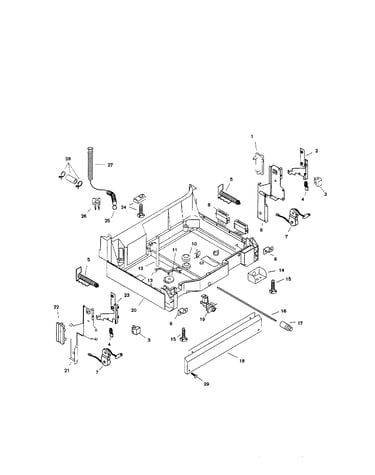

Base diagram

Valve

Part #189533

Replaced by #00425458

?
Manufacturer substitution
This part replaces 189533. Substitute parts can look different from the original.
BEST SELLER
$61.28 |
9% OFF Phone Price : $67.28
Back Order
Heater 480316
#7

Component assemblies diagram

Heater

Part #480316

Replaced by #00480317

?
Manufacturer substitution
This part replaces 480316. Substitute parts can look different from the original.
BEST SELLER
$260.67 |
$12.00 OFF Phone Price : $272.67
In Stock
Dishwasher Wash Pump Gasket 171598
#23

Component assemblies diagram

Dishwasher wash pump gasket

Part #171598

Replaced by #00171598

?
Manufacturer substitution
This part replaces 171598. Substitute parts can look different from the original.
BEST SELLER
$28.09 |
18% OFF Phone Price : $34.09
In Stock
Lower Rack 213967
#7

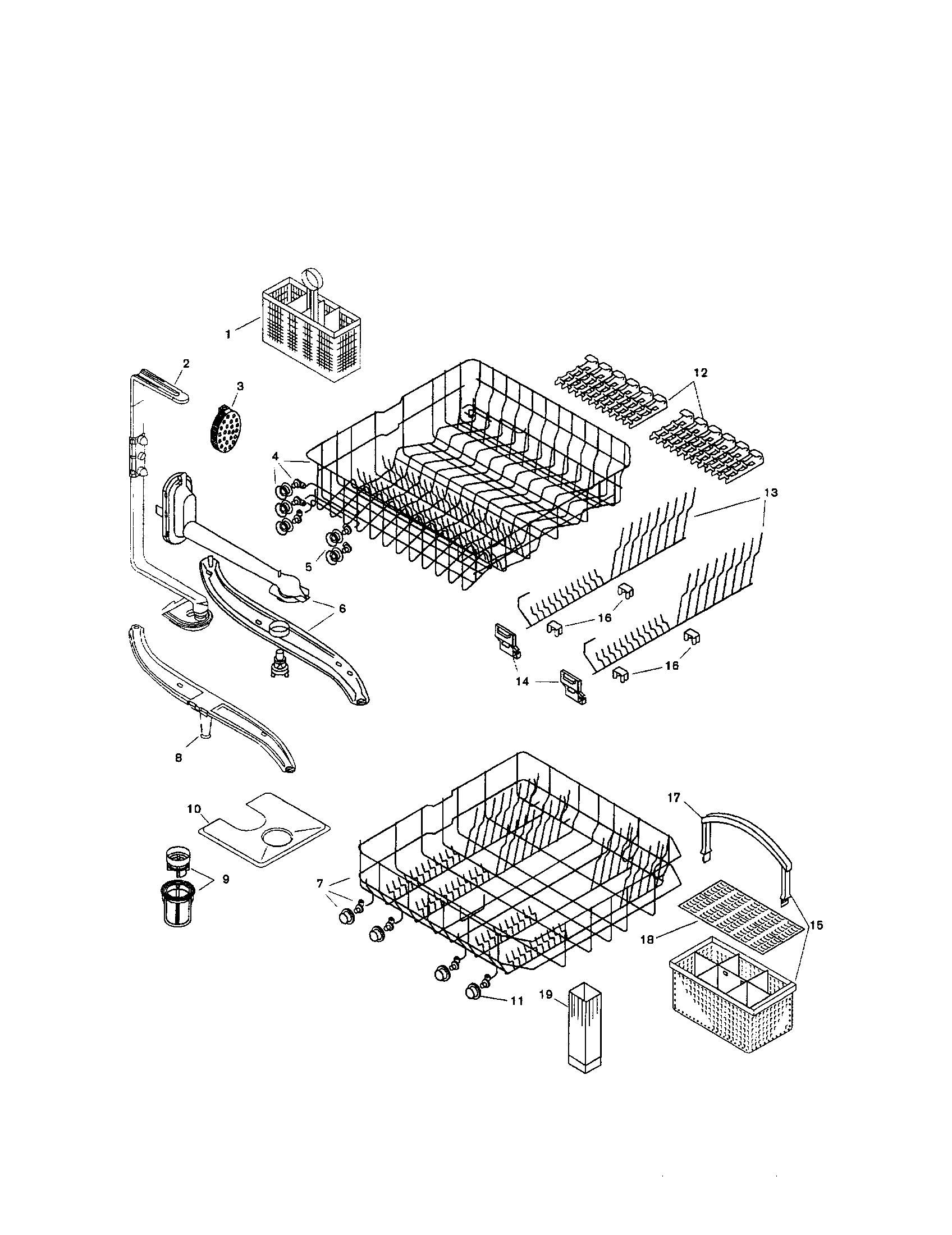

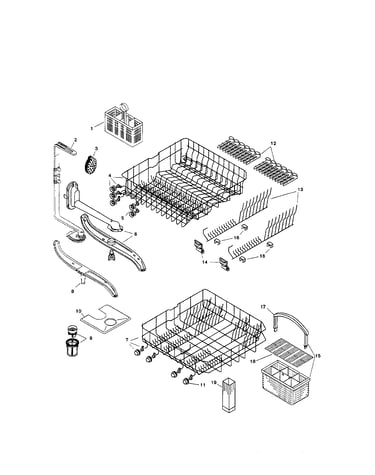

Racks diagram

Lower rack

Part #213967

Replaced by #00249276

?
Manufacturer substitution
This part replaces 213967. Substitute parts can look different from the original.
$278.54 |
$12.00 OFF Phone Price : $290.54
Back Order
Dishwasher Dishrack Wheel, Upper 165313
#5

Racks diagram

Dishwasher dishrack wheel, upper

Part #165313

Replaced by #00611666

?
Manufacturer substitution
This part replaces 165313. Substitute parts can look different from the original.
$9.09 |
10% OFF Phone Price : $10.09
In Stock
Dishwasher Lower Rack Wheels 165314
#11

Racks diagram

Dishwasher lower rack wheels

Part #165314

Replaced by #00165314

?
Manufacturer substitution
This part replaces 165314. Substitute parts can look different from the original.
$11.49 |
15% OFF Phone Price : $13.49
In Stock
Dishwasher Spray Arm Assembly, Upper 359976
#6

Racks diagram

Dishwasher spray arm assembly, upper

Part #359976

Replaced by #00359976

?
Manufacturer substitution
This part replaces 359976. Substitute parts can look different from the original.
$58.41 |
9% OFF Phone Price : $64.41
In Stock
Drain Hose 263099
#29

Component assemblies diagram

Drain hose

Part #263099

Replaced by #00263099

?
Manufacturer substitution
This part replaces 263099. Substitute parts can look different from the original.
$17.16 |
10% OFF Phone Price : $19.16
In Stock
