Model # 351228050 Official Craftsman left-tilting arbor saw

Here are the diagrams and repair parts for Official Craftsman 351228050 left-tilting arbor saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

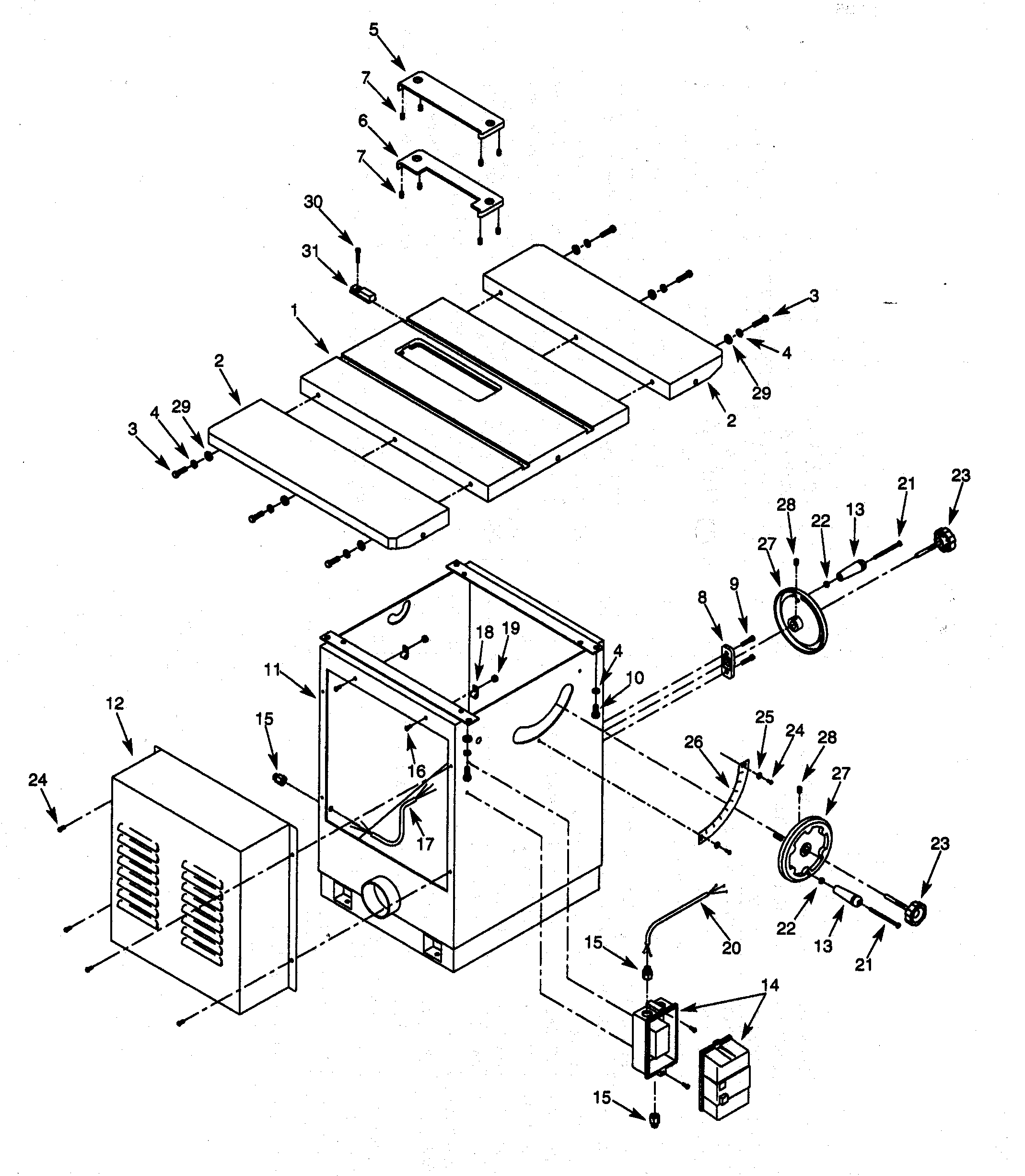

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 163 parts  |
Bolt 01002.00
#18

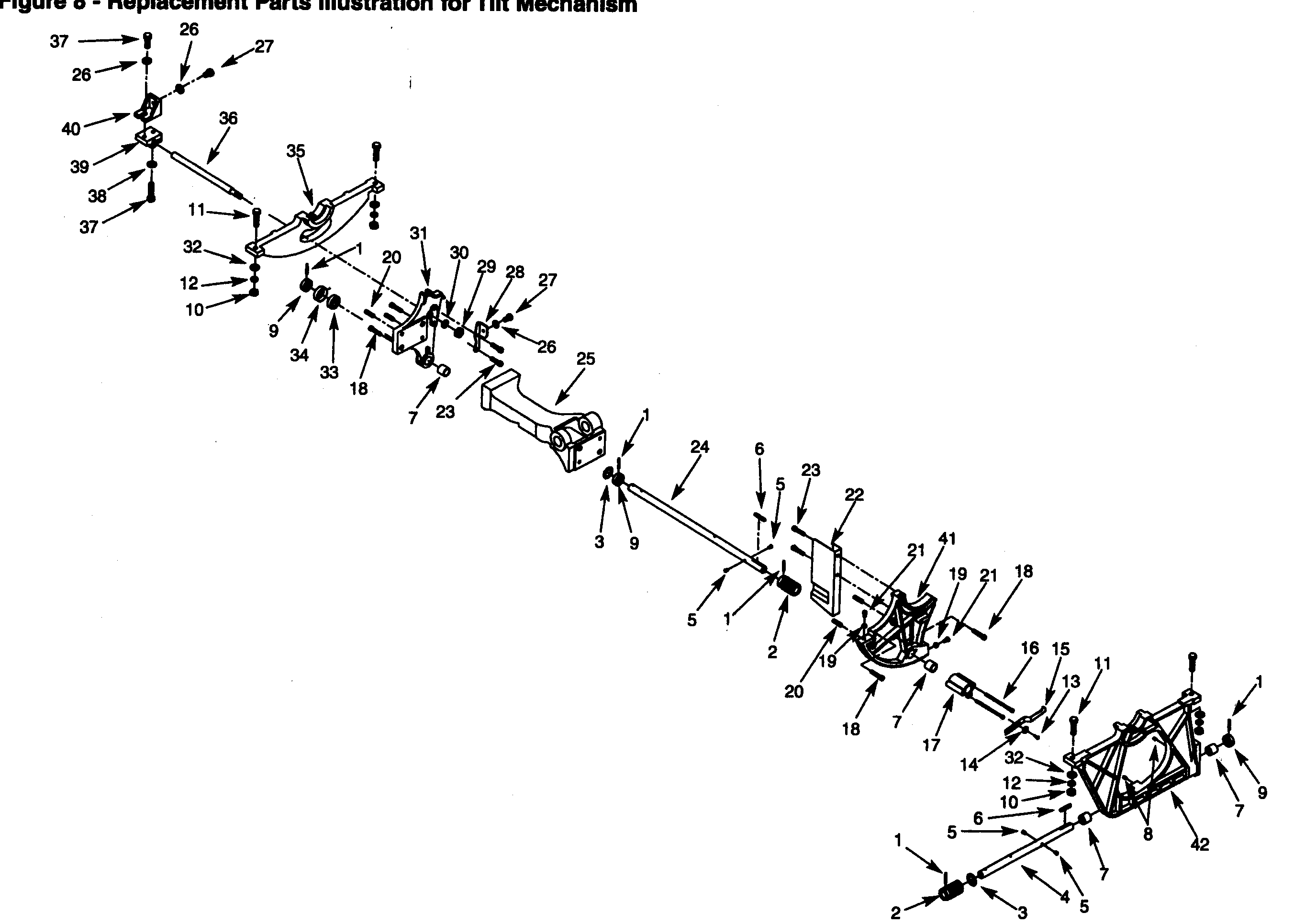

Tilt mechanism diagram

Bolt

Part #01002.00

The manufacturer no longer makes this part, and there's no substitute part

Spring Pin 05993.00
#11

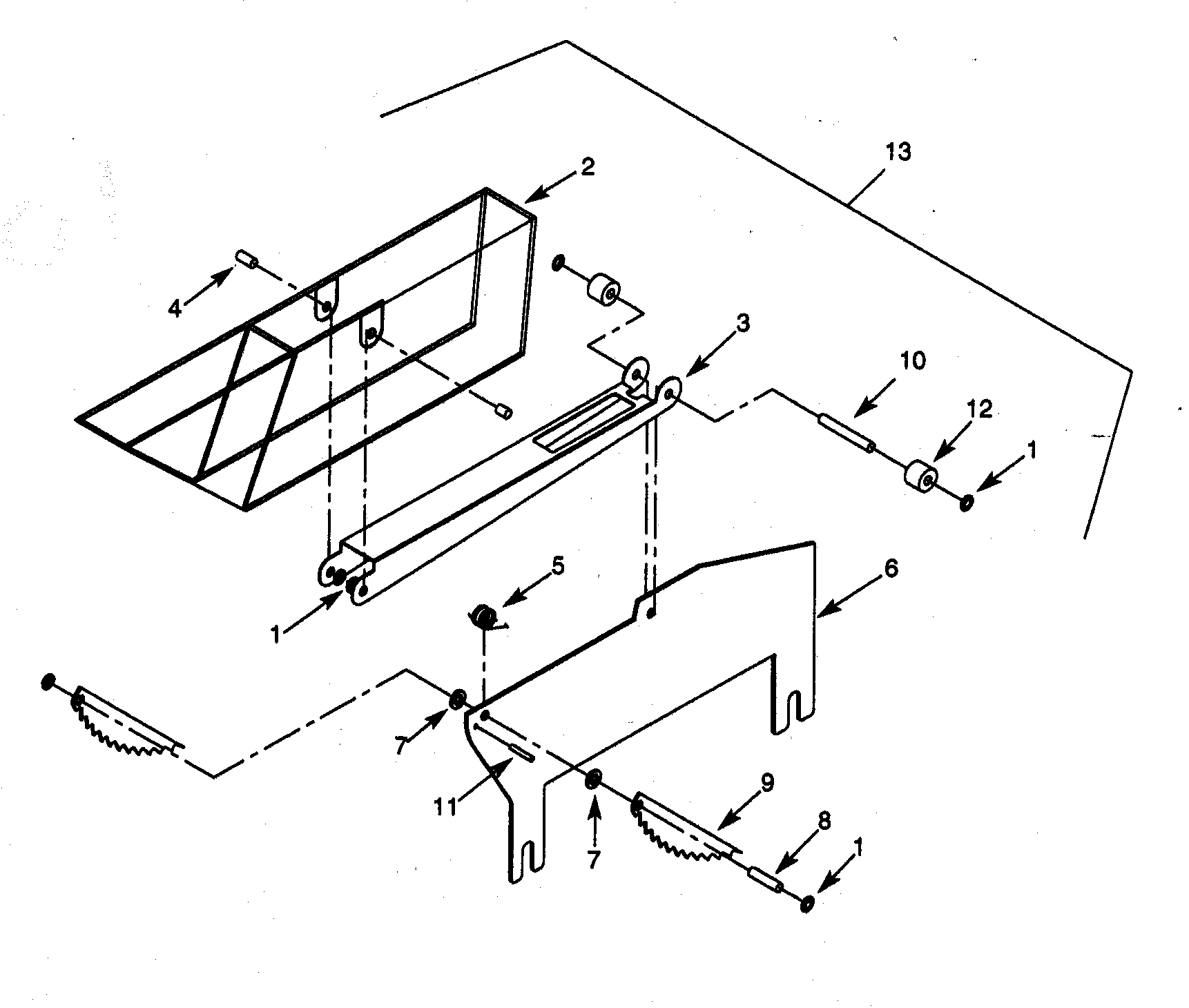

Blade guard diagram

Spring pin

Part #05993.00

The manufacturer no longer makes this part, and there's no substitute part

Nut 5pk STD541437
#17

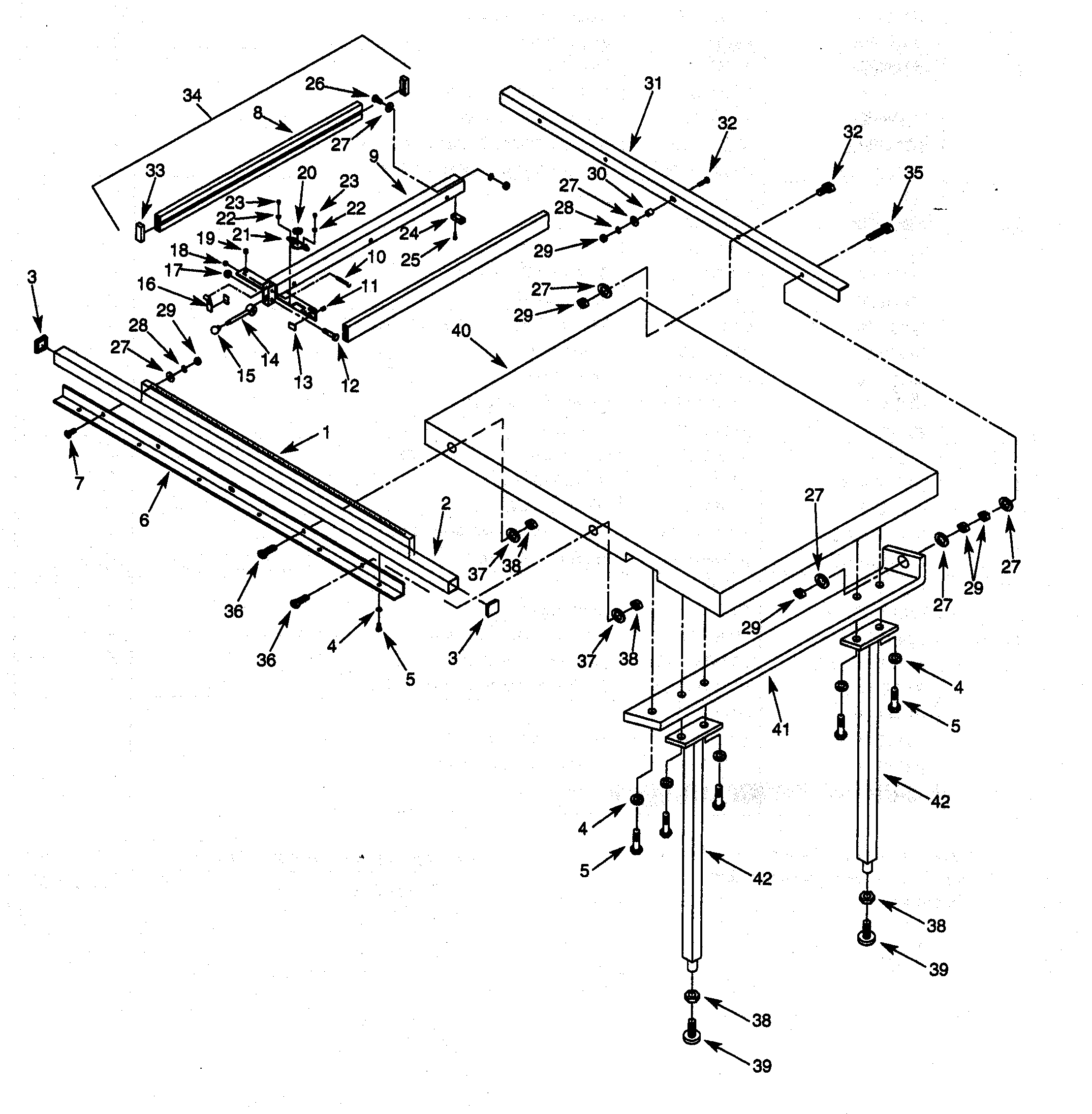

Rip fence diagram

Nut 5pk

Part #STD541437

The manufacturer no longer makes this part, and there's no substitute part

Rip Fence 15099.00
#34

Rip fence diagram

Rip fence

Part #15099.00

The manufacturer no longer makes this part, and there's no substitute part

Washer STD851010
Washer

Part #STD851010

The manufacturer no longer makes this part, and there's no substitute part

Table Extension 23122.00
#40

Rip fence diagram

Table extension

Part #23122.00

The manufacturer no longer makes this part, and there's no substitute part

Front Trunnion 23085.00
#41

Tilt mechanism diagram

Front trunnion

Part #23085.00

The manufacturer no longer makes this part, and there's no substitute part

Arbor 23065.00
#39

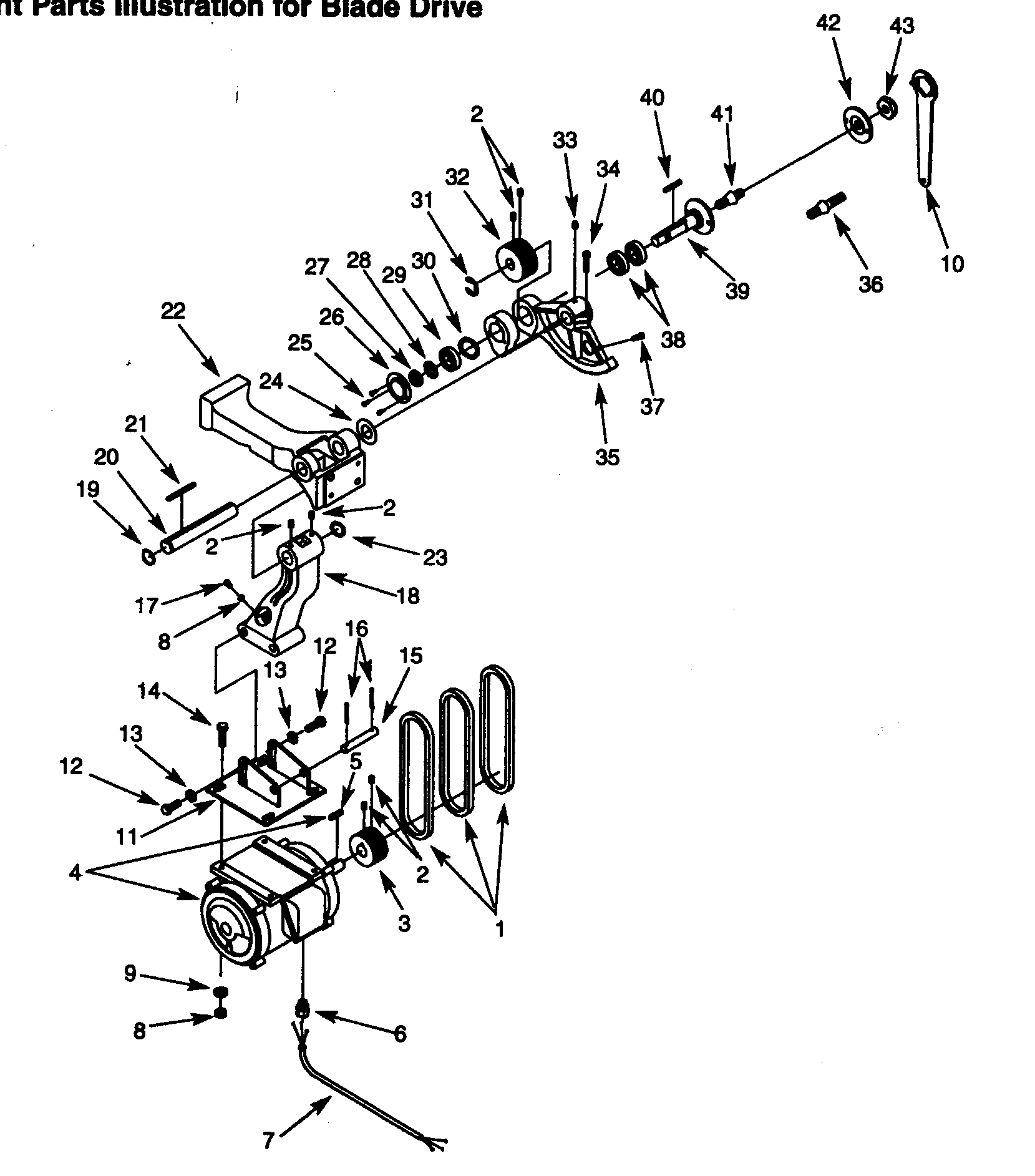

Blade drive diagram

Arbor

Part #23065.00

The manufacturer no longer makes this part, and there's no substitute part

Guide Rail 15941.00
#2

Rip fence diagram

Guide rail

Part #15941.00

The manufacturer no longer makes this part, and there's no substitute part

M Sk Hd 5p STD870825
#34

Blade drive diagram

M sk hd 5p

Part #STD870825

The manufacturer no longer makes this part, and there's no substitute part
