Craftsman
Rear-Tine Tiller

Model # 917290037 Official Craftsman rear-tine tiller

Here are the diagrams and repair parts for Official Craftsman 917290037 rear-tine tiller, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

  View engine

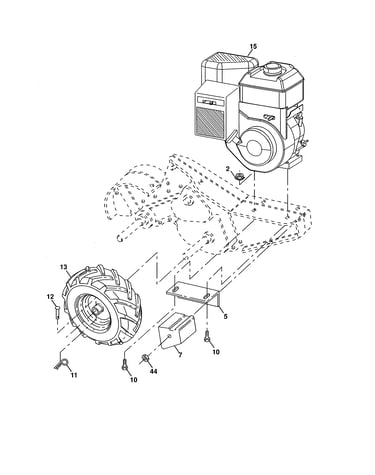

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 318 parts  |
Washer, 13/32 X 1-1/4 X 12 19132012
#70

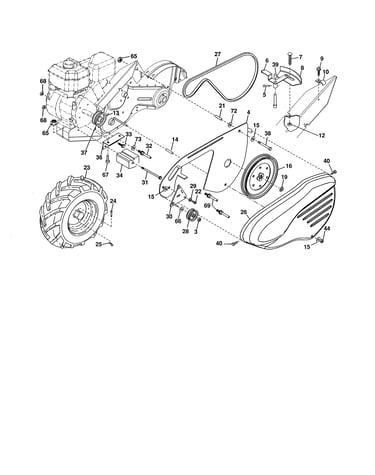

Mainframe, left side diagram

Washer, 13/32 x 1-1/4 x 12

Part #19132012

Replaced by #596134901

?
Manufacturer substitution
This part replaces 19132012. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Rear-tine Tiller Drive Belt 132801
#27

Mainframe, left side diagram

Rear-tine tiller drive belt

Part #132801

Replaced by #591372401

?
Manufacturer substitution
This part replaces 132801. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$19.98 |
9% OFF Phone Price : $21.98
In Stock
Spring Retainer 3146R
#4

Tine assembly diagram

Spring retainer

Part #3146R

Replaced by #532003146

?
Manufacturer substitution
This part replaces 3146R. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Tiller Chain, #25-50 102134X
#29

Transmission diagram

Tiller chain, #25-50

Part #102134X

Replaced by #532102134

?
Manufacturer substitution
This part replaces 102134X. Substitute parts can look different from the original.
BEST SELLER
$28.93 |
17% OFF Phone Price : $34.93
In Stock
Thrust Bearing 1370H
#5

Transmission diagram

Thrust bearing

Part #1370H

Replaced by #532001370

?
Manufacturer substitution
This part replaces 1370H. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Lawn Tractor Hex Bolt, 5/16-18 X 3/4-in (replaces 17000512) 428867
#39

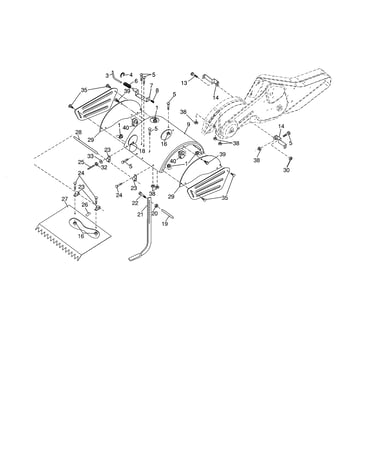

Tine shield diagram

Lawn tractor hex bolt, 5/16-18 x 3/4-in (replaces 17000512)

Part #428867

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Spring 100371K
#11

Transmission diagram

Spring

Part #100371K

Replaced by #532100371

?
Manufacturer substitution
This part replaces 100371K. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Lawn Tractor Screw 416358
#42

Handles diagram

Lawn tractor screw

Part #416358

Replaced by #596321701

?
Manufacturer substitution
This part replaces 416358. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.11
In Stock
Ball 7392M
#10

Transmission diagram

Ball

Part #7392M

Replaced by #532100482

?
Manufacturer substitution
This part replaces 7392M. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Chain 106147X
#50

Transmission diagram

Chain

Part #106147X

Replaced by #532106147

?
Manufacturer substitution
This part replaces 106147X. Substitute parts can look different from the original.
BEST SELLER
$49.98 |
11% OFF Phone Price : $55.98
In Stock
