Model # 13191235 Official Craftsman 20" rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 13191235 20" rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
Washer 52160
#26

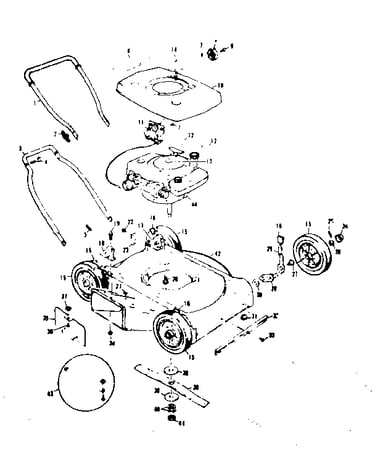

Replacement parts diagram

Washer

Part #52160

Replaced by #596040101

?
Manufacturer substitution
This part replaces 52160. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Bracket Assembly 62886
#18

Replacement parts diagram

Bracket assembly

Part #62886

Replaced by #532192983

?
Manufacturer substitution
This part replaces 62886. Substitute parts can look different from the original.
$37.31
In Stock
Hair Pin Cotter 455563
#5

Replacement parts diagram

Hair pin cotter

Part #455563

The manufacturer no longer makes this part, and there's no substitute part

Wheel Mounting Bracket Assembly 62355
#28

Replacement parts diagram

Wheel mounting bracket assembly

Part #62355

The manufacturer no longer makes this part, and there's no substitute part

Remote Control 62368
#11

Replacement parts diagram

Remote control

Part #62368

The manufacturer no longer makes this part, and there's no substitute part

Bumper Strip 62283
#32

Replacement parts diagram

Bumper strip

Part #62283

The manufacturer no longer makes this part, and there's no substitute part

Wheel And Tire Assembly 58708
#15

Replacement parts diagram

Wheel and tire assembly

Part #58708

The manufacturer no longer makes this part, and there's no substitute part

Housing-inc Ref 43 63084
#42

Replacement parts diagram

Housing-inc ref 43

Part #63084

The manufacturer no longer makes this part, and there's no substitute part

10-24 Hex. Hd. Nut W/lock Washer (standard Hardware Item- May Be Purchased Locally) 271166
#37

Replacement parts diagram

10-24 hex. hd. nut w/lock washer (standard hardware item- may be purchased locally)

Part #271166

The manufacturer no longer makes this part, and there's no substitute part

Screw Self-tapping 65247
#9

Replacement parts diagram

Screw self-tapping

Part #65247

The manufacturer no longer makes this part, and there's no substitute part
