Walk-Behind Mower

Model # 536916610 Official Craftsman 18" hand reel lawn mower

Here are the diagrams and repair parts for Official Craftsman 536916610 18" hand reel lawn mower, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
536916610 18" Hand Reel Lawn Mower
Lock Nut 9424215
#6

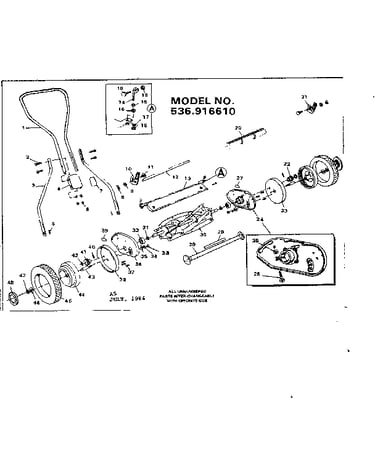

Replacement parts diagram

Lock nut

Part #9424215

Replaced by #703251

?
Manufacturer substitution
This part replaces 9424215. Substitute parts can look different from the original.
$8.07
11% OFF Phone Price : $9.07
In Stock
Axle Washer 642
#46

Replacement parts diagram

Axle washer

Part #642

Replaced by #17X192MA

?
Manufacturer substitution
This part replaces 642. Substitute parts can look different from the original.
$8.49
11% OFF Phone Price : $9.49
In Stock
Carriage Bolt 998010
#11

Replacement parts diagram

Carriage bolt

Part #998010

The manufacturer no longer makes this part, and there's no substitute part

Roller Shaft 36032
#12

Replacement parts diagram

Roller shaft

Part #36032

The manufacturer no longer makes this part, and there's no substitute part

Decal 69557
#28

Replacement parts diagram

Decal

Part #69557

The manufacturer no longer makes this part, and there's no substitute part

Truarc Ring 22989
#42

Replacement parts diagram

Truarc ring

Part #22989

The manufacturer no longer makes this part, and there's no substitute part

Hub Cap 41993
#48

Replacement parts diagram

Hub cap

Part #41993

The manufacturer no longer makes this part, and there's no substitute part

Roller 53319
#20

Replacement parts diagram

Roller

Part #53319

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 120382
#34

Replacement parts diagram

Lock washer

Part #120382

The manufacturer no longer makes this part, and there's no substitute part

Cotter Pin 179252
#5

Replacement parts diagram

Cotter pin

Part #179252

The manufacturer no longer makes this part, and there's no substitute part
