Model # WF520ABW/XAA-06 Official Samsung washer
Here are the diagrams and repair parts for Official Samsung WF520ABW/XAA-06 washer, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic
By Part
SELECT DIAGRAM

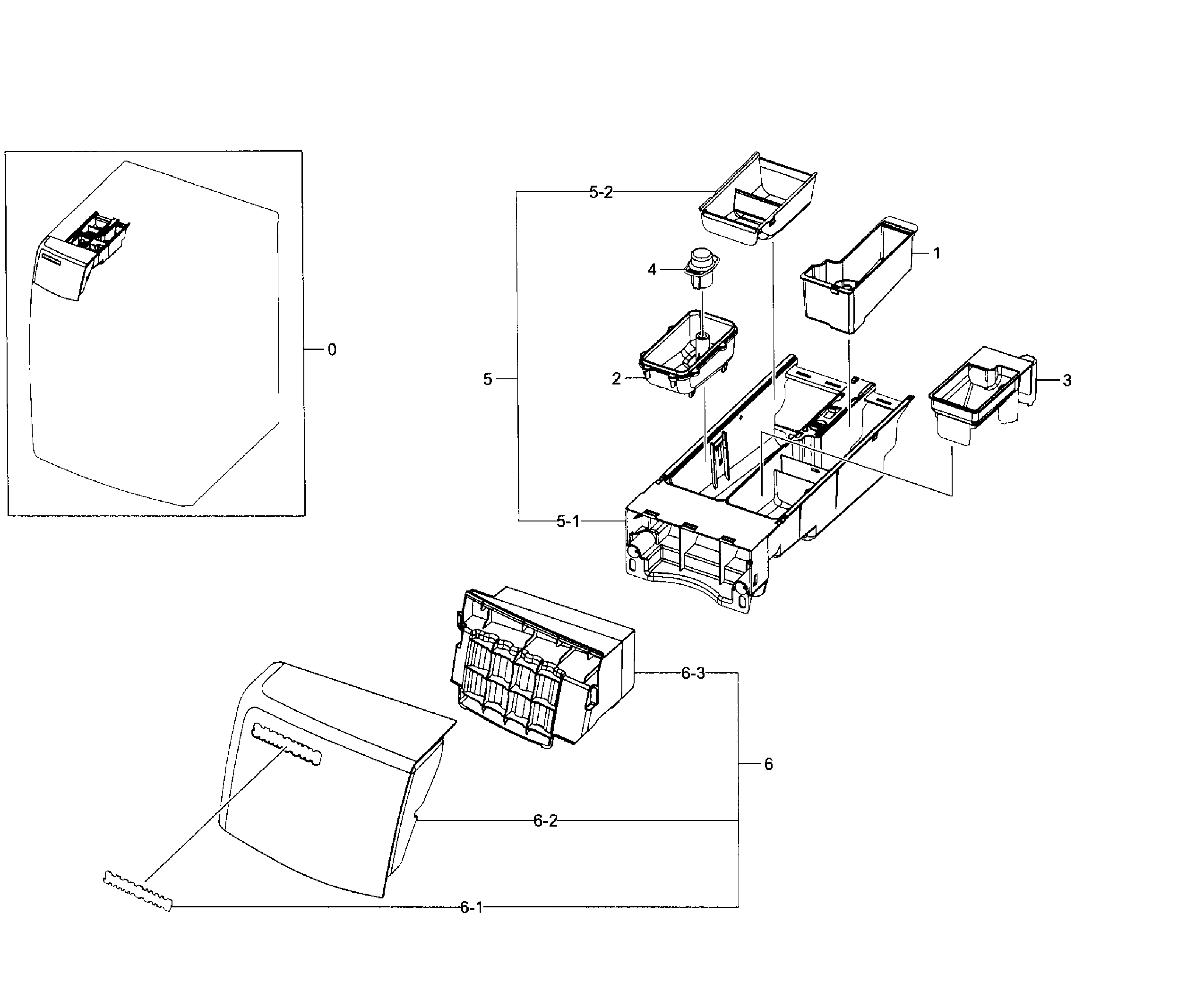

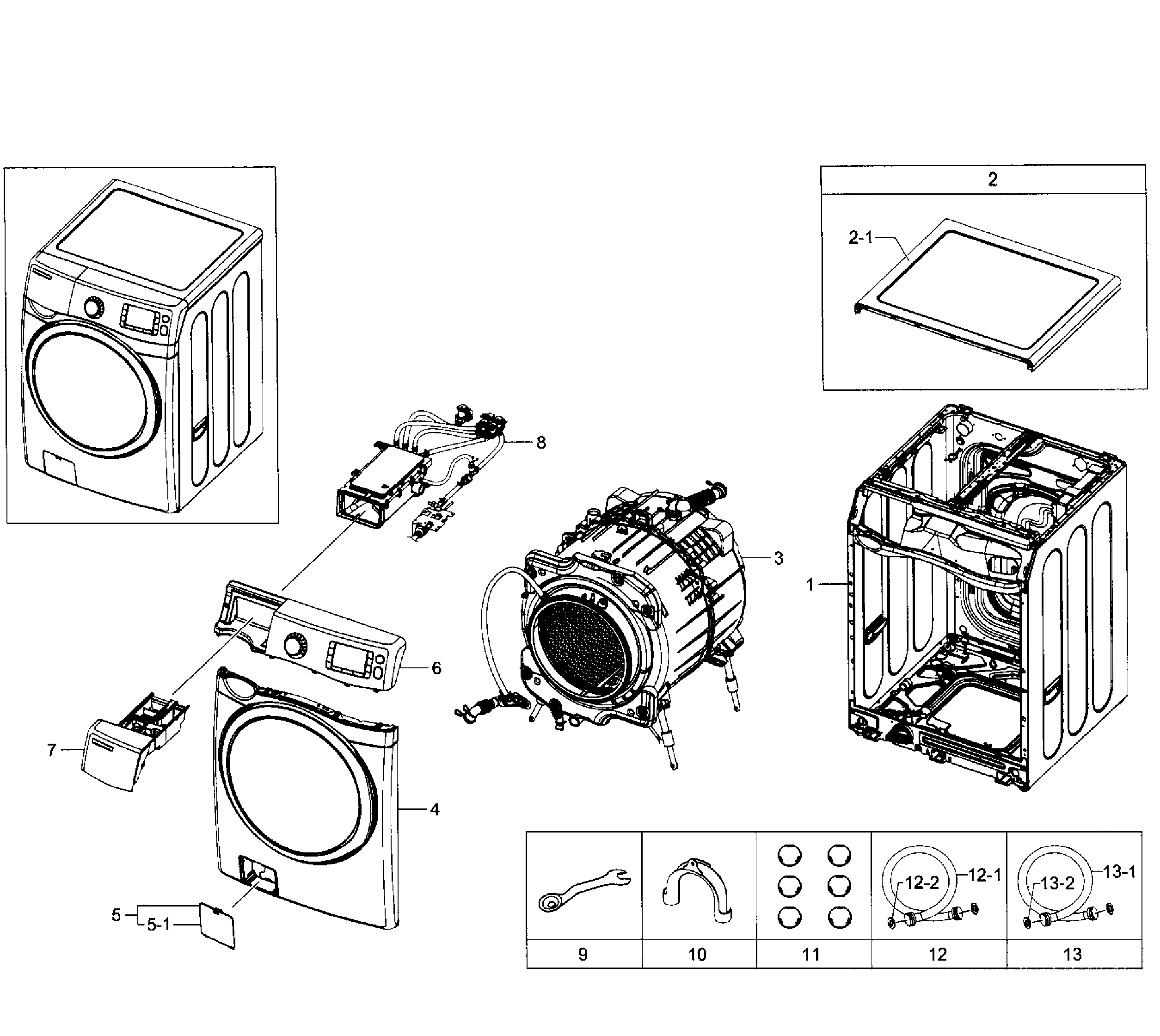

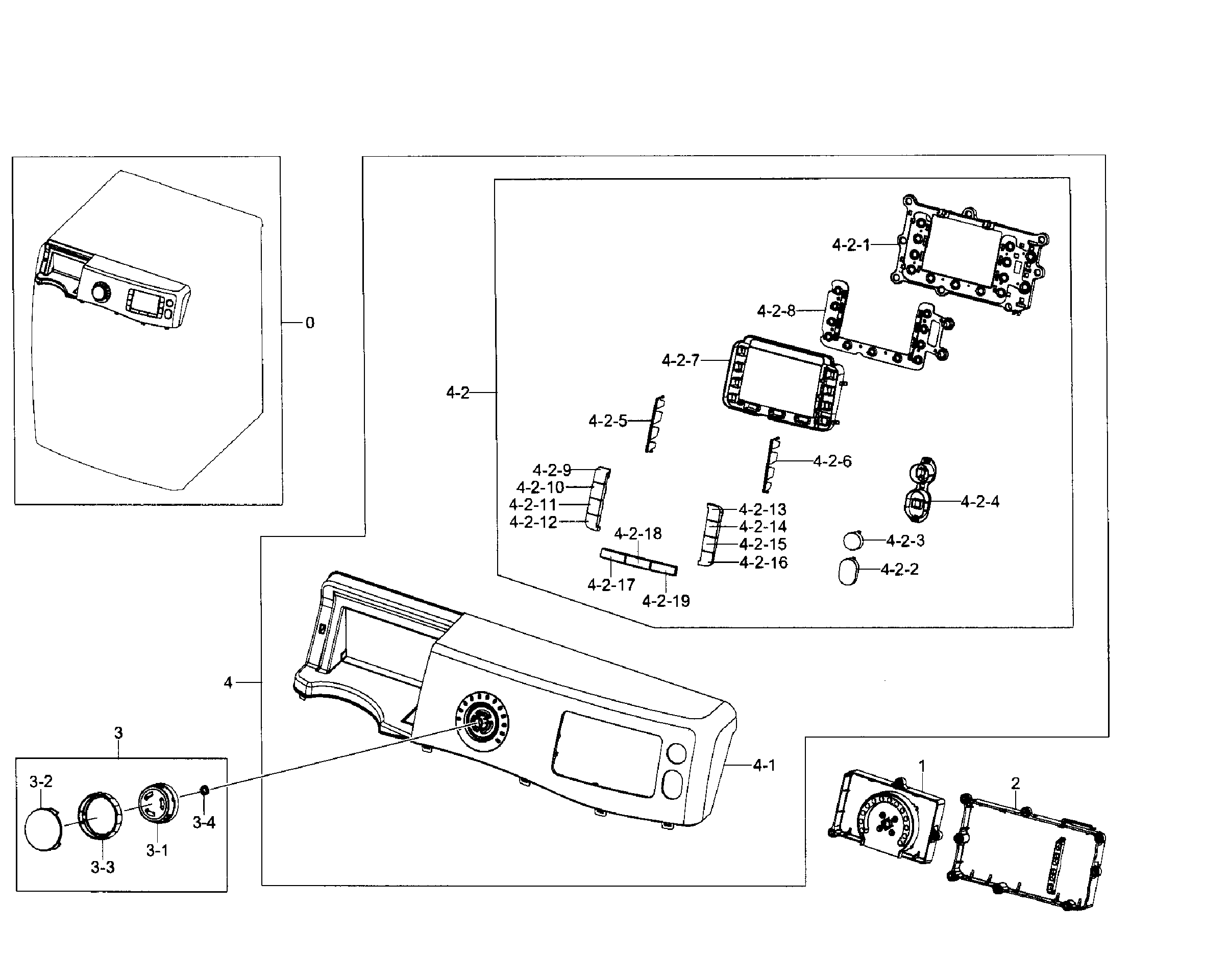

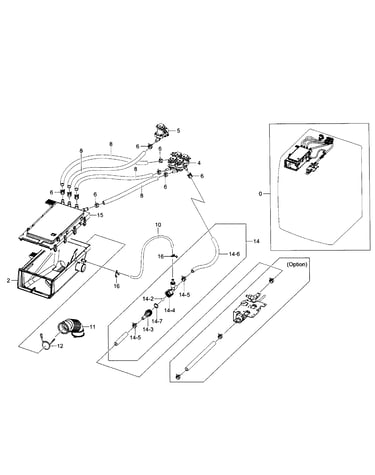

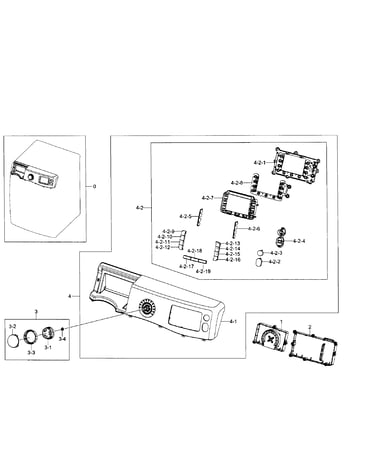

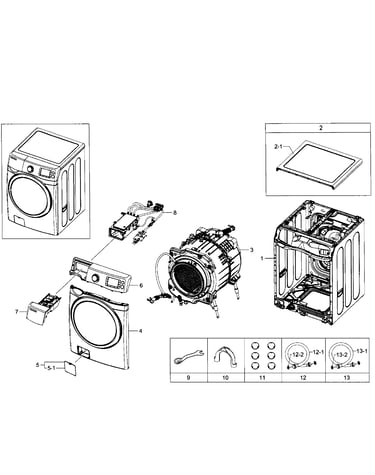

Browse Parts forWF520ABW/XAA-06 Washer
- #5

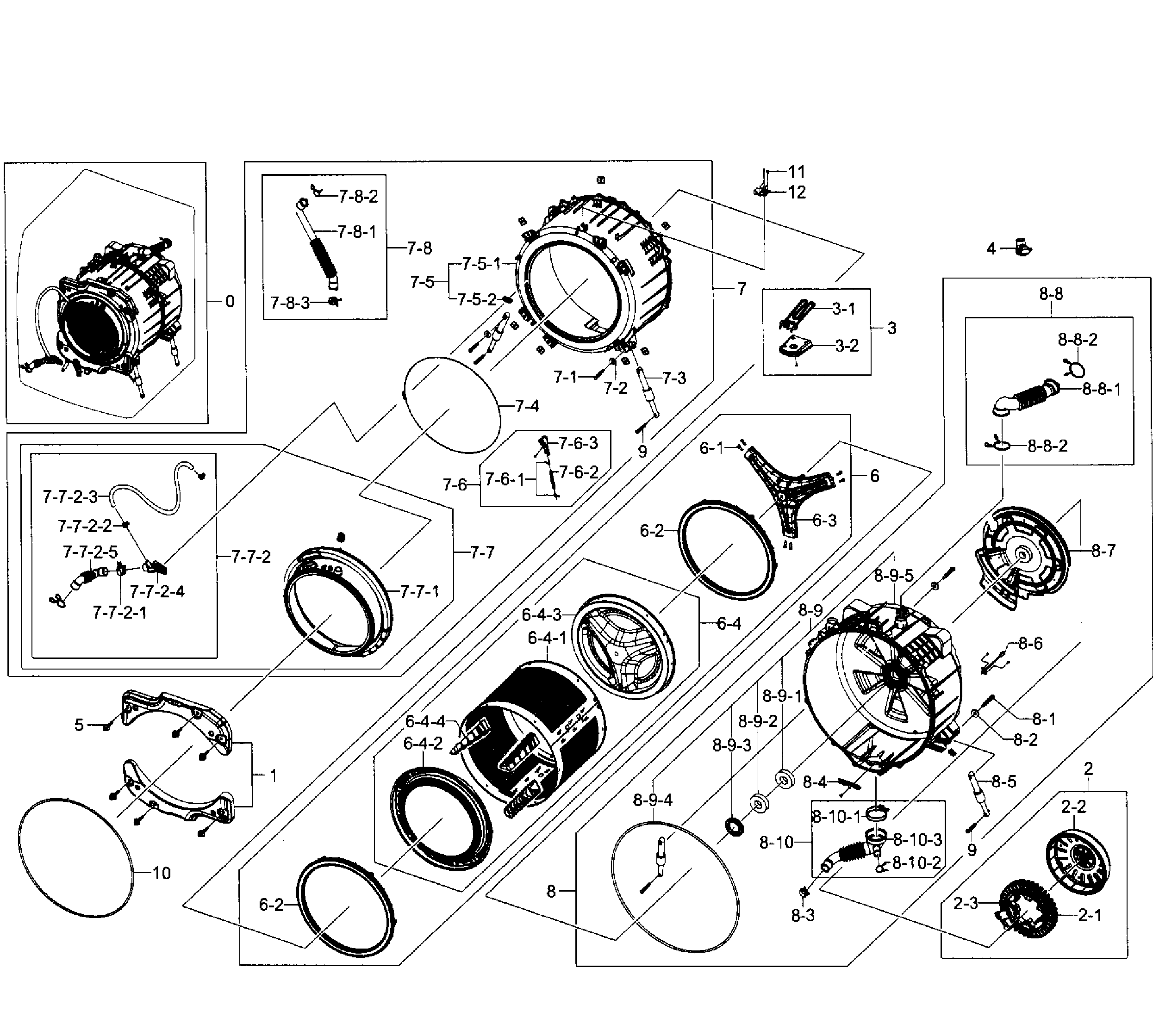

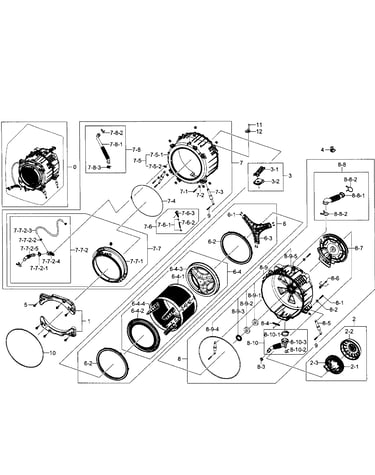

Tub-drum diagram
Washer boltPart #DC97-02412A
$16.20 |11% OFF Phone Price : $18.20In Stock - #10
Tub-drum diagram
Washer door boot spring clampPart #DC97-04973B
$9.98 |9% OFF Phone Price : $10.98In Stock - #2-3
Tub-drum diagram
Washer motor rotor position sensorPart #DC31-00098A
$67.42 |8% OFF Phone Price : $73.42In Stock - #11-3

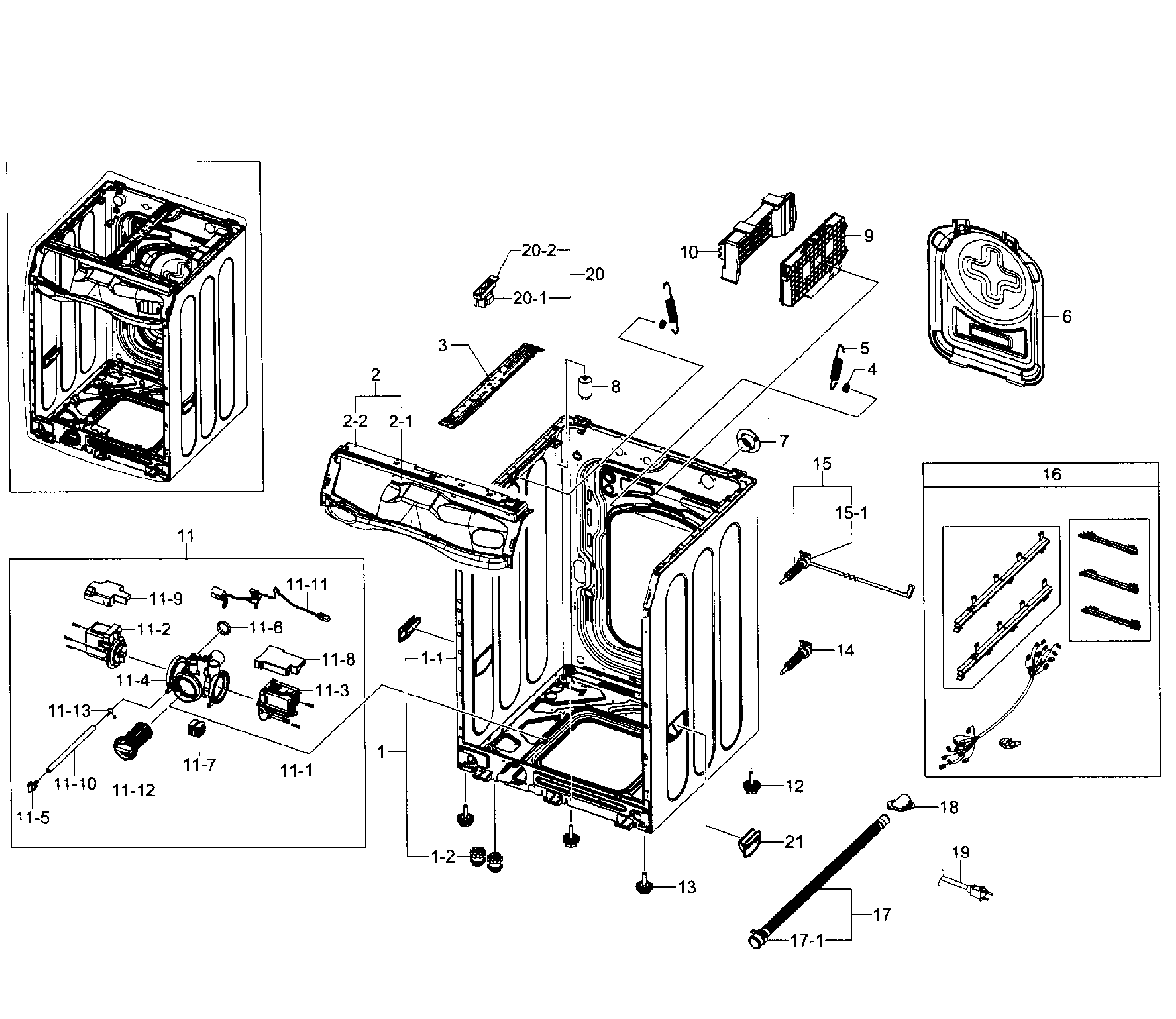

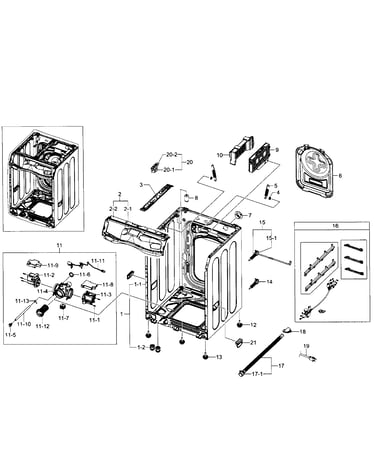

Frame diagram
Washer drain pumpPart #DC31-00054D
$61.81 |9% OFF Phone Price : $67.81In Stock - #7-4
Tub-drum diagram
Washer door boot spring clampPart #DC97-04981F
$23.98 |20% OFF Phone Price : $29.98In Stock - #4

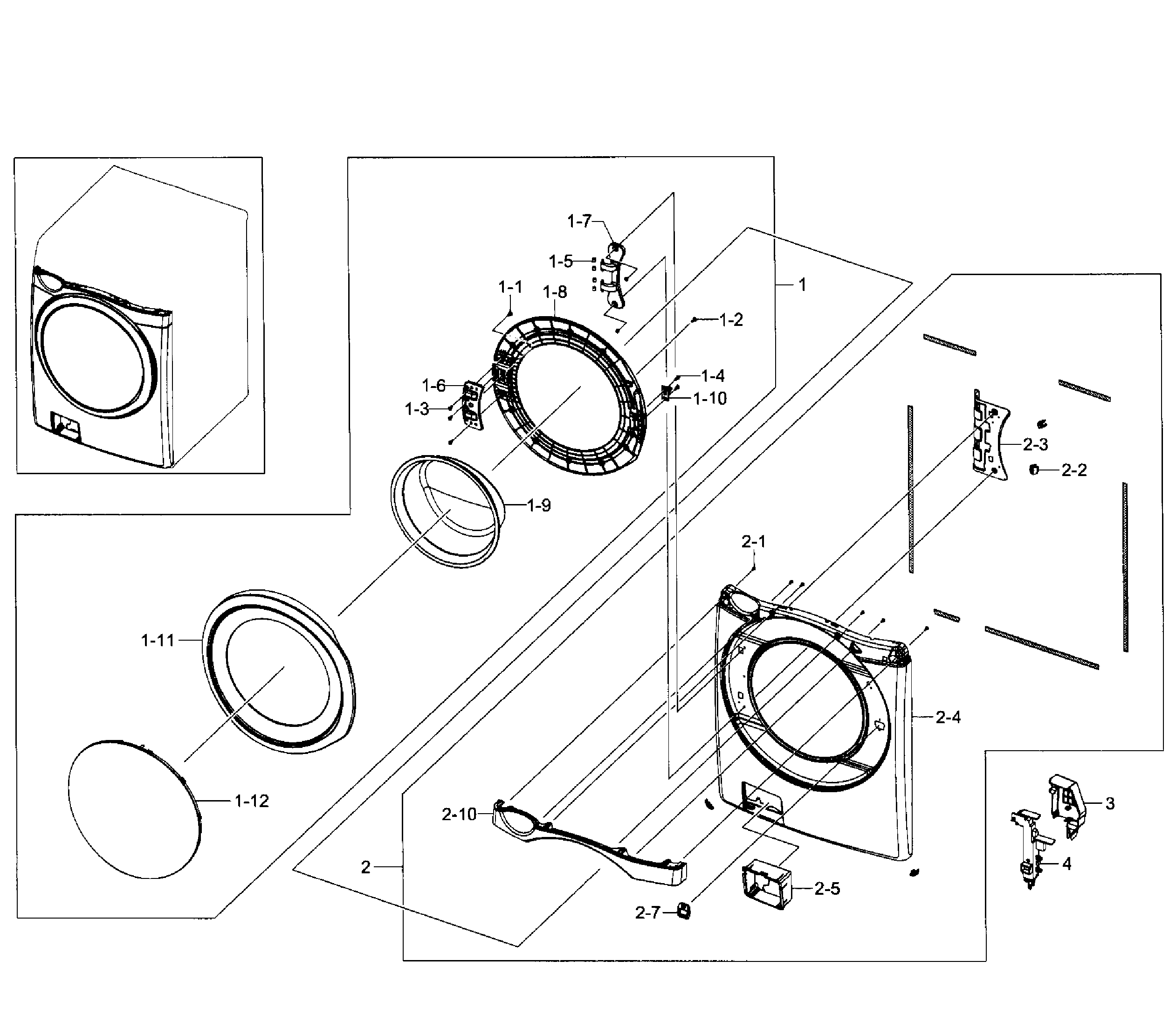

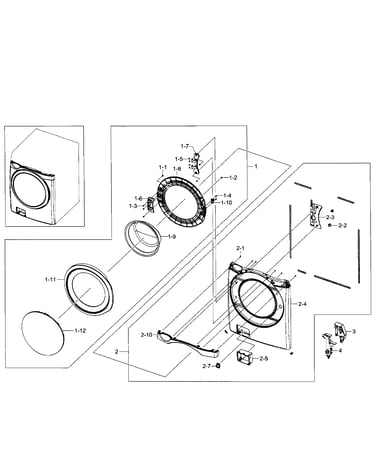

Front section diagram
Washer door lockPart #DC64-00519B
$31.51 |16% OFF Phone Price : $37.51In Stock - #8-94
Tub-drum diagram
Washer outer tub gasketPart #DC69-00804A
$30.58 |16% OFF Phone Price : $36.58In Stock - #6-1
Tub-drum diagram
Washer boltPart #DC60-40137A
$8.41 |11% OFF Phone Price : $9.41In Stock - #8-10
Tub-drum diagram
Washer tub-to-pump hosePart #DC97-16105A
Replaced by #DC97-16105B
?Manufacturer substitutionThis part replaces DC97-16105A. Substitute parts can look different from the original.$86.14 |7% OFF Phone Price : $92.14In Stock - #8-93
Tub-drum diagram
Washer rear tub gasketPart #DC62-00156A
This item is not returnable$29.97 |17% OFF Phone Price : $35.97In Stock
