Model # GZ-MG27US Official JVC digital camcorder

Here are the diagrams and repair parts for Official JVC GZ-MG27US digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 120 parts  |
Integrated Circuit JCY0225
#NI

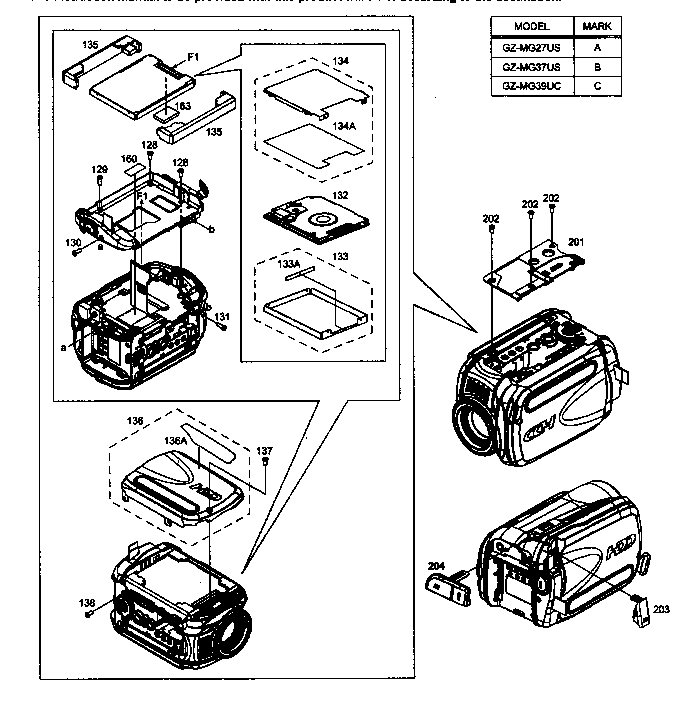

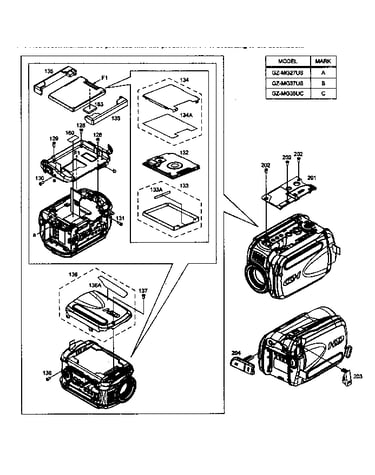

Cabinet parts 1 diagram

Integrated circuit

Part #JCY0225

The manufacturer no longer makes this part, and there's no substitute part

Hinge Unit LY35075-001A
#352

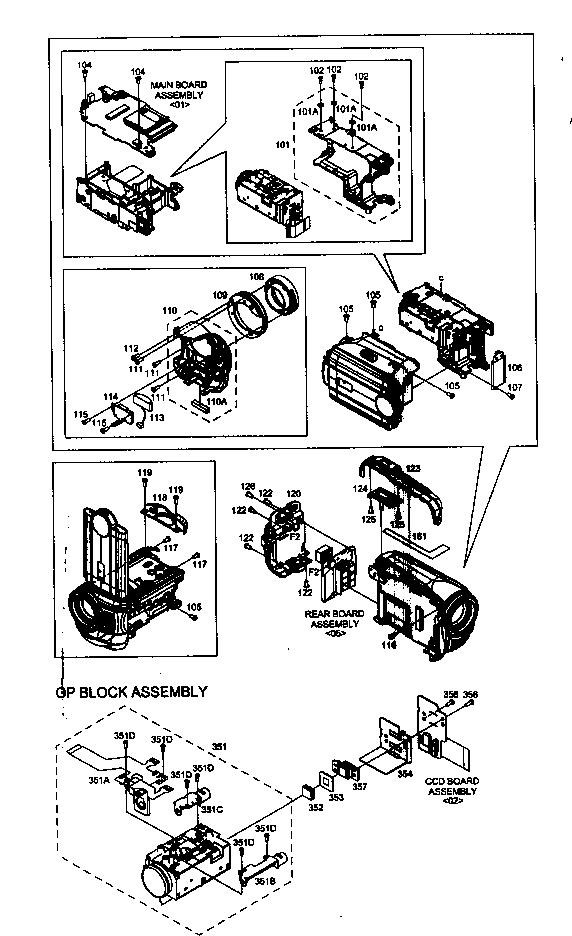

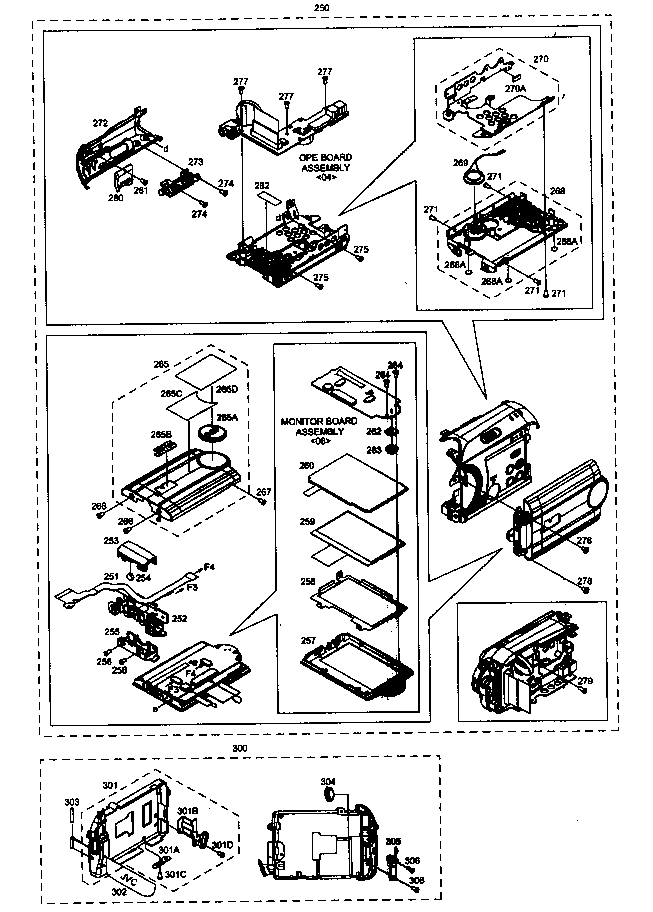

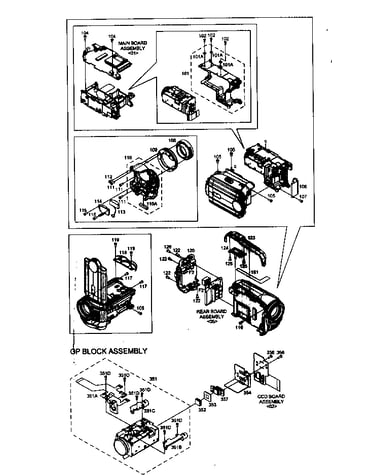

Cabinet parts 3 diagram

Hinge unit

Part #LY35075-001A

The manufacturer no longer makes this part, and there's no substitute part

Fuse NMFZ007-R80X-K
#NI

Cabinet parts 1 diagram

Fuse

Part #NMFZ007-R80X-K

The manufacturer no longer makes this part, and there's no substitute part

Jack Cover LY35239-001A
#203

Cabinet parts 1 diagram

Jack cover

Part #LY35239-001A

The manufacturer no longer makes this part, and there's no substitute part

Power Sw A LY35224-001C
#273

Cabinet parts 3 diagram

Power sw a

Part #LY35224-001C

The manufacturer no longer makes this part, and there's no substitute part

Battery LY34647-002B
#NI

Cabinet parts 1 diagram

Battery

Part #LY34647-002B

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit UPD61152F1-A03
#NI

Cabinet parts 1 diagram

Integrated circuit

Part #UPD61152F1-A03

The manufacturer no longer makes this part, and there's no substitute part

Bracket Assembly LY35416-001A
#270

Cabinet parts 3 diagram

Bracket assembly

Part #LY35416-001A

The manufacturer no longer makes this part, and there's no substitute part

Interrupte LY35236-001A
#280

Cabinet parts 3 diagram

Interrupte

Part #LY35236-001A

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit MB90099PFV139EX
#NI

Cabinet parts 1 diagram

Integrated circuit

Part #MB90099PFV139EX

The manufacturer no longer makes this part, and there's no substitute part
