Model # ZRT6510WW/P1143825NWW Official Amana electric range
Here are the diagrams and repair parts for Official Amana ZRT6510WW/P1143825NWW electric range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

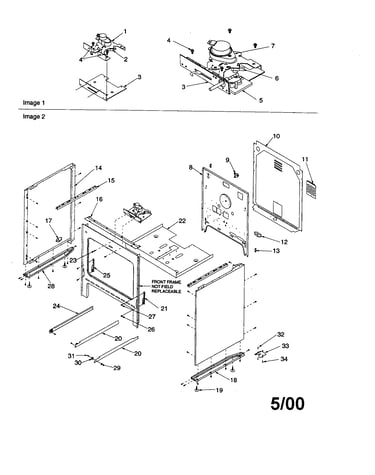

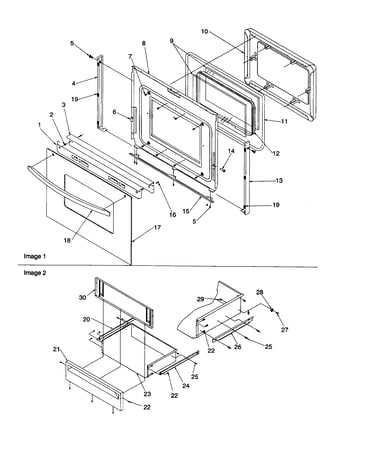

SELECT DIAGRAM
Browse Parts forZRT6510WW/P1143825NWW Ranges
- #19

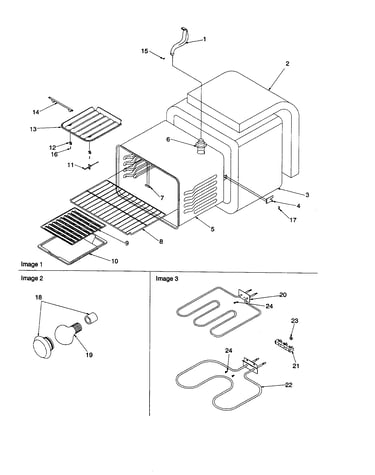

Cavity diagram
LampPart #0042175
Replaced by #40A15
?Manufacturer substitutionThis part replaces 0042175. Substitute parts can look different from the original.$14.62 |12% OFF Phone Price : $16.62In Stock - #6

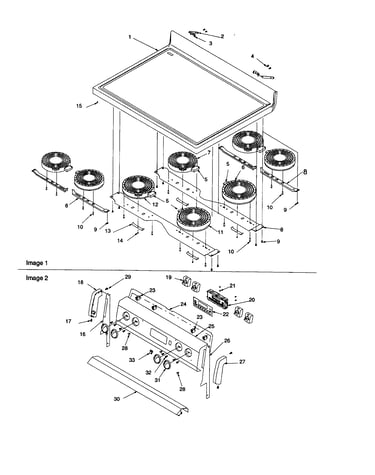

Main top and backguard diagram
Large elementPart #31794601
The manufacturer no longer makes this part, and there's no substitute part
- #22
Cavity diagram
Element-blkPart #0059552
The manufacturer no longer makes this part, and there's no substitute part
- #7
Main top and backguard diagram
Lf rear elemPart #31794501
The manufacturer no longer makes this part, and there's no substitute part
- #8
Cavity diagram
Oven rackPart #314763J
The manufacturer no longer makes this part, and there's no substitute part
- #11
Cavity diagram
Oven sensorPart #0314907
The manufacturer no longer makes this part, and there's no substitute part
- #9
Cavity diagram
"grid, broile"Part #304451CG
Replaced by #4396923
?Manufacturer substitutionThis part replaces 304451CG. Substitute parts can look different from the original.$29.55 |17% OFF Phone Price : $35.55In Stock - #10
Cavity diagram
Broiler panPart #314175CG
Replaced by #4396923
?Manufacturer substitutionThis part replaces 314175CG. Substitute parts can look different from the original.$29.55 |17% OFF Phone Price : $35.55In Stock - #23
Main top and backguard diagram
Indicator lightPart #31722801
Replaced by #WP903115
?Manufacturer substitutionThis part replaces 31722801. Substitute parts can look different from the original.This item is not returnable$6.17 |14% OFF Phone Price : $7.17In Stock - Screw
Part #31750701
Replaced by #W11245710
?Manufacturer substitutionThis part replaces 31750701. Substitute parts can look different from the original.This item is not returnable$15.95 |11% OFF Phone Price : $17.95In Stock
