Model # GSS22JERFCC Official GE refrigerator - r series
Here are the diagrams and repair parts for Official GE GSS22JERFCC refrigerator - r series, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.

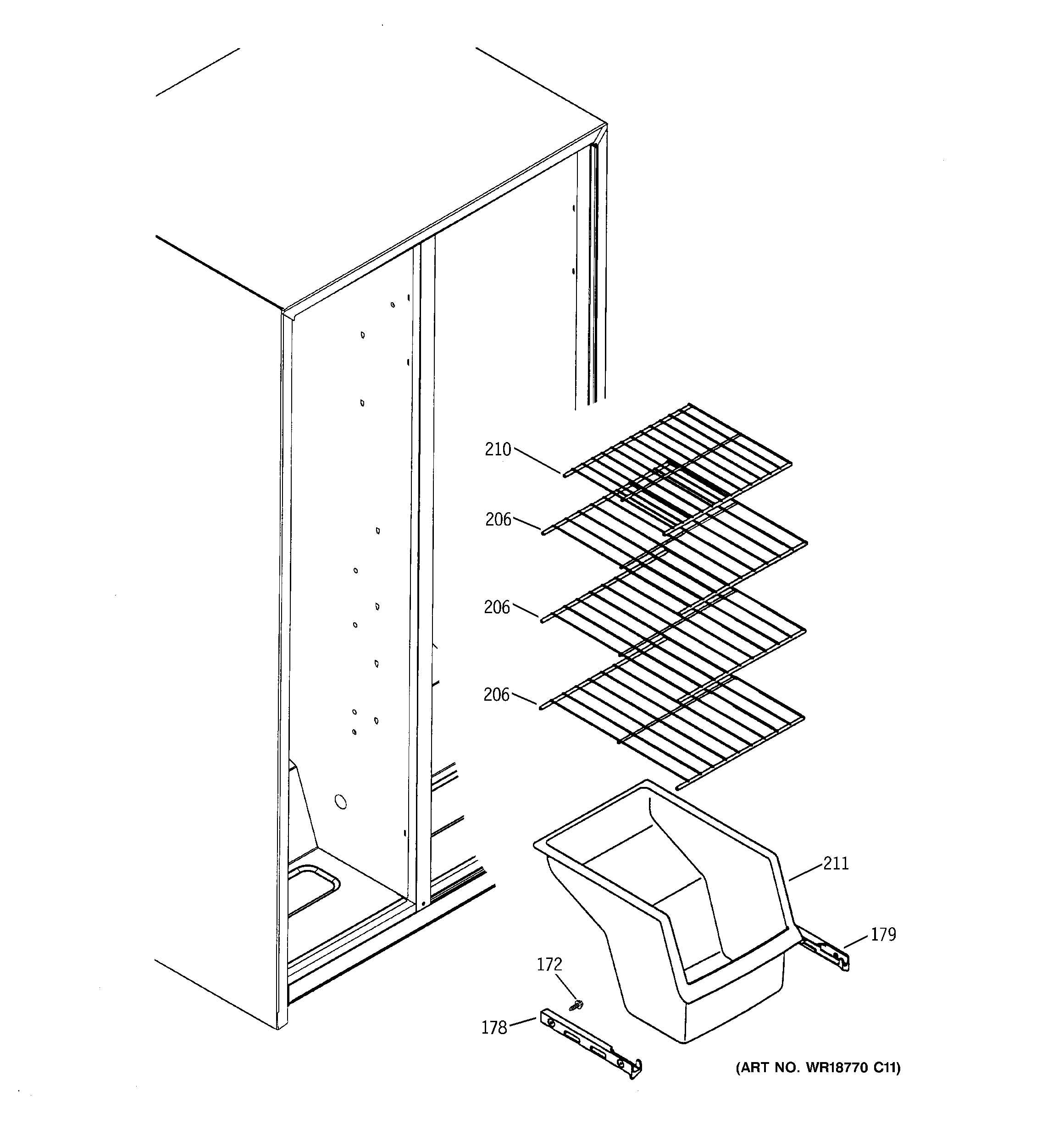

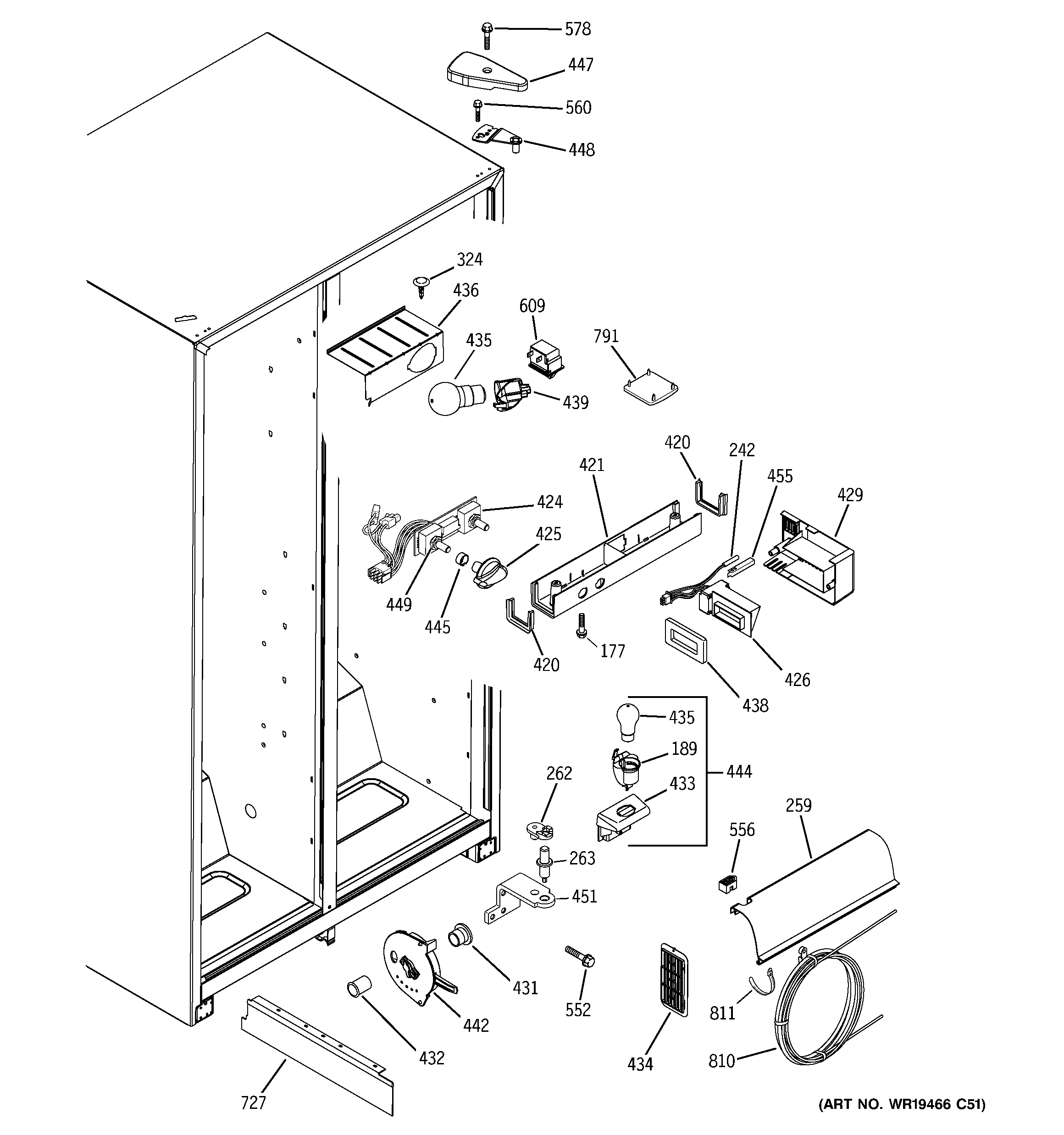

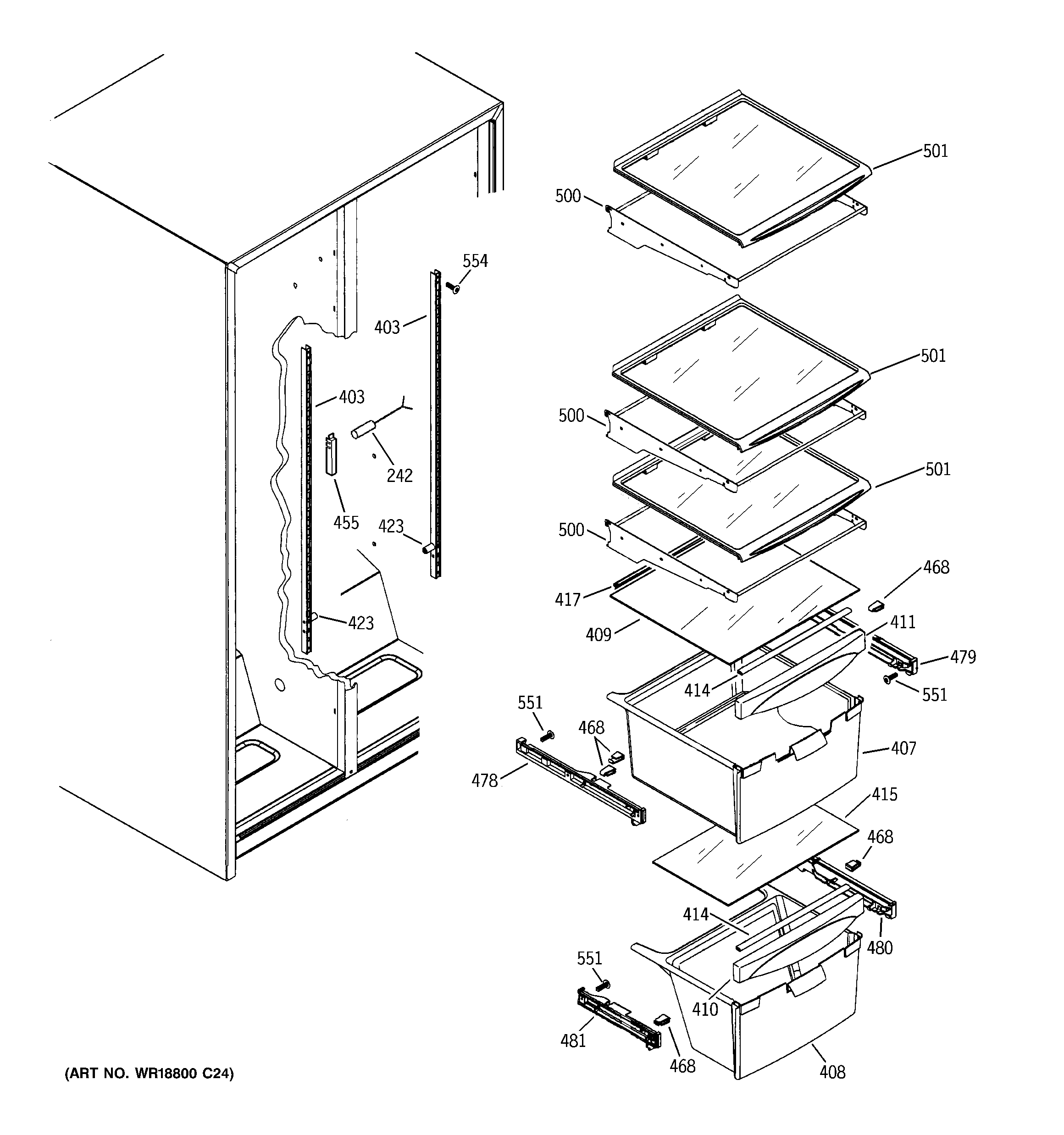

Model diagram and schematic
SEARCH WITHIN THIS MODEL
ALL PARTS
Showing 10 of 289 parts |
Damper & the
Part #WR50X10034
Replaced by #WR55X10025
?
Manufacturer substitution
This part replaces WR50X10034. Substitute parts can look different from the original.
$17.18 |
10% OFF Was : $19.08
In Stock
#243

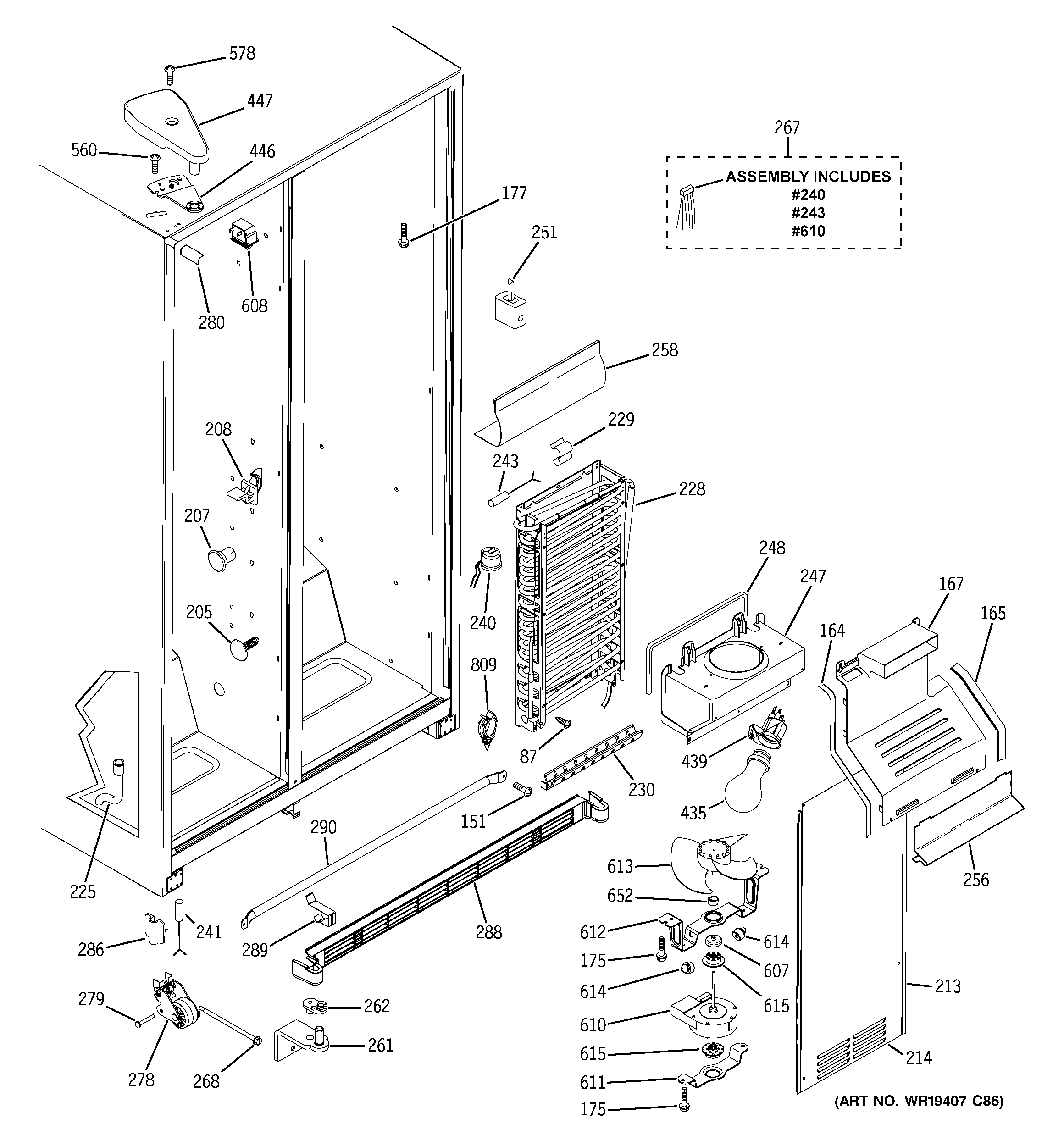

Freezer section diagram
Refrigerator temperature sensor
Part #WR55X10380
Replaced by #WR55X10025
?
Manufacturer substitution
This part replaces WR55X10380. Substitute parts can look different from the original.
$17.18 |
10% OFF Was : $19.08
In Stock
#241
Freezer section diagram
Refrigerator temperature sensor
Part #WR50X10027
Replaced by #WR55X10025
?
Manufacturer substitution
This part replaces WR50X10027. Substitute parts can look different from the original.
$17.18 |
10% OFF Was : $19.08
In Stock
#820
Ice maker & dispenser diagram
Electronic i
Part #WR30X10061
Replaced by #WR30X10093
?
Manufacturer substitution
This part replaces WR30X10061. Substitute parts can look different from the original.
$163.67 |
9% OFF Was : $180.85
In Stock
#740

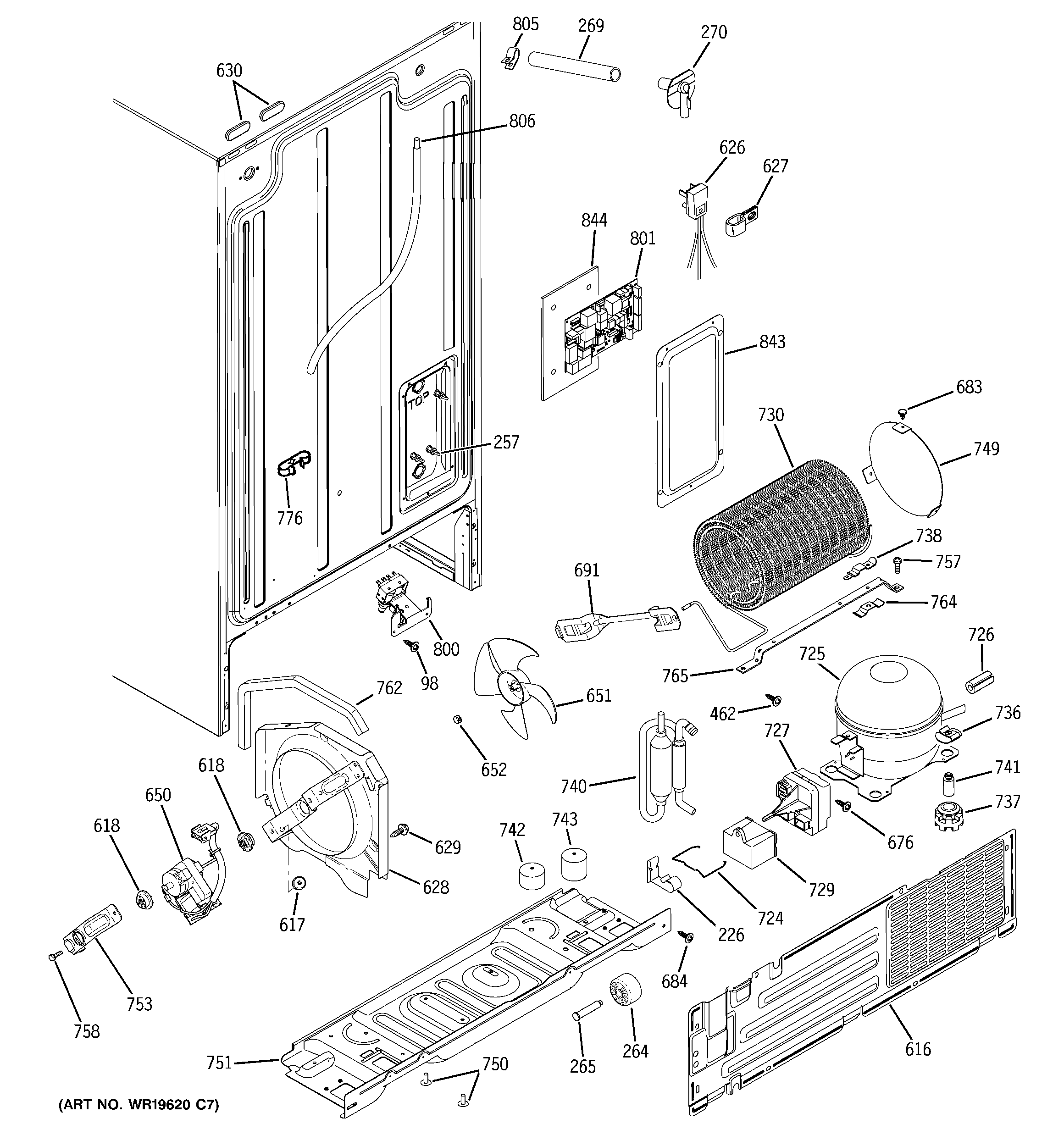

Sealed system & mother board diagram
Refrigerator filter dryer
Part #WR86X96
Replaced by #WR86X25269
?
Manufacturer substitution
This part replaces WR86X96. Substitute parts can look different from the original.
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator light bulb
Part #60A
Replaced by #40A15
?
Manufacturer substitution
This part replaces 60A. Substitute parts can look different from the original.
$14.83 |
12% OFF Phone Price : $16.83
Back Order
#240
Freezer section diagram
Refrigerator defrost thermostat
Part #WR50X10054
Replaced by #WR50X10068
?
Manufacturer substitution
This part replaces WR50X10054. Substitute parts can look different from the original.
$20.93 |
22% OFF Phone Price : $26.93
In Stock
#729
Sealed system & mother board diagram
Capacitor
Part #WR62X0079
Replaced by #WR55X24064
?
Manufacturer substitution
This part replaces WR62X0079. Substitute parts can look different from the original.
$43.21 |
12% OFF Phone Price : $49.21
In Stock
#725
Sealed system & mother board diagram
Comp. repl.
Part #WR87X10097
Replaced by #WR87X20798
?
Manufacturer substitution
This part replaces WR87X10097. Substitute parts can look different from the original.
$405.87 |
$12.00 OFF Phone Price : $417.87
In Stock
#36

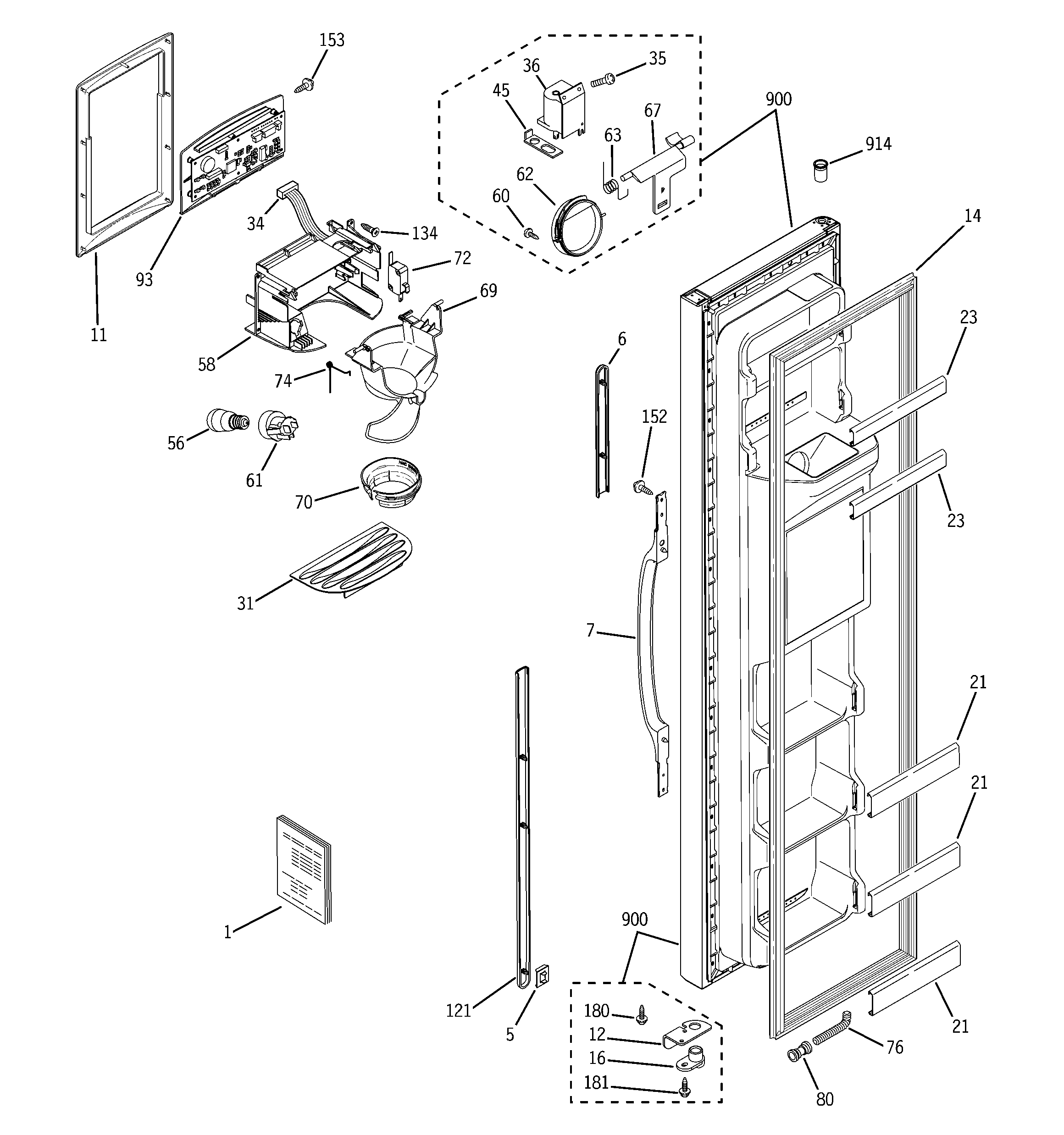

Freezer door diagram
Refrigerator solenoid
Part #WR62X10020
Replaced by #WR62X10055
?
Manufacturer substitution
This part replaces WR62X10020. Substitute parts can look different from the original.
$54.06 |
10% OFF Phone Price : $60.06
In Stock
