Whirlpool
Top-Mount Refrigerator

Model # 5ET2WVKRQ02 Official Whirlpool top-mount refrigerator

Here are the diagrams and repair parts for Official Whirlpool 5ET2WVKRQ02 top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 176 parts  |
Drier W/dye 2317845
#29A

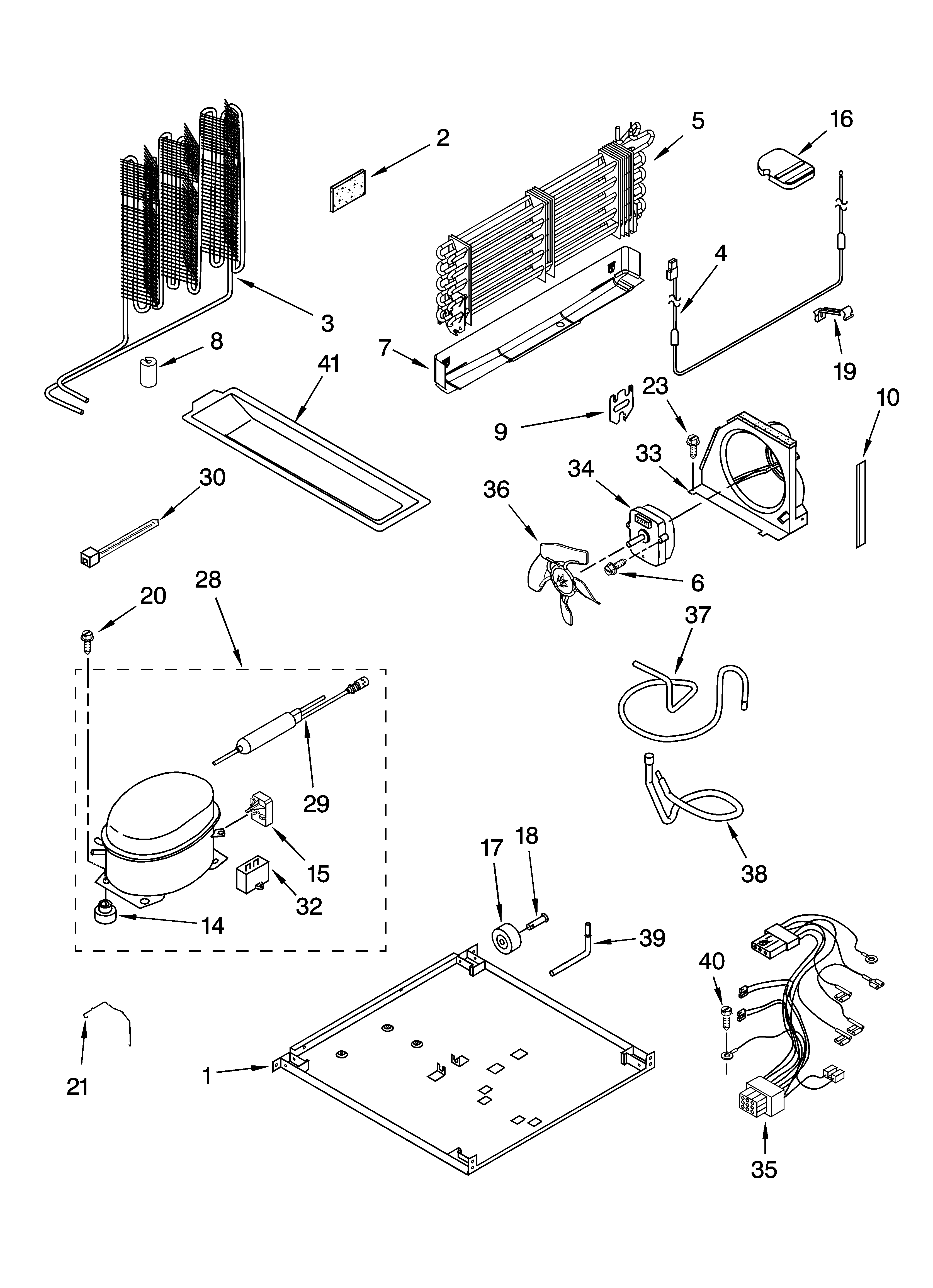

Unit parts diagram

Drier w/dye

Part #2317845

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 2317845. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Drier Tube 2319825
#29

Unit parts diagram

Drier tube

Part #2319825

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 2319825. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Crisper Pan 2166256
#14

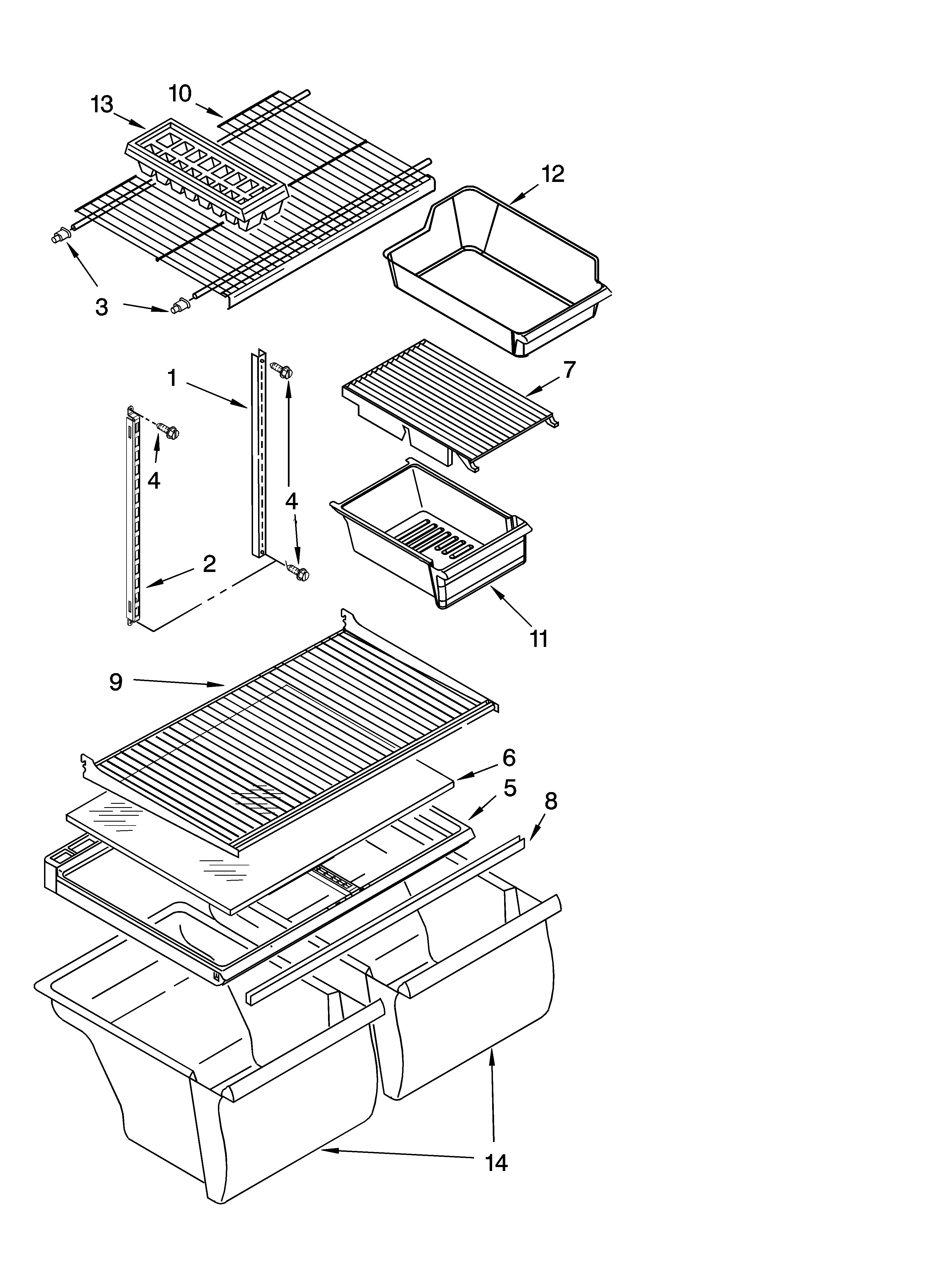

Shelf parts, optional parts diagram

Refrigerator crisper pan

Part #2166256

Replaced by #W10854037

?
Manufacturer substitution
This part replaces 2166256. Substitute parts can look different from the original.
BEST SELLER
$79.65 |
7% OFF Phone Price : $85.65
In Stock
Gasket Panel (white) 2202875
#9

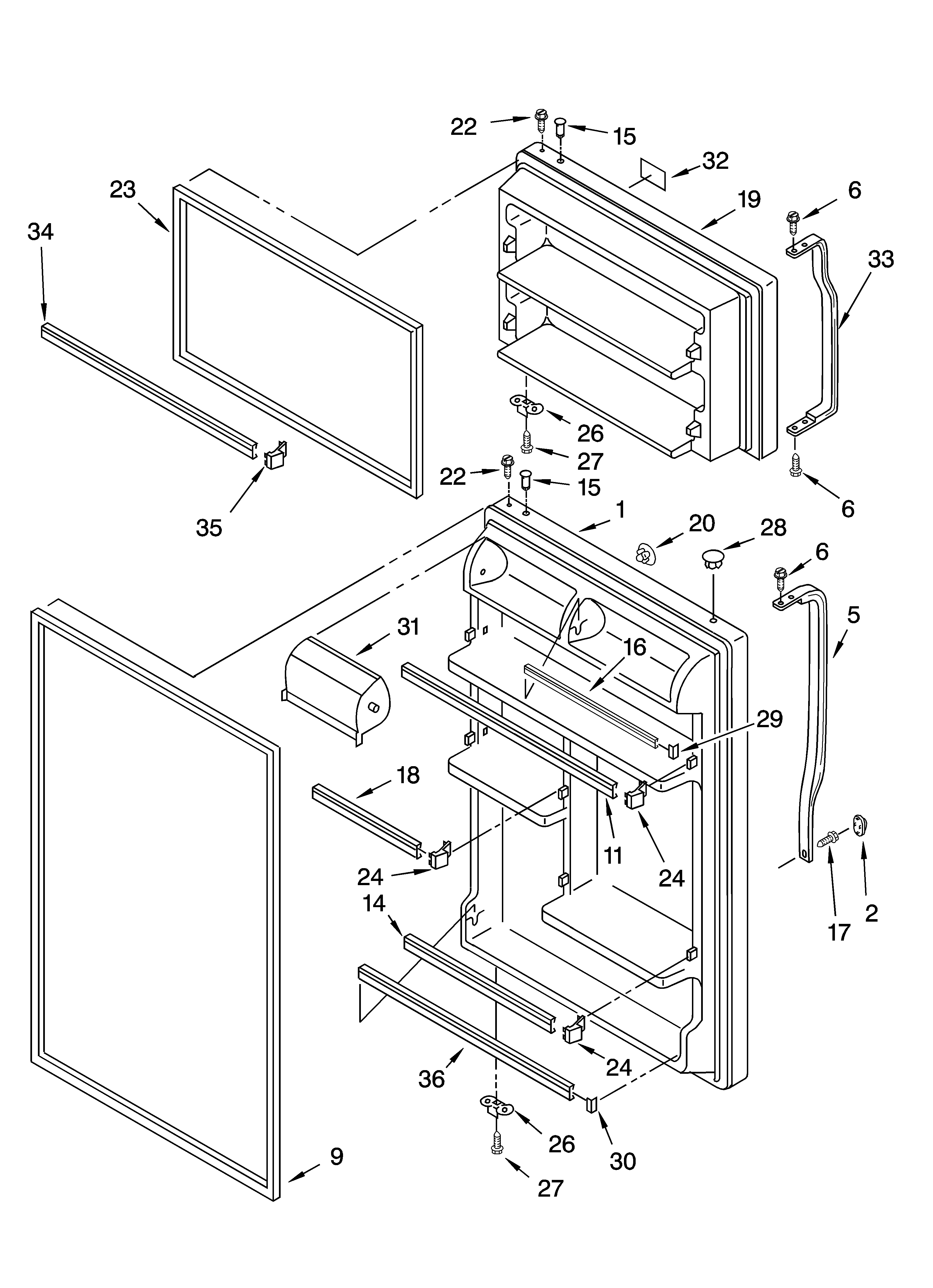

Door parts diagram

Gasket panel (white)

Part #2202875

Replaced by #2159061

?
Manufacturer substitution
This part replaces 2202875. Substitute parts can look different from the original.
BEST SELLER
$108.62 |
10% OFF Phone Price : $120.62
In Stock
Fan Blade 2200509
#11

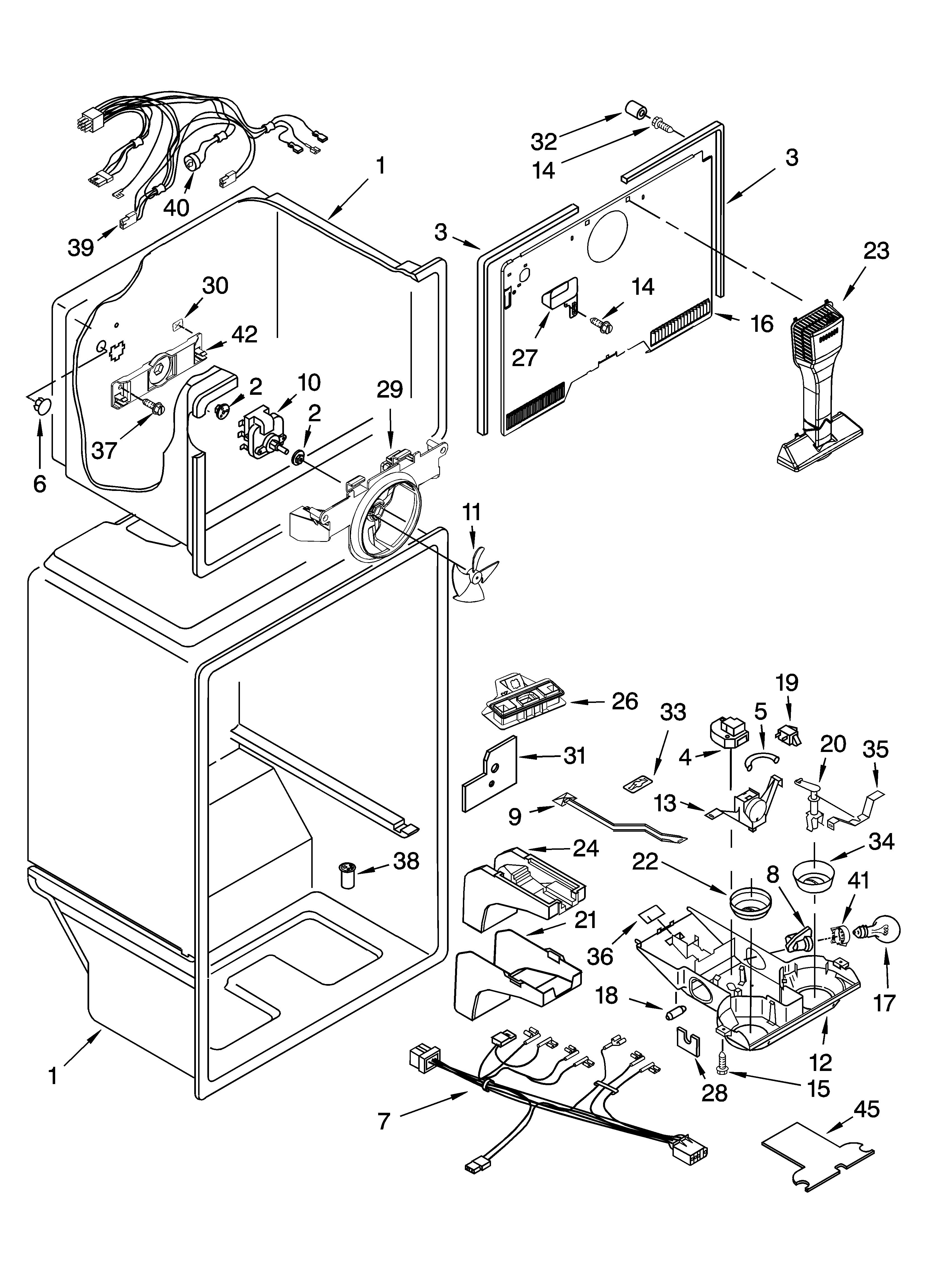

Liner parts diagram

Fan blade

Part #2200509

Replaced by #WP2163777

?
Manufacturer substitution
This part replaces 2200509. Substitute parts can look different from the original.
BEST SELLER
$35.42 |
14% OFF Phone Price : $41.42
In Stock
Fan Blade 2225834
#36

Unit parts diagram

Fan blade

Part #2225834

Replaced by #W11458267

?
Manufacturer substitution
This part replaces 2225834. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$13.40 |
13% OFF Phone Price : $15.40
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

Shelf parts, optional parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Refrigerator Washer 487576
#24

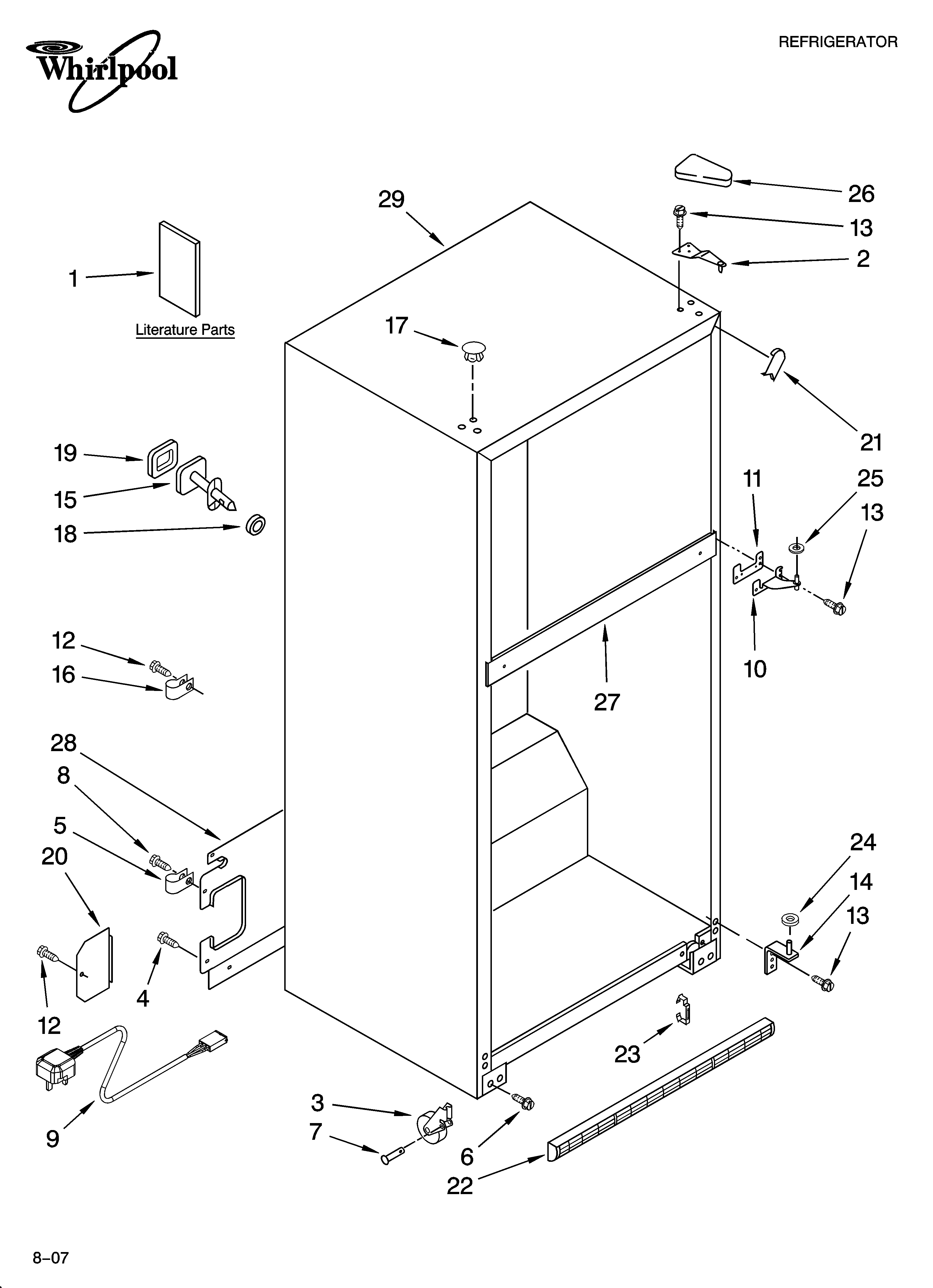

Cabinet parts diagram

Refrigerator washer

Part #487576

Replaced by #WP487576

?
Manufacturer substitution
This part replaces 487576. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.24 |
14% OFF Phone Price : $7.24
In Stock
Spray Paint (white) 350930
#NI

Shelf parts, optional parts diagram

Spray paint (white)

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Refrigerator Screw 489478
Refrigerator screw

Part #489478

Replaced by #WP489478

?
Manufacturer substitution
This part replaces 489478. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
