Bosch
Dishwasher

Model # SPE5ES55UC/20 Official Bosch dishwasher

Here are the diagrams and repair parts for Official Bosch SPE5ES55UC-20 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

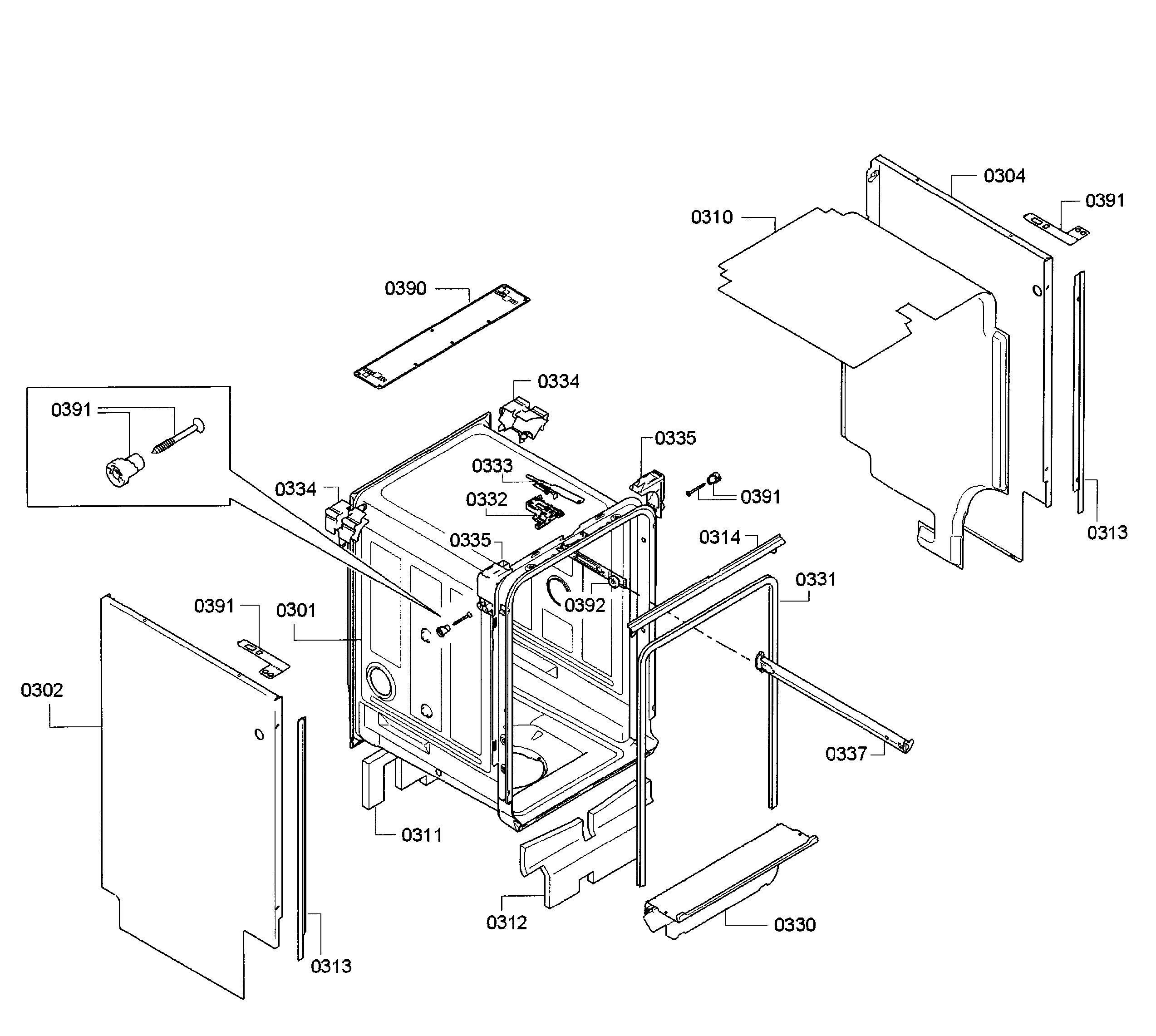

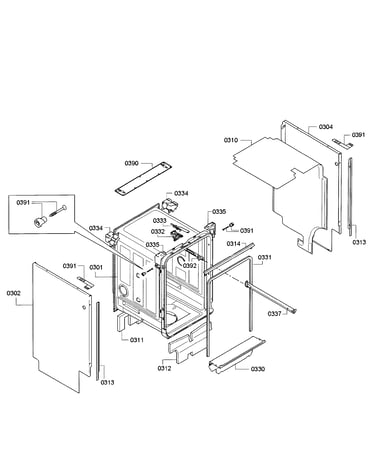

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |
Dishwasher Hose Clamp (replaces 00417502, 00606311, 172272) 00172272
#451

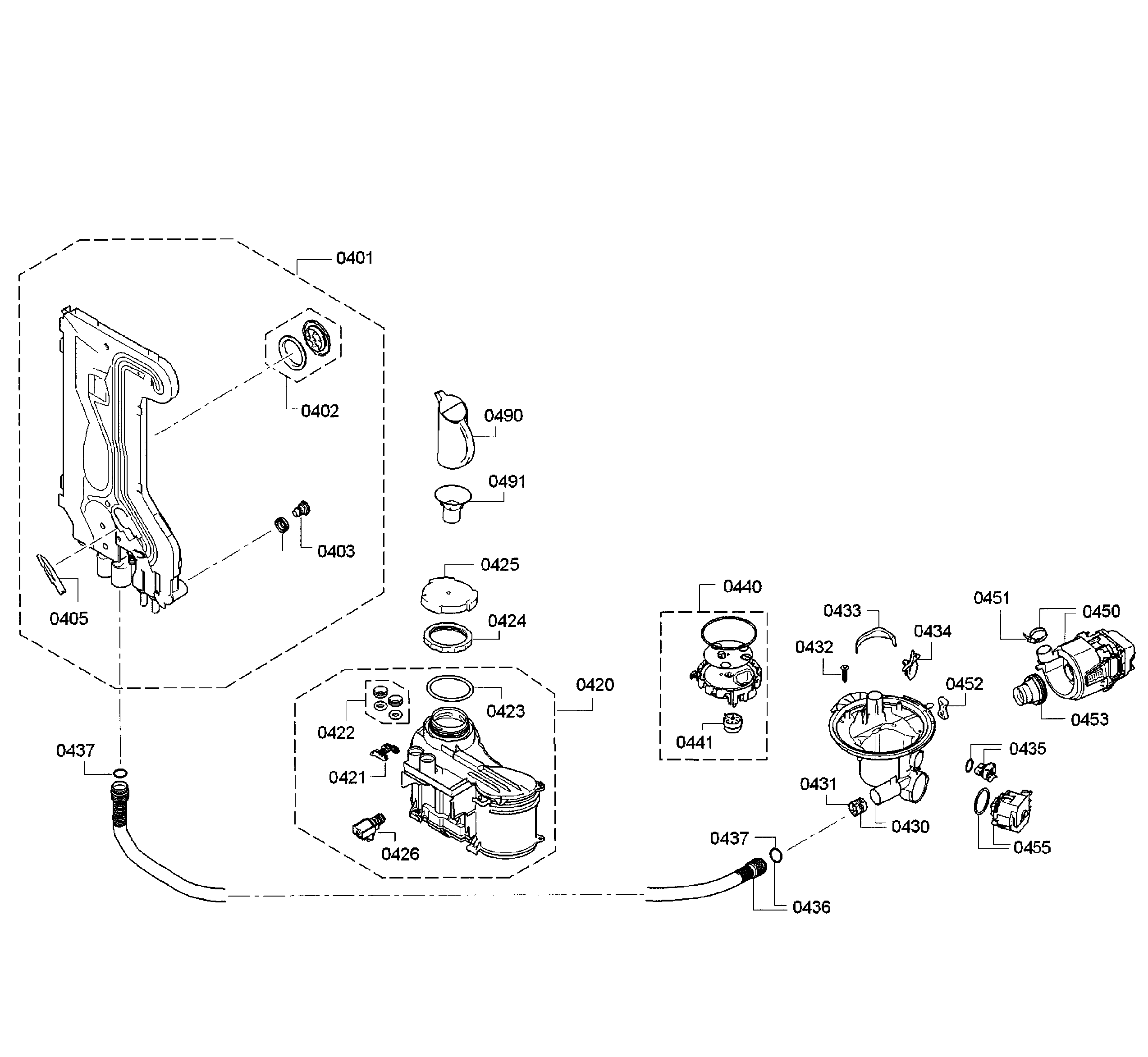

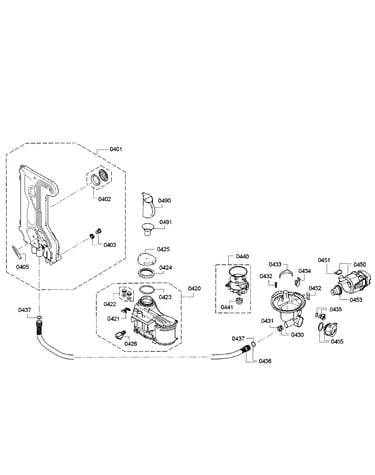

Pump assy diagram

Dishwasher hose clamp (replaces 00417502, 00606311, 172272)

Part #00172272

BEST SELLER
$28.11 |
18% OFF Phone Price : $34.11
In Stock
Dishwasher Drain Pump (replaces 620774) 00620774
#455

Pump assy diagram

Dishwasher drain pump (replaces 620774)

Part #00620774

BEST SELLER
$66.09 |
8% OFF Phone Price : $72.09
In Stock
Dishwasher Dishrack Roller, Lower (replaces 611475) 00611475
#621

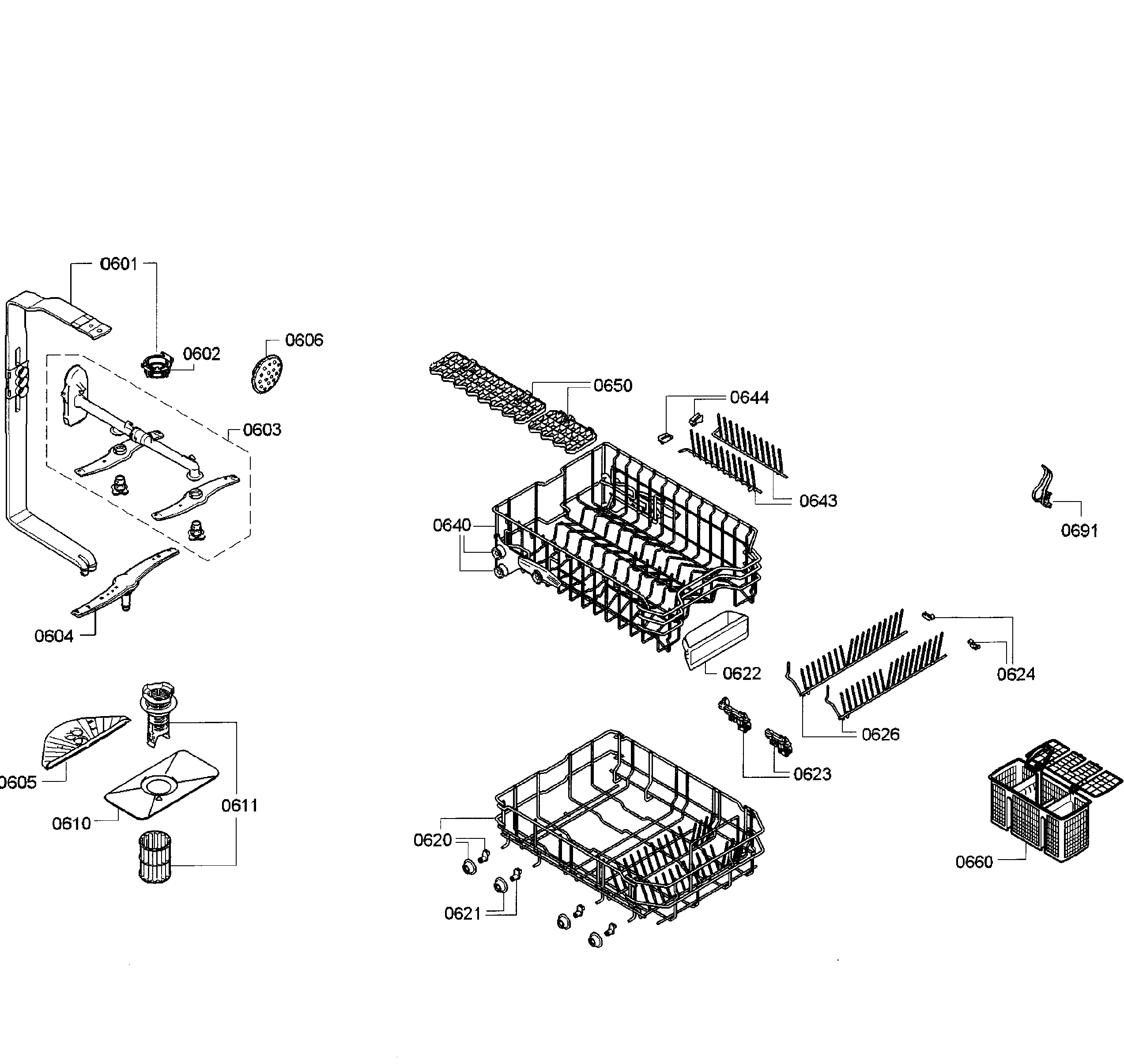

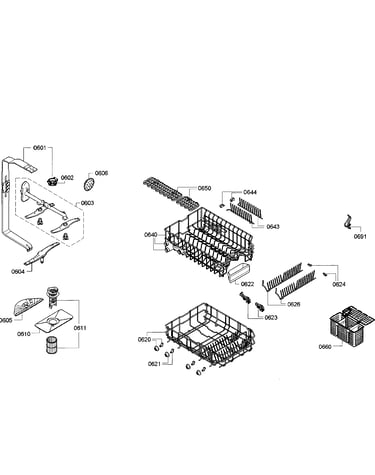

Baskets diagram

Dishwasher dishrack roller, lower (replaces 611475)

Part #00611475

BEST SELLER
$14.27 |
12% OFF Phone Price : $16.27
In Stock
Dishwasher Door Cable Roller (replaces 00611372, 00628834, 00628835, 623536, 628834, 628835) 00623536
#555

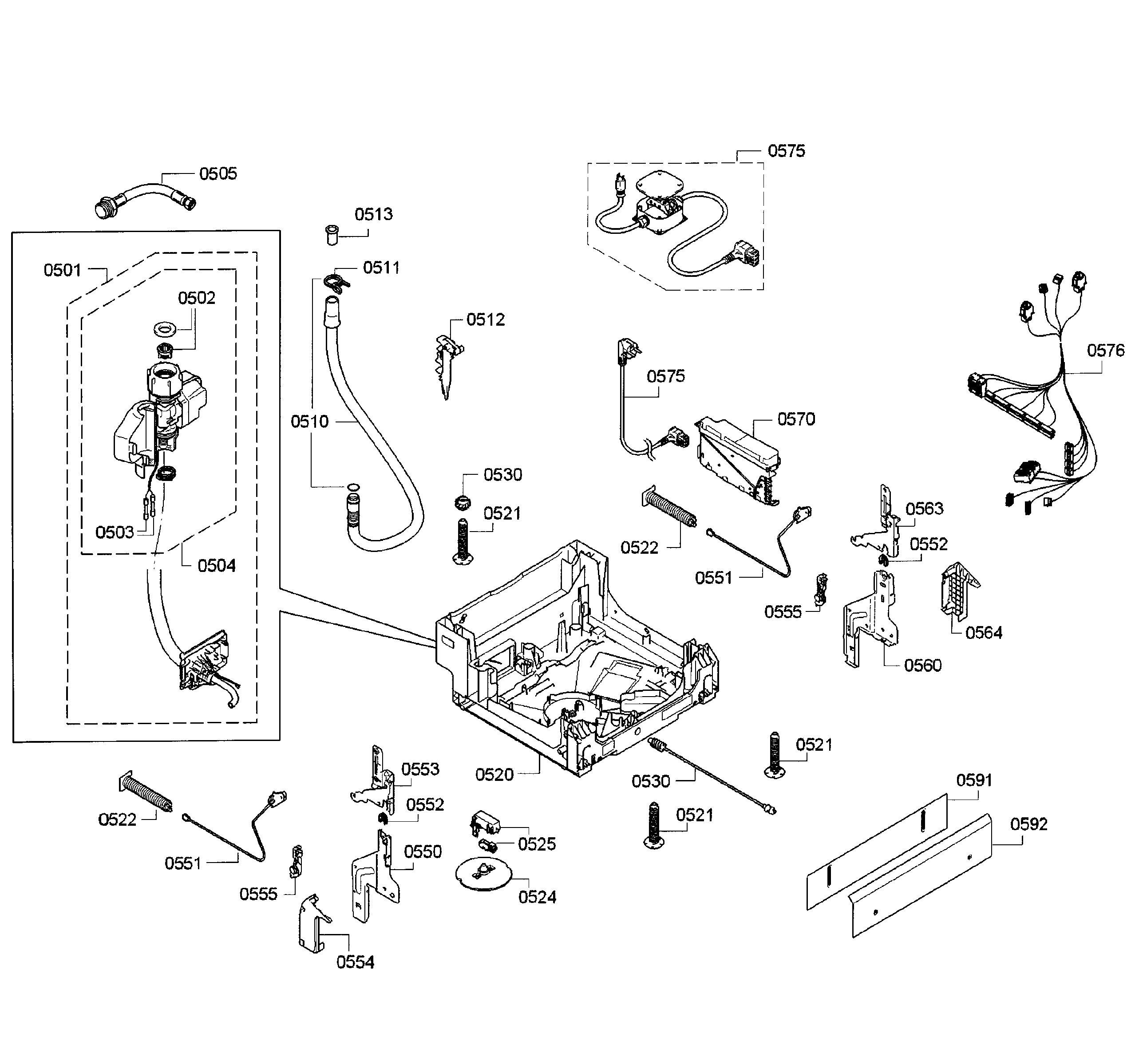

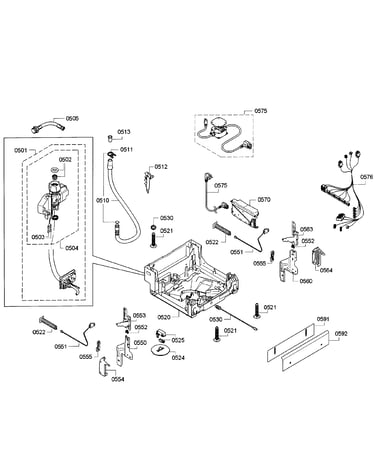

Base assy diagram

Dishwasher door cable roller (replaces 00611372, 00628834, 00628835, 623536, 628834, 628835)

Part #00623536

BEST SELLER
$20.16 |
23% OFF Phone Price : $26.16
In Stock
Dishwasher Float Assembly (replaces 622036) 00622036
#524

Base assy diagram

Dishwasher float assembly (replaces 622036)

Part #00622036

This item is not returnable
$26.69 |
18% OFF Phone Price : $32.69
In Stock
Dishwasher On/off Switch (replaces 620775) 00620775
#113

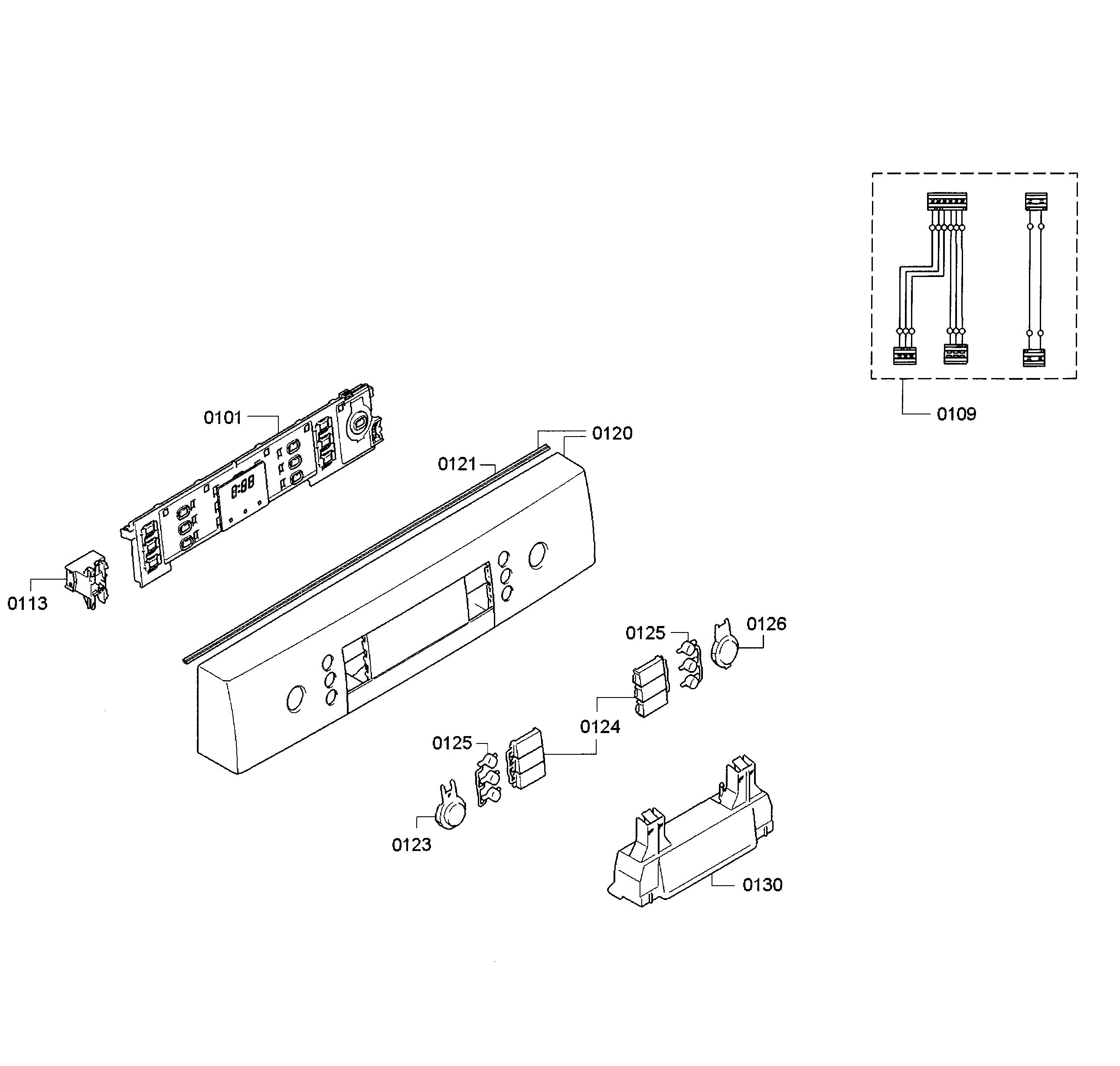

Control panel diagram

Dishwasher on/off switch (replaces 620775)

Part #00620775

$38.99 |
13% OFF Phone Price : $44.99
In Stock
Thermador Dishwasher Tine Row Pivot Clip (replaces 611981) 00611981
#624

Baskets diagram

Thermador dishwasher tine row pivot clip (replaces 611981)

Part #00611981

This item is not returnable
$4.79 |
17% OFF Phone Price : $5.79
In Stock
Dishwasher Wire Harness (replaces 00611663, 00630611, 648135) 00648135
#109

Control panel diagram

Dishwasher wire harness (replaces 00611663, 00630611, 648135)

Part #00648135

$80.49 |
7% OFF Phone Price : $86.49
In Stock
Appliance Screw 00151703
#242

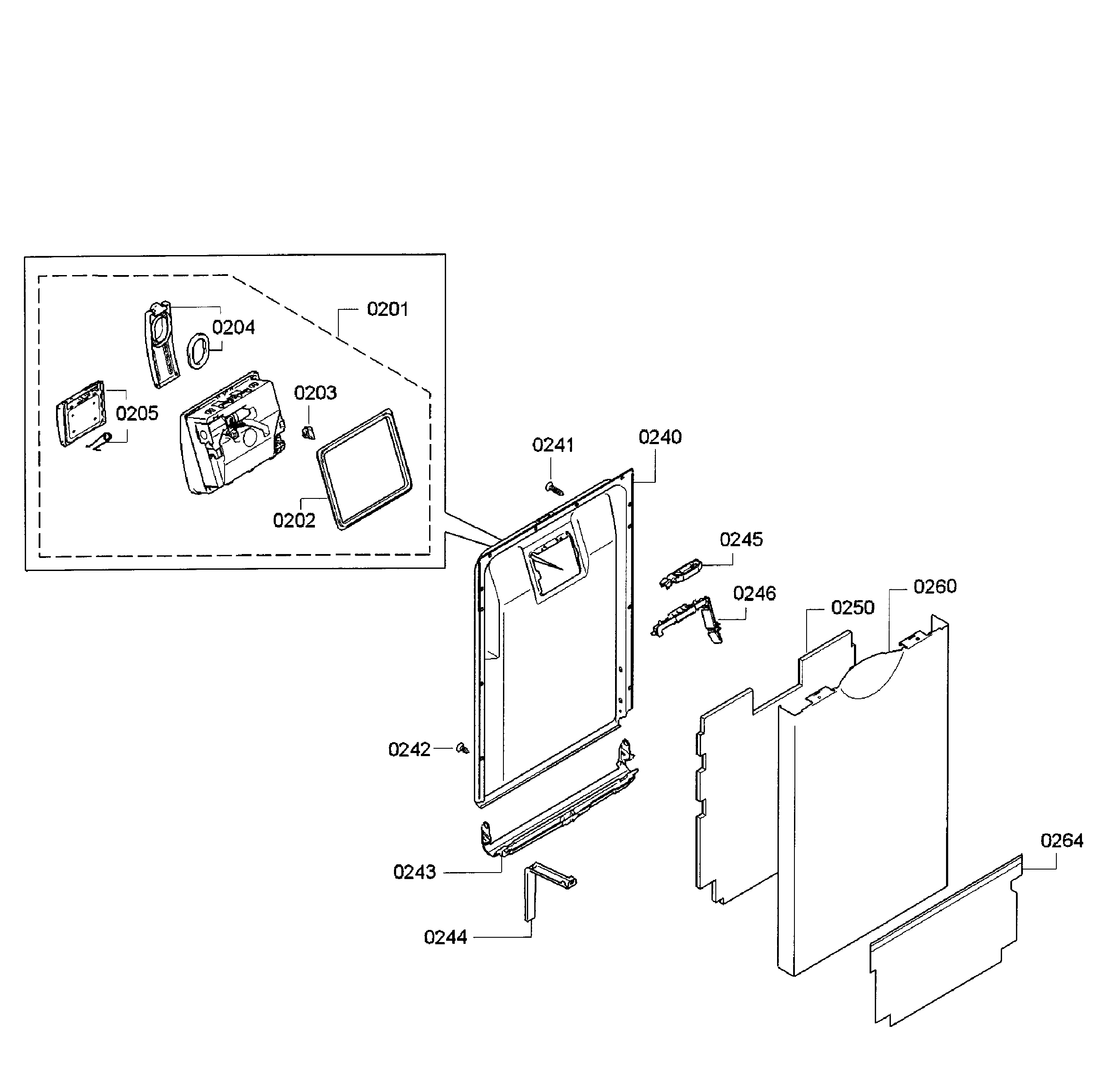

Door assy diagram

Appliance screw

Part #00151703

This item is not returnable
$11.47 |
15% OFF Phone Price : $13.47
In Stock
Dishwasher Door Hinge Lever Bearing (replaces 00170830, 00421781, 00488250, 00580333, 165296) 00165296
#552

Base assy diagram

Dishwasher door hinge lever bearing (replaces 00170830, 00421781, 00488250, 00580333, 165296)

Part #00165296

This item is not returnable
$17.89 |
10% OFF Phone Price : $19.89
In Stock
