Broan
Range Hood

Model # BCSD136BC Official Broan range hood

Here are the diagrams and repair parts for Official Broan BCSD136BC range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

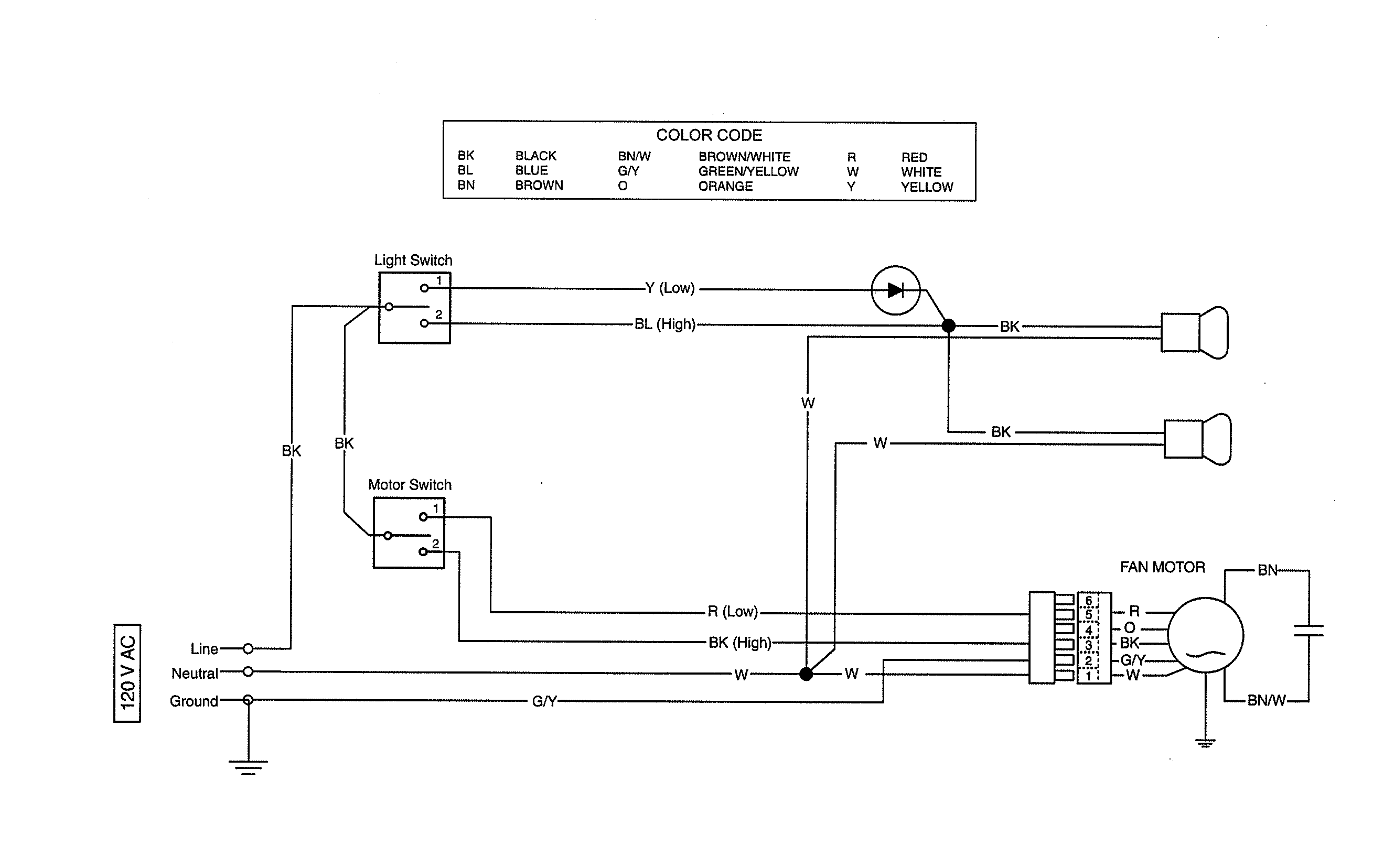

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 15 parts  |
Broan Range Hood Vent Damper (replaces R680508) SR680508
#2

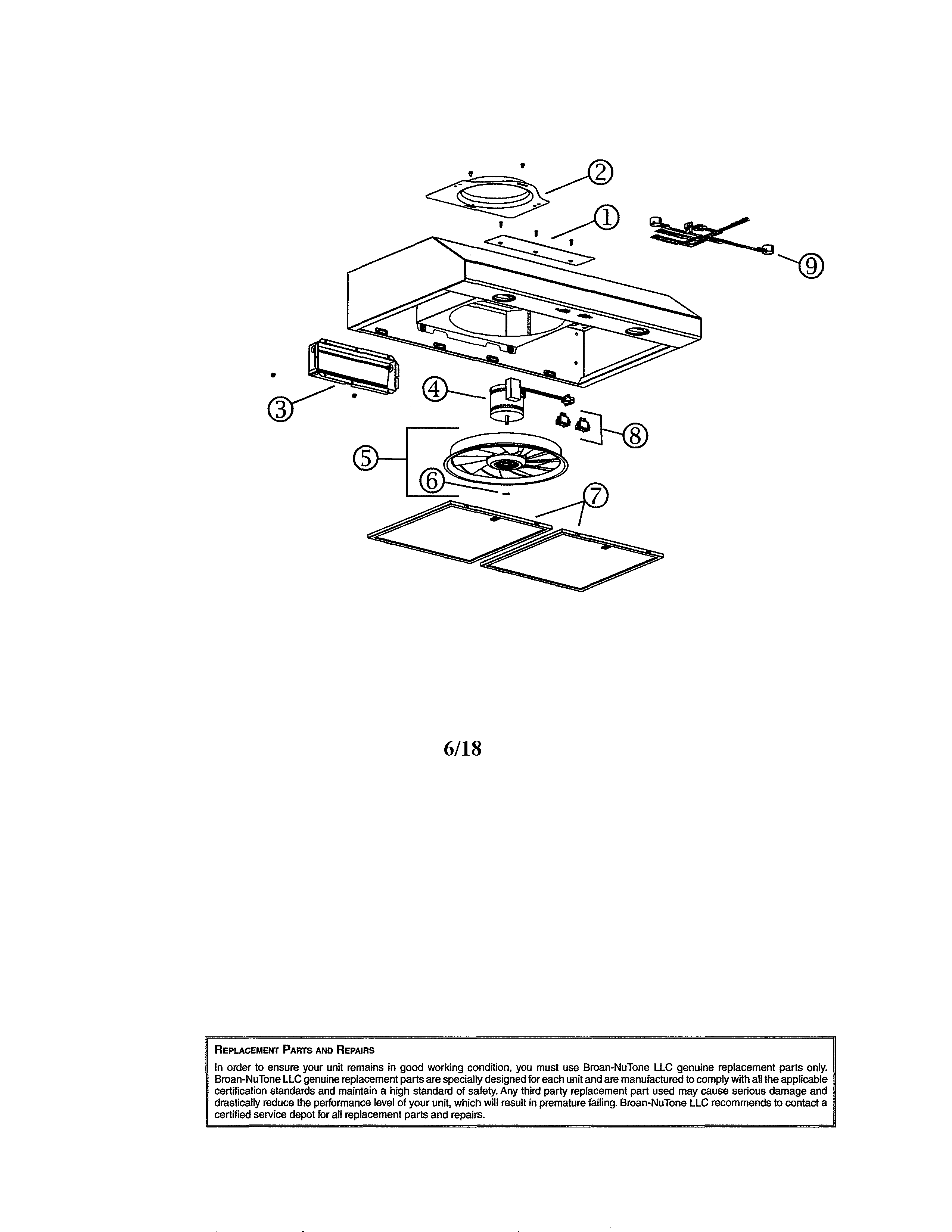

Range hood diagram

Broan range hood vent damper (replaces r680508)

Part #SR680508

$30.72 |
16% OFF Phone Price : $36.72
In Stock
Range Hood Fan Blade Retainer SR99420635
#6

Range hood diagram

Range hood fan blade retainer

Part #SR99420635

This item is not returnable
$25.71
In Stock
Range Hood Fan Motor Assembly S97020408
#4

Range hood diagram

Range hood fan motor assembly

Part #S97020408

$65.15
In Stock
Range Hood Wire Harness S97020448
#9

Range hood diagram

Range hood wire harness

Part #S97020448

This item is not returnable
$24.09 |
20% OFF Phone Price : $30.09
In Stock
Parts Bag Including: 4 Washer, 1 Suction Cup Tool, 4 Metal Screws #8-18 X 1/2" S97020292

#NI02

All parts diagram

Parts bag including: 4 washer, 1 suction cup tool, 4 metal screws #8-18 x 1/2"

Part #S97020292

The manufacturer no longer makes this part, and there's no substitute part

Easy Install Kit (including Hardware) S97020470

#NI06

All parts diagram

Easy install kit (including hardware)

Part #S97020470

The manufacturer no longer makes this part, and there's no substitute part

Recirculation Cover Plate, Biscuit (including Screws) S97020471
#1

Range hood diagram

Recirculation cover plate, biscuit (including screws)

Part #S97020471

The manufacturer no longer makes this part, and there's no substitute part

Wiring Cover S98011637

#NI01

All parts diagram

Wiring cover

Part #S98011637

The manufacturer no longer makes this part, and there's no substitute part

Grease Filter - Open Mesh - Type D1 (set Of 2) S99010430-003
#7

Range hood diagram

Grease filter - open mesh - type d1 (set of 2)

Part #S99010430-003

The manufacturer no longer makes this part, and there's no substitute part

3 1/4" X 10" Damper Assy (incl Screws) S97020534
#3

Range hood diagram

3 1/4" x 10" damper assy (incl screws)

Part #S97020534

The manufacturer no longer makes this part, and there's no substitute part
