Carpet Cleaner

Model # 7887 Official Bissell spot bot

Here are the diagrams and repair parts for Official Bissell 7887 spot bot, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
7887 Spot Bot
Tank Latch 2036649
#1

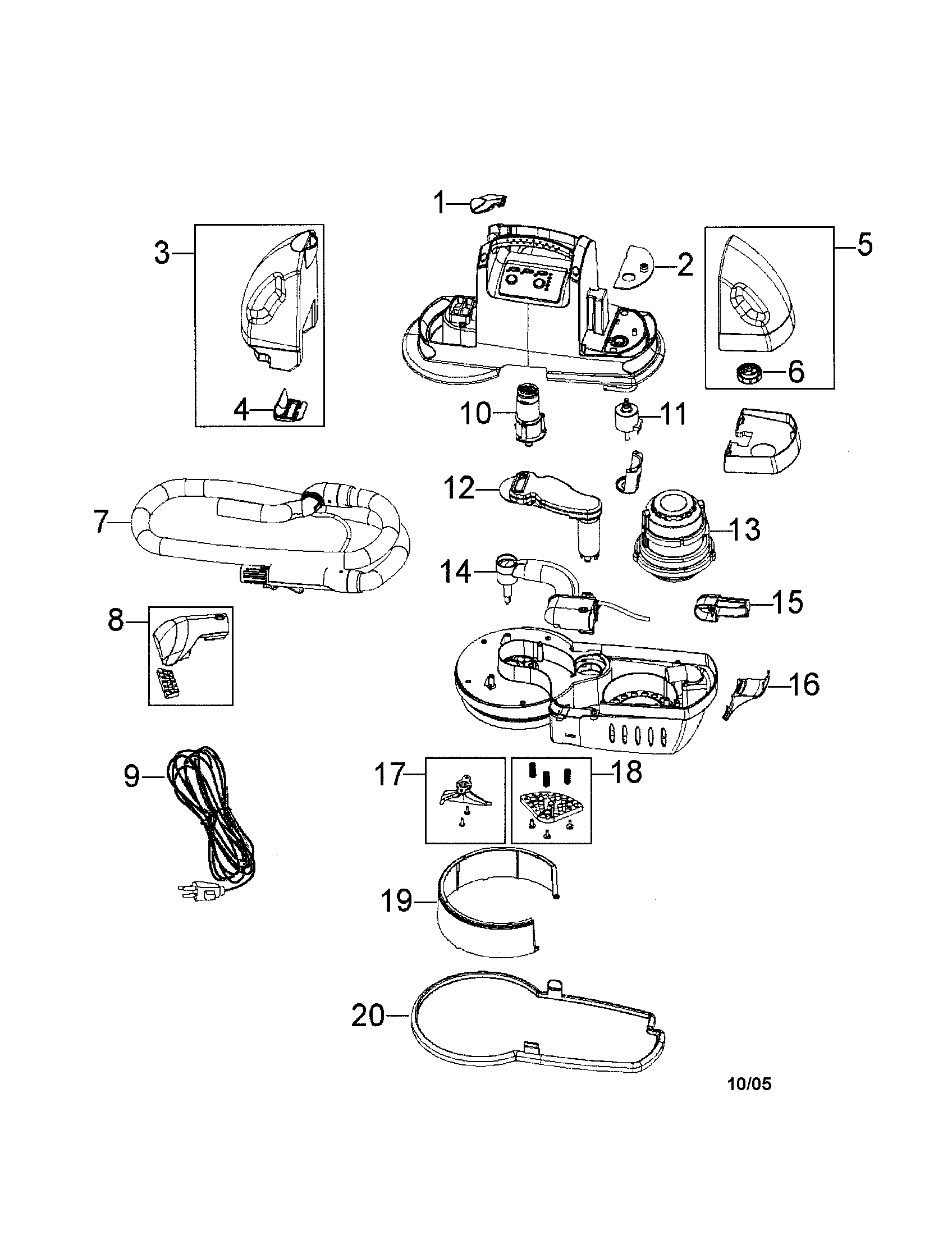

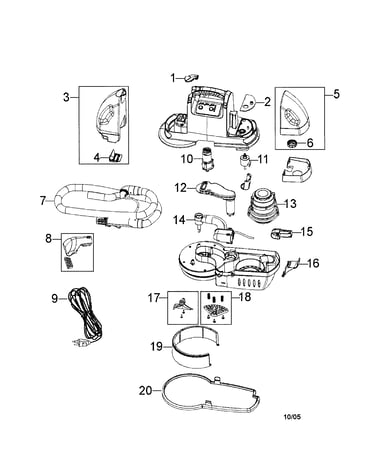

Spot bot diagram

Tank latch

Part #2036649

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Brush 2036669
#18

Spot bot diagram

Vacuum brush

Part #2036669

The manufacturer no longer makes this part, and there's no substitute part

Tray 2036647
#20

Spot bot diagram

Tray

Part #2036647

The manufacturer no longer makes this part, and there's no substitute part

Pump 2036659
#11

Spot bot diagram

Pump

Part #2036659

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Nozzle 2036667
#17

Spot bot diagram

Vacuum nozzle

Part #2036667

The manufacturer no longer makes this part, and there's no substitute part

Clean Tank 2036643
#5

Spot bot diagram

Clean tank

Part #2036643

The manufacturer no longer makes this part, and there's no substitute part

Valve 2036646
#4

Spot bot diagram

Valve

Part #2036646

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose 2036665
#7

Spot bot diagram

Vacuum hose

Part #2036665

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor 2036656
#13

Spot bot diagram

Vacuum motor

Part #2036656

The manufacturer no longer makes this part, and there's no substitute part

Cap Insert 2036644
#6

Spot bot diagram

Cap insert

Part #2036644

The manufacturer no longer makes this part, and there's no substitute part
