Model # 3639537713 Official Kenmore refrigerator
Here are the diagrams and repair parts for Official Kenmore 3639537713 refrigerator, as well as links to manuals and error code tables, if available.
By Schematic
By Part

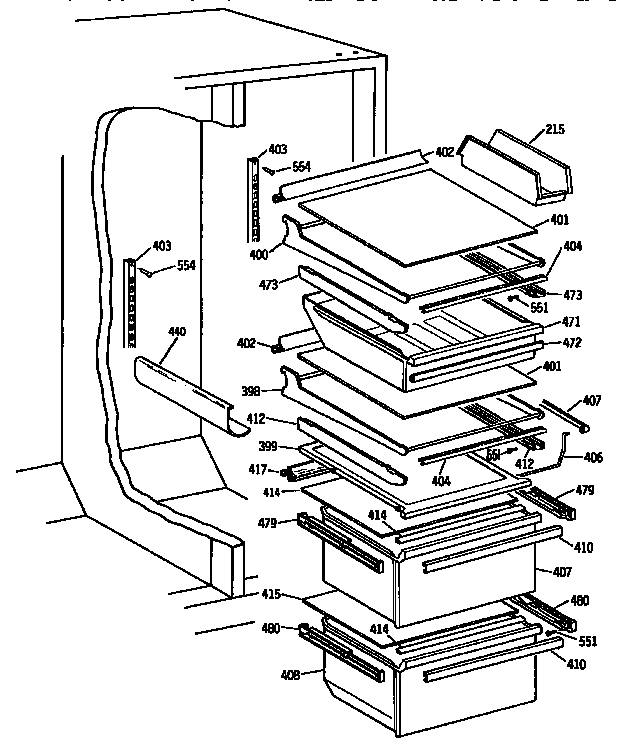

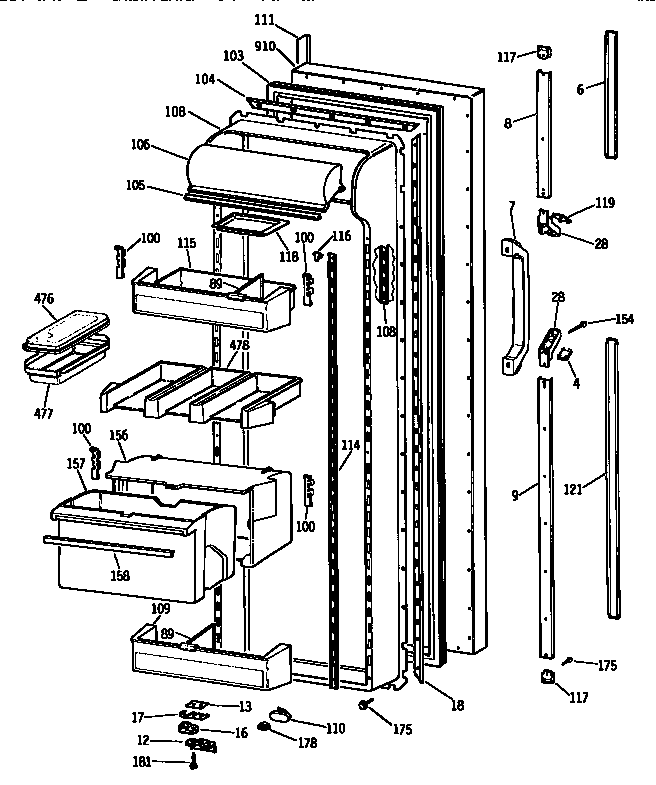

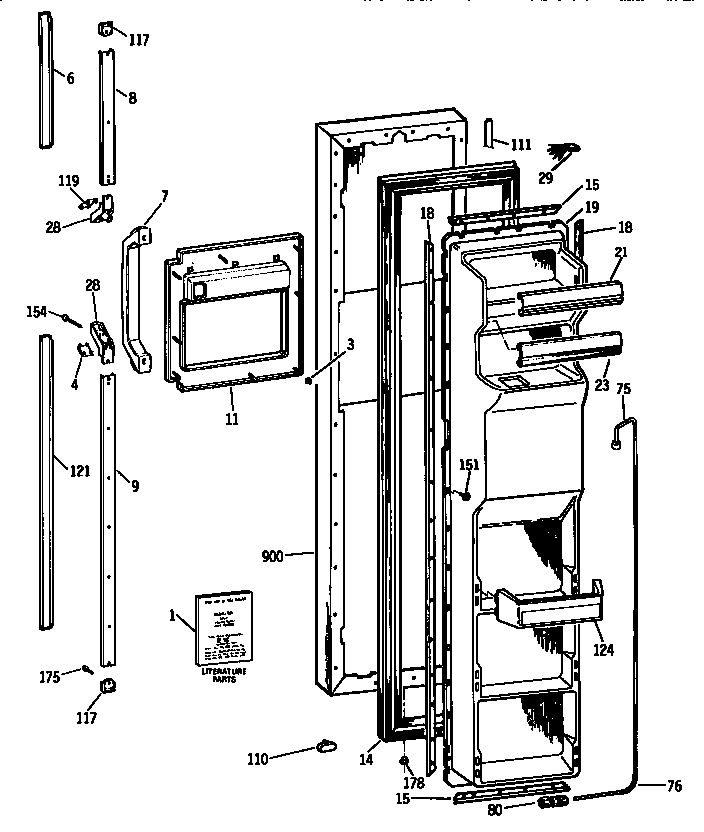

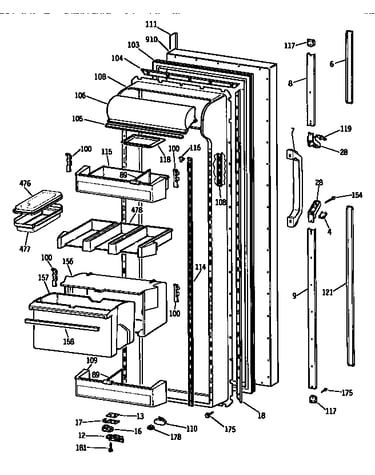

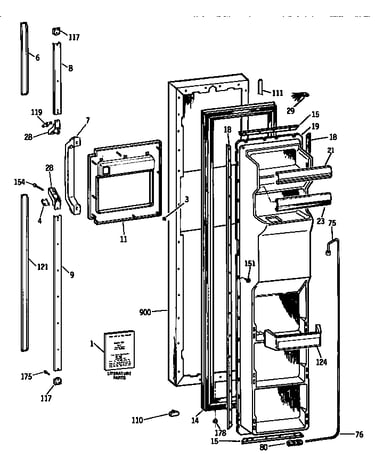

SELECT DIAGRAM
Browse Parts for
3639537713 Refrigerators
#820

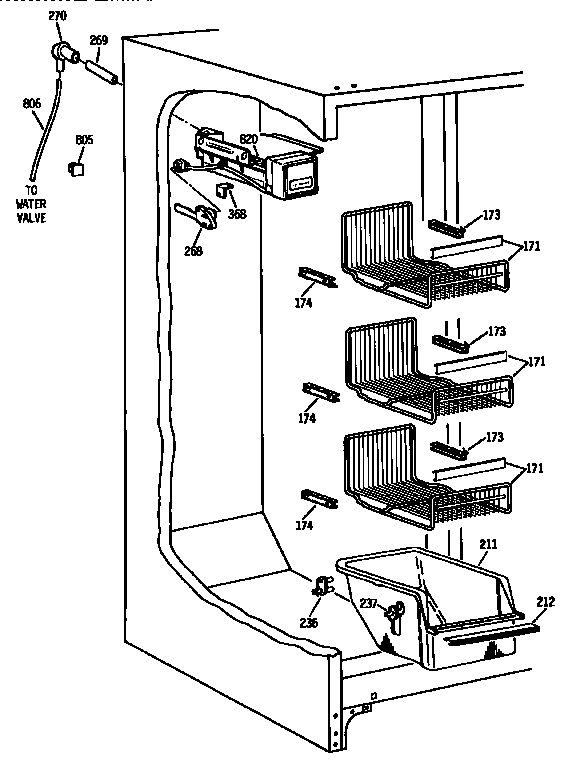

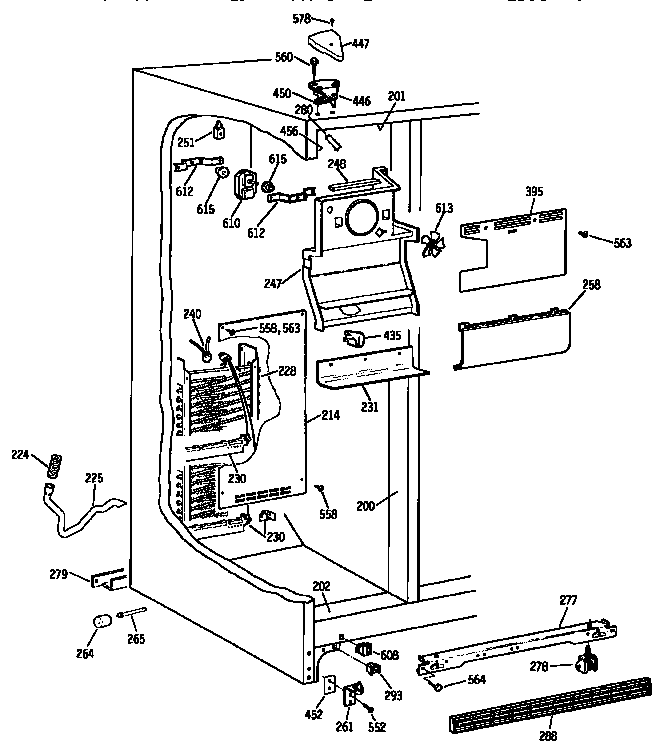

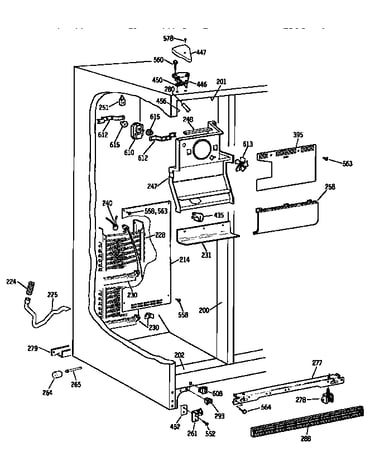

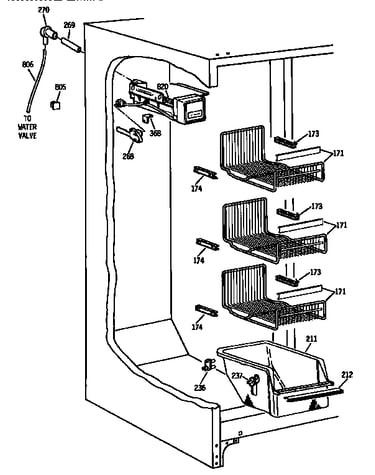

Freezer section diagram
Refrigerator ice maker
Part #WR30X0307
Replaced by #WR30X10093
?
Manufacturer substitution
This part replaces WR30X0307. Substitute parts can look different from the original.
$185.44 |
6% OFF Phone Price : $197.44
In Stock
#62

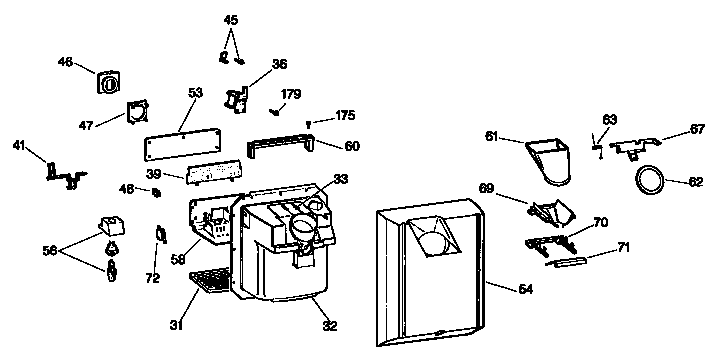

Dispenser diagram
Dr reces asm
Part #WR17X3093
Replaced by #WR17X11653
?
Manufacturer substitution
This part replaces WR17X3093. Substitute parts can look different from the original.
$14.04 |
12% OFF Phone Price : $16.04
In Stock
#378

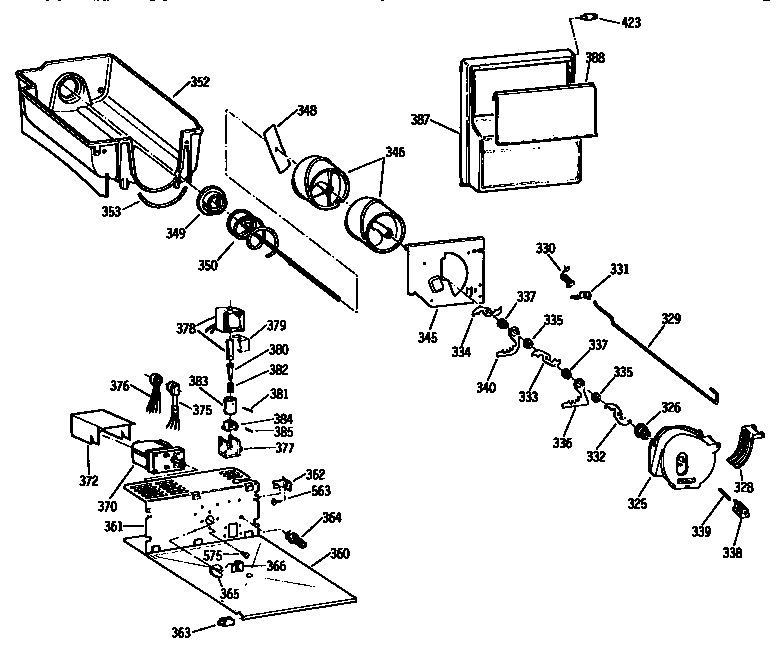

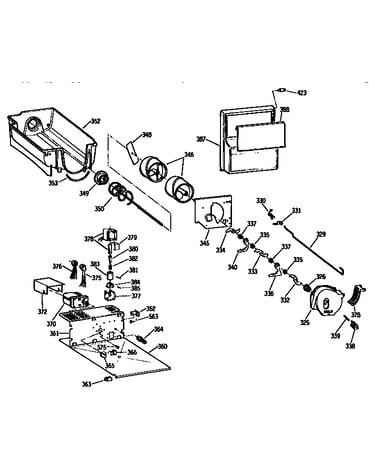

Ice bucket diagram
Refrigerator solenoid arm assembly
Part #WR62X0058
Replaced by #WR62X23154
?
Manufacturer substitution
This part replaces WR62X0058. Substitute parts can look different from the original.
$87.82 |
6% OFF Phone Price : $93.82
In Stock
#240
Freezer section diagram
Refrigerator defrost thermostat
Part #WR50X0122
Replaced by #WR50X122
?
Manufacturer substitution
This part replaces WR50X0122. Substitute parts can look different from the original.
$37.61 |
14% OFF Phone Price : $43.61
In Stock
#812

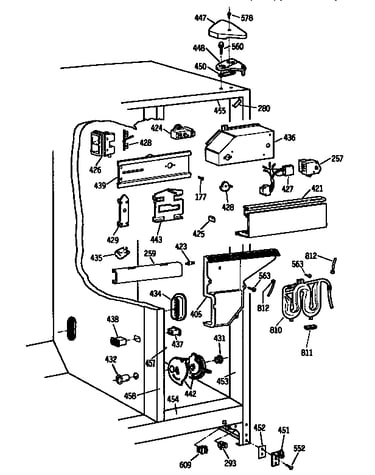

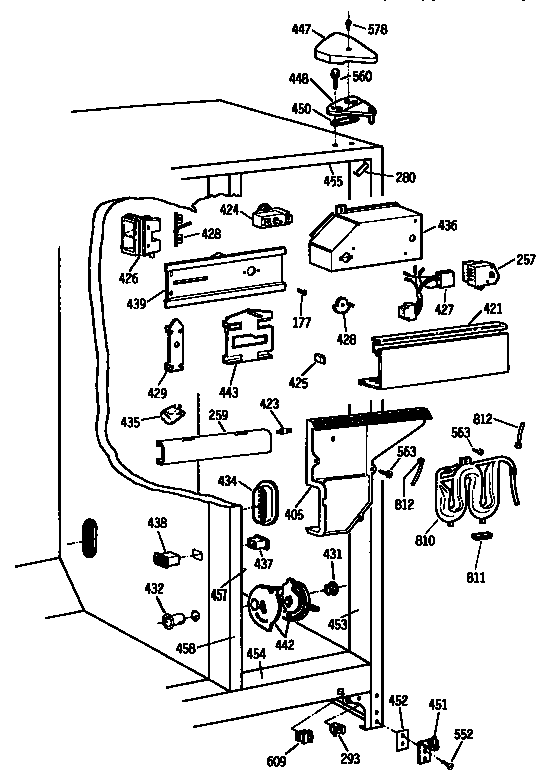

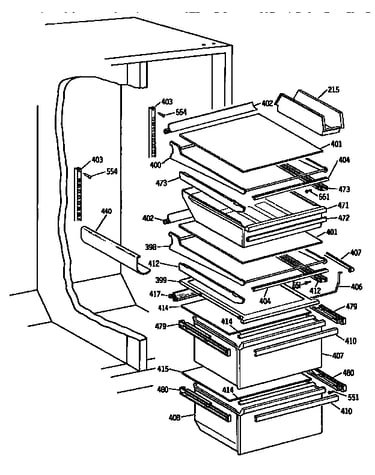

Fresh food section diagram
Refrigerator tube
Part #WR17X3104
Replaced by #WR17X2891
?
Manufacturer substitution
This part replaces WR17X3104. Substitute parts can look different from the original.
$24.41 |
20% OFF Phone Price : $30.41
In Stock
#257
Fresh food section diagram
Refrigerator defrost control
Part #WR09X0489
Replaced by #WR9X489
?
Manufacturer substitution
This part replaces WR09X0489. Substitute parts can look different from the original.
$39.68 |
13% OFF Phone Price : $45.68
In Stock
#800

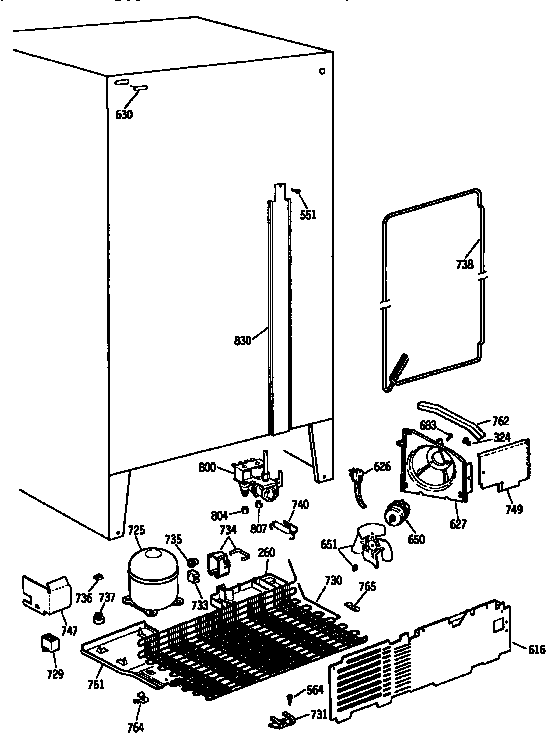

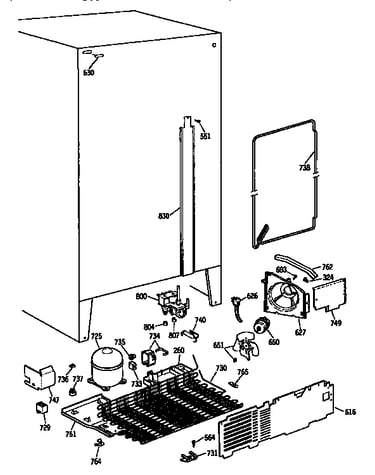

Unit parts diagram
Refrigerator water valve
Part #WR57X0111
Replaced by #WR57X10051
?
Manufacturer substitution
This part replaces WR57X0111. Substitute parts can look different from the original.
$63.23 |
9% OFF Phone Price : $69.23
In Stock
#650
Unit parts diagram
Fan motor
Part #WR60X0187
Replaced by #WR60X187
?
Manufacturer substitution
This part replaces WR60X0187. Substitute parts can look different from the original.
$202.41 |
10% OFF Was : $224.89
In Stock
#230
Freezer section diagram
Heater set
Part #WR51X0372
Replaced by #WR51X443
?
Manufacturer substitution
This part replaces WR51X0372. Substitute parts can look different from the original.
$156.56 |
7% OFF Phone Price : $168.56
In Stock
#381
Ice bucket diagram
Refrigerator spiral pin
Part #WR02X4257
Replaced by #WR62X26536
?
Manufacturer substitution
This part replaces WR02X4257. Substitute parts can look different from the original.
$57.88 |
9% OFF Phone Price : $63.88
In Stock
