Craftsman
Impact Wrench

Model # 756188900 Official Craftsman 1/2" air impact wrench

Here are the diagrams and repair parts for Official Craftsman 756188900 1/2" air impact wrench, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |

Rotor 130357
#36

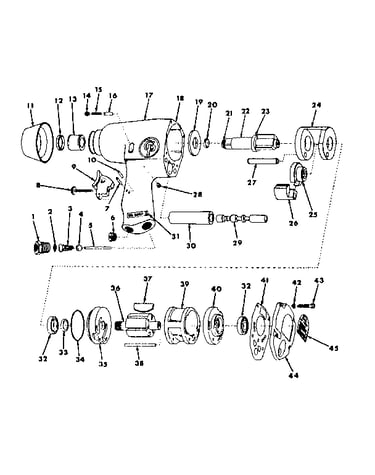

Unit parts diagram

Rotor

Part #130357

The manufacturer no longer makes this part, and there's no substitute part

Roll Pin 059034
#10

Unit parts diagram

Roll pin

Part #059034

The manufacturer no longer makes this part, and there's no substitute part

Dowel 085245
#38

Unit parts diagram

Dowel

Part #085245

The manufacturer no longer makes this part, and there's no substitute part

Clutch Dog 130308
#26

Unit parts diagram

Clutch dog

Part #130308

The manufacturer no longer makes this part, and there's no substitute part

Stop Pin 129070
#16

Unit parts diagram

Stop pin

Part #129070

The manufacturer no longer makes this part, and there's no substitute part

Ring 087266
#34

Unit parts diagram

Ring

Part #087266

The manufacturer no longer makes this part, and there's no substitute part

Inter Bushng 130337
#2

Unit parts diagram

Inter bushng

Part #130337

The manufacturer no longer makes this part, and there's no substitute part

Screw 088193
#43

Unit parts diagram

Screw

Part #088193

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 091250
#42

Unit parts diagram

Lock washer

Part #091250

The manufacturer no longer makes this part, and there's no substitute part

Pin 130353
#27

Unit parts diagram

Pin

Part #130353

The manufacturer no longer makes this part, and there's no substitute part
