Model # GC-W141BTG Official LG wine cooler

Here are the diagrams and repair parts for Official LG GC-W141BTG wine cooler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |

Restrainer 5072JQ3002B
#316B

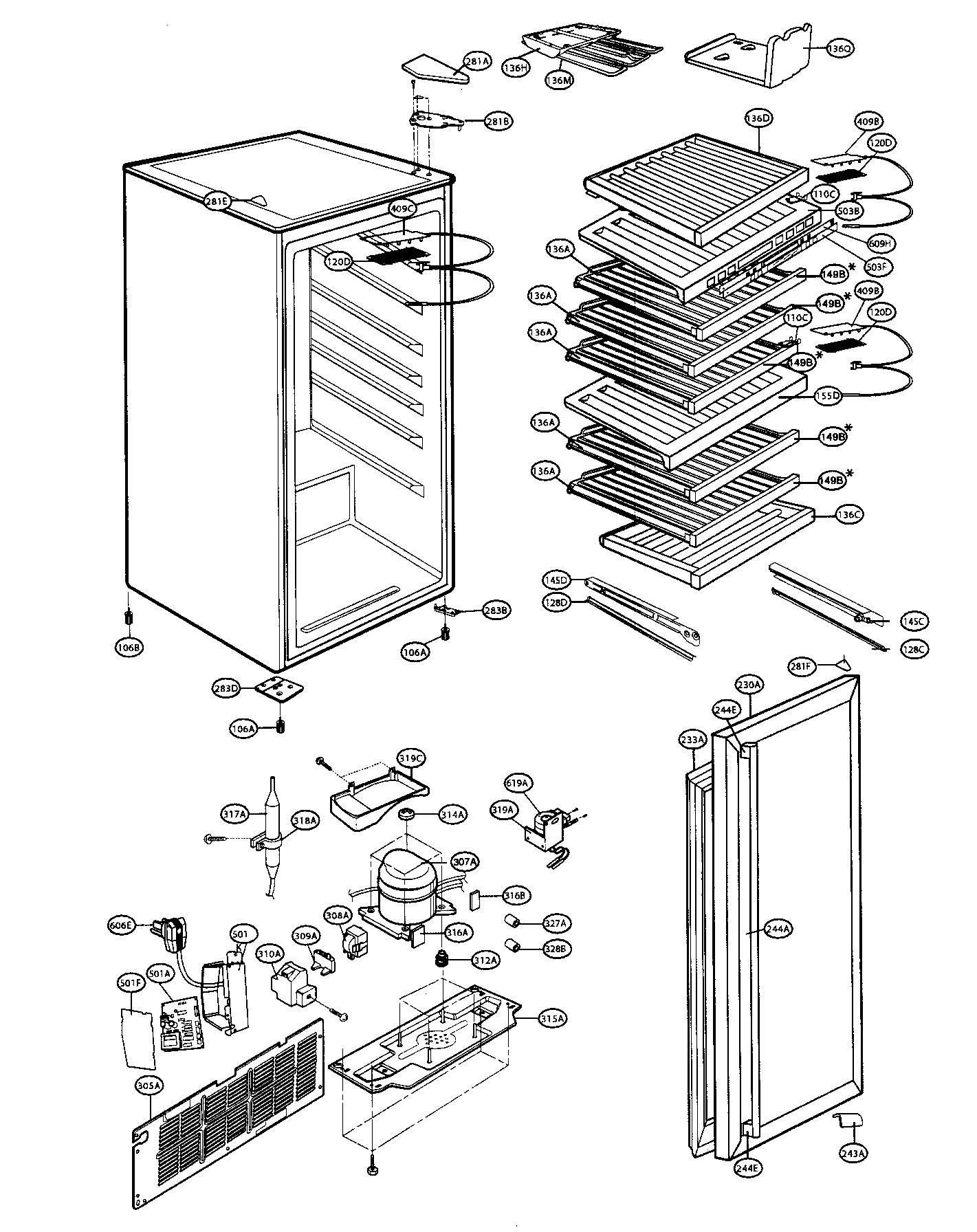

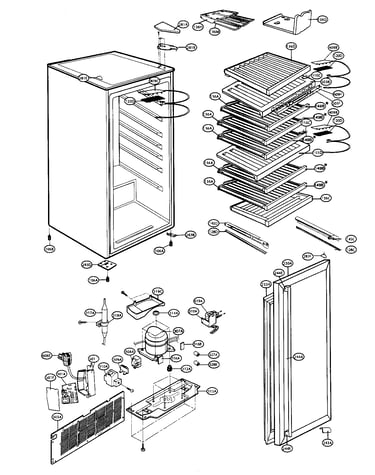

Cabinet parts diagram

Restrainer

Part #5072JQ3002B

In Stock
Holder 3806JQ1022B
#136H

Cabinet parts diagram

Holder

Part #3806JQ1022B

In Stock
Kenmore Elite Hinge Assembly 4775JQ1001A
#283B

Cabinet parts diagram

Kenmore elite hinge assembly

Part #4775JQ1001A

In Stock
Kenmore Elite Drip Tray Assembly 3391JQ2009A
#319C

Cabinet parts diagram

Kenmore elite drip tray assembly

Part #3391JQ2009A

This item is not returnable
In Stock
Kenmore Elite Rail Guide Assembly 4975JQ2001A
#145C

Cabinet parts diagram

Kenmore elite rail guide assembly

Part #4975JQ2001A

In Stock
Handle 3650JQ2020L
#244A

Cabinet parts diagram

Handle

Part #3650JQ2020L

In Stock
Kenmore Elite Hinge Assembly 4775JQ2025A
#281B

Cabinet parts diagram

Kenmore elite hinge assembly

Part #4775JQ2025A

This item is not returnable
In Stock
Lg Overload 0 6750C-0004SP
#309A

Cabinet parts diagram

Lg overload 0

Part #6750C-0004SP

In Stock
Stopper 4J03277A
#314A

Cabinet parts diagram

Stopper

Part #4J03277A

This item is not returnable
$6.98
13% OFF Phone Price : $7.98
In Stock
Kenmore Elite Lamp Cover 3550JQ2041A
#120D

Cabinet parts diagram

Kenmore elite lamp cover

Part #3550JQ2041A

In Stock
