GE
Gas Range

Model # JGBS22GEV3AD Official GE gas range

Here are the diagrams and repair parts for Official GE JGBS22GEV3AD gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

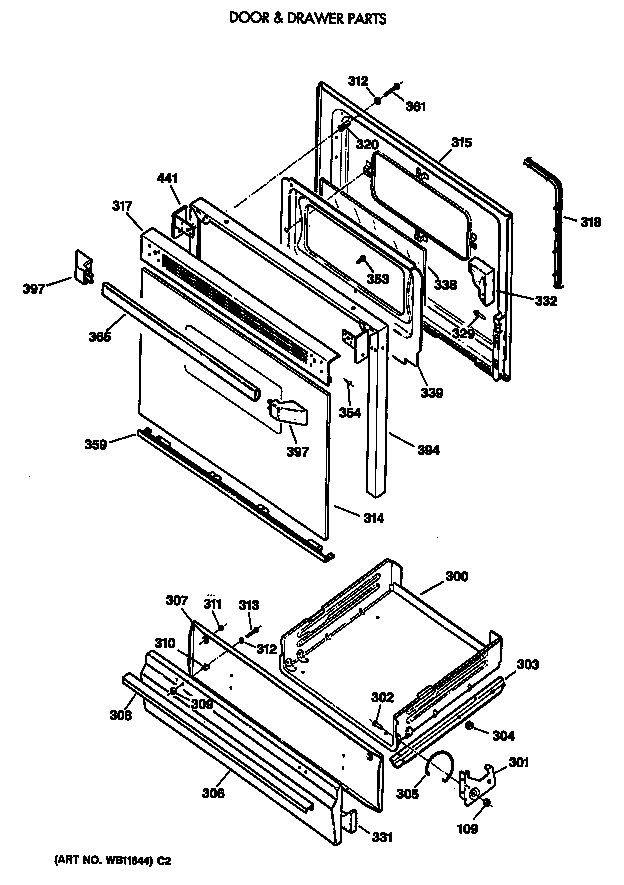

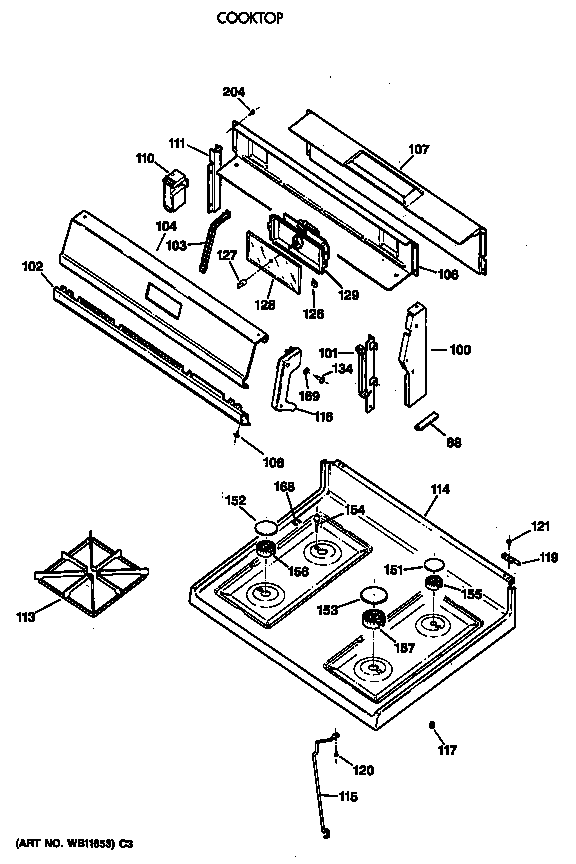

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 188 parts  |
Igniter WB13K0004
#28B

Gas & burner parts diagram

Igniter

Part #WB13K0004

Replaced by #WB2X9154

?
Manufacturer substitution
This part replaces WB13K0004. Substitute parts can look different from the original.
BEST SELLER
$84.11 |
7% OFF Phone Price : $90.11
In Stock
40a15bulb STD372401
#257A

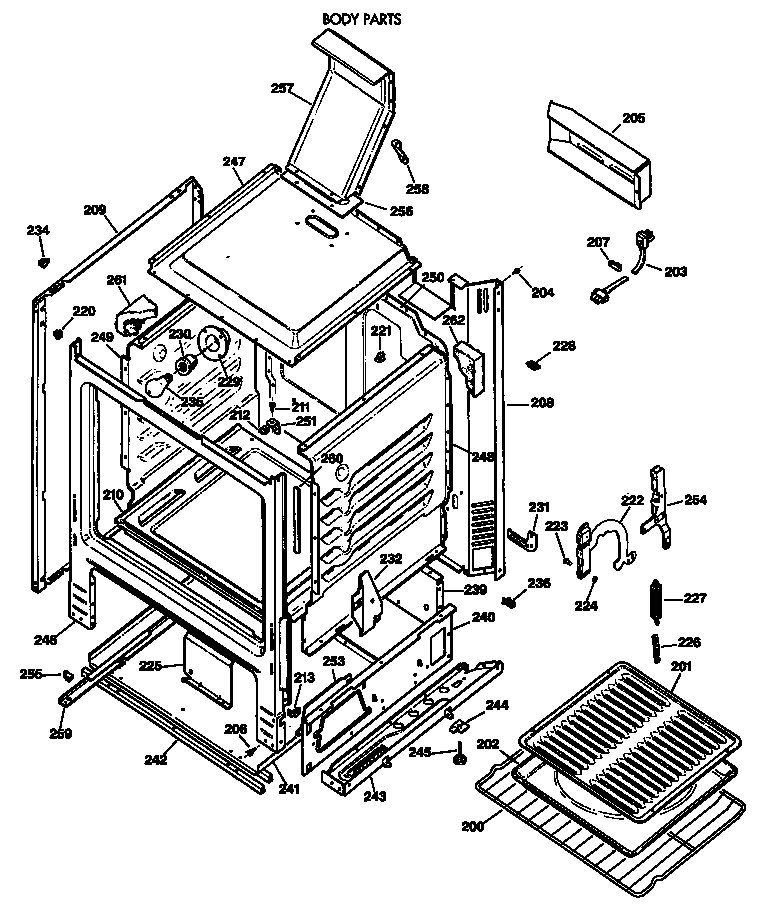

Body parts diagram

40a15bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Range Surface Burner Valve (replaces Wb21k40) WB21K12
#15A

Gas & burner parts diagram

Range surface burner valve (replaces wb21k40)

Part #WB21K12

$77.48 |
7% OFF Phone Price : $83.48
In Stock
Microwave Door Handle (replaces Wb15x5203) WB15K5076

#NI

All parts diagram

Microwave door handle (replaces wb15x5203)

Part #WB15K5076

$33.13 |
15% OFF Phone Price : $39.13
In Stock
Range Control Panel Felt Pad (replaces Wb32k0002, Wb32k7) WB32K2
#260

Body parts diagram

Range control panel felt pad (replaces wb32k0002, wb32k7)

Part #WB32K2

$34.43 |
15% OFF Phone Price : $40.43
In Stock
Range Screw WB1K42
Range screw

Part #WB1K42

Replaced by #WB1K5062

?
Manufacturer substitution
This part replaces WB1K42. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Surface Burner Valve Guard WB2K24
#13

Gas & burner parts diagram

Range surface burner valve guard

Part #WB2K24

This item is not returnable
$27.25 |
18% OFF Phone Price : $33.25
In Stock
Range Oven Gas Valve WB19K13
#214

Gas & burner parts diagram

Range oven gas valve

Part #WB19K13

$187.99 |
6% OFF Phone Price : $199.99
In Stock
Range Oven Burner Safety Valve Bracket WB2K65
#215

Gas & burner parts diagram

Range oven burner safety valve bracket

Part #WB2K65

$6.51 |
13% OFF Phone Price : $7.51
In Stock
Range Oven Door Hinge Screw WB1K53
#254A

Body parts diagram

Range oven door hinge screw

Part #WB1K53

$7.69 |
12% OFF Phone Price : $8.69
In Stock
