Model # DCM900BK TYPE 1 Official Black & Decker coffee maker

Here are the diagrams and repair parts for Official Black & Decker DCM900BK-TYPE-1 coffee maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Kenmore Wire Connect 167663-00
#18

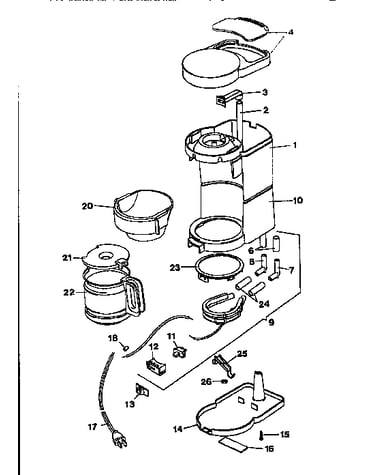

Replacement parts diagram

Kenmore wire connect

Part #167663-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Heater Assembly 182770-00
#9

Replacement parts diagram

Black & decker heater assembly

Part #182770-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 182792-03
#15

Replacement parts diagram

Screw

Part #182792-03

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Lid&cover 284929-00
#4

Replacement parts diagram

Black & decker lid&cover

Part #284929-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Label 168933-12
#16

Replacement parts diagram

Black & decker label

Part #168933-12

The manufacturer no longer makes this part, and there's no substitute part

Reservoir 168913-04
#1

Replacement parts diagram

Reservoir

Part #168913-04

The manufacturer no longer makes this part, and there's no substitute part

Base Cover 168909-06
#14

Replacement parts diagram

Base cover

Part #168909-06

The manufacturer no longer makes this part, and there's no substitute part

Riser Outl 168907-01
#3

Replacement parts diagram

Riser outl

Part #168907-01

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Hex Nut 99376-04
#26

Replacement parts diagram

Kenmore hex nut

Part #99376-04

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Clamp Bracket 167996-00
#25

Replacement parts diagram

Kenmore clamp bracket

Part #167996-00

The manufacturer no longer makes this part, and there's no substitute part
