Heating & Cooling Combined Unit

Model # PGF042K100A Official ICP central package

Here are the diagrams and repair parts for Official ICP PGF042K100A central package, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Furnace Pilot Igniter And Sensor (replaces B14010-11s, Q3400a1040) 1009524
#39

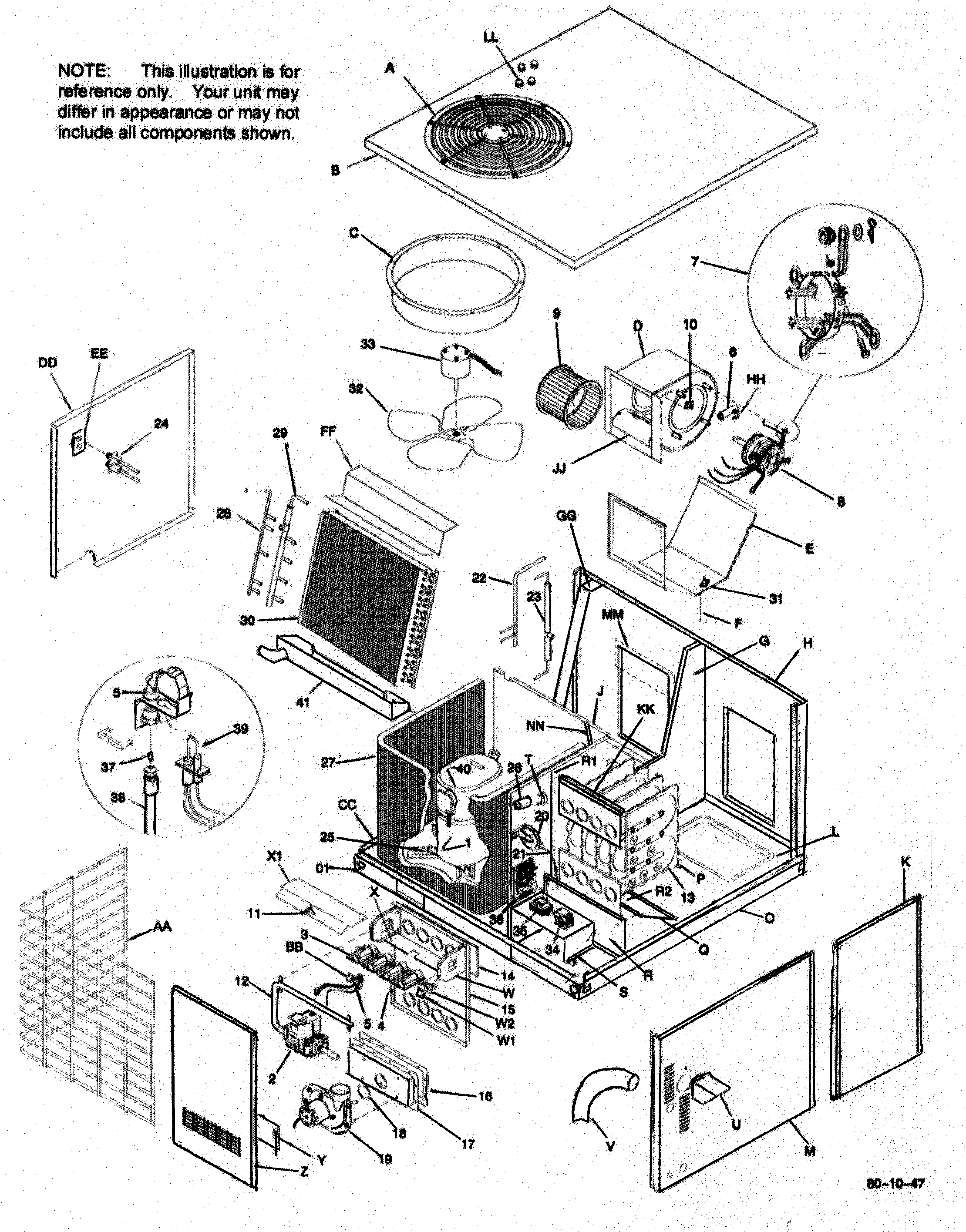

Central package diagram

Furnace pilot igniter and sensor (replaces b14010-11s, q3400a1040)

Part #1009524

$166.19 |
7% OFF Phone Price : $178.19
In Stock
Furnace Inducer Vent Motor Assembly 1085571
#19

Central package diagram

Furnace inducer vent motor assembly

Part #1085571

$296.73 |
$12.00 OFF Phone Price : $308.73
In Stock
Transformer 1082611
#35

Central package diagram

Transformer

Part #1082611

$101.35 |
11% OFF Phone Price : $113.35
In Stock
Limit Switch 1000735
#10

Central package diagram

Limit switch

Part #1000735

Replaced by #1013105

?
Manufacturer substitution
This part replaces 1000735. Substitute parts can look different from the original.
This item is not returnable
$15.14
In Stock
Cap Rnrd 1094959
#6

Central package diagram

Cap rnrd

Part #1094959

The manufacturer no longer makes this part, and there's no substitute part

Ht Ex M Ss + 1008878
#13

Central package diagram

Ht ex m ss +

Part #1008878

Replaced by #1014491

?
Manufacturer substitution
This part replaces 1008878. Substitute parts can look different from the original.
$799.23
In Stock
Furnace Fan Control Board 1084197
#36

Central package diagram

Furnace fan control board

Part #1084197

$208.84 |
5% OFF Phone Price : $220.84
In Stock
Cover-vent 1096970
#U

Central package diagram

Cover-vent

Part #1096970

$443.00
In Stock
Panel-accs 1084150
#Z

Central package diagram

Panel-accs

Part #1084150

$107.38
In Stock
Control Tod 34335000
#31

Central package diagram

Control tod

Part #34335000

$53.09
In Stock
