Range Hood

Model # RH3736XLT3 Official Whirlpool range hood

Here are the diagrams and repair parts for Official Whirlpool RH3736XLT3 range hood, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
RH3736XLT3 Range Hood
Nut 8190880
#4

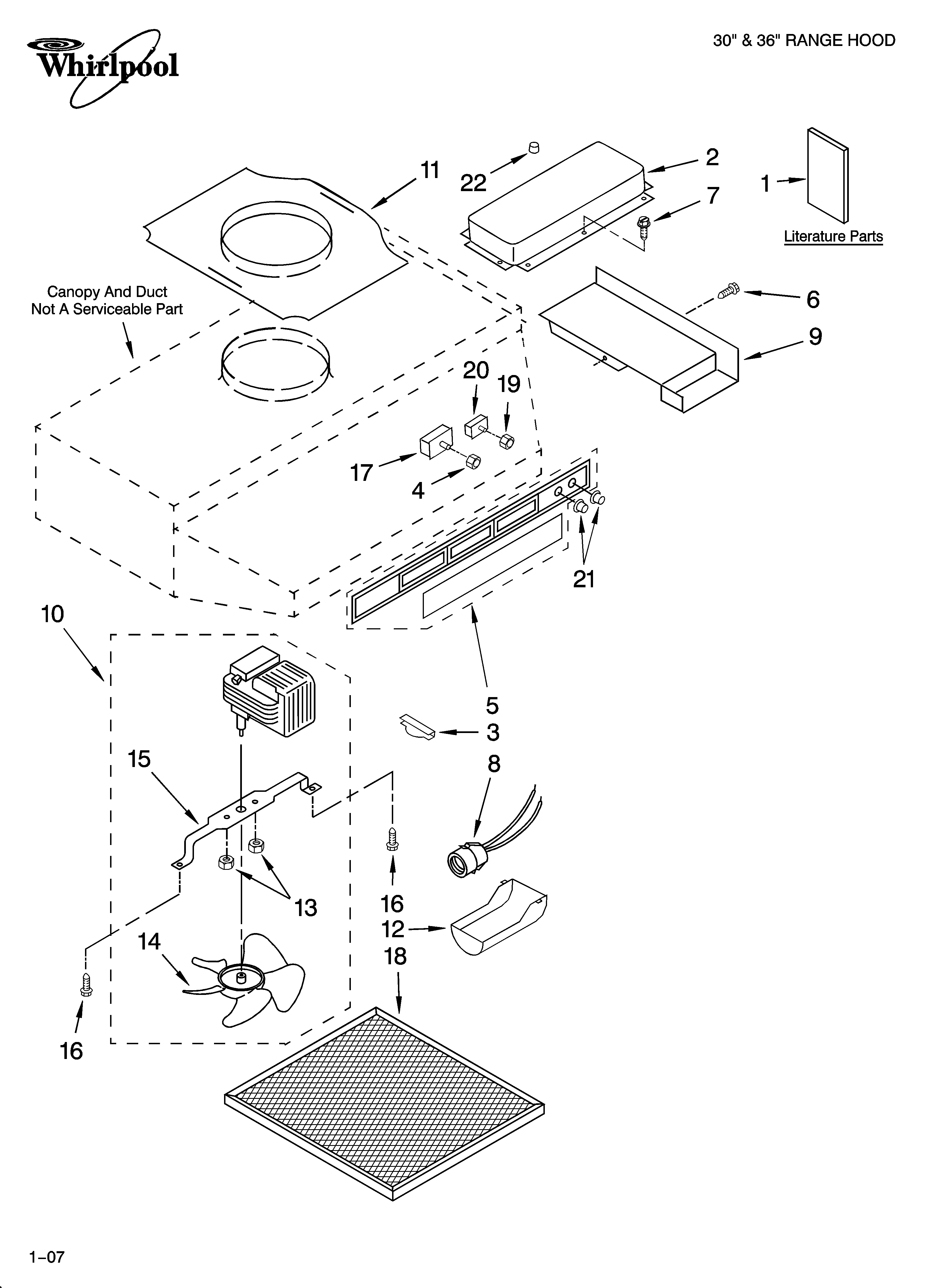

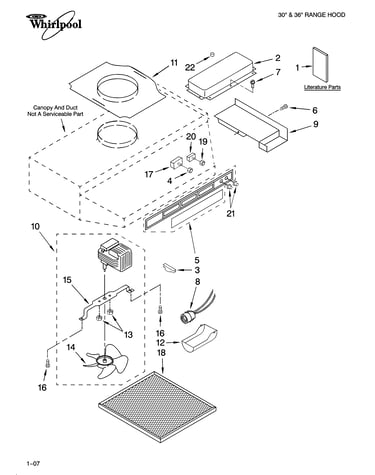

Range hood parts diagram

Nut

Part #8190880

This item is not returnable
$3.29
In Stock
Screw 8190877
#7

Range hood parts diagram

Screw

Part #8190877

Replaced by #WP7101P246-60

?
Manufacturer substitution
This part replaces 8190877. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Range Control Knob 8190792
#21

Range hood parts diagram

Range control knob

Part #8190792

Replaced by #WP8190792

?
Manufacturer substitution
This part replaces 8190792. Substitute parts can look different from the original.
5 (2)
This item is not returnable
$14.55 |
12% OFF Phone Price : $16.55
In Stock
Light Lens 8186930
#12

Range hood parts diagram

Light lens

Part #8186930

Replaced by #WP8186930

?
Manufacturer substitution
This part replaces 8186930. Substitute parts can look different from the original.
3 (2)
This item is not returnable
$22.04 |
21% OFF Phone Price : $28.04
In Stock
Fan Blade 8190873
#14

Range hood parts diagram

Fan blade

Part #8190873

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Control Knob 8190793
#21A

Range hood parts diagram

Range hood control knob

Part #8190793

The manufacturer no longer makes this part, and there's no substitute part

Duct Plate 8189869
#11

Range hood parts diagram

Duct plate

Part #8189869

The manufacturer no longer makes this part, and there's no substitute part

Motor Bracket 8186934
#15

Range hood parts diagram

Motor bracket

Part #8186934

The manufacturer no longer makes this part, and there's no substitute part

Rotary Switch 8186950
#17

Range hood parts diagram

Rotary switch

Part #8186950

The manufacturer no longer makes this part, and there's no substitute part

Socket 8190871
#8

Range hood parts diagram

Socket

Part #8190871

The manufacturer no longer makes this part, and there's no substitute part
